KTU-4245-RC01-TXRemote Control Toy

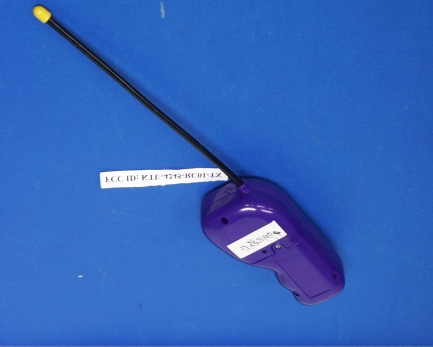

External Photographs

Internal Photographs

FCC ID : KTU-4245-RC01-TX Operation Description : The equipment under test (EUT) is a transmitter for Remote Control Toy operating at 49.860 MHz which is controlled by a L.C. Oscillator. The EUT is powered by a 9V battery. There is a Forward control button on the EUT, once the button has been pressed, the receiver will move forward continuously. Circuit Description : The brief circuit description is listed as follows: -Q2, Q3 and associated circuit act as modulation signal generator. -Q1, T2, C4 and associated circuit act as L.C. Oscillator. Antenna Used : A permanent wire antenna has been used.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited FCC ID : KTU-4245-RC01-TX Supertoys Industrial Company Ltd. Application For Certification (FCC ID: KTU-4245-RC01-TX) Transmitter, Model : 4246 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-99 edition] WO# 0104946 WN/at September 12, 2001 INTERTEK TESTING SERVICES FCC ID: KTU-4245-RC01-TX i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1:General Description EXHIBIT 2:System Test Configuration EXHIBIT 3:Emission Results EXHIBIT 4:Equipment Photographs EXHIBIT 5:Product Labelling EXHIBIT 6:Technical Specifications EXHIBIT 7:Instruction Manual EXHIBIT 8:Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: KTU-4245-RC01-TX ii MEASUREMENT/TECHNICAL REPORT Supertoys Industrial Company Ltd. - MODEL: 4246 FCC ID: KTU-4245-RC01-TX September 12, 2001 This report concerns (check one:)Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes No X If no, assumed Part 15, Subpart C for intentional radiator Report prepared by:Wilbur Ng Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone:852-2173-8502 Fax:852-2742-9149 INTERTEK TESTING SERVICES FCC ID: KTU-4245-RC01-TX iii Table of Contents 1.0 General Description.......................................................................................................................2 1.1 Product Description...................................................................................................................2 1.2 Related Submittal(s) Grants.....................................................................................................2 1.3 Test Methodology......................................................................................................................3 1.4 Test Facility...............................................................................................................................3 2.0 System Test Configuration............................................................................................................5 2.1 Justification...............................................................................................................................5 2.2 EUT Exercising Software..........................................................................................................5 2.3 Special Accessories....................................................................................................................5 2.4 Equipment Modification...........................................................................................................6 2.5 Support Equipment List and Description.................................................................................6 3.0 Emission Results............................................................................................................................8 3.1 Field Strength Calculation........................................................................................................9 3.1 Field Strength Calculation (cont’d).........................................................................................10 3.2 Radiated Emission Configuration Photograph......................................................................11 3.3 Radiated Emission Data.........................................................................................................12 4.0 Equipment Photographs.............................................................................................................15 5.0 Product Labelling.........................................................................................................................17 6.0 Technical Specifications..............................................................................................................19 7.0 Instruction Manual......................................................................................................................21 8.0 Miscellaneous Information.........................................................................................................23 8.1 Measured Bandwidth..............................................................................................................24 8.2 Discussion of Pulse Desensitization.......................................................................................25 8.3 Calculation of Average Factor.................................................................................................26 8.4 Emissions Test Procedures.....................................................................................................27 8.4 Emissions Test Procedures (cont'd)........................................................................................28 INTERTEK TESTING SERVICES FCC ID: KTU-4245-RC01-TX iv List of attached file Exhibit typeFile Descriptionfilename Test ReportTest Reportreport.pdf Operation DescriptionTechnical Descriptiondescri.pdf Test Setup PhotoRadiated Emissionradiated1.jpg to radiated2.jpg Test ReportBandwidth Plotbw.pdf External PhotoExternal Photoophoto1.jpg to ophoto2.jpg Internal PhotoInternal Photoiphoto1.jpg to iphoto3.jpg Block DiagramBlock Diagramblock.pdf SchematicsCircuit Diagramcircuit.pdf ID Label/LocationLabel Artwork and Locationlabel.pdf Use…

Text truncated - open the document above for the full version.

Test Setup Photographs
