KTU-6863-RC01TXRC Toy

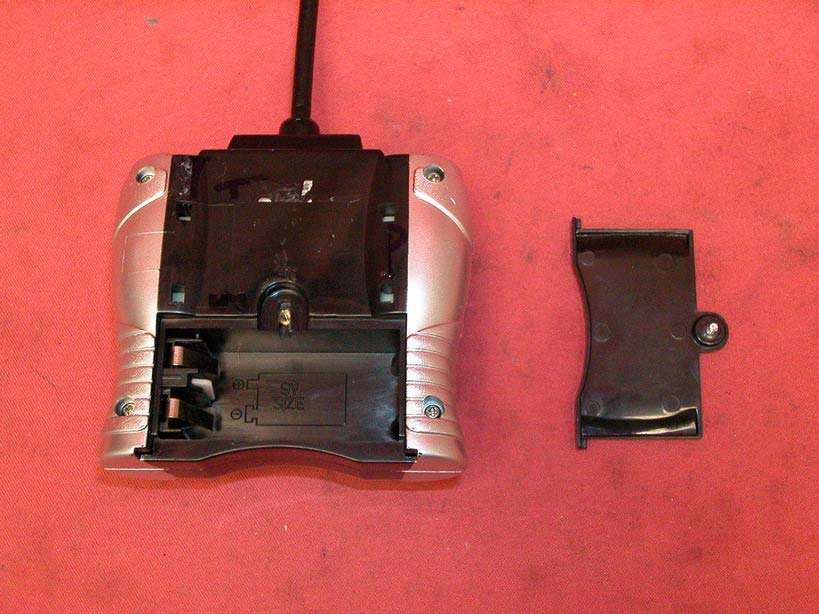

ON/OFF Forward Stop Reverse Hold down the red button and speak close to the mic Mic One "9 volt" and 4 "AA" batteries required (Not included) FOR AGES 5 AND UP INSTALLING BATTERIES Note: Any batteries purchased for use in this toy may pose a hazard to children, please check safety notice supplied with batteries before use. Warning: Dispose of batteries promptly and properly; do not bury or burn them. CAUTIONS: • Batteries to be installed by adults only. • Use only fresh batteries of the required size and recommended type. • Do not mix old and new batteries, different types of batteries (standard, alkaline, or rechargeable), or rechargeable batteries of different capacities. IN THE CONTROLLER Use a Phillips head screw driver to remove the battery compartment cover located on the back of the controller. Insert one "9V" alkaline battery in the correct position as marked in compartment. Replace cover and screw. IN THE SPIDER You need four AA batteries to power your Spider. 1. Slide OFF/ON on the bottom of the Spider to OFF. 2. Remove screw on battery case door with Phillips screw driver and insert 4 AA batteries as shown (follow +/- inside case and insert). 3. Retighten battery door. RADIO CONTROL DRIVING 1. Slide ON/OFF to ON. The top button on the driver's suit lights. 2. Fully extend the antenna on the transmitter and slide OFF/ON on the transmitter to ON. The indicator on the transmitter lights. 3. Use the transmitter's control levers to move and steer the Spider. 4. When you finish driving the Spider, slide OFF/ON on the Spider and the transmitter to OFF. SPIDER FUNCTION CONTROLS 1. Turn on the spider and transmitter. 2. Use the transmitter’s control levers to steer your spider. • To go forward, push both levers forward. • To reverse, pull both levers back. • To turn left or right, push the opposite lever forward. For example, to turn left, push the right lever forward. • To spin left or right, push the opposite lever forward and pull the other lever back. 3. Turn off the spider and transmitter when you finish playing. FCC Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ❑ Reorient or relocate the receiving antenna. ❑ Increase the separation between the equipment and receiver. ❑ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ❑ Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CHOKING HAZARD-Small parts Not for children under 3 years ITEM 6863 Size: 297mm x 210mm (A4 Size) Color: Black Color Only Full Function Radio Control Item/Art# 6863 All Rights World-wide Reserved SUPERTOYS U.S.A. INC. 2145 JACQUELINE AVE, BELLMORE, N.Y. 11710 Tel: 212-242-6180 Fax: 1-516-781-6860 CAUTION: NOT SUITABLE FOR CHILDREN UNDER 36 MONTHS DUE TO SMALL PARTS MADE IN CHINA 1- Check batteries frequently. 2- Always replace with fresh alkaline batteries. 3- Check battery terminals for contact. 4- Always turn switch off when not in use. 5- Run on smooth level surfaces. Helpful hints for maintenance and performance. 41 1.5 VOLT D 1.5 VOLT C 1.5 V AA 9 VOLT GA 13 The eyes light when you switch on your Spider Responsible Party

FCC ID: KTU-6863-RC01TX Ophoto1 Ophoto2 FCC ID: KTU-6863-RC01TX Ophoto3 Ophoto4

27 MHZ 49 MHZ 6863 FCC Label - 49MHz Size: 32mm x 12mm Color: Black Color Only THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN CHINA 6863 FCC Label - 27MHz Size: 32mm x 12mm Color: Black Color Only THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN CHINA THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN CHINA THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN CHINA THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN CHINA FCC ID: KTU-6863-RC01 100% THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN CHINA 27 MHz 100% 100% 49 MHz FCC ID: KTU-6863-RC01TX FCC ID: KTU-6863-RC01TX FCC ID: KTU-6863-RC01 FCC ID: KTU-6863-RC01TX FCC ID: KTU-6863-RC01

FCC ID: KTU-6863-RC01TX Iphoto1 Iphoto2 FCC ID: KTU-6863-RC01TX Iphoto3 Iphoto4 FCC ID: KTU-6863-RC01TX Iphoto5 Iphoto6 FCC ID: KTU-6863-RC01TX Iphoto7 Iphoto8 FCC ID: KTU-6863-RC01TX Iphoto9

FCC ID: KTU-6863-RC01TX Technical Description : The brief circuit description is listed as follows : - C8, C9 and T1 act as Filter. - Q2 and associated circuit act as Modulator and Amplifier. - X1, Q1 and associated circuit act as 49.860 MHz Oscillator. - IC2 IC-TX6 acts as Encoder. - ZD1 and associated circuit act as Voltage Regulator for IC2. - FWD1, BWD1, LEFT1 and RIGHT1 act as Control Keys. - SW1-A and SW1-B act as RC/TALK Switch. - Q3, Q4 and associated circuit act as Audio Amplifier. - IC1 IC-WIN8072 act s as Voice Changer IC. - ZD2 and associated circuit act as Voltage Regulator for IC1. Antenna Used : An integral antenna (non-extendable) has been used.

6863TX49M-FCC.sch-1 - Mon Jul 23 11:06:19 2007

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : KTU-6863-RC01TX Supertoys Industrial Company Ltd. Application For Certification (FCC ID: KTU-6863-RC01TX) Transmitter Sample Description : R/C Spider Model : 6863 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [4-5-2007] 0714956 TL/at August 1, 2007 INTERTEK TESTING SERVICES FCC ID: KTU-6863-RC01TX i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1 : General Description EXHIBIT 2 : System Test Configuration EXHIBIT 3 : Emission Results EXHIBIT 4 : Equipment Photographs EXHIBIT 5 : Product Labelling EXHIBIT 6 : Technical Specifications EXHIBIT 7 : Instruction Manual EXHIBIT 8 : Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: KTU-6863-RC01TX ii MEASUREMENT/TECHNICAL REPORT Supertoys Industrial Company Ltd. - MODEL: 6863 FCC ID: KTU-6863-RC01TX August 1, 2007 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [4-5- 2007 Edition] provision. Report prepared by: Leung Wai Leung, Tommy Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8517 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: KTU-6863-RC01TX iii Table of Contents 1.0 General Description .................................................................................................. 2 1.1 Product Description ............................................................................................... 2 1.2 Related Submittal(s) Grants .................................................................................. 2 1.3 Test Methodology.................................................................................................. 3 1.4 Test Facility........................................................................................................... 3 2.0 System Test Configuration ....................................................................................... 5 2.1 Justification............................................................................................................ 5 2.2 EUT Exercising Software....................................................................................... 5 2.3 Special Accessories .............................................................................................. 5 2.4 Equipment Modification ......................................................................................... 6 2.5 Measurement Uncertainty ..................................................................................... 6 2.6 Support Equipment List and Descripition .............................................................. 6 3.0 Emission Results ...................................................................................................... 8 3.1 Field Strength Calculation...................................................................................... 9 3.1 Field Strength Calculation (cont’d)....................................................................... 10 3.2 Radiated Emission Configuration Photograph ..................................................... 11 3.3 Radiated Emission Data ...................................................................................... 12 4.0 Equipment Photographs ......................................................................................... 16 5.0 Product Labelling .................................................................................................... 18 6.0 Technical Specifications ......................................................................................... 20 7.0 Instruction Manual .................................................................................................. 22 8.0 Miscellaneous Information ..................................................................................... 24 8.1 Measured Bandwidth........................................................................................... 25 8.2 Discussion of Pulse Desensitization .................................................................... 26 8.3 Calculation of Average Factor ............................................................................. 27 8.4 Emission Test Procedures .................................................................................. 28 INTERTEK TESTING SERVICES FCC ID: KTU-6863-RC01TX iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Average Factor af.pdf INTERTEK TESTING SERVICES FCC ID: KTU-6863-RC01TX 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: KTU-6863-RC01TX 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a transmitter for a RC toy spider operating at 49…

Text truncated - open the document above for the full version.

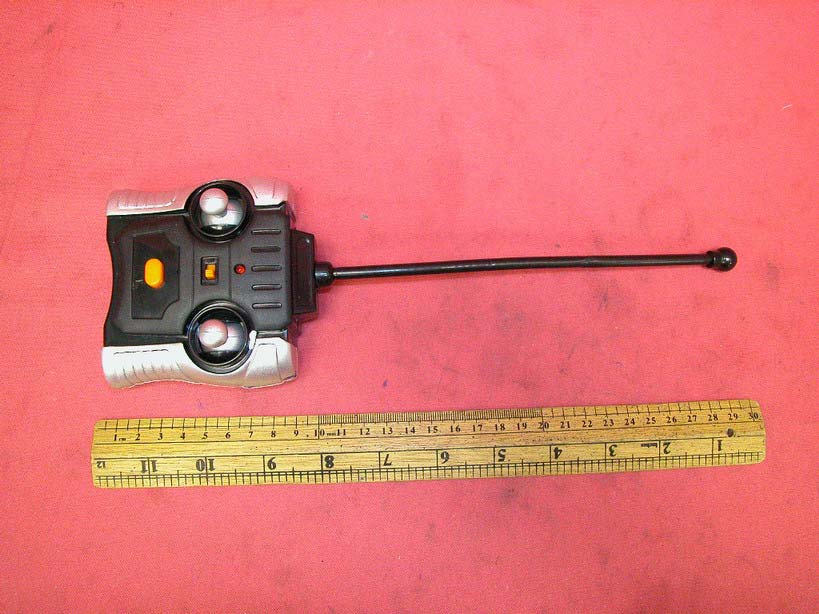

INTERTEK TESTING SERVICES Front View Back View
