OPERATING MATER 1. Slide ON/OFF switch on Mater and the hand controller to ON. 2. Use the controls to drive and steer the Mater. 3. When you finish driving Mater, slide ON/OFF switch on Mater and the hand controller to OFF. Remove all packaging before giving this toy to your child. Non-rechargeable batteries are not to be recharged. Rechargeable batteries are to be removed from the toy before being charged. Rechargeable batteries are only to be charged under adult supervision. Different types of new and used batteries are not to be mixed. Only batteries of the same or equivalent type as recommended are to be used. Batteries are to be inserted with the correct polarity. Exhausted batteries are to be removed from the toy. The supply terminals are not to be short-circuited. Not suitable for children under 3 years due to small parts. Remove batteries when not in use or discharged. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. Alkaline batteries are recommended for best performance. Please retain this information for future reference. Batteries included are for demonstration purposes only. POUR FAIRE FONCTIONNER MATER 1. Fais glisser le commutateur de marche/arrêt de Mater et la commande manuelle en position ON (marche). 2. Utilise les commandes pour téléguider Mater. 3. Une fois que tu as fini de conduire Mater, fais glisser le commutateur de marche/arrêt et la commande manuelle en position OFF (arrêt). Retirer tout l'emballage avant de confier ce jouet à votre enfant. Ne pas recharger les piles non rechargeables. Retirer les piles rechargeables du jouet avant de les charger. Recharger les piles rechargeables sous la surveillance d'un adulte. Ne pas combiner plusieurs types de piles neuves et usagées. N'utiliser que des piles du type recommandé ou d'un type semblable Introduire les piles selon la bonne polarité. Retirer les piles usées du jouet. Ne pas court-circuiter les bornes d'alimentation. Non adatto a bambini minori di 3 anni per via di parti piccole. Retirex les piles quand elles sont déchargées ou quand le jouet n’est pas utilisé. Ne pas mélanger les piles neuves et le piles usées. Ne pas mélanger les piles alcalines, standard (carbon-zinc) ou rechargeables (nickel-cadmium). Il est recommandé d’utiliser des piles alcalines pour obtenir le meilleur résultat possible. Garder l’emballage pour référence ultérieure. Pilas incluidas sólo para fines de demostración. One "9 volt" and 6 "AA" batteries required (not included). Une pile 9V et 6 piles AA (non incluses). 9V sition OFF (arrêt). Super Speed Full Function Radio Control Light Up Chassis This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ❑ Reorient or relocate the receiving antenna. ❑ Increase the separation between the equipment and receiver. ❑ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ❑ Consult the dealer or an experienced radio/TV technician for help. Item/Art# 7144 All Rights World-Wide Reserved SUPERTOYS U.S.A., INC. 2145 JACQUELINE AVE, BELLMORE, N.Y. 11710 Tel: (516) 785 0846 Fax: (516) 781 6860 MADE IN CHINA http://www.supertoysusa.com E-mail: [email protected]

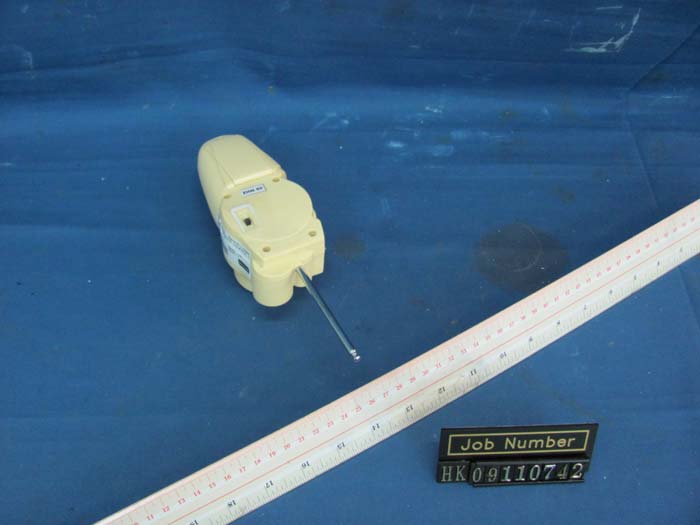

INTERTEK TESTING SERVICE Report No.: HK09110742-1 Equipment Photographs Model : 7144 (External) FCC ID: KTU-7144RC01TX

7144 Size: 2” W x 0.786” H Color: Black Color Only 100% THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN CHINA 49 MHz FCC ID: KTU-7144RC01TX

INTERTEK TESTING SERVICE Report No.: HK09110742-1 Equipment Photographs Model : 7144 (Internal) FCC ID: KTU-7144RC01TX INTERTEK TESTING SERVICE Report No.: HK09110742-1 Equipment Photographs Model : 7144 (Internal) FCC ID: KTU-7144RC01TX INTERTEK TESTING SERVICE Report No.: HK09110742-1 Equipment Photographs Model : 7144 (Internal) FCC ID: KTU-7144RC01TX

FCC ID: KTU-7144RC01TX Technical Description: The brief circuit description is listed as follows : - Q1, Y1 and associated circuit act as 49.860 MHz Oscillator. - Q2 and associated circuit act as Modulator and Amplifier. - U1(TX2) and associated circuit act as Encoder. - T1, C1, C2 and associated circuit act as Filter. - ZD1 and associated circuit act as Voltage Regulator. - SW1, SW2, SW3/4 and associated circuit act as Control Key. Antenna Used: Telescope-type antenna with unique antenna connector.

ABCD DCBA Title Number Revision Size A4 Date: 18-Nov-2009 Sheet of File: F:\7021\new2.ddb Drawn By: BT9V ANT C3104 C347PF C4104 C622PF C747PFC90.022UFC80.022UF C40.1UF Y1 49.860MHZ ZD14.3V D14148 D2 4148 C147UFC247UF T16.5T LED1 LED2 LED3 Q2 2SC380O Q1 S1623-SL6 R2100R R168K R1220K R34.7K R5220R R21K R3100R SW2SW1 SW3/4 LMJ 7144 TX 49MHZ L1 1UH L21UH C247PF C547PF C122PF L31UH TG1 1 2 GND 3 TG2 4 TG3 5 67 DATA 8 VDD 9 10 ROSC0 11 ROSC1 12 13 TG4 14 U1 TX2 S1 Supertoys Ind.Co.Ltd.

INTERTEK TESTING SERVICES Report No.: HK09110742-1 Sample No.: 1/2 Code: FCC15C_c / Effective Date: 04 Aug 2009 Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15.235 Requirement INTERTEK TESTING SERVICES Report No.: HK09110742-1 Sample No.: 1/2 Code: FCC15C_c / Effective Date: 04 Aug 2009 Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15.235 Requirement

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK09110742-1 Supertoys Industrial Co. Ltd. Application For Certification (Original Grant) (FCC ID: KTU-7144RC01TX) Transmitter Prepared and Checked by: Approved by: Lau Chin Yu, Benny Engineer Chan Chi Hung, Terry Lead Engineer Date: December 02, 2009 INTERTEK TESTING SERVICES Report No.: HK09110742-1 FCC ID: KTU-7144RC01TX i GENERAL INFORMATION Supertoys Industrial Co. Ltd. MODEL: 7144 FCC ID: KTU-7144RC01TX Grantee: Supertoys Industrial Co. Ltd. Grantee Address: Unit 603-609, World Finance Centre North Tower, 19 Canton Road, Tsim Sha Tsui, Kowloon, Hong Kong Contact Person: Robin Yeung Tel: 2558 6491 / 9304 0528 Fax: 2897 0146 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: N/A Model: 7144 Type of EUT: Transmitter Description of EUT: R/C Tokyo Drift Mater Serial Number: N/A FCC ID: KTU-7144RC01TX Date of Sample Submitted: November 19, 2009 Date of Test: November 24, 2009 Report No.: HK09110742-1 Report Date: December 02, 2009 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK09110742-1 FCC ID: KTU-7144RC01TX ii SUMMARY OF TEST RESULT Supertoys Industrial Co. Ltd. MODEL: 7144 FCC ID: KTU-7144RC01TX TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK09110742-1 FCC ID: KTU-7144RC01TX iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software.................................................................................. 2 2.3 Special Accessories ......................................................................................... 2 2.4 Equipment Modification .................................................................................... 2 2.5 Measurement Uncertainty................................................................................. 2 2.6 Support Equipment List and Description ........................................................... 3 3.0 Emission Results ........................................................................................... 3 3.1 Field S…
