KVI800410K02R/C TX

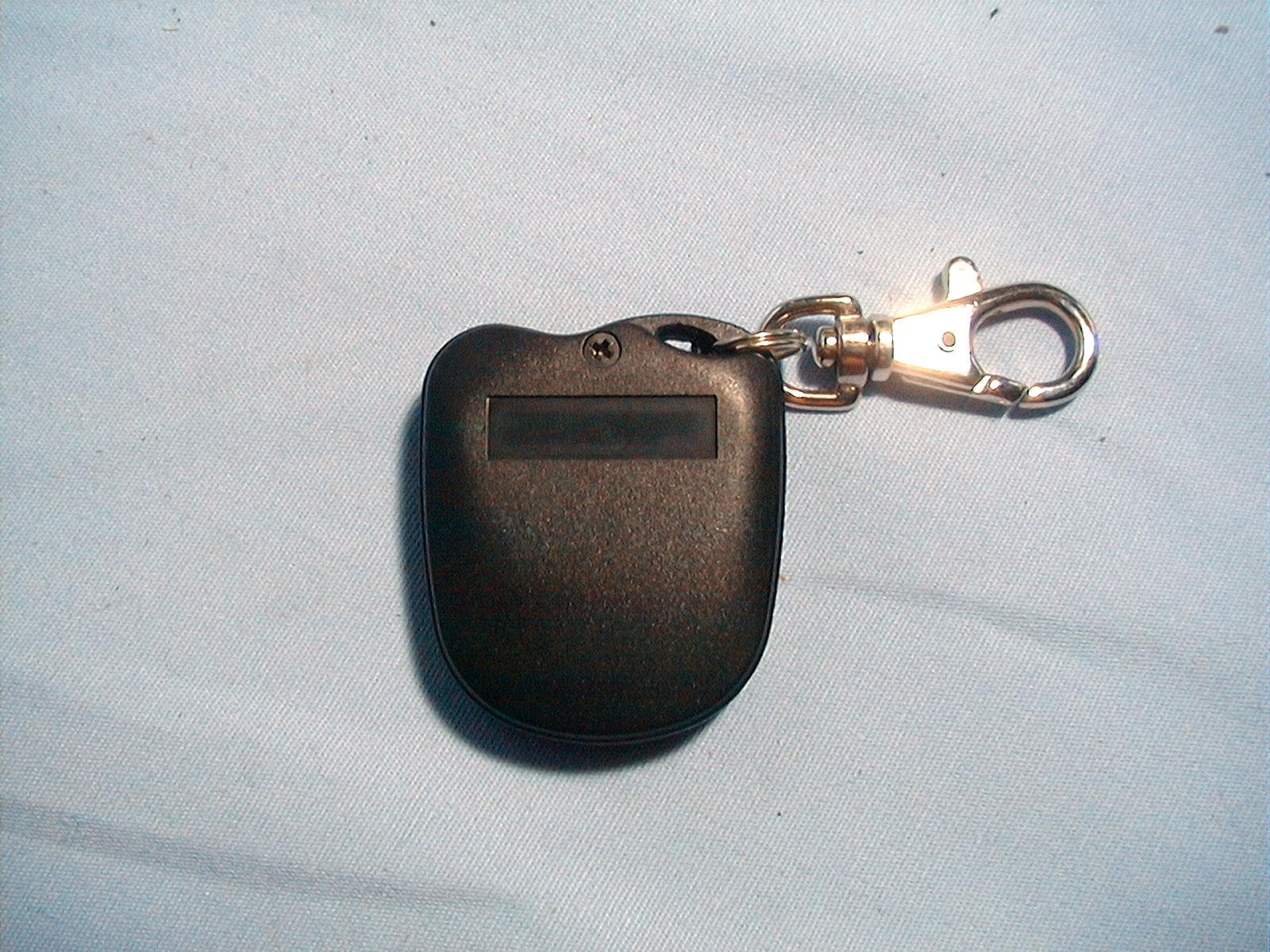

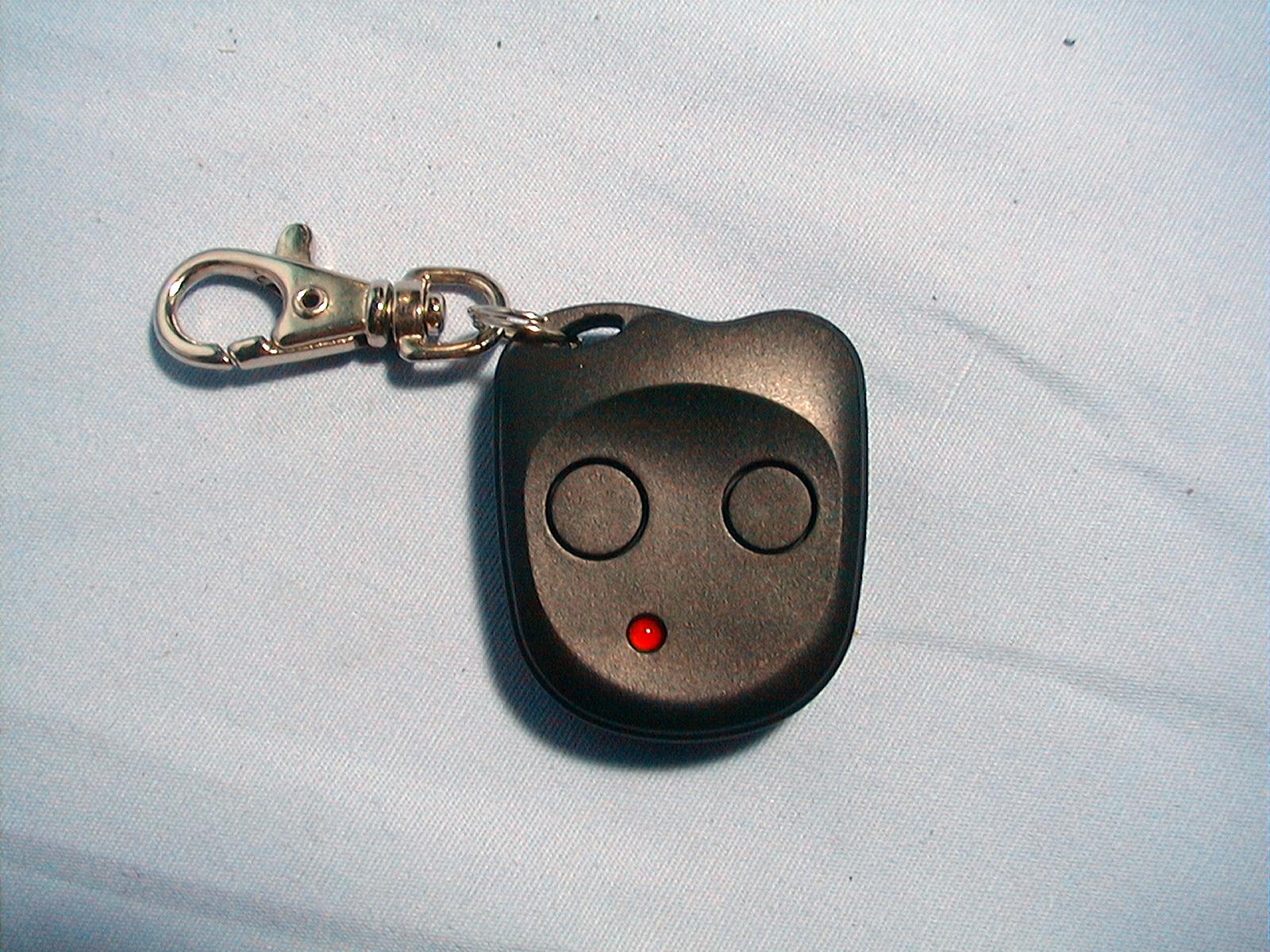

The EUT is a transmitter of remote control. There are several applications such as door opener, car opener. The transmitter can transmit 370MHz RF signals to the receiver.

FCC ID.: KVI800410K02 Rev. No 1.0 FCC Part 15 Subpart C EMI TEST REPORT of E.U.T. : Transmitter FCC ID. : KVI800410K02 MODEL : TX-10K Working Frequency : 370 MHz for APPLICANT : JOY LIFE ELECTRONIC CO., LTD. ADDRESS: 5F, NO. 100, CHUNG-HSING RD., HSI-CHIH TOWN, TAIPEI HSIEN, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3280026-32 Fax:(03)3280034 Report Number : ET88R-11-066 ETC Report No.:ET88R-11-066FCC ID.: KVI800410K02 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: JOY LIFE ELECTRONIC CO., LTD. 5F, NO. 100, CHUNG-HSING RD., HSI-CHIH TOWN, TAIPEI HSIEN, TAIWAN, R.O.C. Manufacturer: JOY LIFE ELECTRONIC CO., LTD. 5F, NO. 100, CHUNG-HSING RD., HSI-CHIH TOWN, TAIPEI HSIEN, TAIWAN, R.O.C. Description of EUT: a) Type of EUT: Transmitter b) Trade Name: JOY LIEF c) Model No.: TX-10K d) FCC ID: KVI800410K02 e) Working Frequency : 370 MHz f) Power Supply: DC 12V Battery Regulation Applied: FCC Rules and Regulations Part 15 Subpart C (1998) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Issued Date :FEB. 14, 2000 Test Engineer : ( S. S. Liou ) Approve & Authorized Signer : Will Yauo, Supervisor EMI Test Site of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET88R-11-066FCC ID.: KVI800410K02 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ........................................................................................................................................ 1 1.1 P RODUCT D ESCRIPTIO N ................................................................................................................................................... 1 1.2 C HARACTERISTICS OF D EVICE : ........................................................................................................................................ 1 1.3 T EST M ETHODOLOGY ...................................................................................................................................................... 1 1.4 T EST F ACILITY ................................................................................................................................................................. 1 2. DEFINITION AND LIMITS.......................................................................................................................................... 2 2.1 D EFINITION ..................................................................................................................................................................... 2 2.2 R ESTRICTED B ANDS OF O PERATION ................................................................................................................................. 2 2.3 L IMITATION ..................................................................................................................................................................... 2 2.4 L ABELIN G R EQ UIREMEN T ................................................................................................................................................. 4 2.5 U SER I NFORMATION ........................................................................................................................................................ 4 3. RADIATED EMISSION MEASUREMENT................................................................................................................. 5 3.1 A PPLICABLE S TANDARD .................................................................................................................................................. 5 3.2 M EASUREMEN T P ROCEDURE ............................................................................................................................................ 5 3.3 T EST D ATA ...................................................................................................................................................................... 7 3.4 F IELD S TREN GTH C ALCULATIO N ...................................................................................................................................... 8 3.5 A CTIVATE T IME ............................................................................................................................................................... 8 3.6 C ALCULATION OF D UTY F ACTOR ..................................................................................................................................... 8 3.7 R ADIATED T EST E QUIPMENT ............................................................................................................................................ 9 3.8 M EASURIN G I N STRUMEN T S ETUP ..................................................................................................................................... 9 3.9 R ADIATED M EASUREMEN T P HOTOS ...............................................................................................................................10 4. BANDWIDTH OF EMISSION.................................................................................................................................... 11 4.1 A PPLICABLE S TANDARD P LO T G RAPHIC OF B ANDWIDTH ............................................................................................... 11 4.2 B ANDWIDTH T EST E QUIPMENT ...................................................................................................................................... 11 4.3 P LO T G RAPHIC OF B ANDWIDTH .........................................................................…
