KWW-MT126-RSpecial Needs Phone Remote

1 MTCP-3126C Big Button Caller ID Speaker Phone with Remote Control function 1. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2 IMPORTANT SAFETY INSTRUCTIONS When using any electronic equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury. 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the Big Button phone. 3. Unplug the Wellness Wizard power and telephone connections before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 4. Do not use this product near water. Avoid using the Big Button phone near a bathtub, wash bowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. 5. Do not place the Big Button phone on an unstable cart, stand, or table. 6. The Big Button phone should never be placed near or over a radiator, stove or other heat sources. It should not be placed in a built-in installation, unless proper ventilation is provided. 7. The Big Button phone should be operated only from the type of power source indicated on the marking label. For information about the type of power your home uses, consult your local utility company. 8. To prevent fire or shock hazard, do not use this plug with an extension cord or other outlet unless the blades can be fully inserted to prevent blade exposure. 9. Do not allow anything to rest on any of the connecting cables. Do not locate this product where cables will be stepped on. 10. Never overload wall outlets and extension cords. This can result in fire or electric shock. 11. Never spill liquid of any kind on the product. 12. Never attempt to service the Big Button phone yourself. The unit may require service by a qualified technician for the following conditions: a. When the power supply cord or plug is damaged or frayed b. If liquid is spilled on the unit c. If the unit has been exposed to rain or water d. If the unit has been dropped or the cabinet damaged e. If the unit exhibits a distinct change in performance. 13. Avoid using a telephone (other than a cordless type) during an electrical storm. There is risk of electric shock from lightning. 14. Do not use the telephone to report a gas leak in the vicinity of the leak. 15. Only use attachments/accessories specified by the manufacturer. SAVE THESE INSTRUCTIONS 3 4 INSTRUCTION MANUAL STORE button PREVIOUS button DELETE button MENU button OK button FORWARD button DIAL button MEMORY button MODE button 3 Emergency buttons PAUSE button REDIAL button FLASH button REC./PLAY button HOLD button SPEAKERPHONE button VOLUME slider TONE slider AMPLIFY button 3 Indicators: Amplify, Hold, Ringer 5 Feature list: z Large LCD Screen with back-light. z Powerful adjustable amplifier allows incoming volume up to 43dB z 2-way speakerphone with adjustable volume control. z 3 Emergency buttons for police, fire & EMS. z Amplified Super Loud Ringer with adjustable volume up to 100dB. z 90-entry Memory/Phonebook. z 99 Missed Call / 20 Answered Calls. z 20 Dialed number records. z Review Dialed numbers / Missed / Answered calls. z Cyclic up / down review calls. z VIP Alert. z Name Tagging. z Call Back / Call Waiting. z Super bright LED ringer. z Adjustable ringing volume. z Handset in compatible with hearing aid T-coil. z Hold on music, Redial/Pause and Flash buttons. z Tone Selector to adjust sound clarify and distinguishing similar sound words. z Clock and Timer functions. z 3.5mm audio jack for a headset or other assistive-listening device. z Desk or Wall-mounted. 6 Remote Control Function: z RF Remote alarm. Up to 3 pagers can be register. z Make 10 emergency calls with the remote control. z Dial emergency call and play the recorded message automatically. z Recorded message length 20 seconds. z Remote turn On/Off Speakerphone. INSTALLING YOUR PHONE 1. Install the battery into the pager. a. Remove the binder. (Please lift up the binder and push down the top part). b. Thread the necklace through the binder’s hole. c Remove the battery compartment cover. d. Place a 12V alkaline battery into the compartment following the directional. e. Replace the cover. f. Replace the binder and switch on. 2. Install the battery into the telephone. a. Slide and remove the battery cover on the bottom of the unit. b. Remove the battery compartment cover. c. Place four AA alkaline batteries into the compartment following the directional. d. Replace the cover. 7 3. Connect the telephone Plug one end of the Handset Cord (curly) into the Handset and the other end into the jack on the side of the telephone. Desktop mounting a. Align the tabs of the phone bracket with the notches on bottom at the height of the phone. Press inward and downward firmly on the bracket until it clicks into place. b. Plug one end of the line cord (straight) into the telephone line jack LINE on the back of the telephone and the other end into the wall outlet. Wall mounting a. Align the tabs of the phone bracket with the notches on bottom at the lower of the phone. Press inward and downward firmly on the bracket until it clicks into place. b. Take the handset hook out and flip it to reverse position. It will hold the handset when the phone is in a vertical position. c. Plug one end of the line cord (straight) into the telephone line jack LINE on the back of the telephone and the other end into the wall outlet. 4. Connect the adaptor Plug the AC Adaptor into a standard 120VAC wall outlet and switch it. Plug the AC Adaptor lead into the power socket at the back of the phone. If you do not subscribe to a Caller ID service, or you wish to set…

Text truncated - open the document above for the full version.

Lettery of Agency "I, an officer of Mytech Technology Co., Ltd. do hereby authorize Intertek Testing Services to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853(a). By Pony Lin Signature Printed Title Enigneer

Confidentility Letter (Permanent) Attention: Application Examiner Re: Request for confidentiality Applicant: Mytech Technology Co., Ltd. FCC ID: KWWW-MT126-R To whom it may concern, Request is hereby submitted by Mytech Technology Co., Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: Mytech Technology Co., Ltd. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, Engineer Mytech Technology Co., Ltd.

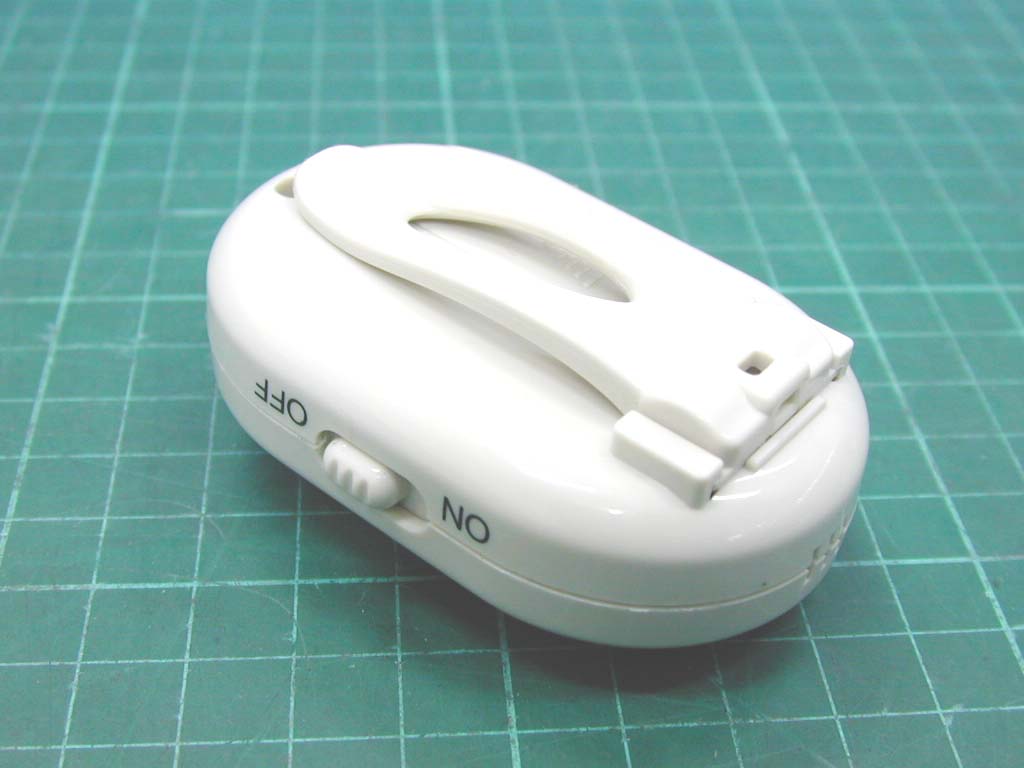

Photo 1: External photo of EUT (Transmitter) MTCP-126 Photo 2: External photo of EUT (Transmitter) MTCP-126

Label 2.5cm 1.5cm

Photo 1: Internal photo of EUT (Transmitter) MTCP-126 Photo 2: Internal photo of EUT (Transmitter) MTCP-126 Photo 3: Internal photo of EUT (Transmitter) MTCP-126 Photo 4: Internal photo of EUT (Transmitter) MTCP-126

FCC ID. :KWW-MT126-R Report No.: EME-061308 Page 1 of 19 EMC TEST REPORT Report No.: EME-061308 Model No.: MTP-104, MTP-105, MTCP-106, MTP-124, MTP-125, MTCP-126, MTP-3104, MTP-3105, MTCP-3106, MTP-3124, MTP-3125, MTCP-3126 , CHORUS, FREEDOM PLUS Issued Date: Jan. 11, 2007 Applicant: MYTECH TECHNOLOGY CO., LTD. 5F, No 6, Alley 2, Lane 222 Lien -Chern Road, Chung- Ho City, Taiwan Test By: Intertek Testing Services Taiwan Ltd. No. 11, Ko-Tze-Nan Chia-Tung Li, Shiang-Shan District, Hsinchu, Taiwan This test report consists of 19 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Rico Deng Project Engineer Reviewed By Jerry Liu FCC ID. :KWW-MT126-R Report No.: EME-061308 Page 2 of 19 Table of Contents Summary of Tests ............................................................................................................. 3 1. General information...................................................................................................... 4 1.1 Identification of the EUT........................................................................................ 4 1.2 Additional information about the EUT ................................................................... 4 1.3 Antenna description ................................................................................................ 6 1.4 Peripherals equipment ............................................................................................ 6 2. Test specifications.........................................................................................................7 2.1 Test standard ........................................................................................................... 7 2.2 Operation mode ...................................................................................................... 7 2.3 Test equipment........................................................................................................ 8 3. Radiated emission test FCC 15.231 (b) ........................................................................ 9 3.1 Operating environment ........................................................................................... 9 3.2 Test setup & procedure ........................................................................................... 9 3.3 Radiated emission limit ........................................................................................ 11 3.3.1 Fundamental and harmonics emission limits .................................................... 11 3.3.2 General radiated emission limit ......................................................................... 11 3.4 Calculation of Average Factor .............................................................................. 12 3.5 Requirement of FCC 15.231 (a)(1)....................................................................... 15 3.6 Radiated emission test data FCC 15.231 .............................................................. 16 3.6.1 Measurement results: frequencies equal to or less than 1 GHz ......................... 16 3.6.2 Measurement results: frequencies above 1GHz ................................................ 17 3.7 Measured bandwidth FCC 15.231(C)................................................................... 18 FCC ID. :KWW-MT126-R Report No.: EME-061308 Page 3 of 19 Summary of Tests Special Needs Phone -Model: MTCP-126 FCC ID: KWW-MT126-R Test Reference Results Conducted Emission of AC Power 15.207 Pass Radiated Emission test 15.231(b), 15.209 Pass Measured bandwidth 15.231(c) Pass FCC ID. :KWW-MT126-R Report No.: EME-061308 Page 4 of 19 1. General information 1.1 Identification of the EUT Manufacturer: MYTECH TECHNOLOGY CO., LTD. Product: Special Needs Phone Model No.: MTCP-126 FCC ID.: KWW-MT126-R Frequency Range: 433.92 MHz Channel Number: 1 channel Frequency of each channel: Single Type of Modulation: ASK Power Supply: 12Vdc from Battery for transmitter Power Cord: N/A Sample Received: Nov. 16, 2006 Test Date(s): Nov. 16, 2006 ~ Nov. 27, 2006 A DoC report has been generated for the client. 1.2 Additional information about the EUT The EUT is a Special Needs Phone, and was defined as information technology equipment. FCC ID. :KWW-MT126-R Report No.: EME-061308 Page 5 of 19 According to the hardware aspect, Intertek verified the models listed as below are series model to MTCP-126 (EUT), the difference please refer to the following table: Trade Name Model Number Difference MYTECH MTP-104 9 Keys one touch memory key MYTECH MTP-105 10 Keys one touch memory key MYTECH MTCP-106 Have Caller ID Function MYTECH MTP-124 9 Keys one touch memory key with Rec. key MYTECH MTP-125 10 Keys one touch memory key with Rec. key MYTECH MTCP-126 Have Caller ID Function with Rec. key MYTECH MTP-3104 9 keys one touch memory key MYTECH MTP-3105 10 keys one touch memory key MYTECH MTCP-3106 Have Caller ID Function MYTECH MTP-3124 9 Keys one touch memory key with Rec. key MYTECH MTP-3125 10 Keys one touch memory key with Rec. key MYTECH MTCP-3126 Have Caller ID Function with Rec. key DIGNITY CHORUS 9 Keys one touch memory key DIGNITY FREEDOM PLUS Have Caller ID Function with Rec. key For more detail features, please refer to Users manual as file name “Installation guide.pdf” FCC ID. :KWW-MT126-R Report No.: EME-061308 Page 6 of 19 1.3 Antenna description The EUT uses a permanently connected antenna. Antenna Gain : 0dBi max Antenna Type : Rolling antenna Connector Type : N/A 1.4 Peripherals equipment Peripherals Manufacturer Product No. Serial No. EAR PHONE Logitech N/A N/A Exchange Board Teltone 250-00193-07 94948 Telephone TENTEL K-903S 0514000477 FCC ID. :KWW-MT126-R Report No.: EME-061308 Page 7 of 19 2. Test specifications 2.1 Test standard The EUT was performed according to the proced…

Text truncated - open the document above for the full version.

Photo 1: Radiated Emission Test Set-up photo MTCP-126 Photo 2: Radiated Emission Test Set-up photo MTCP-126
