KXS-2315FM Transmitter

FCC ID: KXS-2315 Circuit Description The 88.1, 88.3, 88.5, 107.1, 107.3, 107.5MHz are generated by U1 to drive the base of Q2 the final/buffer amplifier. The modulation provided by the 3.5mm stereo jack J1 input. The output of Q2 has the matching network consisting of L4 and C19, C20 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source There is no external antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 12Volt. (Car battery) or a 3Volt (“AAA” size battery x2) primary battery.

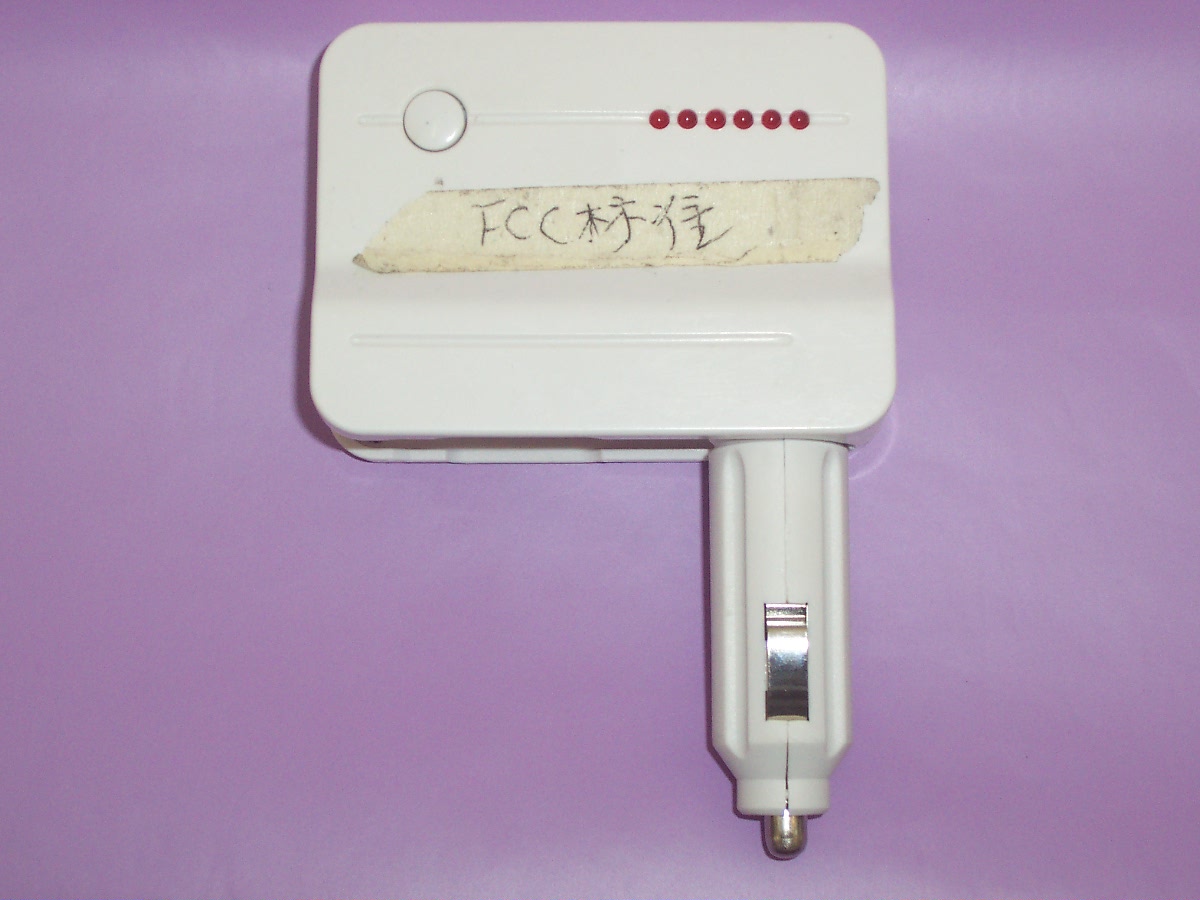

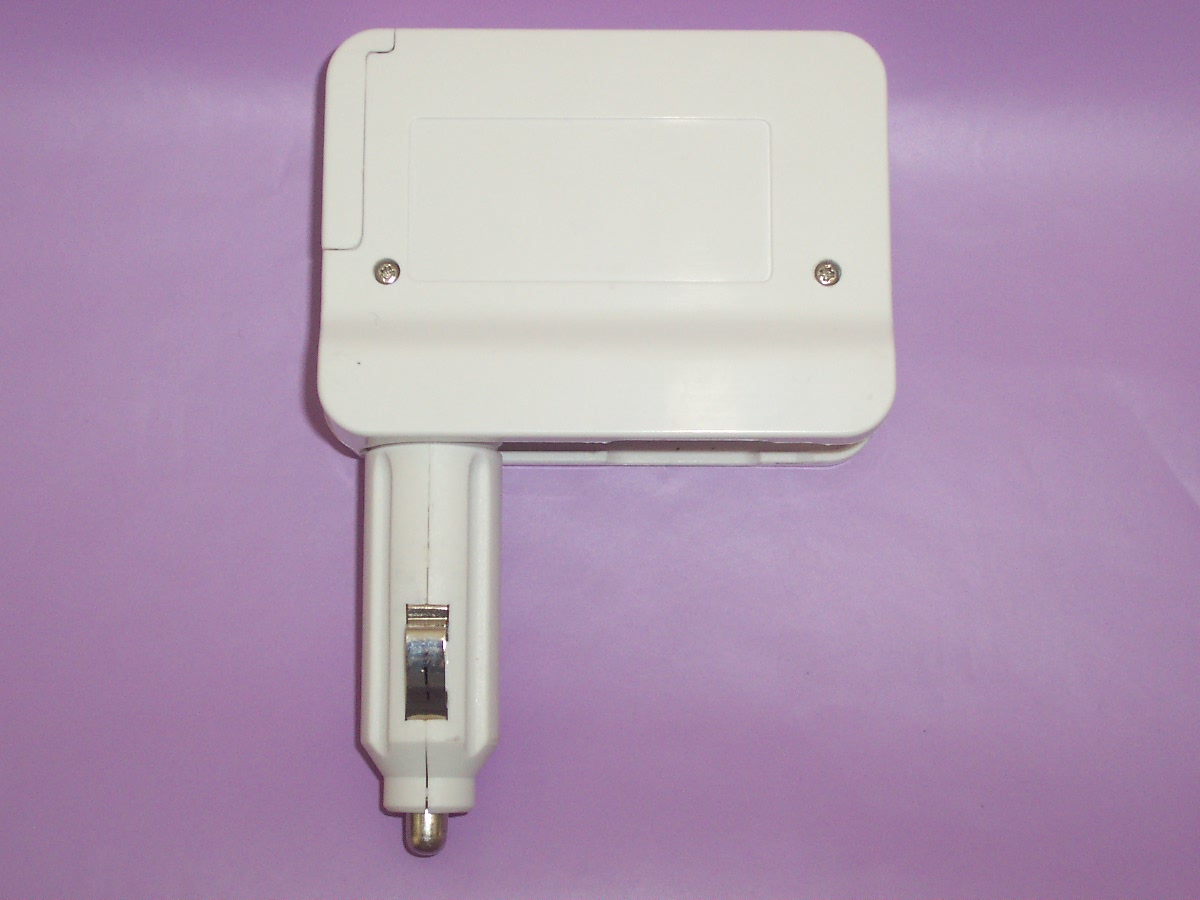

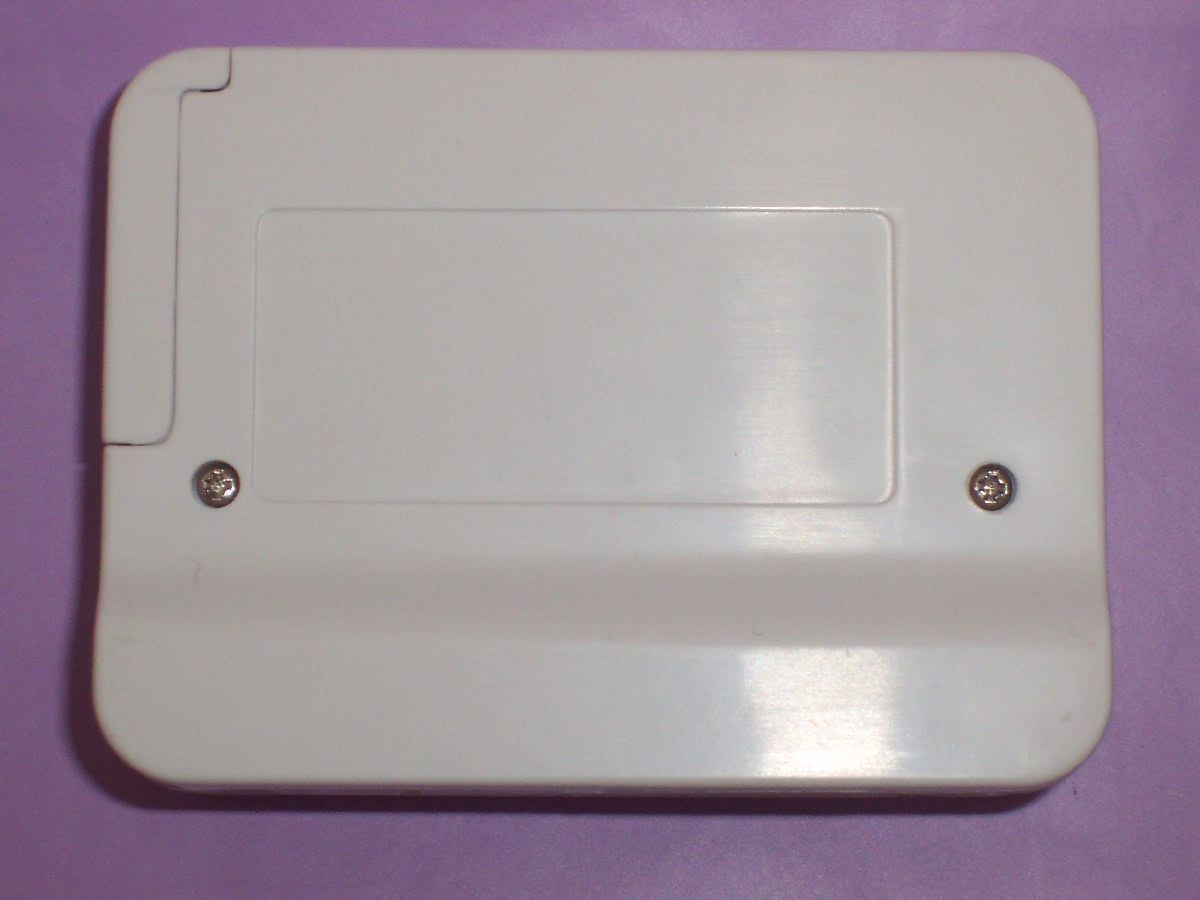

GLOBAL TESTING & CERTIFICATION CENTRE LTD. FCC TEST REPORT Application No.: 07011947 Rm09, 5/F Wah Wai Ind Ctr, 38-40 Au Pui Wan Street, Fotan Shatin, N.T., Hong Kong Tel: [852] 23200326 Fax: [852] 23206287 REPORT NO.: 07011947 DATE: 24 September, 2007 Page 2 of 37 TABLE OF CONTENTS Cover Sheet --------------------------- p.1 Table of Contents --------------------------- p.2 General Details --------------------------- p.3 ~ p.4 Summary of Test Results --------------------------- p.5 Radiation Emission Test --------------------------- p.6 ~ p.18 Conducted Emission Test --------------------------- p.19 Bandwidth Measurement --------------------------- p.20 ~ p.33 Appendix A List of Measurement Equipment --------------------------- p.34 Appendix B Test Sample (Photo) --------------------------- p.35 ~ p.37 REPORT NO.: 07011947 DATE: 24 September, 2007 Page 3 of 37 APPLICANT: Beauty Sound Ltd. ADDRESS: Unit 13, 10/F, Goldfield Industrial Centre, 1 Sui Wo Road, Fotan, Shatin, N.T. Hong Kong DATE OF RECEIVED: 13 September, 2007 DATE OF TESTING: 13 September, 2007 to 24 September, 2007 DESCRIPTION OF SAMPLE: Product: FM Modulator Brand Name: WAGAN Model No.: 2315 Additional Model No.: FM600 FCC ID: KXS-2315 Input Voltage: DC3V (AAA X 2)/DC12V (Car plug) Description of EUT Operation The Equipment Under Test (EUT) is a Beauty Sound Ltd. FM Modulator. The transmitter is a 1 switch transmitter. The EUT continues to Transmit while switch is being pressed, Modulation by IC. And type is frequency modulation. INVESTIGATION REQUESTED: FCC PART 15 SUBPART C TEST RESULTS: See attached sheets CONCLUSIONS: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on page 5 in this Test report. REPORT NO.: 07011947 DATE: 24 September, 2007 Page 4 of 37 General Details Test Laboratory GLOBAL TESTING & CERTIFICATION CENTRE LTD EMC Laboratory Rm09,5/F Wah Wai Ind Ctr, 38-40 Au Pui Wan Street, Fotan Shatin, N.T., Hong Kong Telephone: Fax: 852 2320 0326 852 2320 6287 Applicant Details Applicant Beauty Sound Ltd. Unit 13, 10/F, Goldfield Industrial Centre, 1 Sui Wo Road, Fotan, Shatin, N.T. Hong Kong Manufacturer 1. FSA Electronic Co., Ltd. 5F, 5Bld.,Huafeng Hi-Tech Zone, Fuyong Street,Baoan Shenzhen. 2. Cystal Field Ltd. 57A,B,5th Industrial Estate, Mashantou Village Gongming, Baoan District,Shenzhen, Guangdong,China 3. Ying Hui Electronics Manufactory Dong Guan Wang Niu Dun Chi Jiao Cun Zhen Zhong Lu REPORT NO.: 07011947 DATE: 24 September, 2007 Page 5 of 37 Technical Details Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4:2003 for FCC Certification. Test Standards and Results Summary Tables EMISSION Results Summary Test Result Test Condition Test Requirement Test Method Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.239 ANSI C63.4:2003 Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2003 Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.207 ANSI C63.4:2003 Note: N/A – Not Applicable REPORT NO.: 07011947 DATE: 24 September, 2007 Page 6 of 37 Test Results Emission Radiation Emission Measurement (30MHz to 1GHz) Setup diagram: Test Method: The sample was placed 0.8m above the ground plane on the OATS*. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X,Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *. OATS [Open Area Test Site] located at GTC with a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rules. With Registration Number:493655 EUT Computer Test Receiver Printer out 3 Meter Cable Data Transmission Ground Plane Turn Table REPORT NO.: 07011947 DATE: 24 September, 2007 Page 7 of 37 Radiation Emissions Measurement Appl. : Beauty Sound Ltd. Model: 2315 Operation: TX mode (DC 3V) Test Requirement: FCC 47CFR 15.239 Test Method: ANSI C63.4:2003 Test Date: 2007-09-14 Limits for Field Strength of Fundamental Emissions : Frequency Range of Fundamental Peak Limits Average Limits [MHz] [μV/m] [μV/m] 88-108 2,500 250 Results of TX mode: Pass Field Strength of Fundamental Emissions Peak Value Frequency Measured Level @3m Correction Factor Field Strength Field Strength Limit @3m E-Field Polarity MHz dBμV/m dBμV/m dBμV/m μV/m μV/m 88.1 30.0 8.4 38.4 83.2 2,500 Horizontal Field Strength of Fundamental Emissions Average Value Frequency Measured Level @3m Correction Factor Field Strength Field Strength Limit @3m E-Field Polarity MHz dBμV/m dBμV/m dBμV/m μV/m μV/m 88.1 28.0 8.4 36.4 66.1 250 Horizontal According to FCC 47CFR15.35, the limit on the radio frequency emissions as measured using instrumentation with a peak detector function, corresponding to 20dB above the maximum permitted average limit for the frequency being investigated unless a different peak emission limit is otherwise specified in the rules. For effective averaging, the bandwidth of the video filter must be smaller than the resolution bandwidth. The higher the ratio of resolution bandwidth to video bandwidth, the greater the averaging will be. Below setting for ESVP, HP8568B, HP85662A and HP85650A EMI Receiver. Resolution Bandwidth : 3MHz Video Bandwidth : 1Hz Remarks: Correction Factor included Antenna Factor and Cable Attenuation. Calculated measurement uncertainty : 30MHz to 1GHz ±4.1dB REPORT NO.: 07011947 DATE: 24 September, 2007 Page 8 of 37 Radiation Emissions Measurement Appl. : Beauty Sound Ltd. Model: 2315 Ope…
