L2BACEKEY2060Wireless Keyboard

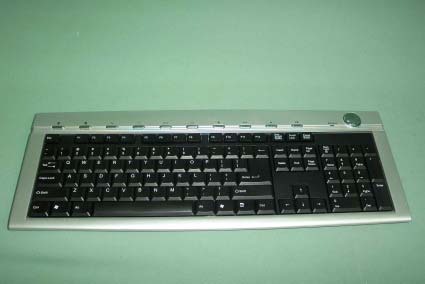

Compliance Certification Services Inc. Report No: 40802202 Date of Issue: September 27 2004 Page 1 EXTERNAL PHOTOGRPHS OF EUT ACK-2060UMRD Compliance Certification Services Inc. Report No: 40802202 Date of Issue: September 27 2004 Page 2 ACK-2070UMRD Compliance Certification Services Inc. Report No: 40802202 Date of Issue: September 27 2004 Page 3 ACK-2100UMRD

FCC ID LABLE FORMAT AND LOCATION Applicant: Solid Year Co., Ltd. FCC ID.: L2BACEKEY2060 LABLE AREA

Compliance Certification Services Inc. Report No: 40802202 Date of Issue: September 27 2004 Page 5 INTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: 40802202 Date of Issue: September 27 2004 Page 6 Compliance Certification Services Inc. Report No: 40802202 Date of Issue: September 27 2004 Page 7

Compliance Certification Services Inc. Report No: 40802202-RP FCC ID : L2BACEKEY2060 Date of Issue: September 27, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 17 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Solid Year Co., Ltd. Wireless Keyboard Model: ACK-2060UMRD; ACK-2070UMRD; ACK-2100UMRD Trade Name: SOLID TEK Prepared for Solid Year Co., Ltd. 2F-1, No. 94, Bao Chung Rd., Hsin Tien City, Taipei, Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: 40802202-RP FCC ID : L2BACEKEY2060 Date of Issue: September 27, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 LABORATORY ACCREDITATIONS AND LISTING....................................................................... 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 10 6.1 SETUP CONFIGURATION OF EUT............................................................................................ 10 6.2 SUPPORT EQUIPMENT .................................................................................................... 10 7. FCC PART 15.227 REQUIREMENTS...................................................................................... 11 7.1 RADIATED EMISSIONS........................................................................................................... 11 7.2 POWERLINE CONDUCTED EMISSIONS.................................................................................... 15 Compliance Certification Services Inc. Report No: 40802202-RP FCC ID : L2BACEKEY2060 Date of Issue: September 27, 2004 Page 4 2. EUT DESCRIPTION Product Wireless Keyboard Trade Name SOLID TEK Model Number ACK-2060UMRD; ACK-2070UMRD; ACK-2100UMRD Model Difference The three model numbers (see as above) are identical except appearance just for marketing purpose only. Power Supply Powered by AA batteries × 2 (Rating: 2 × 1.5Vdc) Frequency Range 27.045 MHz Modulation Technique FSK Compliance Certification Services Inc. Report No: 40802202-RP FCC ID : L2BACEKEY2060 Date of Issue: September 27, 2004 Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, and 15.227. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 13.1.4.1 of ANSI C63.4.Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and average detector modes. Radiated Emissions The EUT is placed on a turn table, which is 0.8 m above ground plane. The turntable shall rotate 360 degrees to determine the position of maximum emission level. EUT is set 3m away from the receiving antenna, which varied from 1m to 4m to find out the highest emission. And also, each emission was to be maximized by changing the polarization of receiving antenna both horizontal and vertical. In order to find out the max. emission, the relative positions of this hand-held transmitter (EUT) was rotated through three orthogonal axes according to the requirements in Section 13.1.4.1 of ANSI C63.4. Compliance Certification Services Inc. Report No: 40802202-RP FCC ID : L2BACEKEY2060 Date of Issue: September 27, 2004 Page 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS (a) Except as shown in paragraph (d) of this section, only spurious emissions are permitted in any of the frequency bands listed below: MHz MHz MHz GHz 0.090 - 0.110 1 0.495 - 0.5…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 40802202-RP FCC ID : L2BACEKEY2060 Date of Issue: September 27, 2004 Page 17 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos
