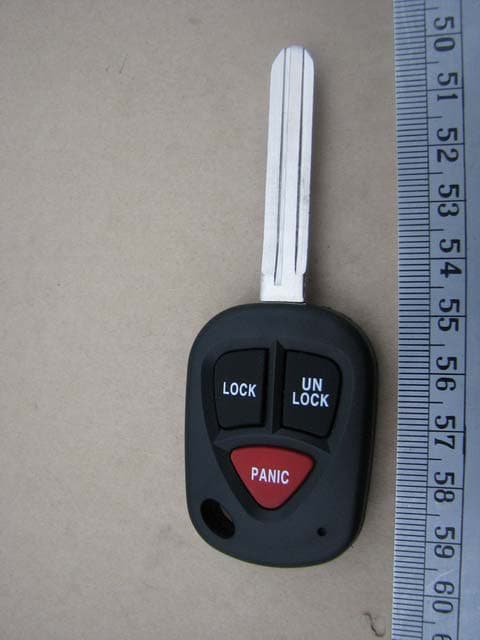

FCC ID: L2M001004 Model No.: TX-3BUTTON User’s manual 1. Information to user: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. 2. Introduction to transmitter’s function a. Lock : Pressing and releasing the Lock Button will arm the system and lock all of the doors. Press and hold this button to activate Remote Panic with locking doors. b. Unlock : Pressing and releasing the Unlock Button will disarm the system and unlock all of the doors. Press and hold this button to activate Remote Panic with unlocking doors. c. Panic : Pressing and releasing the Panic Button the Remote Panic can be activated anytime, whether the vehicle’s ignition is turned on or off, and has a 60 second duration of flashing light and alarming sound unless a transmitter is used to stop it.

Registration number: ETSTWM0611-00008-C-1 FCC ID: L2M001004 ETS Dr. Genz Taiwan PS Co., Ltd. External Photos Registration number: ETSTWM0611-00008-C-1 FCC ID: L2M001004 ETS Dr. Genz Taiwan PS Co., Ltd. Registration number: ETSTWM0611-00008-C-1 FCC ID: L2M001004 ETS Dr. Genz Taiwan PS Co., Ltd. Registration number: ETSTWM0611-00008-C-1 FCC ID: L2M001004 ETS Dr. Genz Taiwan PS Co., Ltd.

FCC ID: L2M001004 Model No.: TX-3BUTTON FCC ID Label information: The label size is 2.1cm X0.5cm and because of the size of this device is too small to be placed the other required statement, the following will be placed in the user’s manual: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: L2M001004

ETS Dr.Genz Taiwan PS Co., LTD. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 A2LA Cert.No.: 2300.01 PTCRB Accredited Type Certification Test House TEST-REPORT FCC RULES PART 15 / SUBPART C FCC ID: L2M001004 Test report no.: ETSTWM0611-00008-C-1 FCC ETS DR. GENZ TAIWAN PS CO., LTD 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C. PHONE 886-2-66068877 FAX 886-2-66068879 Registration number: ETSTWM0611-00008-C-1 FCC ID: L2M001004 ETS Dr. Genz Taiwan PS Co., Ltd. Page 1 of 20 TABLE OF CONTENTS 1 GENERAL INFORMATION 2 1.1 NOTES 2 1.2 T ESTING LABORATORY 3 1.2.1 Location 3 1.2.2 Details of accreditation status 3 1.3 DETAILS OF APPROVAL HOLDER 3 1.4 APPLICATION DETAILS 4 1.5 TEST ITEM 4 1.6 TEST STANDARDS 5 2 TECHNICAL TEST 5 2.1 SUMMARY OF TEST RESULTS 5 2.2 TEST ENVIRONMENT 5 2.3 TEST EQUIPMENT UTILIZED 6 2.4 G ENERAL TEST PROCEDURE 8 3T EST RESULTS (ENCLOSURE) 9 3.1 T RANSMISSION REQUIREMENTS 10 3.1.1 Limit of Transmission Time 10 3.1.2 Active Time 10 3.2 OUTPUTPOWER (FIELD STRENGTH) 11 3.3 OUT OF BANDRADIATED EMISSIONS 12 3.4 TRANSMITTERRADIATED EMISSIONS IN RESTRICTED BANDS 13 3.5 SPURIOUSEMISSION RADIATED,TRANSMITTER 14 3.6 CHANNEL BANDWIDTH 16 3.7 ANTENNA REQUIREMENT 17 3.8 DUTYCYCLE 18 3.9 CONDUCTED MEASUREMENT AT (AC) POWERLINE 19 A PPENDIX 20 Registration number: ETSTWM0611-00008-C-1 FCC ID: L2M001004 ETS Dr. Genz Taiwan PS Co., Ltd. Page 2 of 20 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS DR. GENZ TAIWAN PS CO., LTD Tester: December 07, 2006 Jay Chaing Date ETS-Lab. Name Signature Technical responsibility for area of testing: December 07, 2006 Steven Chuang Date ETS Name Signature Registration number: ETSTWM0611-00008-C-1 FCC ID: L2M001004 ETS Dr. Genz Taiwan PS Co., Ltd. Page 3 of 20 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Shuang Sing Village, LiShuei Rd., Wanli Township, Taipei County 207, Taiwan (R.O.C.) Company ETS DR. GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD. NEIHU, TAIPEI 114, TAIWAN R.O.C. Tel : 886-2-66068877 Fax : 886-2-66068879 1.2.2 Details of accreditation status Accredited testing laboratory A2LA-registration number: 2300.01 FCC filed test laboratory Reg. No. 930600 Industry Canada filed test laboratory Reg. No. IC 5679 PTCRB Accredited Type Certification Test House Town: ./. Country: ./. Telephone: ./. Fax: ./. 1.3 Details of approval holder Name : Omega Research and Development Inc. Street : 981 North Burnt Hickory Road Town : Douglasville, Georgia 30134 Country : USA Telephone : 800-554-4053 Fax : 770-942-5400 Registration number: ETSTWM0611-00008-C-1 FCC ID: L2M001004 ETS Dr. Genz Taiwan PS Co., Ltd. Page 4 of 20 1.4 Application details Date of receipt of application : November 24, 2006 Date of receipt of test item : November 24, 2006 Date of test : from November 25, 2006 to December 07, 2006 1.5 Test item Description of test item : Remote Control Type identification : TX-3BUTTON Brand name : ./. Serial number : Test sample without serial number Transmitting frequency : 433.92 MHz Operation mode : simplex Voltage supply : 6 VDC ( battery ) (If the device is using battery, please check if the device is tested under fresh battery condition.) Highest clock frequency: 433.92 MHz Antenna type : Printed loop antenna Photos : see Appendix Manufacturer (if applicable) Name : ./. Street : ./. Town : ./. Country : ./. Additional information : ./. Registration number: ETSTWM0611-00008-C-1 FCC ID: L2M001004 ETS Dr. Genz Taiwan PS Co., Ltd. Page 5 of 20 1.6 Test standards Technical standard : FCC RULES PART 15 / SUBPART B § 15.109/ SUBPART C § 15.203, § 15.209, § 15.231 (a) : February, 2006 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course: of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 23 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply: 6 VDC ( battery ) Registration number: ETSTWM0611-00008-C-1 FCC ID: L2M001004 ETS Dr. Genz Taiwan PS Co., Ltd. Page 6 of 20 2.3 Test equipment utilized No. Test equipment Type Serial No. Manufacturer Cal. Date Next Cal. Date ETSTW-CE 001 EMI TEST RECEIVER ESHS10 842121/013 R&S 2006/10/16 2007/10/15 ETSTW-CE 002 PREREULATOR MODE DC POWER SUPPLY None None Function Test ETSTW-CE 003 AC POWER SOURCE APS-9102 D161137 GW Function Test ETSTW-CE 004 ZWEILEITER-V- NETZNACHBILDUNG TWO- LINE V-NETWORK ESH3-Z5 840731/011 R&S 2006/10/16 2007/10/15 ETSTW-CE 005 Line-Impedance Stabilisation Network NNBM 8126D 137 Schwarzbeck 2006/10/16 2007/10/15 ETSTW-CE 006 IMPULS-BEGRENZER PULSE LIMITER ESH3-Z2 100226 R&S In House Certificate ETSTW-CE 008 ABSORBING CLAMP MDS 21 3469 ABSORPTIONS- MESSWANDLER- ZANGE 2005/10/24 2007/10/23 ETSTW-CE 009 TEMP.&HUMIDITY CHAMBER GTH-225-40-1P-UMAA0305-009 GIANT FORCE 2006/8/17 2007/8/16 ETSTW-CE 012 Dual-Phase-V-Network NNB-2/16Z 03/1…
