L3HFAN35T2Remote Control

Remote controller GENERAL INFORMATION This remote controller is designed to separately control your ceiling fan speed and light brightness. There are four buttons (HI, MED, LOW, OFF) to control the speed of the fan and off. The light dimmer button will control the light brightness dimmer and off. The red indicator on the transmitter will light when one of the five buttons is pressed. INSTRUCTION OF INSTALLATION AND OPERATION 1.SETTING THE CODES This unit has 16 different code combinations. To set the codes, perform the following steps: A. Setting the codes on the transmitter: a. Remove battery cover. Press firmly on the arrow and slide battery cover off. b. Slide code switches to your choice of up or down position. (Factory setting is all up. Do not use this position. Use a Small screwdriver or ball point pen to slide firmly up or down (Figure 1)). B. Setting the codes on the receiver: Keep pressing the button learn key in excess of 3 second it becomes a LEARN status. The receiver can remember the last codes status .The light flash two times. 2.INSTALLING RECEIVER IN CEILING FAN A. Safety precautions: WARNING: HIGH VOLTAGE! Disconnect power by removing fuse or switching off circuit breaker. Do not use with other solid state fans. Electrical wire must meet all local and national electrical code requirements. Supply for fan must be 110/120 volt, 60Hz. Maximum fan motor amps: 1.0, Maximum down light watts: 240 incandescent and ballast. Otherwise power can cause serious injury or death. B. Installing receiver in fan: a. Remove power from the circuit. b. Remove ceiling fan canopy from the mounting bracket. c. Disconnect existing wiring between ceiling fan and Supply in electrical junction box. d. Make connections as follows, using the wire nuts Maximum up light watts: 100 incandescent and ballast. Use wire connecting nuts supplied with the fan (FIG.3) FROM POWER SOURCE AC 110/120 VOLT 60Hz 3.5AMPS. CONNECT TO Green fan wire ....Bare supply wire Black receiver wire(AC IN L) .... Black supply wire White receiver wire(AC IN N) ....White supply wire White receiver wire(TO MOTOR N) ....White fan wire Black receiver wire(TO MOTOR L) ....Black fan wire Blue receiver wire(DOWN LIGHT) ....Blue light wire Orange receiver wire(UP LIGHT) ....Orange light wire Model FAN30R-240W PJES1002 CANOPY CANOPY (FIG.2) LIGHT MUST KEEP AT THE TURN ON POSITION FAN MUST KEEP AT THE HIGH SPEED POSITION RECEIVER CODE SWITCHES (FIG.1) ON 2 3 4 1 O N LEARN RECEIVER If other fans or supply wires are different colour, have this unit installed by qualified licensed electrician. e. Push all connected wires up into junction box. f. Lay the brown antenna wire on top of the receiver, and put the receiver into the mounting bracket. g. Reinstall the canopy on the mounting bracket. h. Restore power. 3. OPERATING TRANSMITTER: A. Install 12 volt battery. (To prevent damage to transmitter, remove the battery if not use for a long time). B. Store the transmitter away from excessive heat or humidity. C. This remote control unit is equipped with 16 code combinations. To prevent possible interference from or to other remote units such as garage door openers, car alarm or security system. If you find that your fan and light kit go on And off without using your remote control, simply change the code combination in your transmitter and receiver. D. Operating the buttons on the panel of the transmitter. HI key -for fan high speed. MED key-for fan medium speed. LOW key-for fan low speed. OFF key-for fan speed off. DOWN LIGHT key-for light brightness . The light function is controlled by pressing the LIGHT key down to increase or decrease light. Tap key quickly to turn light off or on. Keep pressing the button or in excess of 0.7 second it becomes a dimmer, the light varies cyclically in 0.8 second. The receiver can remember the last status of the light brightness when the light was switched, so that it can resume to adjust the light brightness. UP LIGHT key-for light brightness . FCC Statement: This device is in conformance with Part 15 of the FCC Rules and Regulations for Information Technology Equipment. Operation of this product is subject to the following two conditions: This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. YOUR REMOTE NOW HAS FULL CONTROL OF THE FAN AND LIGHT. OPERATION DISTANCE 20 FEET TRANSMITTER MODEL: FAN-35T Optional Wall Mounting for Transmitter Holder Place in accessible area of your home, and screw the transmitter holder into wall using the two screws provided, slide hand unit into holder. 4. TROUBLE SHOOTING GUIDE 1. Fails to operate a. Power to receiver ? b. Receiver wired correctly ? c. Fan manual speed control in highest position ? d. Light kit switch turned on ? e. Good battery in the transmitter ? f. Code set at exact same positions in both transmitter and receiver ? 2. Wont operate at distance If transmitter operates fan/light kit when the up close, but not at 20 feet away. Try placing the brown antenna wire higher, up through ceiling/outside the junction box. ' NOTICE ! Your ceiling fan and light kit assembly must meet the following requirements: 1. Do not use with other solid state fans. 2. Electrical rating: 120v 60Hz 3.5A MAX. Motor amps: 1.0 MAX. Down Light watts: 240-(incandescent and ballast) MAX. UP Light watts: 100-(incandescent and ballast) WARNING TO REDUCE THE RISK OF SHOCK, THIS FAN MUST BE INSTALLED WITH A WALL CONTROL/SWITCH. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. PJES1002 2 3 A 1 2 V FCC ID: L3HFAN35T

R.F. REMOTE CONTROL BLOCK DIAGRAM TRANSMITTER MODEL ： FAN-35T2 FREQUENCY ： 303.9MHz FUNCTION SWITCH CONTROL CIRCUIT DIP SWITCH DIGITAL ENCODE R.F OSC MODULATO R

2010-5-15 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Chia Wei Electric Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Remote Control, Model Name: FAN-11T1 We affirm that between SIEMIC and Chia Wei Electric Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Mark Liao / General Manager Chia Wei Electric Co., Ltd. No.27, Lane 24, Ta Lain North St. Taichung, Taiwan Tel: 00886422921202 Fax: 00886422918645

FCC Certification label Sample

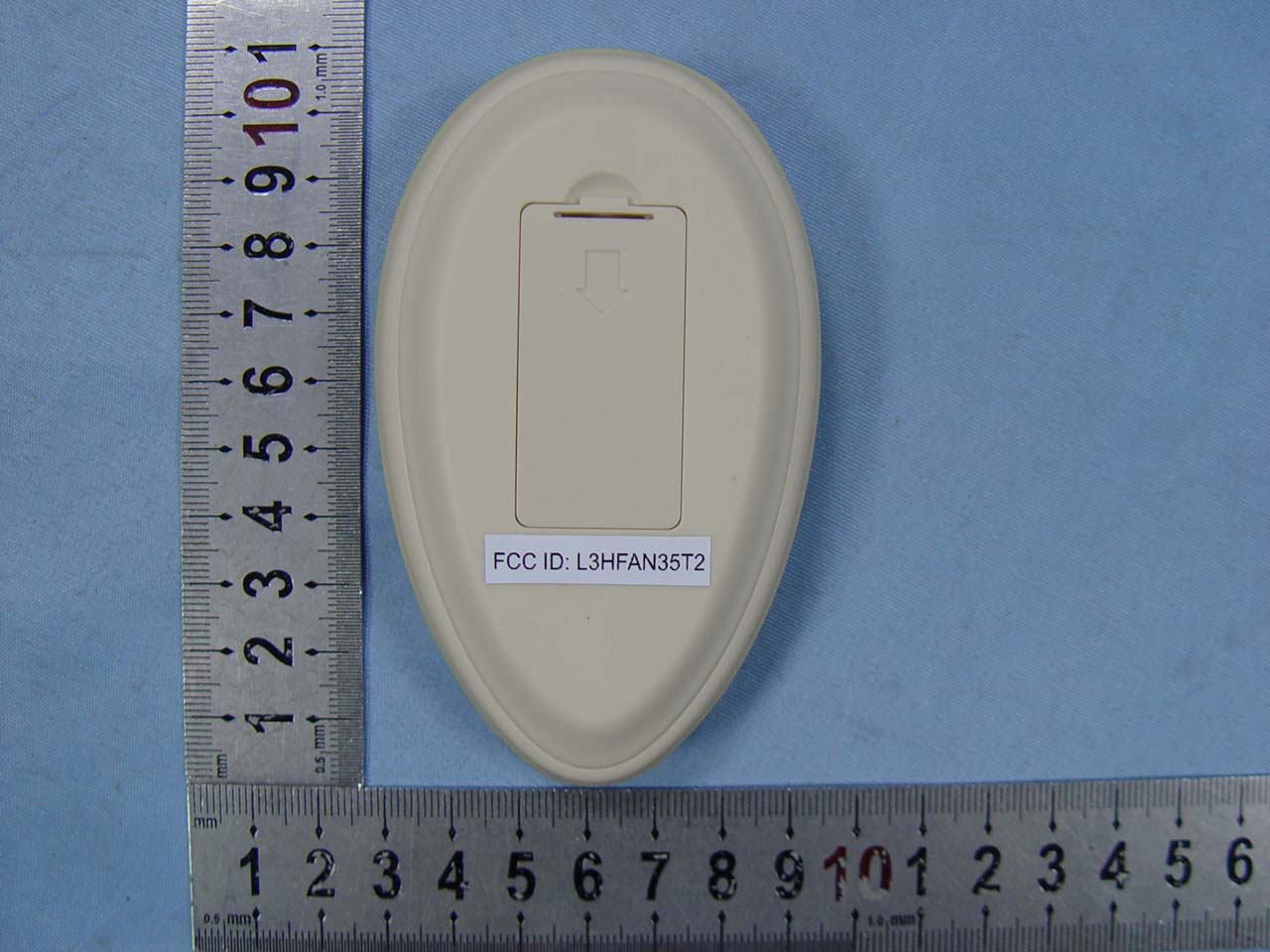

FCC Certification label location Sample Label location

Antenna

Applicant：CHIA WEI ELECTRIC CO., LTD FCC ID：L3HFAN35T2 Operation Description By pressing any key, U1 receives signal. U1 and DIP code switch output coded signal. The signal is modulated by L1, C1, C2 and C3 with frequency 303.9 MHz. The sign al is amplified by Q3, R1, R2 and R3. Antenna is formed by a trace on PCB and an inductor. Common grounding on PCB is not connected to real external ground. Power suppl y is a 12V battery.

1234 A B C D 4321 D C B A 公司名称 图名 图号 绘制审核 版本号 文件名 日期 CHIA WEI ELECTRIC CO.,LTD FAN-35T2 A0 F:\xq\e\XU QIANG\DDB99\DDB99\35T\35T.ddb - Documents\Fan-35T2(mdt)SAW.sch 4-May-2010 校对 FAN/LOW FAN/OFF A 0 1 A 1 2 A 2 3 A 3 4 A 4 5 A 5 6 A 6 7 A 7 8 V S S 9 A D 8 1 0 A D 9 1 1 A D 1 0 1 2 A D 1 1 1 3 T E 1 4 O S C 2 1 5 O S C 1 1 6 D O U T 1 7 V D D 1 8 U1 HT12E C1 102 FAN/MID R10 125 FAN/HI LIGHT 1234 5678 D I P S W . +12V VCC R8 106 LED Q2 C1623 R4 125 D7 4148 VCC Q1 A812 R6 152 R5 823 IC14 C7 105X7R D4 4148 LEARN D10 4004 L ON/OFF D11 4004 D9 4004 D12 4004 D13 4004 UPLIGHT TWO LIGHT D16 4004 D17 4004 C330P R1 100 R2101 C4102C12 3R0 C2 3R0 Q1 H-10 R3 223 VCC SAW 303.875MHZ L1 L2 0.39uH ANT C13 3R0 PDF 文件使用 "pdfFactory" 试用版本创建 ÿ www.fineprint.com.cn

Page 1 of 32 FCC ID: L3HFAN35T2 ACCURATE TECHNOLOGY CO., LTD REPORT NO. ATE20100946 APPLICATION CERTIFICATION On Behalf of CHIA WEI ELECTRIC CO., LTD REMOTE CONTROL Model No.: FAN-35T2 FCC ID: L3HFAN35T2 Prepared for : CHIA WEI ELECTRIC CO., LTD Address : No.27, Lane 24, Ta Lain North St., Taichung, TAIWAN Prepared by : ACCURATE TECHNOLOGY CO., LTD Address : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report Number : ATE20100946 Date of Test : May 10-12, 2010 Date of Report : May 13, 2010 Page 2 of 32 FCC ID: L3HFAN35T2 ACCURATE TECHNOLOGY CO., LTD REPORT NO. ATE20100946 TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION.................................................................................................... 4 1.1. Description of Device (EUT)............................................................................................................. 4 1.2. Description of Test Facility............................................................................................................... 5 1.3. Measurement Uncertainty.................................................................................................................. 5 2. MEASURING DEVICE AND TEST EQUIPMENT............................................................... 6 3. SUMMARY OF TEST RESULTS............................................................................................. 7 4. THE FIELD STRENGTH OF RADIATION EMISSION...................................................... 8 4.1. Block Diagram of Test Setup............................................................................................................. 8 4.2. The Field Strength of Radiation Emission Measurement Limits....................................................... 9 4.3. Configuration of EUT on Measurement............................................................................................ 9 4.4. Operating Condition of EUT............................................................................................................. 9 4.5. Test Procedure................................................................................................................................. 10 4.6. The Field Strength of Radiation Emission Measurement Results................................................... 11 5. 20DB OCCUPIED BANDWIDTH.......................................................................................... 13 5.1. Block Diagram of Test Setup........................................................................................................... 13 5.2. The Bandwidth of Emission Limit According To FCC Part 15 Section 15.231(c)......................... 13 5.3. EUT Configuration on Measurement.............................................................................................. 14 5.4. Operating Condition of EUT........................................................................................................... 14 5.5. Test Procedure................................................................................................................................. 14 5.6. Measurement Result........................................................................................................................ 15 6. RELEASE TIME MEASUREMENT...................................................................................... 16 6.1. Block Diagram of Test Setup........................................................................................................... 16 6.2. Release Time Measurement According To FCC Part 15 Section 15.231(a)................................... 16 6.3. EUT Configuration on Measurement.............................................................................................. 17 6.4. Operating Condition of EUT........................................................................................................... 17 6.5. Test Procedure................................................................................................................................. 17 6.6. Measurement Result........................................................................................................................ 18 7. AVERAGE FACTOR MEASUREMENT.............................................................................. 19 7.1. Block Diagram of Test Setup........................................................................................................... 19 7.2. Average factor Measurement according to ANSI 63.4: 2003.......................................................... 19 7.3. EUT Configuration on Measurement.............................................................................................. 20 7.4. Operating Condition of EUT........................................................................................................... 20 7.5. Test Procedure................................................................................................................................. 20 7.6. Measurement Result........................................................................................................................ 21 APPENDIX I ( TEST CURVES) (10 pages) Page 3 of 32 Test Report Certification Applicant : CHIA WEI ELECTRIC CO., LTD Manufacturer : Chien Wei (Zhongshan) Electronic Co., LTD EUT Description : REMOTE CONTROL (A) MODEL NO.: FAN-35T2 (B) SERIAL NO.: N/A (C) POWER SUPPLY: 12V DC (“23A” battery 1 ̄) Measurement Procedure Used: FCC Rules and Regulations Part 15 Subpart C Section 15.231 ANSI 63.4: 2003 The device described above is tested by ACCURATE TECHNOLOGY CO., LTD to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart C Section 15.231. The measurement results are contained in this test report and ACCURATE TECHN…
