L3M-ISITEIIIUHFone-way Paging-Transmitter

www.swissphone.com User Manual I.SITE III Version 1.1 I.SITE III User Manual © SWISSPHONE Wireless AG Version 1.1 Page 1/20 Document History Version history: Version Date Created by Comments 0.1 23 Jul 2013 OSU First edition 1.0 25 Sept 2013 OGD Revised and expanded 1.1 13 Feb 2014 OGD FCC/IC notices added I.SITE III User Manual © SWISSPHONE Wireless AG Version 1.1 Page 2/20 Contents 1 Abbreviations 3 2 Introduction 4 2.1 Purpose 4 2.2 General Description 4 2.3 Functional Description 4 2.3.1 Design 4 2.3.2 Optional Features 5 2.3.3 External Connections and Displays 5 2.3.4 Possible Product Combinations 6 2.4 Usage Examples 7 3 System Description 8 3.1 Housing and Electronics 8 3.2 Protective Measures 8 3.3 Antenna System 8 3.4 I.SITE III Hardware Components 8 3.4.1 Power Supply 8 3.4.2 Transmission Unit 9 3.4.3 Controller Board 9 3.4.4 Displays, Connections, and Operating Controls 10 3.4.5 Backup Battery 11 3.5 Operating Modes 11 3.5.1 I.SEARCH Slave Mode 11 3.5.2 SAGEM Mode 11 3.5.3 ASCII Mode 11 3.5.4 Programming and Test Mode 11 4 Communications Interface 12 4.1 I.SEARCH Interface 12 4.2 ASCII Interface 12 4.3 Setting up Digi Connect 13 4.3.1 Changing the IP Address 13 5 Technical Data 14 5.1 Item Numbers 15 6 Safety Notices 16 6.1 General 16 6.2 Important Notes on Device Operation 16 6.3 General Safety Measures 16 6.4 Precautionary Measures for Handling the Battery 16 6.4.1 Battery Handling 16 6.4.2 Battery Storage 17 6.5 Earthing and Lightning Surge Protection 17 6.6 Maintenance Schedule 17 7 EU Declaration of Conformity 18 8 Notes for Customers from the U.S. and Canada 19 I.SITE III User Manual © SWISSPHONE Wireless AG Version 1.1 Page 3/20 1 Abbreviations AC Alternating Current CPU Central Processing Unit DFSK Digital Frequency Shift Keying EC European Community EMS Electromagnetic Safety EMC Electromagnetic Compatibility ETSI European Telecommunications Standards Institute GIS Graphical Information System HD Hard Disk HF High Frequency HW Hardware Hz Hertz (SI unit for frequency) LAN Local Area Network LED Light Emitting Diode POCSAG Post Office Code Standardization Advisory Group RAM Random Access Memory R&TTE Radio and Telecommunications Terminal Equipment SW Software UHF Ultra High Frequency USB Universal Serial Bus VAC Voltage Alternating Current VDC Voltage Direct Current VGA Video Graphics Array VHF Very High Frequency I.SITE III User Manual © SWISSPHONE Wireless AG Version 1.1 Page 4/20 2 Introduction 2.1 Purpose This manual describes how to install and operate the I.SITE III POCSAG paging transmitter. 2.2 General Description POCSAG transmitter with LAN connection: The I.SITE III is a POCSAG transmitter for digital alarm systems. The transmitter is encased in a rugged IP65-compliant housing, making it suitable for outdoor use. It is controlled via Ethernet LAN, enabling the transmitter to be located remotely. POCSAG messages are created internally and sent via the scalable transmission unit at 1...25W. 2.3 Functional Description 2.3.1 Design The I.SITE III consists of the following four functional blocks: • Power supply - AC/DC converter with battery charging port and deep discharge protection • Transmission unit • Controller board • Backup battery (optional) Device control is provided via Ethernet LAN (RJ45). POCSAG messages are created internally and sent via the transmission unit (max. 25 W). Three local digital potential-free inputs and one service contact are available optionally. These can directly trigger POCSAG messages and/or additional status messages to the alarm server. Multiple I.SITE III devices can operate in parallel via LAN as long as the radio coverage areas do not overlap. POCSAG messages are sent asynchronously. For simulcast communication, use the I.SITE II together with I.SEARCH. Power supply Backup battery (optional) Transmission unit Controller board I.SITE III User Manual © SWISSPHONE Wireless AG Version 1.1 Page 5/20 2.3.2 Optional Features Up to three add-on optional features are available for the I.SITE III base transmitter: • Backup battery • Service contact (door) • 3x input contacts If you require one or more of these optional features, make sure to specify these when ordering the I.SITE III. These features can only be added when you purchase the base device. There are a number of Swissphone settings to prevent unauthorized use of these features. For further information, please refer to the “Item Numbers” chapter below. 2.3.3 External Connections and Displays 1 1 Cable feed-throughs for - Power cable (230V/50Hz) - Ethernet (LAN) - Input contacts (optional) 2 LED display - Status (green / heartbeat pulse 1Hz) - PTT (yellow / on when PTT signal present) - Error (red / on when TX error occurs / AC Fail & ACCU Low / Test Mode) 3 Antenna connection N-type (female) 50Ω 2 3 I.SITE III User Manual © SWISSPHONE Wireless AG Version 1.1 Page 6/20 2.3.4 Possible Product Combinations 1. I.SEARCH with I.SITE III The transmitter runs in I.SEARCH Slave mode (connection via Slave protocol for Master-Slave operation). With the I.SEARCH Slave protocol, you can: o Transmit POCSAG-encoded messages and receive transmitter fault status messages at the same time. o Query the transmitter status or data. o Establish a direct connection to the Tait transmission unit. With the Email SMTP protocol, you can receive messages about changes to the input status. For this, the customer needs to configure the Digi Connect (Ethernet module with email server) accordingly. 2. I.SITE III in stand-alone operation The transmitter runs in ASCII mode (connection via ASCII Simple protocol). With the ASCII Simple protocol, you can: o Transmit text messages and receive transmitter fault status messages at the same time. o Query the transmitter status or data. o Establish a direct connection to the Tait transmission unit. With the ASCII Simple protocol, you can receive input status events. For this, the target application needs to keep the LAN connection open so that the input status event…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 10. Jun 2014 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name L3M-ISITEIIIUHF I.SITE III UHF For the product stated above, we request permanent confidentiality for exhibits which contain Operational Description, Block Diagram, Schematics, Parts Lists or Tune Up Information. The above exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (signed) Name: Stadler, Mr. Marco A. Company: Swissphone Address: 1194 W Ash St, Suite C Windsor CO 80550 Phone: +1 800 596 19 14 ext. 5 Fax: +1 970 460 3014 Email: [email protected]

Declaration of Bandwith and Emmission-Designator UHF.docx Samstagern, 19.08.2014 Seite 1/1 Swissphone Wireless AG Fälmisstrasse 21 CH-8833 Samstagern Phone: +41 44 786 77 70 I.SITE III UHF Necessary bandwidth and emission designators Our product I.SITE III UHF with FCC ID: L3M-ISITEIIIUHF and IC ID: 4404A-ISITEIIIUHF works within the following specification: Channel Spacing Frequency Range Frequency Tolerance Output Power Necessary Bandwidth Emission Designator 12.5kHz 400-470MHz 1.5 ppm 25.0 W 4.8 kHz 4K80F2D 25kHz 400-470MHz 1.5 ppm 25.0 W 8.4 kHz 8K40F2D

Declaration on the using of certified component UHF.docx Samstagern, 19.08.2014 Seite 1/1 Federal Communication Commission Equipment Authorization Devision, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 Certification and Engineering Bureau Industry Canada Spectrum Engineering Branch 3701 Carling Avenue, Building 94 Ottawa, Ontario K2H 8S2 Declaration on the using of certified module Dear Sirs We, Swissphone Wireless AG, declare on our sole responsibility that our product: I.SITE III UHF with FCC ID: L3M-ISITEIIIUHF and IC ID: 4404A-ISITEIIIUHF host the following RF component: TM8105-H5A01 with FCC ID: CASTMAH5A and IC: 737A-TMAH5A We attest that the the RF component used in our product I.SITE III UHF is identical in soft- and hardware to the already certified model mentioned above. Thus the conducted measurement results from test REPORT NUMBER 1919 from TELTEST Laboratories remain applicable in full. The RF component is implemented in our product in such manner that the regulatory requirements are still fulfilled. If you have any questions, please feel free to contact us at the address shown below Sincerely, Harald Pfurtscheller, CTO Swissphone Wireless AG Fälmisstrasse 21 CH-8833 Samstagern Phone: +41 44 786 75 31

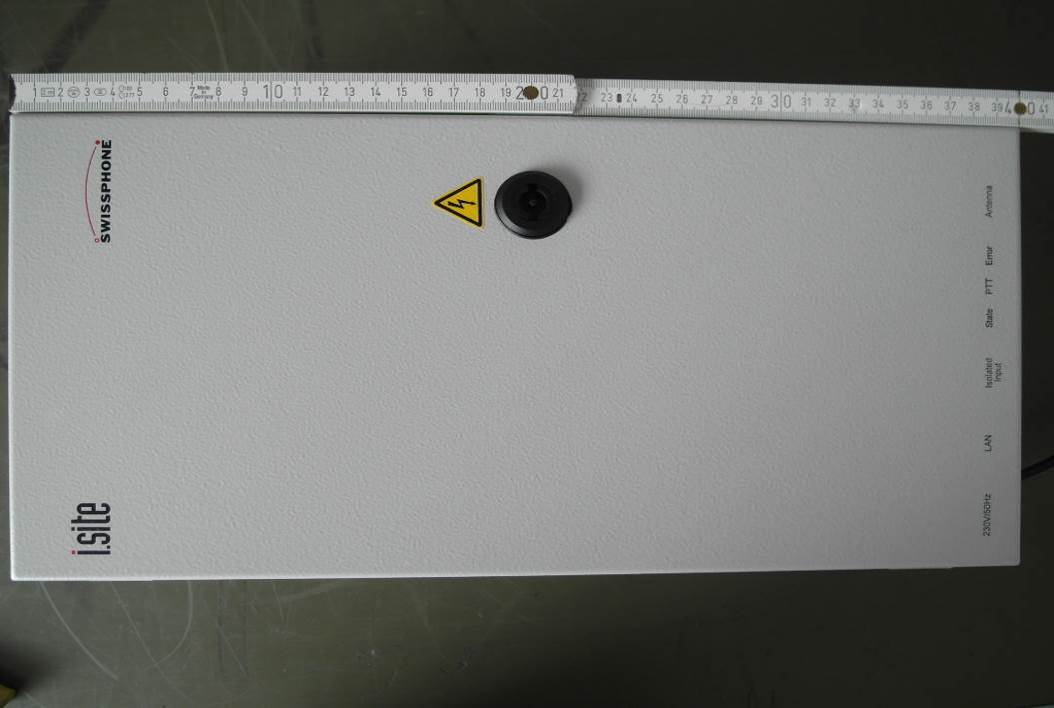

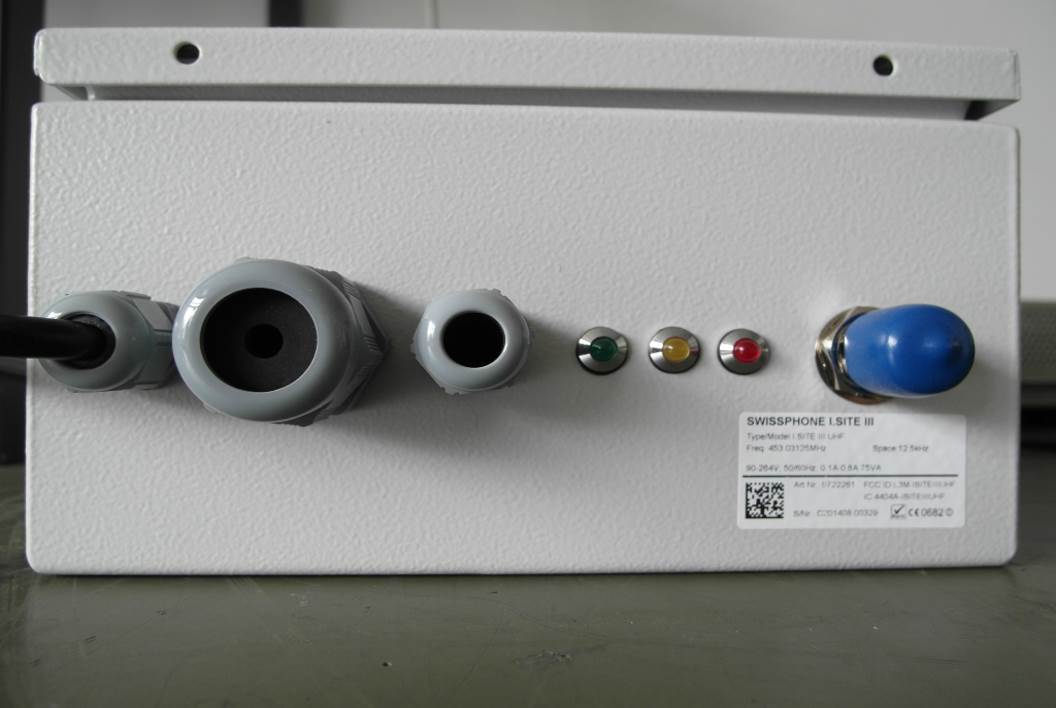

Test report no.: 1-7809/14-01-02 2014-06-25 Page 31 of 42 Annex B External photographs of the EUT Photo 1: Photo 2: Test report no.: 1-7809/14-01-02 2014-06-25 Page 32 of 42 Photo 3: Photo 4: Test report no.: 1-7809/14-01-02 2014-06-25 Page 33 of 42 Photo 5: Photo 6:

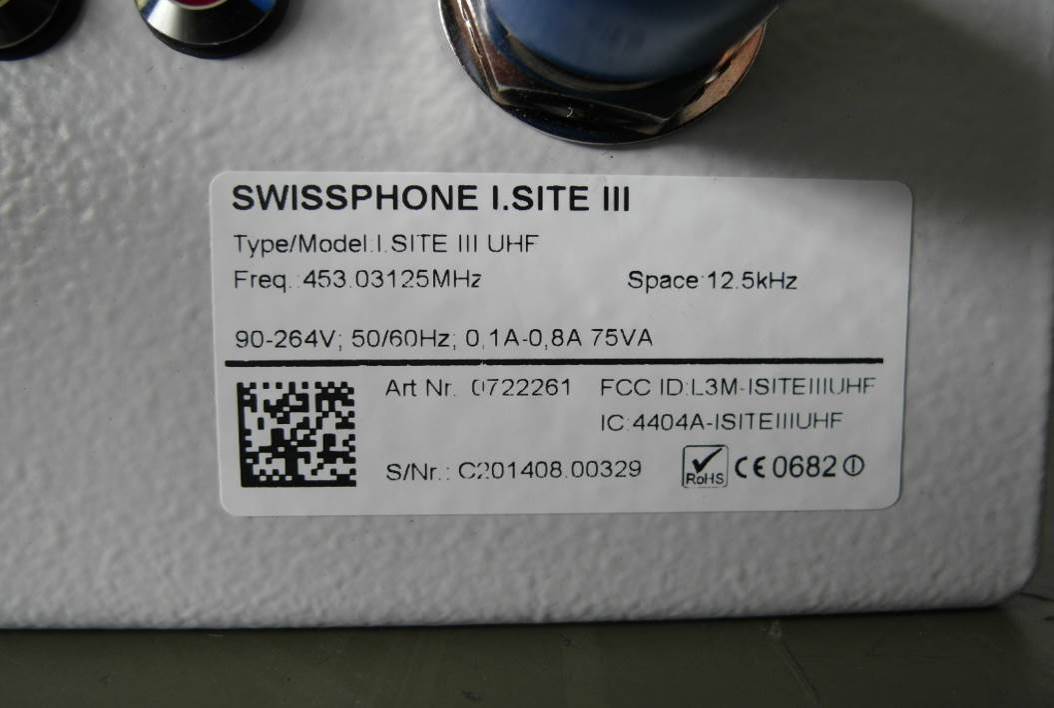

Label I.SITE III UHF.docx Seite 1 Label I.SITE III UHF Design and parameters of the label: Label location (Label2) on the I.SITE III:

Test report no.: 1-7809/14-01-02 2014-06-25 Page 34 of 42 Annex C Internal photographs of the EUT Photo 1: Photo 2: Test report no.: 1-7809/14-01-02 2014-06-25 Page 35 of 42 Photo 3: Photo 4: Test report no.: 1-7809/14-01-02 2014-06-25 Page 36 of 42 Photo 5: Photo 6: Test report no.: 1-7809/14-01-02 2014-06-25 Page 37 of 42 Photo 7: Photo 8: Test report no.: 1-7809/14-01-02 2014-06-25 Page 38 of 42 Photo 9: Photo 10: Test report no.: 1-7809/14-01-02 2014-06-25 Page 39 of 42 Photo 11: Photo 12: Test report no.: 1-7809/14-01-02 2014-06-25 Page 40 of 42 Photo 13: Photo 14:

936.062/c Änderungen vorbehalten. Strahler für Mastbefestigung 146 – 174 MHz K 55 29 2, K 55 29 21 Typ Nr.K 55 29 2K 55 29 21 Eingang7-16-BuchseN-Buchse Frequenzbereich146 – 174 MHz VSWR< 1,4 Gewinn (bez. λ /2-Dipol)2 dB Impedanz50 Ω PolarisationVertikal Max. Belastung440 W (bei 50 °C Umgebungstemperatur) StrahlungsdiagrammeDie Antenne strahlt bevorzugt in Richtung Mast-Strahler. Gewicht4,5 kg Windlast 80 N (bei v = 150 km/h) Max. Windgeschwindigkeit 200 km/h Mast ∅60 – 125 mm Verpackungsmaße864 x 598 x 87 mm Dipollänge840 mm Abstand Dipol / Mast500 mm Rundstrahler mit bevorzugter Abstrahlung in eine Richtung. Material:Feuerverzinktes Stahlrohr. Alle Schrauben und Muttern: Rostfreier Stahl. Befestigung:An Rohrmasten von 60 – 125 mm ∅über mitgelieferte Schelle. Blitzschutz:Atmosphärische Entladungen werden ab- geleitet, da alle Metallteile der Antenne und der mitgelieferten Befestigungsvorrichtung an Masse liegen. 3 dB 10 0 3 dB 10 0 78° Horizontal 60 mm ∅ Vertikal 60 mm ∅ 3 dB 10 0 3 dB 10 0 78° Horizontal 115 mm ∅ Vertikal 115 mm ∅ Strahlungsdiagramme bei verschiedenen Mastdurchmessern: Bei Antennen mit N-Buchse empfehlen wir, Kabelstecker mit „gefesseltem“ Innen- leiter zu verwenden, um Beschädigungen des Buchsen-Innenleiters zu vermeiden. KATHREIN-Werke KG . Anton-Kathrein-Straße 1 – 3 . Postfach 10 04 44 . D-83004 Rosenheim . Deutschland . Telefon (0 80 31) 18 4-0 . Fax (0 80 31) 18 4-9 73 Internet: http://www.kathrein.de 936.062/c Subject to alteration. Half-wave Dipole 146 – 174 MHz K 55 29 2, K 55 29 21 3 dB 10 0 3 dB 10 0 78° Horizontal Pattern 60 mm ∅ Vertical Pattern 60 mm ∅ 3 dB 10 0 3 dB 10 0 78° Horizontal Pattern 115 mm ∅ Vertical Pattern 115 mm ∅ Radiation Pattern with different mast diameters: For antennas with N-female connector (jack) we recommend using cable connetors (male plug) with captive inner conductor to avoid damages to the jack-center conductor. Type No.K 55 29 2K 55 29 21 Input7-16 femaleN female Frequency range146 – 174 MHz VSWR< 1.4 Gain (ref. λ /2dipole)2 dB Impedance50 Ω PolarizationVertical Max. power440 W (at 50 °C ambient temperature) Radiation PatternPreferred direction: Mast to radiator. Weight4.5 kg Wind load 90 N (at 150 km/h) Max. wind velocity200 km/h Mast diameter60 – 125 mm Packing size 864 x 598 x 87 mm Dipole length840 mm Distance dipole / mast500 mm Offset-pattern antenna. Hot-dip galvanized steel. Material:Hot-dip galvanized steel. All screws and nuts: Stainless steel. Mounting:On masts of 60 – 125 mm diameter, clamps supplied. Grounding:All metal parts of the antenna including the mounting kit are DC grounded. KATHREIN-Werke KG . Anton-Kathrein-Straße 1 – 3 . PO Box 10 04 44 . D-83004 Rosenheim . Germany . Telephone +49 8031 1 84-0 . Fax +49 8031 1 84-9 73 Internet: http://www.kathrein.de

RF-Exposure 2014-07-08 Page 1 of 1 Environmental assessment (EA) The device is designed to carry 1 transmitter: - One way paging Transmitter UHF 400-470 MHz, FCC ID: L3M-ISITEIIIUHF; IC: 4404A-ISITEIIIUHF This device is to be used only for fixed applications (Controlled environment). The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all the persons and must not be co-located or operating in conjunction with any other antenna or transmitter. The table below is excerpted from chapter 4.4 of RSS-102. Frequency Range (MHz) Power density (W/m 2 ) Averaging time (minutes) 300 - 1500 f/30 6 f: Frequency in MHz Based on the above table the limit for Maximum Permissible Exposure (MPE) is: For 450 - 470 MHz frequency band device: S = 1.50 mW/cm 2 For this consideration the max measured source based time averaged power including tune up tolerance is: Max. power for 450 - 470 MHz operation: P = 29.2 W (conducted) Max. gain of the used antenna (Kathrein K552921) G = 2.0 dBd (declared by applicant) Max. radiated power for 450 - 470 MHz operation: 46.3 W (ERP) Using the equation from page 19 of OET Bulletin 65, Edition 97-01: 2 4R PG S   where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Based on the power density limit the required distance to the antenna can be calculated using the equation above. The required separation distance from the antenna is: R = 49.5 cm Result: The applicant has to provide a separation distance to the antenna of at least 49.5 cm.

2014-06-25 Page 1 of 42 TEST REPORT Test report no.: 1-7809/14-01-02 Testing laboratory Applicant CETECOM ICT Services GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom.com e-mail: [email protected] Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2005) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12076-01-01 Area of Testing: Radio Communications & EMC (RCE) Swissphone Wireless AG Fälmisstrasse 21 8833 Samstagern / SWITZERLAND Phone: +41 4 47 86 77 42 Fax: +41 4 47 86 77 71 Contact: Thomas Minder e-mail: [email protected] Phone: +41 4 47 86 75 42 Manufacturer Swissphone Wireless AG Fälmisstrasse 21 8833 Samstagern / SWITZERLAND Test standard/s 47 CFR Part 90 Title 47 of the Code of Federal Regulations; Chapter I Part 90 - Land mobile services RSS - 119 Issue 9 Land Mobile and Fixed Radio Transmitters and Receivers, Operating in the Frequency Range 27.41 - 960 MHz For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: One way paging Transmitter UHF 400-470 MHz Model name: I.SITE III UHF FCC ID: L3M-ISITEIIIUHF IC: 4404A-ISITEIIIUHF Frequency: 450 MHz – 470 MHz Technology tested: Proprietary system Antenna: External, HF-Power connector Type N Power supply: 115 V AC Temperature range: +23°C This test report is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorised: Test performed: David Lang Stefan Bös Testing Manager Senior Testing Manager Test report no.: 1-7809/14-01-02 2014-06-25 Page 2 of 42 1 Table of contents 1 Table of contents ............................................................................................................................................ 2 2 General information ....................................................................................................................................... 3 2.1 Notes and disclaimer .......................................................................................................................... 3 2.2 Application details ............................................................................................................................... 3 3 Test standard/s ............................................................................................................................................... 3 4 Test environment ............................................................................................................................................ 4 5 Test item .......................................................................................................................................................... 4 6 Test laboratories sub-contracted ................................................................................................................. 4 6.1 Additional comments .......................................................................................................................... 4 7 Description of the test setup ......................................................................................................................... 5 7.1 Radiated measurements chamber F .................................................................................................. 5 7.2 Radiated measurements chamber C ................................................................................................. 6 7.3 AC conducted ...................................................................................................................................... 7 7.4 Conducted measurements ................................................................................................................. 8 8 Summary of measurement results ............................................................................................................... 9 9 Measurement results .................................................................................................................................... 11 9.1 Transmitter output power ................................................................................................................. 11 9.2 Audio frequency filter response ...................................................................................................... 12 9.3 Transmitter modulation limiting....................................................................................................... 12 9.4 Spectrum efficiency .......................................................................................................................... 12 9.5 Occupied bandwidth ......................................................................................................................... 12 9.6 Transient frequency behaviour ........................................................................................................ 12 9.7 Frequency stability ............................................................................................................................ 12 9.8 Transmitter spurious emissions conducted ................................................................................... 12 9.9 Transmitter spurious emissions (radiated) .................................................................................... 13 9.10 Spurious emissions radiated < 30 MHz ....................................................................................... 17 9.11 Receiver spurious emissions (radiated) ...................................................................................... 19 9.12 Spurious emissions conducted < 3…

Text truncated - open the document above for the full version.

FCC ID: CASTMAH5A TELTEST REPORT: 1919 TMAB12-H500 S/N: 19001327 Page 1 of 47 REPORT NUMBER 1919SEPTEMBER 2003 RADIO PERFORMANCE MEASUREMENTS On the TMAB12-H500 Mobile Transceiver FCC ID: CASTMAH5A SN: 19001327 In accordance with FCC 47 CFR Parts 22 and 90 PREPARED BY:Garry Pringle ___________________ Test Technician CHECKED & APPROVED BY:SA Crompton___________________ Laboratory Manager TELTEST Laboratories Tait Electronics Limited PO Box 1645 558 Wairakei Road Christchurch New Zealand Phone : (64) (3) 3583399 Fax: (64) (3) 3580432 FCC ID: CASTMAH5A TELTEST REPORT: 1919 TMAB12-H500 S/N: 19001327 Page 2 of 47 REPORT ON : Type Approval Testing of the TMAB12-H500 (Serial No 19001327 ) in accordance with: FCC CFR 47 Parts 22 & 90 Report No 1919 FCC ID: CASTMAH5A PREPARED FOR : Tait Electronics Ltd PO Box 1645 558 Wairakei Rd Christchurch New Zealand DISTRIBUTION : TELTest LaboratoryMr S CromptonCopy No 1 Tait Electronics LtdMr. Des Fox Copy No 2 Tait Electronics LtdMr. Dave Wright Copy No 3 APPROVED : S. A. Crompton Compliance Laboratory Manager Date : All tests reported herein have been performed in accordance with the laboratory's scope of accreditation This document must not be reproduced except in full, without the written permission of the Compliance Laboratory Manager. Copy No: FCC ID: CASTMAH5A TELTEST REPORT: 1919 TMAB12-H500 S/N: 19001327 Page 3 of 47 DECLARATION OF CONFORMITY We, TELTEST LABORATORIES of 558 Wairakei Road, Christchurch New Zealand, declare under our sole responsibility that the product: Equipment:Mobile Transceiver Type:TMAH5A Product code:TMAB12-H500 Serial Numbers:19001327 Quantity:1 To which this declaration relates is in conformity with the following standards: FCC CFR 47 Parts 22 & 90 Signature:__________________________ S. A. Crompton Compliance Laboratory Manager. Date:__________ FCC ID: CASTMAH5A TELTEST REPORT: 1919 TMAB12-H500 S/N: 19001327 Page 4 of 47 TABLE OF CONTENTS TEST PAGE TRANSMITTER OUTPUT POWER (CONDUCTED) 5 AUDIO FREQUENCY FILTER 6 TRANSMITTER AUDIO FREQUENCY RESPONSE 7 MODULATION LIMITING 10 MODULATION LIMITING (STEADY STATE) 13 MODULATION LIMITING (INSTANTANEOUS) 16 OCCUPIED BANDWIDTH 19 SPURIOUS EMISSIONS (CONDUCTED) 32 (SPURIOUS EMISSIONS (RADIATED) – EMC Report No:30825.1 TRANSMITTER FREQUENCY STABILITY ( TEMPERATURE) 37 TRANSMITTER FREQUENCY STABILITY (VOLTAGE) 40 TRANSIENT FREQUENCY BEHAVIOR41 LIST OF TEST EQUIPMENT 46 FCC ID: CASTMAH5A TELTEST REPORT: 1919 TMAB12-H500 S/N: 19001327 Page 5 of 47 NAME OF TEST:TRANSMITTER OUTPUT POWER (CONDUCTED) TEST CONDITIONS:Ambient Temperature 23 o C Relative Humidity 46 % Standard Voltage13.8 V DC SPECIFICATION:FCC 47 CFR 2.1046 GUIDE:TIA/EIA-603 2.2.1 MEASUREMENT PROCEDURE: 1. The Equipment Under Test (EUT) was set up as shown in the following diagram. 2. The coaxial attenuator has an impedance of 50 Ohms. 3. The unmodulated output power was measured with an RF Power meter. MEASUREMENT RESULTS: Manufacturer’s Rated Output Power:Switchable: 1 W and 25 W 425.1 MHz1 W nominal25 W nominal POWER (W) 1.024.6 Variation from Nominal (%) 0.0-1.6 MHz1 W nominal25 W nominal POWER (W)~~ Variation from Nominal (%)~~ Measurement Uncertainty (dB) +0.63 -0.68 LIMIT CLAUSE:FCC 47 CFR 90.205 Radio Type:Mobile Transceiver Frequency Band:421 MHz ~ 512 MHz (o)The output power shall not exceed by more than 20% the manufacturer’s rated output power for the particular transmitter. TEST SETUP:See page 46 for Test Equipment information. Mod Analyser/ Counte r Power Sensor 20dB Digital Scope 3dB Signal Generato r EUT Audio Analyser “TREVA” Test Automation 87 22 111 114 116 PTT 67 117 120 DC 21 FCC ID: CASTMAH5A TELTEST REPORT: 1919 TMAB12-H500 S/N: 19001327 Page 6 of 47 NAME OF TEST:AUDIO FREQUENCY FILTER RESPONSE TEST CONDITIONS:Ambient Temperature o C Relative Humidity% Standard VoltageV DC SPECIFICATION:FCC 47 CFR 2.1047 GUIDE:TIA/EIA-603 2.2.15 MEASUREMENT PROCEDURE: This test was not carried out as the EUT meets the emission limits specified in §90.210. MEASUREMENT RESULTS: See Occupied Bandwidth tests on LIMIT CLAUSE:FCC 47 CFR 90.211 (a) (a) Transmitters utilizing analog emissions that are equipped with an audio low-pass filter must meet the emission limitations specified in §90.210.... TEST SETUP:See page – Occupied Bandwidth FCC ID: CASTMAH5A TELTEST REPORT: 1919 TMAB12-H500 S/N: 19001327 Page 7 of 47 NAME OF TEST:TRANSMITTER AUDIO FREQUENCY RESPONSE PRE-EMPHASIS TEST CONDITIONS:Ambient Temperature 23 o C Relative Humidity 46 % Standard Voltage13.8 V DC SPECIFICATION:FCC 47 CFR 2.1047 (a) GUIDE:TIA/EIA-603 2.2.6 MEASUREMENT PROCEDURE: 1. The Equipment Under Test (EUT) was set up as shown in the following diagram. 2. An audio input tone of 1000Hz was applied with the level set to obtain 20% of maximum deviation. This was used as the 0dB reference point. 3. The AF was varied while the audio level was held constant. 4. The response in dB relative to 1000Hz was measured. MEASUREMENT RESULTS: See the plots on the following pages for 12.5 kHz & 25.0 kHz channel spacings. . LIMIT CLAUSE:TIA/EIA-603 2.2.6 TEST SETUP:See page 46 for Test Equipment information. Mod Analyser/ Counte r Power Sensor 20dB Digital Scope 3dB Signal Generato r EUT Audio Analyser “TREVA” Test Automation 87 22 111 114 116 PTT 67 117 120 DC 21 FCC ID: CASTMAH5A TELTEST REPORT: 1919 TMAB12-H500 S/N: 19001327 Page 8 of 47 NAME OF TEST:TRANSMITTER AUDIO FREQUENCY RESPONSE PRE-EMPHASIS SPECIFICATION:FCC CFR 2.1047 (a) Tx FREQUENCY:425.1 MHz12.5 kHz Channel Spacing Pre-Emphasis -35 -30 -25 -20 -15 -10 -5 0 5 10 15 100100010000 Modulation Frequency Hz dB DeviationUpper LimitLower Limit FCC ID: CASTMAH5A TELTEST REPORT: 1919 TMAB12-H500 S/N: 19001327 Page 9 of 47 NAME OF TEST:TRANSMITTER AUDIO FREQUENCY RESPONSE PRE-EMPHASIS SPECIFICATION:FCC CFR 2.1047 (a) Tx FREQUENCY:425.1 MHz25.0 kHz Channel Spacing Pre-Emphasis -35 -30 -25 -20 -15 -10 -5 0 5 10 15 100100010000 Modulation Frequency Hz dB DeviationUpper LimitLower Limit FCC ID: CASTMAH5A TELTEST REPORT: 19…

Text truncated - open the document above for the full version.

Test report no.: 1-7809/14-01-02 2014-06-25 Page 27 of 42 Annex A Photographs of the test setup Photo 1: Photo 2: Test report no.: 1-7809/14-01-02 2014-06-25 Page 28 of 42 Photo 3: Photo 4: Test report no.: 1-7809/14-01-02 2014-06-25 Page 29 of 42 Photo 5: Photo 6: Test report no.: 1-7809/14-01-02 2014-06-25 Page 30 of 42 Photo 7: Photo 8:
