L4OR45010/100BASE-TX Fast Ethernet Card for PCI

List of Exhibit EXHIBIT A Sample Label EXHIBIT B Test Report EXHIBIT C User Manual EXHIBIT D Circuit Diagram EXHIBIT E Block Diagram EXHIBIT F Photographs of EUT EXHIBIT A Sample Label LABEL Format: This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation Model No.:WS-R450 FCC ID:L4OR450 LABEL Size: 35 X 15 mm LABEL Position:

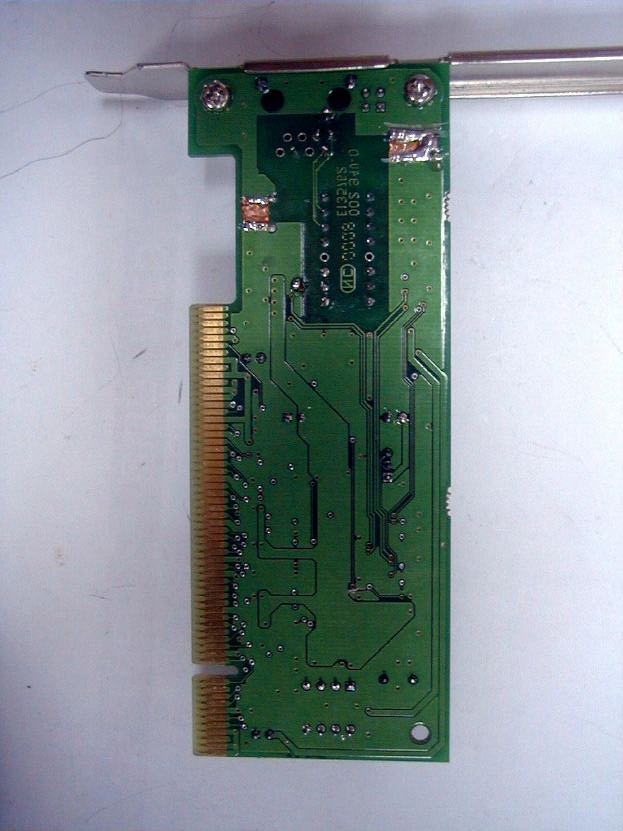

EXHIBIT F Photographs of EUT

Test Report -------------------------------------------------------------------------------- 2/15 Report No.: C0915439, 10/100Mbps Fast Ethernet Card, FCC, Class B Test date: 03/06/2000, Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Contents Chapter 1 Introduction Description of EUT ................................................................................................................. 3 Configuration of Test Setup ..................................................................................................... 5 List of Support Equipment ....................................................................................................... 6 Chapter 2 Conducted Emission Test Test Condition and Setup ........................................................................................................ 7 Conducted Test Placement ...................................................................................................... 8 Chapter 3 Radiated Emission Test Test Condition and Setup ........................................................................................................ 9 Radiated Test Placement ........................................................................................................ 10 Appendix A : Conducted test result .............................................................................................................. 11 Appendix B : Radiated test result ................................................................................................................. 13 Test Report -------------------------------------------------------------------------------- 3/15 Report No.: C0915439, 10/100Mbps Fast Ethernet Card, FCC, Class B Test date: 03/06/2000, Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Chapter 1Introduction Description of EUT: The EUT is a data transmission / receiver facility. It is designed to install in the PC or compatible computer and makes your data equipment available to transmit / receive data via the EUT. During testing the EUT was operated at Tx or Rx mode for each emission measured. This was done in order to insure that maximum emission levels were attained. Connections of EUT: (1) Put the EUT into a personal computer’s PCI bus and screw it. (2) The UTP port of EUT is connected with another LAN card installed in PC located remotely. Test method: The applicant provided the testing program Pretest was found that the emission of operating mode is worse than standby mode. So, The final test is made at the operating mode. During the measurement, there are two modes tested: “10Mbps mode” and “100Mbps mode.” The pretest was found out that the testing mode: “100Mbps” and “10Mbps-Vertical” were the worst cases. During testing, the EUT was operated at “transmitting” and “receiving” mode simultaneously. The test placement as the photographs showed is the worst case emission placed. (If the emission is close to the ambient, the resolution BW and view resolution will be reduced and the data will be recorded by detection of maximum hold peak mode.) The testing configuration of test setup is showing in the next page. Test Report -------------------------------------------------------------------------------- 4/15 Report No.: C0915439, 10/100Mbps Fast Ethernet Card, FCC, Class B Test date: 03/06/2000, Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Configuration of test setup Connections: PC: *Serial port --- via a 76cm shielded RS-232 cable to an external modem *Printer port --- a printer with 1.2m length data cable *Keyboard port --- a keyboard with 1m length data cable *Mouse port --- a mouse with 1m length data cable *Monitor port --- a monitor with 0.7m long of data cable *USB port A --- a USB mouse with 1.5m long data cable *USB port B --- a USB joystick with 1.5m long data cable (Each port on PC is connected with suitable device) EUT: *UTP Port --- via a 30m long, non-shielded, no ferrite bead, RJ-45 cable to another LAN card that installed in another PC located in far-end EUT USB Joystick USB Joystick Mouse Keyboard Monitor Modem Printer PC Power To another PC Located Remotely UTP Port Test Report -------------------------------------------------------------------------------- 5/15 Report No.: C0915439, 10/100Mbps Fast Ethernet Card, FCC, Class B Test date: 03/06/2000, Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 List of support equipment Conducted (Radiated) test: PC :ACER Power 8000 Model No.:M11E/H71-X30-99X Serial No. :TM01356 FCC ID:N/A, Doc Approved :3872A827 Power type:AC 100~120V, 50 ~60Hz, 5A / 200~240 VAC, 50 ~60Hz, 3A, Switching Power cord :Non-shielded, 1.8m long, Plastic, no ferrite core Monitor :HP 15’ Color Monitor Model No.:D2827A Serial No.:KR91161719 (KR91161717) FCC ID:C5F7NFCMC1518X :3872B039 Power type:110 ~ 240 VAC / 50 ~ 60 Hz, Switching Power cord:Shielded, 1.83m long, No ferrite core Data cable :Shielded, 1.46m long, with two ferrite cores Keyboard:Digital Model No.:KB-5923 Serial No.:9S74904837 (9S74904665) FCC ID:E8HKB-5923 Power type:By PC Data cable :Shielded, 1.8m long, with ferrite core Mouse:HP Model No.:M-S34 Serial No.:LZB90714106 (LZB90714122) FCC ID:DZL211029 :4862A011 Power type:By PC Power cord:Non-shielded, 1.88m long, No ferrite core Test Report -------------------------------------------------------------------------------- 6/15 Report No.: C0915439, 10/100Mbps Fast Ethernet Card, FCC, Class B Test date: 03/06/2000, Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Modem:ACEEX Model No.:XDM-9624 FCC ID:IFAXDM-9624 Power type:220VAC, 50Hz / 9VAC, 1A Power cord:Non-shielded, 1.9m long, No ferrite cord Data cable :RS232, Shielded, 1.2m long, No ferrite core RJ11C x 2, 7’ long non-shielded, No ferrite core Printer:HP Model No.:C2642A Serial No.:SG69A196GV FCC ID:B94C2642X Power type:220 VAC, 50Hz Power cord:Non-shielded, 2m long, no ferrite core Data cable :Shie…

Text truncated - open the document above for the full version.
