L6ARHT180LW

BlackBerry Limited

Mobile phone with GSM/GPRS/EDGE 850/1900, DB CDMA2000/1xEVDO, WCDMA/HSPA FDD 2, 4, 5, and 6, LTE Bands 2, 4, 5, 13, 802.11 a/b/g/n/ac, BT/BLE, NFC, FM Radio and GPS.

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Dec 22, 2015
Application Purpose: Original Equipment
Date of Application: Dec 05, 2015
Equipment Note: Mobile phone with GSM/GPRS/EDGE 850/1900, DB CDMA2000/1xEVDO, WCDMA/HSPA FDD 2, 4, 5, and 6, LTE Bands 2, 4, 5, 13, 802.11 a/b/g/n/ac, BT/BLE, NFC, FM Radio and GPS.
Frequency Range: 782.00000000 - 782.00000000
Company: BlackBerry Limited
Country: Canada

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

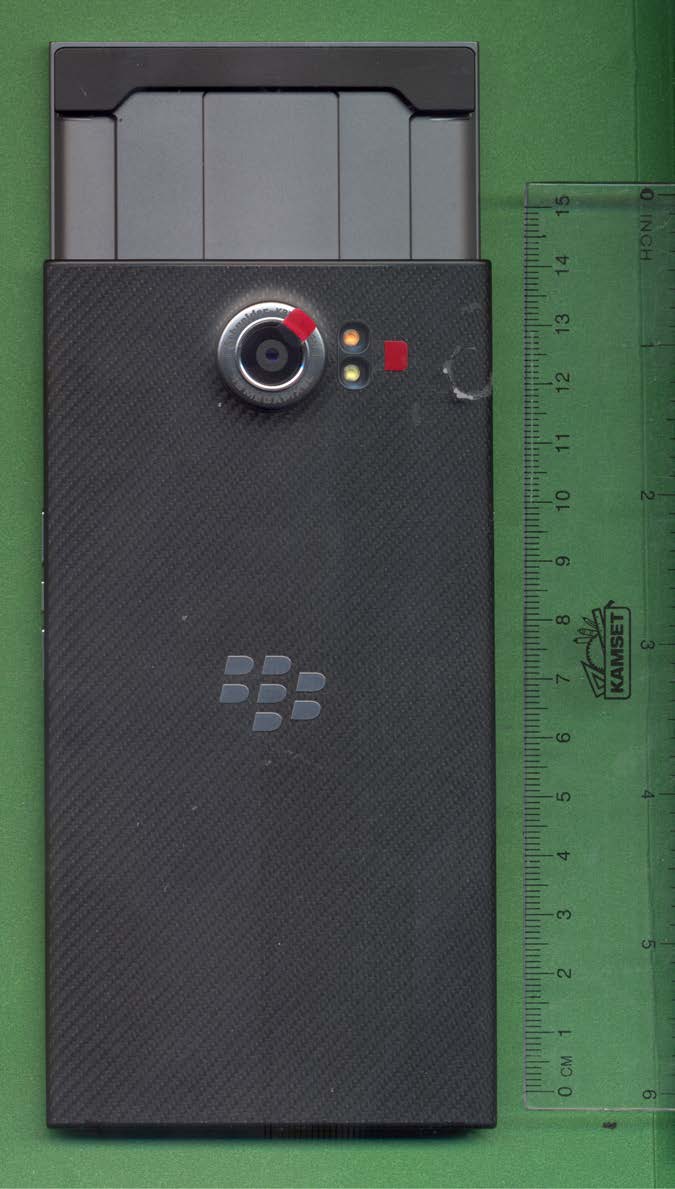

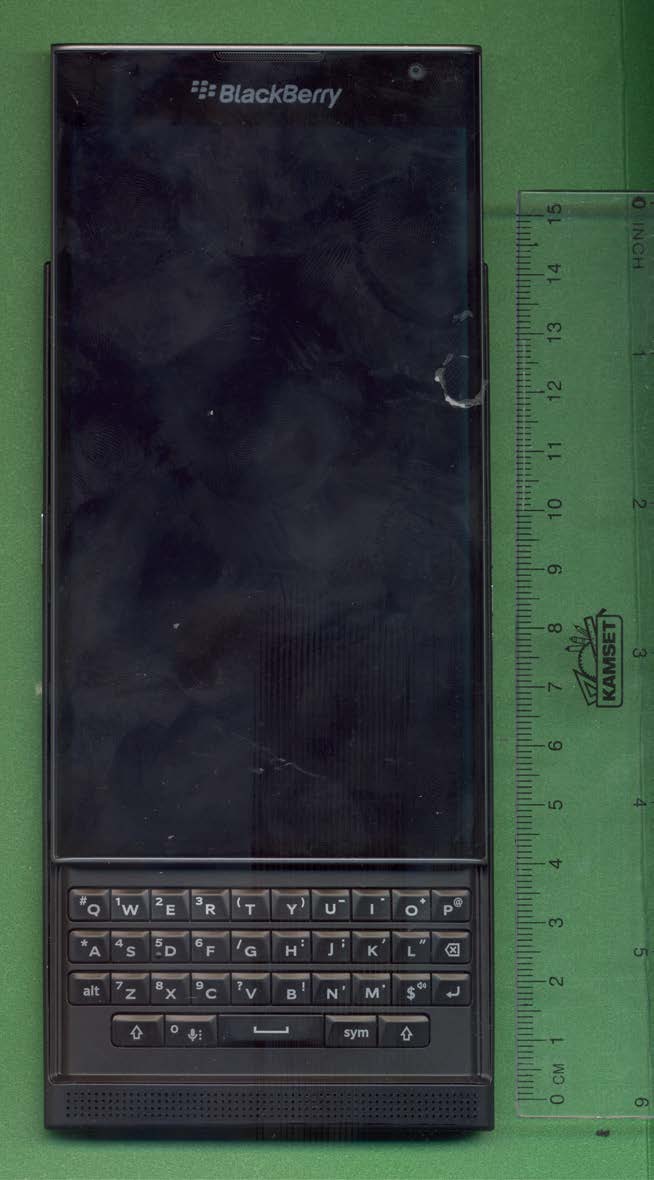

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
47	27	782 MHz - 782 MHz	230.00 mW	8M94D7W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output power listed is ERP for operations below 1 GHz and EIRP for operations above 1 GHz for WWAN operations. Output power listed is conducted for LTE. LTE supports 5/10 MHz modes in Band 13, 1.4/3/5/10/15/20 MHz modes in Band 2/4, and 1.4/3/5/10 MHz operations in Band 5. LTE Rel. 10 support is limited to carrier aggregation in the downlink path. SAR compliance for body worn operating configurations must be restricted to belt-clips and holsters described in this filing, or which maintain a minimum separation distance of 1.5 cm and which contain no metallic component in the assembly. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR levels for head, body-worn accessory, personal wireless router (hotspot mode) and simultaneous transmission use conditions are 1.15 W/kg, 0.95 W/kg, 1.17 W/kg and 1.48 W/kg, respectively. HAC Rating: M3T4-2011. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations.
