L9G43910

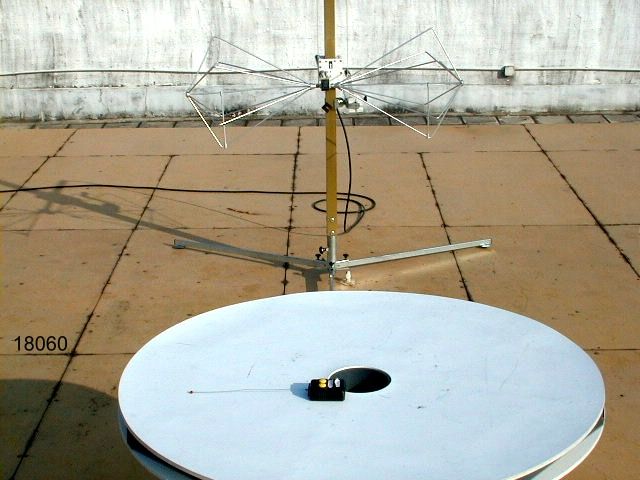

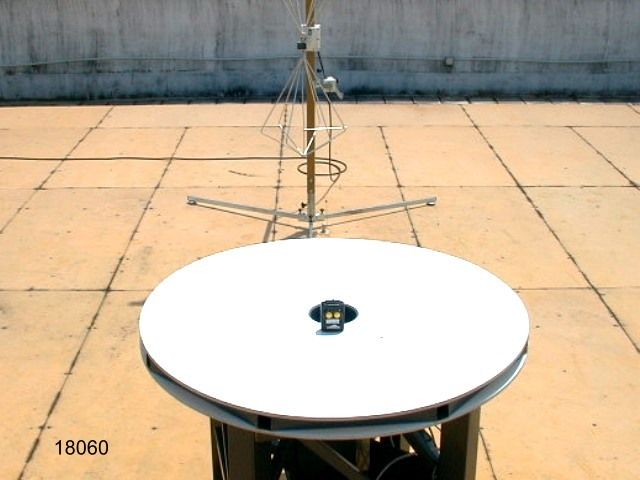

INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. F C C - TEST REPORT REPORT NO.: 18059/8/400F Units 602-605, 6/F., 31 Lok Yip Road, On Lok Tsuen, Fanling, N.T., Hong Kong Tel: [852] 2305-2570 Fax: [852] 2756-4480 INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 18059/8/400F Date: 1999-03-09 Page 2 of 9 FCC listed testlab acc. to Section 2.948 of the FCC - Rules in compliance with the requirements of ANSI C63.4 - 1992 Product: R/C Toy Transmitter -- 27 MHz Transmitter Model: 43910 Applicant: ARTIN INDUSTRIAL CO LTD Manufacturer : ARTIN INDUSTRIAL CO LTD INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 18059/8/400F Date: 1999-03-09 Page 3 of 9 TABLE OF CONTENTS 1. Cover sheet 2. Introduction 3. Table of Contents 4. Laboratory Report 5. Summary of Testresults 6. Test Equipment List 7. Radiated Emission Testprocedure 8. Interference Radiation (Datasheet) 9. Notes for Radiation Measurement (acc. to ANSI C63.4 - 1992) INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 18059/8/400F Date: 1999-03-09 Page 4 of 9 LABORATORY - REPORT APPLICANT: ADDRESS: ARTIN INDUSTRIAL CO LTD 2/F, Lee Sum Factory Building 21-25 Sze Mei Street San Po Kong, Kowloon HONG KONG DATE OF SAMPLE RECEIVED: 1998-11-26 DATE OF TESTING: 1999-03-09 DESCRIPTION OF SAMPLE: Product:R/C Toy Transmitter -- 27 MHz Transmitter Manufacturer:ARTIN INDUSTRIAL CO LTD Model number:43910 Rating:DC 9V ('6F22' Size Battery x 1) Country of Origin:P.R. CHINA INVESTIGATIONS REQUESTED: Measurements to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiators RESULTS: See the attached test sheets CONCLUSIONS From the measurement data obtained, the tested sample was considered to have COMPLIED with the requirements for the relevant clauses of Federal Communications Commission Rules as specified above. Original Copy signed Authorized Signature Remark: Purpose of those tests in this report is to provide the applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under the FCC Equipment Authorization Program. The tests themselves are not Approval Tests INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 18059/8/400F Date: 1999-03-09 Page 5 of 9 Summary of Test Results Interference Radiation: Test result:O.K. Test data:See attached data sheet Interference Voltage: Test result:N.A. Test data:N.A. Measurement of Emissions within Band Edges Test result:O.K. Test data:See attached data sheet INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 18059/8/400F Date: 1999-03-09 Page 6 of 9 TEST EQUIPMENT LIST EquipmentManufacturerModelSerial NumberRemark Test ReceiverRohde & Schwarz ESH 3863497/01510KHz – 30MHz Test ReceiverRohde & Schwarz ESVP860688/02225MHz – 1,300 MHz Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50Ω, 50μH 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Antenna Mast System SchwarzbeckAM9104--Max. 4 meters height Spectrum Analyzer with Q. Peak Tektronix2712B0230069KHz – 1.8GHz Interface for Spectrum 2712 TektronixTD3F14A-- Test ReceiverRohde & Schwarz ESH 3892580/00610KHz – 30MHz Test ReceiverRohde & Schwarz ESVP863512/01225MHz – 1,300 MHz Impulse LimiterRohde & Schwarz ESH-3-Z2-- Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50Ω, 50μH 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Signal GeneratorRohde & Schwarz SWS 2879113/42100KHz – 1040 MHz Digital MultimeterTektronixDM2510GDM- 2510GTW1055 5 10KHz – 30MHz Turntable with Controller DrehtischDT312-- φ120 cm INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 18059/8/400F Date: 1999-03-09 Page 7 of 9 Radiated Emission Test Procedure Equipment under test (on turntable) Test receiver ESVP R & S Required test distance: 3m Antenna system Schwarzbeck BBA 9106/ UHALP 9107 Please see separate Data File: Data.pdf INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 18059/8/400F Date: 1999-03-09 Page 9 of 9 Notes for Radiation Measurement 1. Measurement facility: Measurement facility located at Fanling (Hong Kong), placed on file with the FCC Pursuant to Section 2.948 of the FCC Rules. 2. Distance between the EUT and measuring antenna: 3 meters. 3. Measuring instrumentations: Rohde & Schwarz ESVP Test Receiver ( 20 - 1300 MHz ) with a CISPR weighting QP detector, 6 dB bandwidth set at 120 KHz. 4. Measuring antenna: Broad-band antenna for the frequency range 30 - 300 MHz and frequency range 300 - 1000 MHz, connected with 10 meters coaxial cable. Cable loss of the coaxial cable included in the Antenna Factor for measurement data. The antennas are capable of measuring both horizontal and vertical polarizations. 5. Frequency range scanned: The frequency range 30 - 5000 MHz has been scanned. Readings of the highest emissions relating to the limit were reported as above. 6. Arrangement of EUT: During the test, the sample was operated at rated supply voltage and arranged for maximum emissions. 7. Measuring Procedure: In accordance with the relevant sections of the American National Standards Institute (ANSI) C63.4-1992 ‘Methods of Measurement of Radio Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9KHz to 40GHz’.

92Interference Radiation Measurement of Radiated Emissions (27MHz-1000MHz) International Electrical Certification Centre Ltd. Acc:FCC Part 15 Subpart C IECC Ref:18059/8/400FTest Equipment Model:43910Receiver: ESVP Rohde & Schwarz Applicant:ARTIN INDUSTRIAL CO LTDAntenna: Schwarzbeck BBA 9106 and UHALP 9107 Ser.Nr.:1 Set under test:R/C Toy Transmitter Connected sets: - Operating mode:Power "On" Frequency (MHz) Horz. Reading dB(μV) Vert. Reading dB(μV) Antenna Factor (dB) Horiz. Test Result (μV/m) Vert. Test Result (μV/m) Limit (μV/m) Peak27.14263715.0 113400 100,000 Av.27.14243515.090318 10,000 Harm.254.2822276.32646 100 Harm.381.4226235.23626 100 Harm.4108.5626219.56034 150 Harm.5135.718.51612.23426 150 Harm.6162.84<16<1613.6<30<30 150 Harm.7189.98<16<1614.8<35<35 150 Harm.8217.12<16<1615.7<38<38 200 Harm.9244.26<16<1616.5<42<42 200 Harm.10271.4<16<1617.3<46<46 200 Harm.11298.54<16<1618.0<50<50 200 Harm.12325.68171716.84949 200 Harm.13352.82211717.58453 200 Harm.14379.96222218.09999 200 Harm.15407.1222118.410593 200 Harm.16434.242222.518.8109116 200 Harm.17461.38171719.26464 200 Harm.18488.52171919.56785 200 Harm.19515.66<161719.9<6270 200 Harm.20542.8<16<1620.1<64<64 200 Harm.21569.94<16<1620.5<67<67 200 Harm.22597.08<16<1620.9<70<70 200 Harm.23624.22<16<1621.2<73<73 200 Harm.24651.36<16<1621.6<76<76 200 Harm.25678.5<16<1622.1<80<80 200 Harm.26705.64<16<1622.5<84<84 200 Harm.27732.78<16<1622.8<88<88 200 Harm.28759.92<16<1623.2<91<91 200 Harm.29787.06<16<1623.5<95<95 200 Harm.30814.2<16<1623.9<99<99 200 Harm.31841.34<16<1624.3<103<103 200 Harm.32868.48<16<1624.6<107<107 200 Harm.33895.62<16<1624.9<112<112 200 Harm.34922.76<16<1625.4<117<117 200 Harm.35949.9<16<1625.8<123<123 200 Harm.36977.04<16<1626.2<128<128 500 0 20 40 60 80 100 120 101001000 MHz dBμV/m Data (Horz.)Data (Vert.)Limit Test result: ̋ O.K. Ž Not O.K. Date: 09.03.99 Operator: Yu
