L9G4790RR/C Toy Transmitter

FEDERAL COMMUNICATIONS COMMISSION - FCC FORM 731 APPLICATION FOR EQUIPMENT AUTHORIZATION Approved by OMB 3060 - 0057 Expires 9/30/00 You will be presented with the FCC FORM 159, Fee Remittance Advice after submitting your application and obtaining a confirmation number. This Fee Remittance Advice, FCC Form 159, must currently be submitted in paper form along with payment to the address indicated in the FCC Fee Filing Guide. Electronic submission of FCC Form 159 is not currently available. Item 1. Applicant's complete, legal business name: Artin Industrial Co Ltd Item 2. Applicant's mailing address Line 1: 2/F, Lee Sum Factory Line 2: 21-25 Sze Mei Street P.O.Box: City: Sanpokong State: Kowloon Country(if foreign address): Zip/Postal Code: Hong Kong Item 3. FCC ID: Grantee code: L9G * Equipment Product Code (14 characters maximum): Item 4. Person at the applicant's address to receive grant or for contact: First Name: Ronnie Mail Stop: Last Name: Yung Telephone: 852 2325 5215 Ext: 394 Title: Director General Manager Fax No: 852 2 352-3497 E-mail: Item 5. Instead of Applicant, FCC is authorized to mail original Grant to: Firm Name: Address Line 1: P.O.Box: Address Line 2: City: State: Country(if foreign address): Zip/Postal Code: Person at above address to receive Grant: First Name: Last Name: Title: Mail Stop: Item 6. Technical Contact: Firm Name: Telephone: Ext: Fax No: First Name: Middle Initial: Last Name: Address Line 1: P.O.Box: Address Line 2: City: State: Country(if foreign address): Zip/Postal Code: E-mail: Item 7. Non-Technical Contact: Firm Name: Telephone: Ext: Fax No: First Name: Middle Initial: Last Name: Address Line 1: P.O.Box: Address Line 2: City: State: Country(if foreign address): Zip/Postal Code: E-mail: Item 8. * Does this application include a request for confidentiality for any portion(s) of the data contained in this application pursuant to 47 CFR § 0.459 of the Commission Rules? If "Yes" see instructions. Yes No Item 9. * Does the applicant request that the Commission defer grant of this application pursuant 47 CFR § 0.457(d)(1)(ii)? (See instructions) If so, specify date when grant may be issued (MM/DD/YYYY format): Yes No Item 10. Equipment Code: * Description of Product as it is Marketed: * Equipment will be operated under FCC Rule Part(s): Item 11. * Application is for: Original Equipment (See instructions) Change in identification of presently authorized equipment: Original FCC ID: Grant Date (MM/DD/YYYY format): Class II permissive change or modification of presently authorized equipment (See instructions) 4790R International Elect. Cert. Centre Ltd. Units 602-605, 6/F 31 Lok Yip Rd., On Lok TsuenFanling, N.T. Hong KongN/A Elvin K.B.Lau Director International Elect. Cert. Centre Ltd.[852] 2305 2570[852] 2756 4480 Elvin K.B.Lau Units 602-605, 6/F 31 Lok Yip Rd., On Lok TsuenFanling, N.T. Hong KongN/A [email protected] International Elect. Cert. Centre Ltd.[852] 2305 2570[852] 2756 4480 Elvin K.B.Lau Units 602-605, 6/F 31 Lok Yip Rd., On Lok TsuenFanling Hong KongN/A [email protected] CYY -Communications Receiver used w/Pt 15 Transmitter R/C Toy Receiver 15 1 of 31/13/00 3:53 PM FCC Form 731https://gullfoss.fcc.gov/cgi-bin/ws.exe/prod/oet/forms/731/731_Form.hts Item 12 . EQUIPMENT SPECIFICATIONS: (See instructions) Frequency range in MHzRated RF power output in watts Frequency toleranceEmission designator (See 47 CFR § 2.201 and § 2.202) Microprocessor Model Number Item 13. Is the equipment in this application: * (a) a composite device subject to an additional equipment authorization? * (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? If either of the above questions is answered "Yes" complete section 13(c). Yes No Yes No (c) The related application: has been filed at same time as this application under the FCC ID listed to the right has been granted under the FCC ID listed to the right is in the process of being filed under the FCC ID listed to the right is pending with the FCC under the FCC ID listed to the right FCC ID Item 14. Name of test firm and contact person on file with the FCC, if different from applicant or contact person: Firm Name: First Name: Last Name: Telephone: Ext: Fax No: E-mail: Read each certification carefully before answering and signing this application WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTITUTION PERMIT (U.S. CODE, TITLE 47, SECTION 312(a)(1)), AND/OR FORFEITURE (U.S. CODE, TITLE 47, SECTION 503). Item 15. SECTION 5301 (ANTI-DRUG ABUSE) CERTIFICATION: The applicant must certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Does the applicant or authorized agent so certify? Yes No Item 16. APPLICANT/AGENT CERTIFICATION: I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. IN accepting a Grant of Equipment Authorization issued by the FCC as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC's technical requirements. Authorizing an agent t…

Text truncated - open the document above for the full version.

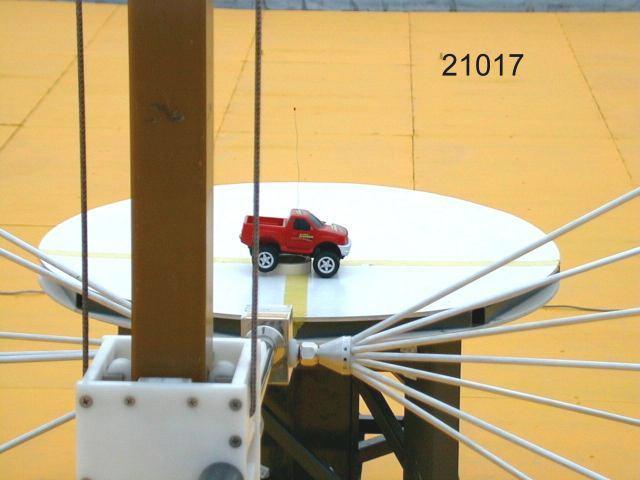

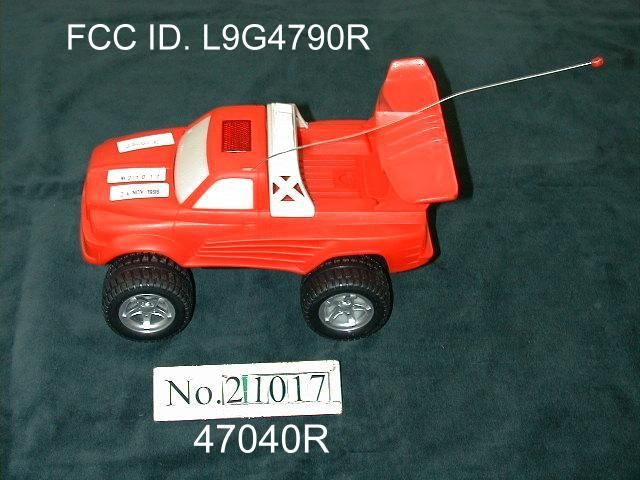

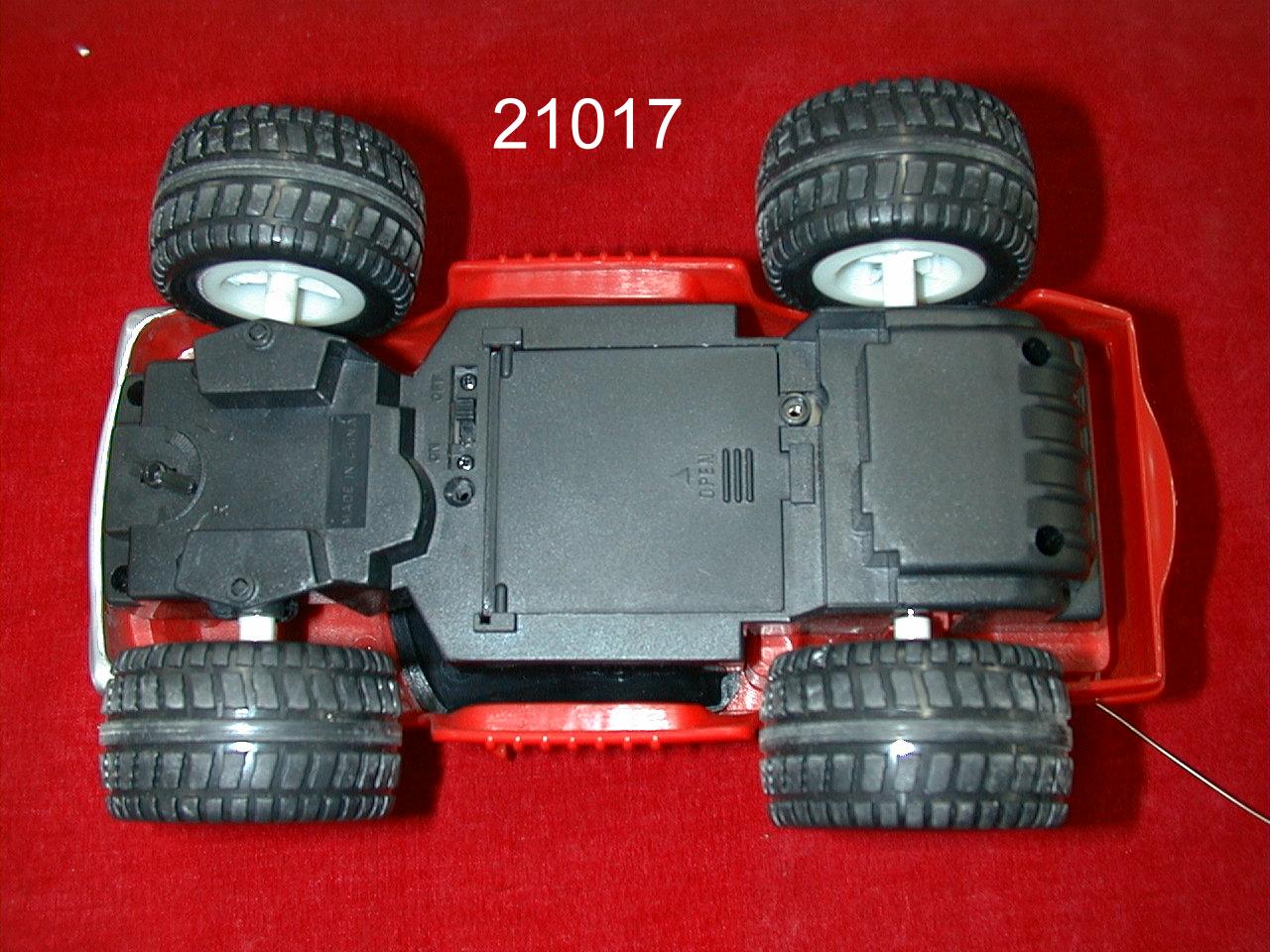

INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. F C C - TEST REPORT REPORT NO.: 21017/9/400F Units 602-605, 6/F., 31 Lok Yip Road, On Lok Tsuen, Fanling, N.T., Hong Kong Tel: [852] 2305-2570 Fax: [852] 2756-4480 INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 21017/9/400F Date: 1999-11-19 Page 2 of 9 FCC listed testlab acc. to Section 2.948 of the FCC - Rules in compliance with the requirements of ANSI C63.4 - 1992 Product: R/C Toy Receiver -- 49 MHz Receiver Model: 47940R Importer: ARTIN INDUSTRIAL CO LTD Manufacturer : ARTIN INDUSTRIAL CO LTD INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 21017/9/400F Date: 1999-11-19 Page 3 of 9 TABLE OF CONTENTS 1. Cover sheet 2. Introduction 3. Table of Contents 4. Laboratory Report 5. Summary of Testresults 6. Test Equipment List 7. Radiated Emission Testprocedure 8. Interference Radiation (Datasheet) 9. Notes for Radiation Measurement (acc. to ANSI C63.4 - 1992) INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 21017/9/400F Date: 1999-11-19 Page 4 of 9 LABORATORY - REPORT APPLICANT: ADDRESS: ARTIN INDUSTRIAL CO LTD 2/F, Lee Sum Factory Building 21-25 Sze Mei Street San Po Kong, Kowloon HONG KONG DATE OF SAMPLE RECEIVED:1999-11-02 DATE OF TESTING:1999-11-19 DESCRIPTION OF SAMPLE: Product:R/C Toy Receiver -- 49 MHz Receiver Manufacturer:ARTIN INDUSTRIAL CO LTD Model number:47940R Additional model numbers:47930R / 47030R / 47040R Rating:DC 6V Country of Origin:P.R. CHINA INVESTIGATIONS REQUESTED: Measurements to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart B – ‘Unintentional Radiators’ RESULTS:See the attached test sheets CONCLUSIONSFrom the measurement data obtained, the tested sample was considered to have COMPLIED with the requirements for the relevant clauses of Federal Communications Commission Rules as specified above. _____________Signed in the original to the client________________ Authorized Signature Remark: Purpose of those tests in this report is to provide the applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under the FCC Equipment Authorization Program. The tests themselves are not Approval Tests INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 21017/9/400F Date: 1999-11-19 Page 5 of 9 Summary of Test Results Interference Radiation: Test result:O.K. Test data:See attached data sheet Interference Voltage: Test result:N.A. Test data:N.A. INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 21017/9/400F Date: 1999-11-19 Page 6 of 9 TEST EQUIPMENT LIST EquipmentManufacturerModelSerial No.Remark Test ReceiverRohde & Schwarz ESH 3863497/01510KHz – 30MHz Test ReceiverRohde & Schwarz ESVP860688/02225MHz – 1,300 MHz Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50Ω, 50μH 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Antenna Mast SystemSchwarzbeckAM9104--Max. 4 meters height Spectrum Analyzer with Q. Peak Tektronix2712B0230069KHz – 1.8GHz Interface for Spectrum 2712 TektronixTD3F14A-- Test ReceiverRohde & Schwarz ESH 3892580/00610KHz – 30MHz Test ReceiverRohde & Schwarz ESVP863512/01225MHz – 1,300 MHz Impulse LimiterRohde & Schwarz ESH-3-Z2-- Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50Ω, 50μH 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Signal GeneratorRohde & Schwarz SWS 2879113/42100KHz – 1040 MHz Digital MultimeterTektronixDM2510GDM- 2510GTW105 55 10KHz – 30MHz Turntable with Controller DrehtischDT312-- φ120 cm INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 21017/9/400F Date: 1999-11-19 Page 7 of 9 Radiated Emission Testprocedure Equipment under test (on turntable) Test receiver ESVP R & S Required test distance: 3m Antenna system Schwarzbeck BBA 9106/ UHALP 9107 INTERNATIONAL ELECTRICAL CERTIFICATION CENTRE LTD. FCC – Test Report No. 21017/9/400F Date: 1999-11-19 Page 9 of 9 Notes for Radiation Measurement 1. Measurement facility: Measurement facility located at Fanling (Hong Kong), placed on file with the FCC Pursuant to Section 2.948 of the FCC Rules. 2. Distance between the EUT and measuring antenna: 3 meters. 3. Measuring instrumentations: Rohde & Schwarz ESVP Test Receiver ( 20 - 1300 MHz ) with a CISPR weighting QP detector, 6 dB bandwidth set at 120 KHz. 4. Measuring antenna: Broad-band antenna for the frequency range 30 - 300 MHz and frequency range 300 - 1000 MHz, connected with 10 meters coaxial cable. Cable loss of the coaxial cable included in the Antenna Factor for measurement data. The antennas are capable of measuring both horizontal and vertical polarizations. 5. Frequency range scanned: The frequency range 30 - 1000 MHz has been scanned. Readings of the highest emissions relating to the limit were reported as above. 6. Arrangement of EUT: During the test, the sample was operated at rated supply voltage and arranged for maximum emissions. 7. Measuring Procedure: In accordance with the relevant sections of the American National Standards Institute (ANSI) C63.4- 1992 ‘Methods of Measurement of Radio Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9KHz to 40GHz’.
