L9G708005TRC Car

BACKWARD FORWARD STOP 9.6V Ni Cd9.6V Ni Cd ® L R SPEED CONTROL JOYSTICK STEERING CONTROL JOYSTICK TELESCOPIC ANTENNA Figure 1 Figure 2 Figure 7 Figure 8 Figure 10 Figure 11 Figure 9 IMPORTANT! • Do not leave batteries in the vehicle or the transmitter when the toy is not in use. • Do not use old and new batteries together. • Do not mix different types of batteries. Only batteries of the same or equivalent type as recommended are to be used.(e .g. alkaline,Ni-MH rechargeable, and manganese, or other non-alkaline batteries) • Dispose of old batteries in the proper manner ; do not burn or place near fire. • Non-rechargeable batteries are not to be recharged. • The supply terminals are not to be short-circuited. • Not suitable for children under 3 years of age due to small parts. • Remove rechargeable batteries from the unit before recharging. • Recharging of rechargeable batteries should only be done under adult supervision. • The screwdriver is not a toy. • Do not give the screwdriver to children. • Change the car body by adult only. • Exhausted batteries are to be removed from the toy. BATTERY REQUIREMENTS • This vehicle requires a 9.6V NiMH battery and one 9V (6LR61) (alkaline) (6F22) (carbon zinc) battery for the transmitter. INSTALLING BATTERIES INSTALLING THE BATTERIES TRANSMITTER Removal of the battery cover requires a "phillips head" screwdriver.See Figure 1. After removing this screw, slide the cover downward to remove. Place the 9 V battery in position so that the (+) and (-) are in the proper alignment ads noted.Replace screw to battery cover. See Figure 2. . VEHICLE Removal of the battery cover will again require a "phillips head" screwdriver. Turn the lock tab and remove the cover. See Figure 3. Make sure the 9.6V NiMH has a full charge as per the charging instructions. Connect the battery wires to the vehicle being sure that the lock tab snaps over the raised ridge. Place the battery in the battery compartment being sure that wires are on space under the battery. See Figure 4. Replace the battery cover, and secure with the screw that was previously removed. OPERATING R/C CAR IMPORTANT! • Do not use vehicle over mud, water, snow, or sand. • Do not play with vehicle in the street. • Do not crash vehicle into any object at high speeds. • When the vehicle slows down install new or freshly charged batteries. • Clean the vehicle with a damp paper towel after operating. (Do not use any chemicals to wipe off car) • Do not leave vehicle in direct sunlight for lengthy periods. OPERATING CAR 1. Turn the car switch to "ON". (Located on bottom of car) See Figure 5. 2. Screw the antenna on the top of the transmitter and extend to full length. See Figure 6. THINGS YOU SHOULD KNOW • Radio interference can cause your car to react strangely. • Another vehicle operating on the same frequency can disrupt your controlling the vehicle. • CB's, cellular telephones, two way radios, and other transmitting devices, and high tension wires may cause interference with operation. • Your vehicle can sometimes cause interference with television or even radio reception. Move to another area if you notice this occurrence. WHEEL ALIGNMENT Your steering can be adjusted with the trim switch located on the bottom chassis area. Turn either left or right until you have made the adjustment to maintain a straight path of movement. See Figure 10. Transmitter : 9V --- 0.05A NATURE POWER OF SUPPLY Receiver : 9.6V --- 5.2A CHARGING THE BATTERY • Plug charger into a standard household outlet (110/120 Volt). See Figure 11. • Connect the plug from the battery to the receptacle plug attached to the charger wires. Be sure to get a firm fit by having the ridge snap into place with the clip. See Figure 11. • Allow battery to charge for 6-8 hours for a complete and full charge. Additional charging will not improve your battery's output, and could eventually damage the battery. Do not charge a battery if you notice it leaking or see corrosion on any part of the battery. • A characteristic of Ni-MH batteries is a loss of power quickly. A spare battery is therefore recommended for longer play. • If the battery is hot after operation please wait until it is cool before recharging. Attempting to recharge a battery in this condition can reduce the life of the battery and may cause damage later. • The rechargeable battery must be charged with the recommended battery charger. • The battery charger is not a toy. • The battery charger is to be regularly examined for damage to the cord, plug enclosure and other parts, in the event of such damage; the rechargeable batteries must not be used with this battery charger until the damage has been repaired. 3. Start operating by moving speed control joysticks on the left forward. See Figure 7. 4. Release both control joysticks, the vehicle will stop. See Figure 8. 5. The engine sound will vary according to the motion of the car. 6. Vehicle steering is controlled by joystick on right by moving left or right. See Figure 9. 7. Do not let vehicle get out of transmitting range as you will then have no control. This range varies due to surroundings. 8. When finished, turn all switches to off position and remove all batteries. Figure 3 Figure 4 Figure 5 Figure 6 (IF APPLICABLE) Radio Controled Vehicle Full Function Car Series Scale: 1:10 MCS: Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 9V

FCC ID: L9G708005T Ophoto1 Ophoto2 FCC ID: L9G708005T Ophoto3 Ophoto4

FCC ID: L9G708005T Iphoto1 Iphoto2 FCC ID: L9G708005T Iphoto3 Iphoto4

FCC ID: L9G708005T Technical Description : The brief circuit description is listed as follows : - X1, Q2 and associated circuit act as 49.860 MHz Oscillator. - Q1 and associated circuit act as Modulator. - IC1 and associated circuit act as Encoder. - L, R, B, F and associated circuit act as Contr ol Key. Antenna Used : An extendable antenna has been used.

55 44 33 22 11 D D C C B B A A 9V 9V DATE 0 NO. REVISION BY <Date:> ----------- <BY:> DATE 0 NO. REVISION BY <Date:> ----------- <BY:> DATE 0 NO. REVISION BY <Date:> ----------- <BY:> Title DWG NO. Rev Revise Date: Sheet of ARTIN Industrial Co., Ltd. MCS : TX 49Mhz (ST8728) pp Remote Control Receiver 49 Tx 1 1 DRAWN BY: CHECK BY: APPROVALS BY: DATE 317002069-010 317002069-010 BAT:9V <DB DATE> <AB DATE> <CB DATE> Title DWG NO. Rev Revise Date: Sheet of ARTIN Industrial Co., Ltd. MCS : TX 49Mhz (ST8728) pp Remote Control Receiver 49 Tx 1 1 DRAWN BY: CHECK BY: APPROVALS BY: DATE 317002069-010 317002069-010 BAT:9V <DB DATE> <AB DATE> <CB DATE> Title DWG NO. Rev Revise Date: Sheet of ARTIN Industrial Co., Ltd. MCS : TX 49Mhz (ST8728) pp Remote Control Receiver 49 Tx 1 1 DRAWN BY: CHECK BY: APPROVALS BY: DATE 317002069-010 317002069-010 BAT:9V <DB DATE> <AB DATE> <CB DATE> Note: 1. All resistance values are indicated in "ohm" (Mohm=1,000Kohm ; Kohm=1,000 ohm) 2. All capacitance values are indictaed in "uF" (uF=1,000nF ; nF=1,000pF) 2005-04-19

     C9 0.02 C9 0.02 L1 L-2705 L1 L-2705 360K R6 360K R6 ANTANT 47 R2 47 R2 L4 1uH L4 1uH C3 25P C3 25P 9V9V 470K R3 470K R3 D1 IN4148 D1 IN4148 C5 47P C5 47P X1 49.860MHz X1 49.860MHz R 1 TESTB 2 GND 3 B 4 F 5 T 6 SC 7 VDD 9 PC 10 SO 8 OSCO 11 OSCI 12 FOSC 13 L 14 IC1 TX2C IC1 TX2C L / RL / R C747PC747P C2 45P C2 45P 100 R1 100 R1 C6 27P C6 27P F / BF / B C4 0.01 C4 0.01 Q1 2SC 1815GR Q1 2SC 1815GR C8 0.02 C8 0.02 Q2 2SC1815Y Q2 2SC1815Y Z1 3.9V Z1 3.9V C1 10p C1 10p L2 1uH L2 1uH 330 R5 330 R5 33K R4 33K R4

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : L9G708005T Artin Industrial Company Limited Application For Certification (FCC ID: L9G708005T) Transmitter Sample Description : Remote Control Car (49MHz) TX Model : 708005 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [12-8-2003] 0508015 WL/at May 30, 2005 INTERTEK TESTING SERVICES FCC ID: L9G708005T i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1 : General Description EXHIBIT 2 : System Test Configuration EXHIBIT 3 : Emission Results EXHIBIT 4 : Equipment Photographs EXHIBIT 5 : Product Labelling EXHIBIT 6 : Technical Specifications EXHIBIT 7 : Instruction Manual EXHIBIT 8 : Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: L9G708005T ii MEASUREMENT/TECHNICAL REPORT Artin Industrial Company Limited - MODEL: 708005 FCC ID: L9G708005T May 30, 2005 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-8- 2003 Edition] provision. Report prepared by: Wilbur Ng Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8502 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: L9G708005T iii Table of Contents 1.0 General Description................................................................................................ 2 1.1 Product Description............................................................................................. 2 1.2 Related Submittal(s) Grants................................................................................. 2 1.3 Test Methodology................................................................................................ 3 1.4 Test Facility ......................................................................................................... 3 2.0 System Test Configuration..................................................................................... 5 2.1 Justification.......................................................................................................... 5 2.2 EUT Exercising Software ..................................................................................... 5 2.3 Special Accessories ............................................................................................ 5 2.4 Equipment Modification ....................................................................................... 6 2.5 Support Equipment List and Description.............................................................. 6 3.0 Emission Results .................................................................................................... 8 3.1 Field Strength Calculation.................................................................................... 9 3.1 Field Strength Calculation (cont’d)..................................................................... 10 3.2 Radiated Emission Configuration Photograph .................................................... 11 3.3 Radiated Emission Data .................................................................................... 12 4.0 Equipment Photographs ....................................................................................... 15 5.0 Product Labelling .................................................................................................. 17 6.0 Technical Specifications....................................................................................... 19 7.0 Instruction Manual ................................................................................................ 21 8.0 Miscellaneous Information................................................................................... 23 8.1 Measured Bandwidth......................................................................................... 24 8.2 Discussion of Pulse Desensitization................................................................... 25 8.3 Calculation of Average Factor............................................................................ 26 8.4 Emission Test Procedures ................................................................................ 27 8.4 Emission Test Procedures (Cont’d).................................................................... 28 INTERTEK TESTING SERVICES FCC ID: L9G708005T iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Average Factor af.pdf INTERTEK TESTING SERVICES FCC ID: L9G708005T 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: L9G708005T 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a transmitter for a RC Car operating at 49.860 MHz which is controlled by a crystal. The EUT is powered b…

Text truncated - open the document above for the full version.

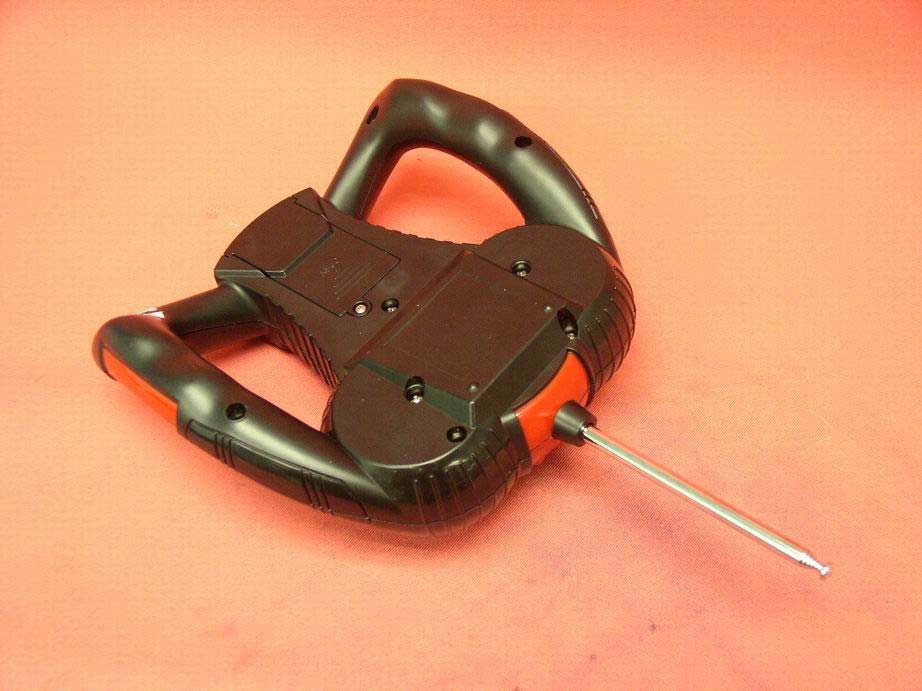

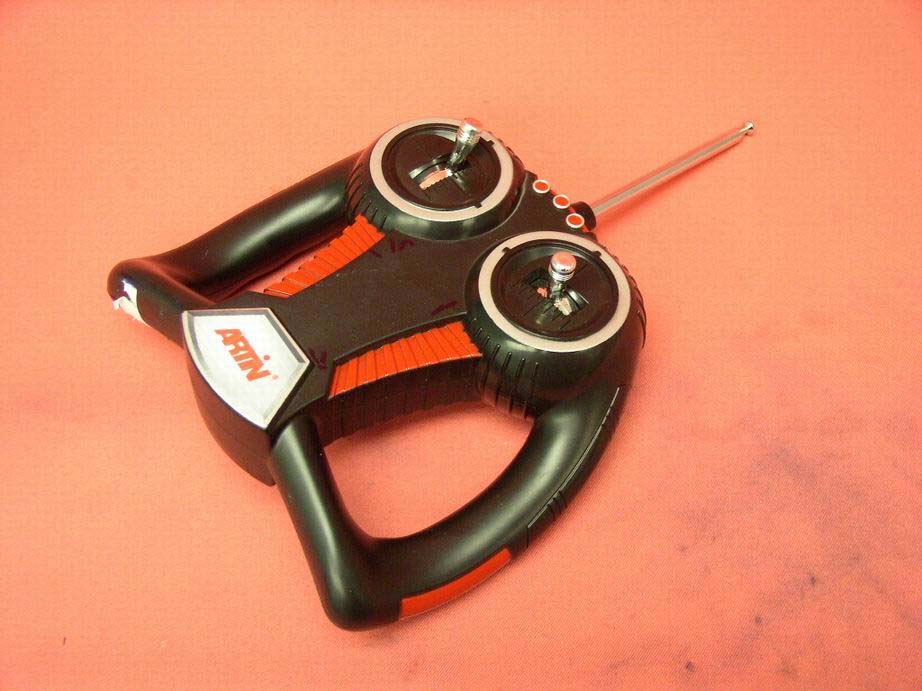

INTERTEK TESTING SERVICES Front View Back View
