L9N-7085-VEVHF SYNTHESISED DATA TRANSCEIVER

AES Corporation does not have a “user’s manual” for this device. The only manual that is available is a “service manual” because of the intended use and sale of this product. This service manual is provided below. AES 7085-VE VHF SYNTHESISED DATA TRANSCEIVER Service Manual 40-7085-VE-SM Document Rev A1 10/2003 AES Corporation 285 Newbury Street. Peabody, Massachusetts 01960-1315 Tel (978) 535-7310. Fax (978) 535-7313 Copyright 2003, All rights Reserved TABLE OF CONTENS 1. SPECIFICATION 2 2. CONNECTIONS AND OPERATION 3 3. CIRCUIT DESCRIPTION 4-12 4. PERFORMANCE TEST AND ALIGNMENT 12 5. TEST EQUIPMENT CONFIGURATION 13 6. TRANSMITTER PERFORMANCE TEST 14-16 7. TROUBLESHOOTING 17-19 8. PROGRAMMER INSTRUCTION 20 9. PARTS LIST 22-35 10. PRINT CIRCUIT BOARD LAYOUT 36-43 11. PARTS ASSEMBLY 44-49 12. BLOCK DIAGRAM 50 13. SCHEMATICS DIAGRAM 51 PAG E 1 1. SPECIFICATION GENERAL SPECIFICATIONS POWER SOURCE +12VD.C. nominal (+10.8 to +15.6V ) TEMPERATURE RANGE STORAGE 80ºC maximum -40ºC min. 25ºC nominal OPERATING 60ºC maximum -20ºC min. ANTENNA IMPEDANCE 50Ω FREQUENCY CONTROL PLL SYNTHESISER FREQUENCIES OF OPERATION 140MHZ - 174MHZ FREQUENCY TOLERANCE AND STABILITY ±1.5PPM HIGH HUMIDITY 90% CHANNEL CAPABILITY 1 NOMINAL DIMENSIONS 134 mm (L) X60 mm (W) X20 mm (H) WEIGHT 190g RADIO DATA TRANSCEIVER NOMINAL PERFORMANCE PERFORMANCE SPECIFICATIONS ETSI 300-113 RF OUTPUT POWER 5W/1W PROGRAMMABLE MODULATION TYPE FM INTERMEDIATE FREQUENICES 45 MHZ 455 KHZ CHANNEL SPACING 12.5 KHZ , 6.25 KHZ (PROGRAMMABLE) TRANSMIT ATTACK TIME < 25 mS CURRENT CONSUMPTION TRANSMIT 1500mA@5W, 800mA@1W RECEIVE 85mA PAG E 2 2. CONNECTIONS AND OPERATION EXTERNAL CONNECTIONS 1- 50Ω BNC SOCKET 2- 9 PIN “D” TYPE PLUG (J501) D-TYPE INTERCONNECTIONS PINFUNCTIONTYPERANGEDESCRIPTION J501-1 DATA_IN ANALOGUE 100Mv-2.5VP-P EXTERNAL MODULATION INPUT J501-2 DATA_OUT ANALOGUE 1VP-P RECEIVER AF OUTPUT J501-3 PTT INPUT 0V/+5V TRANSMIT ENABLE J501-4 GND GND 0V GND J501-5 B+ V+ +13.8V POWER SUPPLY J501-6 CDS OUTPUT OPEN/SHORT RF CARRIER DETECT J501-7 NC NC NC NC J501-8 PGM_DATA INPUT 0V/NC PROGRAMMER DATA INPUT J501-9 PGM_ENB INPUT 0V/5V PROGRAMMING ENABLE PAG E 3 3. CIRCUIT DESCRIPTION TRANSMITTER The transmitter is comprised of: • Audio amplifier connections from J501 pin 1 • Frequency Synthesizer • Transmitter • Automatic Power Control Audio frequency connections Processed data from the IC504 is applied to the VCO via P305 and applied to the TCXO P701 Frequency synthesizer circuit With data received from the EEPROM (IC502) the frequency synthesizer circuit controls and Produces the RF carrier frequency for the transmitter during transmit and the local oscillator frequency for the receiver. The frequency synthesizer circuit is comprised of: • 12.8 MHZ Tcxo • Voltage Controlled Oscillator (VCO) module • Charge Pump and Loop Filter • PLL Frequency Synthesizer • Dual Modulus Prescaler PAG E 4 PLL Synthesizer The PLL synthesizer circuit is common to both the transmitter and receiver. The synthesizer comprises: Data RF Out Voltage controlled oscillator module (VCO) The module contains two VCOs. One for producing carrier frequencies during transmit (TX VCO) and one for producing the local oscillator frequency during receive (RX VCO). The module also has RX and TX power line filters. Output is for PLL IC(IC1) Fin. PAGE 5 TCXO DC-DC Converter Charge Pump Loop Filter IC1 PLL TX OR RX VCO RX and TX power line filters Transistor Q308 is configured as a 5v power supply ripple filter. The filter reduces the noise on the carrier and local oscillator signals. RX VCO The RX VCO comprises JFET Q301, coil L301 , and varactor D301 and is configured as a Colpitts Oscillator . D301 produces a change in frequency with a change in DC voltage and is controlled by The tuning voltage signal present at the cathode. The local oscillator signal at the source of Q301 is Applied to the cascode buffer/amplifier formed by Q16 and Q17.The Local signal is applied to the Mixer when diode D2 is reverse biased and D3 is forward biased. TX VCO The TX VCO comprises JFET Q301,coil L303 , and varactor D302 and D303 and is configured as A Colpitts oscillator . D302 produces a change in frequency with a change in DC voltage and is controlled by the tuning voltage signal present at the cathode. The AF signal at J501 pin 1 is applied to the cathode of D303 to produce FM modulation. When diode D2 is forward biased and D3 is reversed biased the modulated RF signal at the collector of Q16 is passed to the power Amplifier and harmonic filter via the cascade buffer/amplifier (Q21 and Q22). PLL IC The reference frequency from the TCXO, at 12.8 MHZ, is connected to pin 1 of IC1 (MB1504) The appropriate VCO is connected to pin 11. REFDIV divides the 12.8 MHz to produce a reference frequency (Fr) of 5 or 6. 25 kHz dependent upon channel spacing selected. VARDIV divides the prescaled VCO frequency to produce a variable frequency (Fv). Fv and Fr are fed to the phase detector. Phase detector When Fv=Fr, the phase detector output (pins 15 and 16,IC1) produces narrow negative pulses And Fv and Fr pulse widths are identical. When FvFr pin 15 (V) pulses negative with pin 16 (R) remaining high. When FvFr pin 16 (R) pulses negative with pin 15(V) remaining high. The signal at pin 15 and 16 is smoothed the loop filter and applied to the VCO. Out-of-lock detector The out-of-lock detector produces a series of logic level pulses when the loop is out of lock at pin 7 of IC1.The pulses at pin 7 of IC1 are buffered by Q6 and then integrated by R17 and C19. The product of the integrating circuit is fed to IC501 pin 25. PA G E 6 Charge Pump and Loop Filter Transistors Q2, Q4, Q10, and associated resistors and capacitors form the charge pump and loop Filter. The phase detector output from IC1 pins 15 and 16 are combined by the charge pump to produce a 0 to 15V tuning voltage signal. The signal is filtered by the loop filter (R13, C16 and C17) to remove any residual reference Frequency harmonics from the signal. After…

Text truncated - open the document above for the full version.

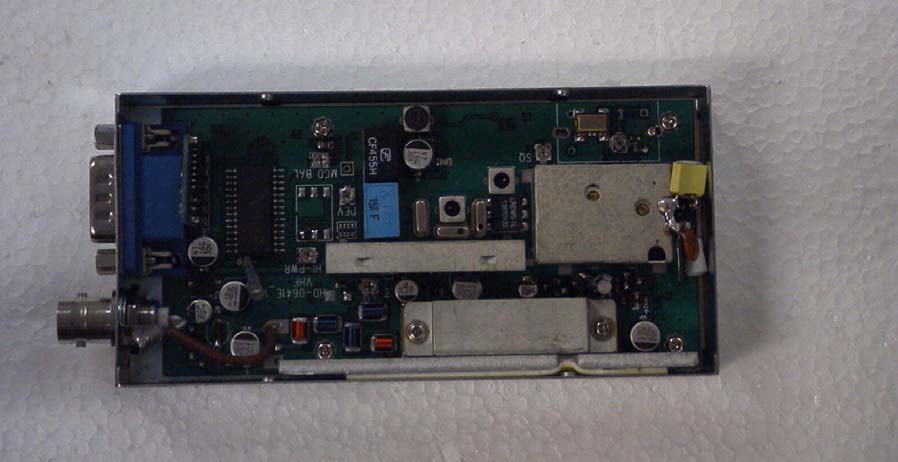

Model 7085-VE Data Transceiver This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. AES Corporation 285 Newbury Street Peabody Massachusetts 01960 USA Freq. FCC ID: L9N-7085-VE Mfg # 52-7085-VE Power: 2/5WSerial # MADE IN TAIWAN R.O.C. All items shown in actual size

3. CIRCUIT DESCRIPTION TRANSMITTER The transmitter is comprised of: • Audio amplifier connections from J501 pin 1 • Frequency Synthesizer • Transmitter • Automatic Power Control Audio frequency connections Processed data from the IC504 is applied to the VCO via P305 and applied to the TCXO P701 Frequency synthesizer circuit With data received from the EEPROM (IC502) the frequency synthesizer circuit controls and Produces the RF carrier frequency for the transmitter during transmit and the local oscillator frequency for the receiver. The frequency synthesizer circuit is comprised of: • 12.8 MHZ Tcxo • Voltage Controlled Oscillator (VCO) module • Charge Pump and Loop Filter • PLL Frequency Synthesizer • Dual Modulus Prescaler PAGE 4 PLL Synthesizer The PLL synthesizer circuit is common to both the transmitter and receiver. The synthesizer comprises: Data RF Out Voltage controlled oscillator module (VCO) The module contains two VCOs. One for producing carrier frequencies during transmit (TX VCO) and one for producing the local oscillator frequency during receive (RX VCO). The module also has RX and TX power line filters. Output is for PLL IC(IC1) Fin. PAGE 5 TCXO DC-DC Converter Charge Pump Loop Filter IC1 PLL TX OR RX VCO RX and TX power line filters Transistor Q308 is configured as a 5v power supply ripple filter. The filter reduces the noise on the carrier and local oscillator signals. RX VCO The RX VCO comprises JFET Q301, coil L301 , and varactor D301 and is configured as a Colpitts Oscillator . D301 produces a change in frequency with a change in DC voltage and is controlled by The tuning voltage signal present at the cathode. The local oscillator signal at the source of Q301 is Applied to the cascode buffer/amplifier formed by Q16 and Q17.The Local signal is applied to the Mixer when diode D2 is reverse biased and D3 is forward biased. TX VCO The TX VCO comprises JFET Q301,coil L303 , and varactor D302 and D303 and is configured as A Colpitts oscillator . D302 produces a change in frequency with a change in DC voltage and is controlled by the tuning voltage signal present at the cathode. The AF signal at J501 pin 1 is applied to the cathode of D303 to produce FM modulation. When diode D2 is forward biased and D3 is reversed biased the modulated RF signal at the collector of Q16 is passed to the power Amplifier and harmonic filter via the cascade buffer/amplifier (Q21 and Q22). PLL IC The reference frequency from the TCXO, at 12.8 MHZ, is connected to pin 1 of IC1 (MB1504) The appropriate VCO is connected to pin 11. REFDIV divides the 12.8 MHz to produce a reference frequency (Fr) of 5 or 6. 25 kHz dependent upon channel spacing selected. VARDIV divides the prescaled VCO frequency to produce a variable frequency (Fv). Fv and Fr are fed to the phase detector. Phase detector When Fv=Fr, the phase detector output (pins 15 and 16,IC1) produces narrow negative pulses And Fv and Fr pulse widths are identical. When FvFr pin 15 (V) pulses negative with pin 16 (R) remaining high. When FvFr pin 16 (R) pulses negative with pin 15(V) remaining high. The signal at pin 15 and 16 is smoothed the loop filter and applied to the VCO. Out-of-lock detector The out-of-lock detector produces a series of logic level pulses when the loop is out of lock at pin 7 of IC1.The pulses at pin 7 of IC1 are buffered by Q6 and then integrated by R17 and C19. The product of the integrating circuit is fed to IC501 pin 25. PA G E 6 Charge Pump and Loop Filter Transistors Q2, Q4, Q10, and associated resistors and capacitors form the charge pump and loop Filter. The phase detector output from IC1 pins 15 and 16 are combined by the charge pump to produce a 0 to 15V tuning voltage signal. The signal is filtered by the loop filter (R13, C16 and C17) to remove any residual reference Frequency harmonics from the signal. After filtering the signal is applied to the voltage controlled Oscillator module. DC to DC Converter The DC-to-DC converter converts the +7.5 V to a 14-16 V supply. This is used to provide the Tuning voltage for the VCO. A wide voltage range is required to allow for the wideband operation of the radio. Q506 to Q508, and associated components, form a 200kHz oscillator. The output of the oscillator is rectified and filtered by D503, D506, C548 and C11. The resultant 16VDC is passed to R544 and then becomes the supply rail for the charge pump. Dual modulus prescaler The prescaler divides the VCO frequency by 64 or 65. Transmitter The transmitter comprises: VCO Buffer PA Module Amp PAGE 7 RF LPF ANTENNA SWITCH Automatic Power Control Buffer When the radio is in transmit mode the diode D2 is forward biases enabling the modulated RF signal from the VCO to pass to the buffer/pre-amplifier Q21 and Q22 and associated components. The output signal is passed from Q22 to IC5 via a matching network consisting of Inductor L7 and C73. PA module The signal is then amplified for transmission by IC5, which is a power amplifier module. Low pass filter The amplified RF signal is passed through the stripline coupler and is fed to the harmonic low pass filter, comprising L12 to L15 and C94-C98 and then to the antenna connector (ANT). The stripline coupler provides a sample of the RF signal for the automatic power control. Antenna Switch When transmitting, the diodes D5 and D6 are forward biased, allowing the RF to pass to the antenna. D6 is shorted to ground which makes L11 look open circuit (1/4 wave tuned stub). This prevents the TX signal from passing to the receiver stage. Automatic power control (APC) circuits The automatic power control contains the stripline coupler, diode D4, variable resistor RV1, U4A and transistors Q19 and Q23. The RF signal present in the coupler is rectified by D4, to produce a DC voltage. This DC voltage is passed to one input of IC4A, which is a differential amplifier. In transmit mode a DC reference level for U4A is supplied by the potential divider R34/R35. The reference level and the detected lev…

Text truncated - open the document above for the full version.

9. PARTS LIST. 7085-VE Revised: July 22, 2003 Revision: Bill Of Materials July 22, 2003 17:04:58 Page 1 Item Quantity Reference Part ____________________________________________________________________ 1 11 C1,C82,C126,C131,C152, 470P C502,C515,C517,C518,C521, C522 2 7 C2,C550,C552,C553,C554, 1U/Y5V 0805 C555,C556 3 44 C3,C5,C7,C8,C12,C25,C33, 102P C41,C43,C44,C45,C47,C48, C51,C52,C57,C66,C72,C75, C77,C78,C83,C84,C85,C86, C93,C102,C104,C105,C106, C118,C127,C301,C307,C313, C314,C316,C317,C318,C325, C326,C328,C545,C816 4 4 C4,C10,C311,C312 5P 5 6 C6,C18,C27,C37,C153,C543 106P/1206 6 1 C9 475P/1206 7 1 C11 105P 25V/1206 8 1 C15 1U/T 9 3 C16,C149,C534 104P/X7R 0805 PAGE 22 7085-VE Revised: July 22, 2003 Revision: Bill Of Materials July 22, 2003 17:04:58 Page 1 Item Quantity Reference Part ____________________________________________________________________ 10 10 C17,C21,C31,C64,C142, 103P C143,C148,C151,C536,C910 11 20 C19,C42,C46,C58,C62,C67, 104P C81,C117,C144,C145,C146, C147,C324,C329,C503,C542, C544,C546,C557,C906 12 7 C24,C94,C98,C101,C113, 15P C141,C302 13 3 C26,C306,C315 2P 14 2 C28,C154 33U/6.3V/EC/SMT/B-CASE 15 1 C32 100U/6.3V/EC/SMT/D-CASE 16 6 C53,C68,C138,C308,C516, 47P C523 17 3 C54,C87,C89 27P 18 2 C56,C124 105P/0805 19 2 C65,C327 335P/1206 PAGE 23 7085-VE Revised: July 22, 2003 Revision: Bill Of Materials July 22, 2003 17:04:58 Item Quantity Reference Part ____________________________________________________________________ 20 1 C70 3P 21 8 C71,C79,C80,C99,C303, NU C510,C804,C806 22 10 C73,C91,C95,C96,C97,C137, 33P C803,C807,C813,C814 23 1 C74 10U/16V/EC/SMT/B-CASE 24 1 C88 10P 25 1 C92 12P 26 2 C103,C119 82P 27 2 C107,C538 100U/16V/EC/SMT/D-CASE 28 3 C108,C504,C505 22P 29 4 C111,C801,C812,C822 39P 30 4 C112,C304,C305,C309 4P 31 2 C114,C817 56P 32 1 C125 104P/X7R 0603 33 1 C134 223P/X7R PAGE 24 7085-VE Revised: July 22, 2003 Revision: Bill Of Materials July 22, 2003 17:04:58 Item Quantity Reference Part ____________________________________________________________________ 34 3 C135,C511,C903 220P 35 1 C150 47U/10V/EC/SMT/C-CASE 36 8 C160,C161,C162,C524,C802, 100P C808,C811,C818 37 1 C310 1P 38 1 C335 8P 39 1 C336 9P 40 2 C532,C533 47U/16V/EC/SMT/D-CASE 41 1 C537 10U/16V(T) B-CASE 42 1 C548 4.7U/50V/EC/SMT/C-CASE 43 1 C800 560P 44 1 C805 6P PAGE25 7085-VE Revised: July 22, 2003 Revision: Bill Of Materials July 22, 2003 17:04:58 Item Quantity Reference Part ____________________________________________________________________ 45 1 C815 150P 46 1 C821 270P 47 2 C901,C904 105P/X7R 0805 48 1 C902 152P/X7R 49 1 C905 683P/X7R 0805 50 1 C907 820P 51 1 C908 152/X7R 52 1 C909 120P 53 1 C911 392P/X7R 54 1 C912 332P/X7R 55 1 CF1 CFW455E 56 1 CF2 CFW455HT 57 3 D2,D3,D12 1SS314 58 1 D4 1SS154 59 2 D5,D6 RLS135 PAGE 26 7085-VE Revised: July 22, 2003 Revision: Bill Of Materials July 22, 2003 17:04:58 Item Quantity Reference Part ____________________________________________________________________ 60 1 D7 1N4004 SMT 61 4 D8,D11,D501,D504 RLS4148 62 2 D13,D14 1SS181 63 3 D301,D302,D303 1SV215 64 1 D502 RLZ4.3B 65 1 D503 BAV99LT1 66 1 D505 RLZ6.2B 67 1 D506 RLZ16B 68 1 D507 RLZ3.0B 69 1 D800 1SS226 70 1 IC1 MB1504 SMT 71 2 IC2,IC507 XC62AP5002MR PAGE 27 7085-VE Revised: July 22, 2003 Revision: Bill Of Materials July 22, 2003 17:04:58 Item Quantity Reference Part ____________________________________________________________________ 72 1 IC5 M67748H 73 1 IC6 MC3371 SMT 74 1 IC8 LRFMS-1L 75 1 IC501 PIC16C57/XT SMT 76 1 IC502 93C46 SMT 77 2 IC504,U901 TL064CD SMT 78 1 IC508 ELM7S32 79 1 J501 CONNECTOR DB9 80 1 J901 PCB JACK 6PIN 2.54MM 81 1 JP101 BNC 82 3 L2,L3,L24 1UH TDK 83 3 L4,L5,L7 82NH 84 6 L8,L17,L302,L304,L309, 2.2UH TDK L310 85 3 L11,L13,L14 0.45*2.3*8T CW SMT PA G E 2 8 7085-VE Revised: July 22, 2003 Revision: Bill Of Materials July 22, 2003 17:04:58 Item Quantity Reference Part ____________________________________________________________________ 86 2 L12,L15 0.45*2.3*7T CW SMT 87 2 L16,L18 45M 88 2 L19,L20 0.15UH TDK 89 1 L311 0.82UH TDK 90 2 L312,L313 MDS-0605U-3.5T 91 2 L501,L503 100UH SMT 92 1 L502 560UH SMT 93 7 L800,L801,L802,L803,L804, 0.45*1.5*6T CCW SMT L805,L806 94 1 P301 1 95 1 P302 2 96 1 P303 3 97 1 P304 4 PAGE 29 7085-VE Revised: July 22, 2003 Revision: Bill Of Materials July 22, 2003 17:04:58 Item Quantity Reference Part ____________________________________________________________________ 98 1 P305 5 99 1 P306 6 100 1 P307 7 101 3 Q2,Q6,Q502 A1037K 102 13 Q4,Q9,Q10,Q12,Q19,Q25, BC847A Q34,Q35,Q308,Q503,Q505, Q507,Q508 103 5 Q8,Q16,Q17,Q21,Q22 2SC3838 104 2 Q11,Q15 DTA114EK 105 1 Q14 BCW68G 106 1 Q18 DTA123JK 107 2 Q23,Q506 2SB798 108 1 Q24 MMBTH10 109 4 Q31,Q32,Q303,Q304 DTC114EK 110 3 Q33,Q509,Q512 2N7002 PAGE 30 7085-VE Revised: July 22, 2003 Revision: Bill Of Materials July 22, 2003 17:04:58 Item Quantity Reference Part ____________________________________________________________________ 111 2 Q301,Q302 MMBFJ310LT1 112 1 Q800 2SC3356 113 22 R1,R5,R11,R17,R25,R39, 10K R41,R42,R46,R66,R71,R87, R92,R93,R101,R102,R103, R305,R308,R503,R521,R524 114 8 R3,R20,R64,R502,R523, 100K R525,R531,R903 115 8 R4,R8,R26,R91,R94,R96, 22K R98,R538 116 2 R9,R541 3K9 117 7 R10,R19,R47,R48,R51,R89, 100R R542 118 2 R13,R21 1K2 119 4 R14,R82,R313,R518 2K7 120 1 R15 7.5K PAGE31 7085-VE Revised: July 22, 2003 Revision: Bill Of Materials July 22, 2003 17:04:58 Item Quantity Reference Part ____________________________________________________________________ 121 1 R16 33K 122 1 R18 91K 123 9 R24,R43,R61,R73,R81,R513, 4K7 R515,R543,R548 124 1 R27 10R 125 1 R28 5K6 126 16 R31,R32,R33,R35,R45,R49, 1K R57,R75,R76,R84,R501, R504,R505,R552,R553,R902 127 11 R34,R526,R527,R528,R532, 47K R533,R534,R537,R701,R702, R905 128 1 R37 6R8 129 3 R40,R52,R56 470K 130 2 R44,R72 2K2 131 1 R50 150R 132 1 R53 51R PA G E 3 2 7085-VE Revised: July 22, 2003 Revision: Item Quantity Reference Part ____________________________________________________________________ 133 5 R54,R55,R309,R517,R535 0R 134 3 R65,R554,R555 470R 135 1 R77…

Text truncated - open the document above for the full version.

FCC ID: L9N-7085-VE (The following will be placed in the Instruction Manual) MANDATORY SAFETY INSTRUCTIONS TO INSTALLERS & USERS Use only manufacturer or dealer supplied antenna. Antenna Minimum Safe Distance: 46 cm. Antenna Gain: zero dBd referenced to a dipole. The Federal Communications Commission has adopted a safety standard for human exposure to RF (Radio Frequency) energy which is below the OSHA (Occupational Safety and Health Act) limits. Antenna Mounting: The antenna supplied by the manufacturer or radio dealer must not be mounted at a location such that during radio transmission, any person or persons can come closer than the above indicated minimum safe distance to the antenna i.e. 46 cm. To comply with current FCC RF Exposure limits, the antenna must be installed at or exceeding the minimum safe distance shown above, and in accordance with the requirements of the antenna manufacturer or supplier. Base Station Installation: The antenna should be fixed- mounted on an outdoor permanent structure. RF Exposure compliance must be addressed at the time of installation. Antenna Substitution: Do not substitute any antenna for the one supplied or recommended by the manufacturer or radio dealer. You may be exposing person or persons to excess radio frequency radiation. You may contact your radio dealer or the manufacturer for further instructions. WARNING: Maintain a separation distance from the antenna to a person(s) of at least 46 cm. You, as the qualified end-user of this radio device must control the exposure conditions of bystanders to ensure the minimum separation distance (above) is maintained between the antenna and nearby persons for satisfying RF Exposure compliance. The operation of this transmitter satisfies the requirements of General Population Exposure Environment. Transmit only when person(s) are at least 46 cm distance from the properly installed, externally mounted antenna.

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AES CORPORATION FCC ID: L9N-7085-VE REPORT #: A\AES\1514AUT3\1514AUT3TestReport.doc TITLE PAGE FCC Test Report Product Name: VHF SYNTHESISED DATA TRANSCEIVER – TRANSMITTER PORTION FCC ID: L9N-7085-VE Applicant: AES CORPORATION 285 NEWBURY ST. PEABODY, MASSACHUTTES 01960 Date Receipt: NOVEMBER 5, 2003 Date Tested: NOVEMBER 26, 2003 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AES CORPORATION FCC ID: L9N-7085-VE REPORT #: A\AES\1514AUT3\1514AUT3TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: AES CORPORATION FCC ID: L9N-7085-VE TEST REPORT: PAGE 1............GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2............TECHNICAL DESCRIPTION CONTINUED RF POWER OUTPUT PAGE 3............MODULATION CHARACTERISTICS OCCUPIED BANDWIDTH PAGE 4............OCCUPIED BANDWIDTH CONTINUED PAGE 5-6..........OCCUPIED BANDWIDTH PLOTS PAGE 7............SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 8............METHOD OF MEASURING SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 9-11.........FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 12...........METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 13...........FREQUENCY STABILITY PAGE 14-15........TRANSIENT FREQUENCY BEHAVIOUR PAGE 16-17........TRANSIENT FREQUENCY PLOTS PAGE 18...........MPE CALCULATION PAGE 19-21........TEST EQUIPMENT LIST EXHIBITS CONTAINING: BLOCK DIAGRAM SCHEMATIC PARTS LIST USERS MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS TUNING PROCEDURE OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPH TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AES CORPORATION FCC ID: L9N-7085-VE REPORT #: A\AES\1514AUT3\1514AUT3TestReport.doc Page 1 of 21 GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE 2.1033(c)(1)(2) AES CORPORATION will sell the FCC ID: L9N-7085-VE VHF transceiver in quantity, or use under FCC RULES PART 90. 2.1033(c) TECHNICAL DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included in the exhibits. 2.1033 (4) Type of Emission: 11K25F2D For 12.5 kHz 6K0F2D For 6.25 kHz For 12 kHz Bn = 2M + 2DK M = 9,600 Bits per second D = 825 Hz (Peak Deviation) K = 1 Bn = 2(9600/2) + 2(825)(1) = 9600 + 1650 = 11250 ALLOWED AUTHORIZED BANDWIDTH = 11.25 kHz. For 6.25 kHz Bn = 2M + 2DK M = 4,800 Bits per second D = 600 Hz (Peak Deviation) K = 1 Bn = 2(4800/2) + 2(600)(1) = 4800 + 1200 = 6000 ALLOWED AUTHORIZED BANDWIDTH = 6.0 kHz. 90.209 (b)(5) 2.1033 (6) Frequency Range: 140 - 174 MHz (7) Power Range and Controls: There are NO user Power controls. (8) Maximum Output Power Rating: (9) DC Voltages and Current into Final Amplifier: POWER INPUT FINAL AMPLIFIER ONLY High Low Vce = 13.7 VDC Vce = 13.7 VDC Ice = .660 A. Ice = .470 Pin = 9.04 Watts Pin = 6.44 Watts TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AES CORPORATION FCC ID: L9N-7085-VE REPORT #: A\AES\1514AUT3\1514AUT3TestReport.doc Page 2 of 21 (10) Tune-up procedure. The tune-up procedure is given in the exhibits. 2.1033 (11) Complete Circuit Diagrams: The circuit diagram and block diagram are included in the exhibits. (12) Function of each electron tube or semiconductor device or other active circuit device: See the exhibits. (13) Instruction book. The instruction manual is included in the exhibits. (14) Description of all circuitry and devices provided for determining and stabilizing frequency is included in The circuit description is included in the exhibits. 2.1033(c)(15) A photograph or drawing of the equipment identification label is shown in the exhibits. 2.1033(c)(16) Photographs of the equipment of sufficient clarity to reveal equipment construction and layout and label location are shown in the exhibits. 2.1033(c)(17) For equipment employing digital modulation, a detail description of the modulation technique. This UUT uses FSK to modulate the transmitter. 2.1033(c)(18) Data required for 2.1046 to 2.1057 See Below 2.1046(a) RF power output RF power is measured by connecting a 50-ohm, resistive wattmeter to the RF output connector. With a nominal battery voltage of 13.7 VDC, and the transmitter properly adjusted the RF output measures: 141: HIGH – 2.95 Watts 155: HIGH – 5.5 Watts 173: HIGH – 6.76 Watts LOW – 0.60 Watts LOW – 1.05 Watts LOW – 1.62 Watts METHOD OF MEASURING RF POWER OUTPUT Transmitter under test 50 ohm resistive Wattmeter Power Supply TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AES CORPORATION FCC ID: L9N-7085-VE REPORT #: A\AES\1514AUT3\1514AUT3TestReport.doc Page 3 of 21 2.1047(a) Voice Modulation characteristics: NOT APPLICABLE, F2 type of emission. 2.1049 Audio Low Pass Filter This UUT does not have a low pass filter. 2.1049 Occupied bandwidth: 90.210(d) Emission Mask D - 12.5 kHz channel bandwidth equipment. For transmitters designed to operate with a 12.5 kHz channel bandwidth, any emission must be attenuated below the power (P) of the highest emission contained within the authorized bandwidth as follows: (1) On any frequency from the center of the authorized bandwidth fه to 5.625 kHz removed from fه: Zero dB. (2) On any frequency from the center of the authorized bandwidth by a displacement frequency (fd in kHz) of more than 5.625 kHz but no more than 12.5 kHz: At least 7.27 (fd - 2.88 kHz) dB. (3) On any frequency removed from the center of the authorized bandwidth by a displacement frequency (fd in kHz) of more than 12.5 kHz: At least 50 + 10 log (P) dB or 70 dB, whichever is the lesser attenuation. 90…

Text truncated - open the document above for the full version.
