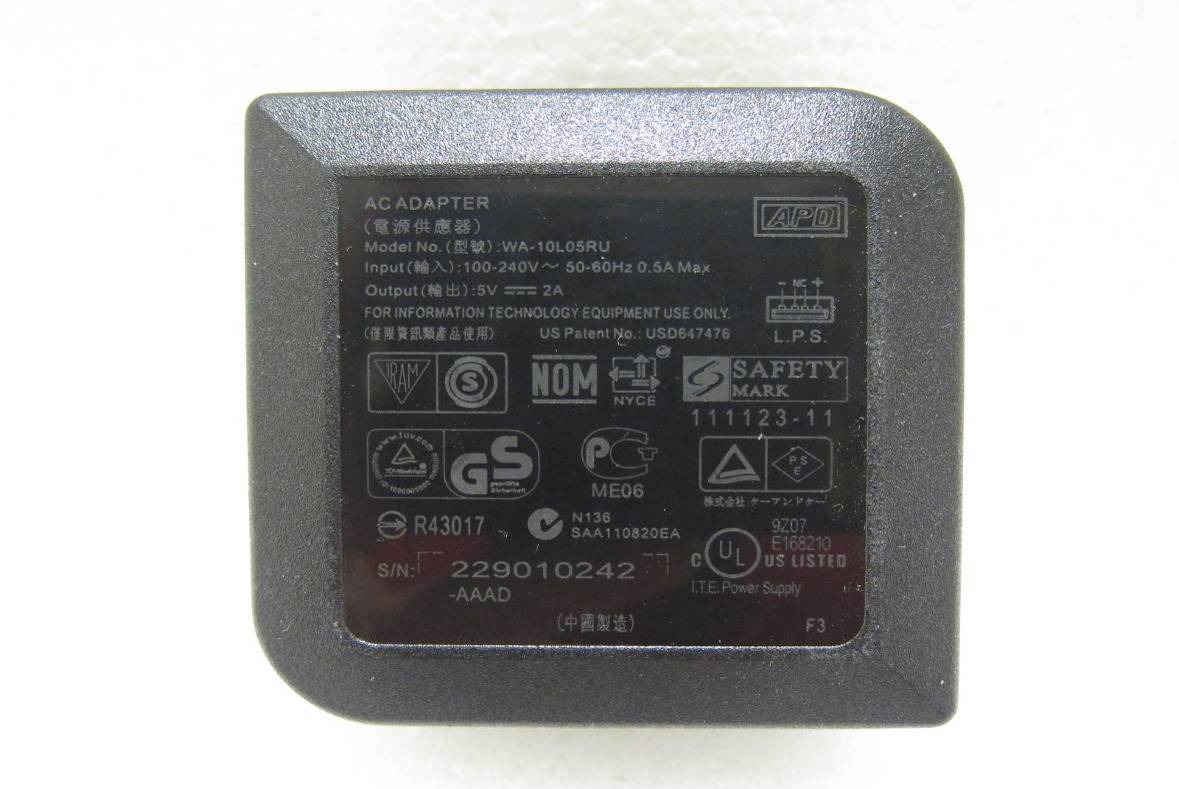

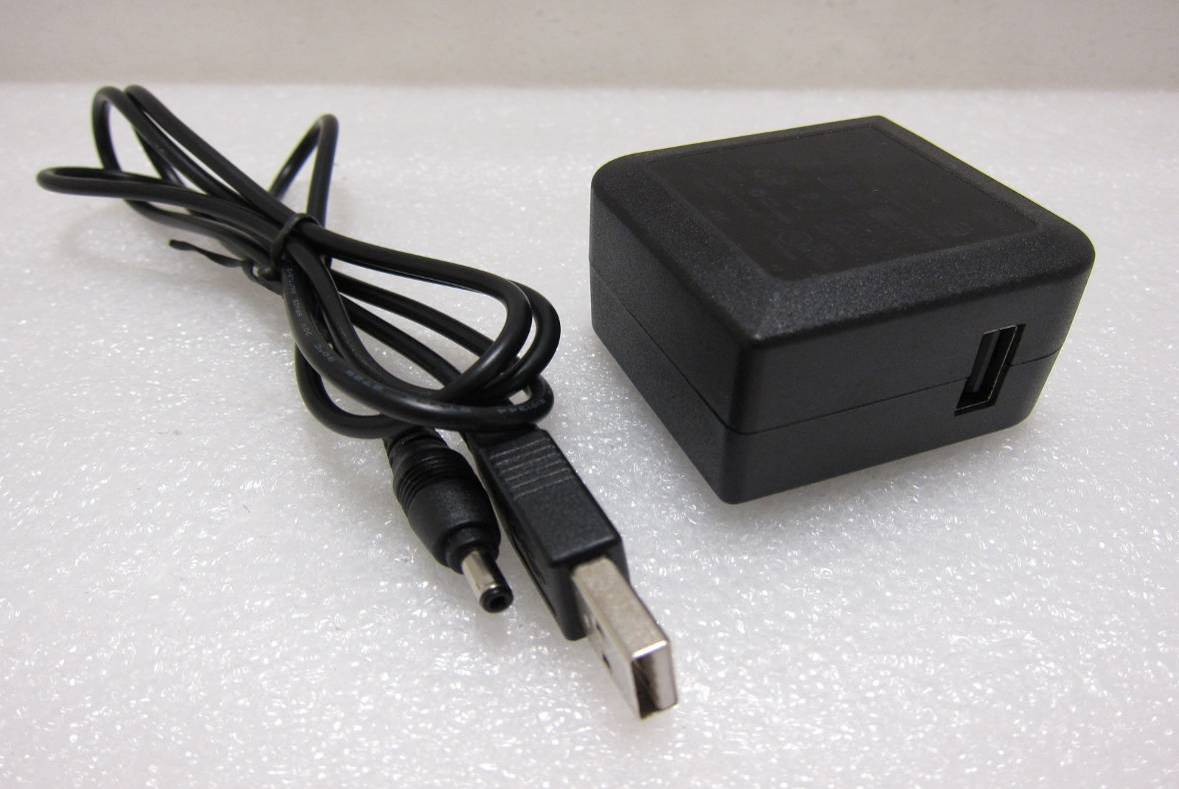

FCC ID: LD3WIFIDAS21 IC: 10374A-PCGTW25S International Standards Laboratory Report Number: ISL-12LR076FC APPENDIX 2 EXTERNAL PHOTOGRAPHS OF EUT FCC ID: LD3WIFIDAS21 IC: 10374A-PCGTW25S International Standards Laboratory Report Number: ISL-12LR076FC External of EUT – 1 External of EUT – 2 (model: WI21) FCC ID: LD3WIFIDAS21 IC: 10374A-PCGTW25S International Standards Laboratory Report Number: ISL-12LR076FC External of EUT – 3 External of EUT – 4 FCC ID: LD3WIFIDAS21 IC: 10374A-PCGTW25S International Standards Laboratory Report Number: ISL-12LR076FC External of EUT – 5 (model: PCGTW25S) External of EUT – 6 (model: PCGTW25S) FCC ID: LD3WIFIDAS21 IC: 10374A-PCGTW25S International Standards Laboratory Report Number: ISL-12LR076FC External of EUT – 7 External of EUT – 8

FCC ID: LD3WIFIDAS21 IC: 10374A-PCGTW25S International Standards Laboratory Report Number: ISL-12LR076FC APPENDIX 3 INTERNAL PHOTOGRAPHS OF EUT FCC ID: LD3WIFIDAS21 IC: 10374A-PCGTW25S International Standards Laboratory Report Number: ISL-12LR076FC Open View of EUT – 1 Internal View of EUT – 1 WiFi RX Ant. WiFi TX Ant. FCC ID: LD3WIFIDAS21 IC: 10374A-PCGTW25S International Standards Laboratory Report Number: ISL-12LR076FC Internal View of EUT – 2 Internal View of EUT – 3 FCC ID: LD3WIFIDAS21 IC: 10374A-PCGTW25S International Standards Laboratory Report Number: ISL-12LR076FC Internal View of EUT – 4 Internal View of EUT – 5 WiFi RX Ant. WiFi TX Ant. FCC ID: LD3WIFIDAS21 IC: 10374A-PCGTW25S International Standards Laboratory Report Number: ISL-12LR076FC edge of distance and Top of surface bottom of surface

Page: 1 of 29 TEST REPORT of SAR New Application; Class I PC; Class II PC Product: WiFi DAS Brand: Mapower Mode: WI21, PCGTW25S Model Difference: Model: PCGTW25S Add 4 LED FCC ID: IC: LD3WIFIDAS21 10374A-PCGTW25S Standard: FCC 47 CFR Part2(2.1093) RSS102 Issue 4:2010 IEEE C95.1-1999; IEEE 1528 FCC OET 65 Supplement C(Edition 01-10) Applicant: Mapower Electronics Co., Ltd Address: No.50, Minquan Rd.,Luzhu Shiang, Taoyuan County 33846, Taiwan Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No.: TAF: 0997 *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-12LR076FSAR Issue Date : 2012/05/25 Test results given in this report apply only to the specific sample(s) tested and are traceable to national or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product endorsement by TAF or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 29- FCC ID: LD3WIFIDAS21 IC: 10374A-PCGTW25S International Standards Laboratory Report Number: ISL-12LR076FSAR VERIFICATION OF COMPLIANCE Applicant: Mapower Electronics Co., Ltd Product: WiFi DAS Brand Name: Mapower Model No.: WI21, PCGTW25S Model Difference: Model: PCGTW25S Add 4 LED FCC ID: LD3WIFIDAS21 IC: 10374A-PCGTW25S Date of Receipt: 2012/05/02 Date of Test: 2012/05/02 ~ 2012/05/21 Standard: FCC 47 CFR Part2(2.1093) RSS102 Issue 4:2010 IEEE C95.1-1999; IEEE 1528 FCC OET 65 Supplement C(Edition 01-10) We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards described above and performed by an independent electromagnetic compatibility consultant, International Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equipment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2012/05/25 Arno Hsieh / Supervisor Prepared By: Date: 2012/05/25 Arno Hsieh / Supervisor Approved By: Date: 2012/05/25 Vincent Su / Technical Manager -3 of 29- FCC ID: LD3WIFIDAS21 IC: 10374A-PCGTW25S International Standards Laboratory Report Number: ISL-12LR076FSAR Version Version No. Date Description 00 2012/05/25 Initial creation of document -4 of 29- FCC ID: LD3WIFIDAS21 IC: 10374A-PCGTW25S International Standards Laboratory Report Number: ISL-12LR076FSAR Table of Contents 1 STATEMENT OF COMPLIANCE ........................................................................... 5 2 GENERAL INFORMATION ..................................................................................... 6 2.1 DESCRIPTION OF DEVICE UNDER TEST (DUT) .......................................................................... 6 2.2 DUT PHOTOS ............................................................................................................................. 7 2.3 APPLIED STANDARDS ................................................................................................................ 7 2.4 DEVICE CATEGORY AND SAR LIMITS ....................................................................................... 7 2.5 TEST ENVIRONMENT .................................................................................................................. 7 2.6 TEST CONFIGURATION ............................................................................................................... 8 3 SPECIFIC ABSORPTION RATE (SAR) .................................................................. 8 3.1 INTRODUCTION .......................................................................................................................... 8 3.2 SAR DEFINITION ....................................................................................................................... 8 4 SAR MEASUREMENT SYSTEM ............................................................................. 9 4.1 ALSAS-10U SYSTEM DESCRIPTION ......................................................................................... 9 4.2 E-FIELD PROBE ALS-E-020S .................................................................................................. 10 4.3 DAQ-PAQ (ANALOG TO DIGITAL ELECTRONICS) ALS-DAQ-PAQ-3 BOUNDARY DETECTION UNIT ALS-PMDPS-3 ............................................................................................................... 12 4.4 AXIS ARTICULATED ROBOT ALS-F3 ...................................................................................... 14 4.5 ALSAS UNIVERSAL WORKSTATION ALS-UWS ..................................................................... 14 4.6 SAM PHANTOMS ALS-P-SAM-L / ALS-P-SAM-R ................................................................ 15 4.7 UNIVERSAL DEVICE POSITIONER ............................................................................................ 17 4.8 TEST EQUIPMENT LIST ............................................................................................................ 18 5 TISSUE SIMULATING LIQUIDS .......................................................................... 19 6 SAR MEASUREMENT EVALUATION ................................................................. 20 7 DUT TESTING POSITION ...................................................................................... 22 8 SAR MEASUREMENT PROCEDURES ................................................................ 25 9 SAR TEST RESULTS ............................................................................................... 27 9.1 CONDUCTED POWER TABLE: .................................................................................................... 27 9.2 TEST RECORDS …

Text truncated - open the document above for the full version.

-1 of 3- International Standards Laboratory Report Number: ISL-12LR076ESAR Appendix C: System Performance Check Report Date : 11-May-2012 By Operator : Dino Chen DUT : Dipole Frequency : 2450.00 MHz Max. Transmit Pwr : 1 W APREL ALSAS-10U System Description Phantom Data Name : Universal Phantom Type : ALS-P-UP-1 Tissue Data Type : Body Frequency : 2450.00 MHz Probe Data Name : E-field Probe Model : ALS-E-020 Serial No. : 266 Last Calib. Date : 08-Aug-2011 Measurement Data Crest Factor : 1 Scan Type : Complete Tissue Temp. : 22.00 °C Ambient Temp. : 21.70 °C Area Scan : 9x9x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Separation : 1cm -2 of 3- International Standards Laboratory Report Number: ISL-12LR076ESAR -3 of 3- International Standards Laboratory Report Number: ISL-12LR076ESAR 1 gram SAR value : 53.443 W/kg 10 gram SAR value : 25.069 W/kg Area Scan Peak SAR : 65.631 W/kg Zoom Scan Peak SAR : 104.19 W/kg

-1 of 29- International Standards Laboratory Report Number: ISL-12LR076FSAR Appendix D: SAR Measurement Data Data No. Band Mode Test Position Separation Distance (cm) Channel SAR 1g(W/kg) 1 Wifi 802.11b EUT Bottom 0.5 1 0.001 2 Wifi 802.11b EUT Top 0.5 1 0.620 3 Wifi 802.11b EUT Edge of Right 0.5 1 0.011 4 Wifi 802.11b EUT Edge of up 0.5 1 0.001 5 Wifi 802.11b EUT Top 0.5 6 0.562 6 Wifi 802.11b EUT Top 0.5 11 0.448 7 Wifi 802.11g EUT Top 0.5 11 0.284 8 Wifi 802.11n 20 EUT Top 0.5 1 0.181 9 Wifi 802.11n 40 EUT Top 0.5 3 0.235 -2 of 29- International Standards Laboratory Report Number: ISL-12LR076FSAR Data No. 1: Report Date : 11-May-2012 By Operator : Dino Measurement Date : 11-May-2012 Starting Time : 11-May-2012 04:59:45 PM End Time : 11-May-2012 05:19:53 PM Scanning Time : 1208 secs Product Data Device Name : ULT-HDD Serial No. : NA Type : Other Model : NA Frequency : 2450.00 MHz Max. Transmit Pwr : 0.25 W Drift Time : 0 min(s) Length : 85 mm Width : 140 mm Depth : 23 mm Antenna Type : Internal Orientation : Touch Power Drift-Start : 0.001 W/kg Power Drift-Finish: 0.000 W/kg Power Drift (%) : 0.000 Picture : C:\alsas\bitmap\Device-4.bmp Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Serial No. : User Define Location : Center Description : Unit phantom Tissue Data Type : BODY Serial No. : 2450_Body Frequency : 2450.00 MHz Last Calib. Date : 21-Mar-2012 Temperature : 22.00 °C Ambient Temp. : 21.70 °C Humidity : 60.00 RH% Epsilon : 53.83 F/m Sigma : 2.04 S/m Density : 1000.00 kg/cu. m -3 of 29- International Standards Laboratory Report Number: ISL-12LR076FSAR Probe Data Name : E-field Probe Model : ALS-E-020 Type : E-Field Triangle Serial No. : 266 Last Calib. Date : 08-Aug-2011 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 4.55 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Measurement Data Crest Factor : 1 Scan Type : Complete Tissue Temp. : 22.00 °C Ambient Temp. : 21.70 °C Set-up Date : 11-May-2012 Set-up Time : 3:29:45 PM Area Scan : 7x9x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Other Data DUT Position : Touch Separation : 5 mm Channel : Low -4 of 29- International Standards Laboratory Report Number: ISL-12LR076FSAR 1 gram SAR value : 0.001 W/kg 10 gram SAR value : 0.001 W/kg Area Scan Peak SAR : 0.001 W/kg Zoom Scan Peak SAR : 0.000 W/kg -5 of 29- International Standards Laboratory Report Number: ISL-12LR076FSAR Data No. 2: Report Date : 14-May-2012 By Operator : Dino Measurement Date : 14-May-2012 Starting Time : 14-May-2012 11:17:27 AM End Time : 14-May-2012 11:37:20 AM Scanning Time : 1193 secs Product Data Device Name : ULT-HDD Serial No. : NA Type : Other Model : NA Frequency : 2450.00 MHz Max. Transmit Pwr : 0.25 W Drift Time : 0 min(s) Length : 85 mm Width : 145 mm Depth : 23 mm Antenna Type : Internal Orientation : Touch Power Drift-Start : 0.198 W/kg Power Drift-Finish: 0.177 W/kg Power Drift (%) : -10.598 Picture : C:\alsas\bitmap\Device-4.bmp Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Serial No. : User Define Location : Center Description : Unit phantom Tissue Data Type : BODY Serial No. : 2450_Body Frequency : 2450.00 MHz Last Calib. Date : 21-Mar-2012 Temperature : 22.00 °C Ambient Temp. : 21.70 °C Humidity : 60.00 RH% Epsilon : 53.83 F/m Sigma : 2.04 S/m Density : 1000.00 kg/cu. m -6 of 29- International Standards Laboratory Report Number: ISL-12LR076FSAR Probe Data Name : E-field Probe Model : ALS-E-020 Type : E-Field Triangle Serial No. : 266 Last Calib. Date : 08-Aug-2011 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 4.55 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Measurement Data Crest Factor : 1 Scan Type : Complete Tissue Temp. : 22.00 °C Ambient Temp. : 21.70 °C Set-up Date : 14-May-2012 Set-up Time : 3:29:45 PM Area Scan : 7x9x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Other Data DUT Position : Touch Separation : 5 mm Channel : Low -7 of 29- International Standards Laboratory Report Number: ISL-12LR076FSAR 1 gram SAR value : 0.620 W/kg 10 gram SAR value : 0.253 W/kg Area Scan Peak SAR : 0.746 W/kg Zoom Scan Peak SAR : 1.231 W/kg -8 of 29- International Standards Laboratory Report Number: ISL-12LR076FSAR Data No. 3: Report Date : 11-May-2012 By Operator : Dino Measurement Date : 11-May-2012 Starting Time : 11-May-2012 05:46:56 PM End Time : 11-May-2012 06:04:46 PM Scanning Time : 1070 secs Product Data Device Name : ULT-HDD Serial No. : NA Type : Other Model : NA Frequency : 2450.00 MHz Max. Transmit Pwr : 0.25 W Drift Time : 0 min(s) Length : 23 mm Width : 145 mm Depth : 85 mm Antenna Type : Internal Orientation : Touch Power Drift-Start : 0.001 W/kg Power Drift-Finish: 0.001 W/kg Power Drift (%) : 6.656 Picture : C:\alsas\bitmap\Device-4.bmp Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Serial No. : User Define Location : Center Description : Unit phantom Tissue Data Type : BODY Serial No. : 2450_Body Frequency : 2450.00 MHz Last Calib. Date : 21-Mar-2012 Temperature : 22.00 °C Ambient Temp. : 21.70 °C Humidity : 60.00 RH% Epsilon : 53.83 F/m Sigma : 2.04 S/m Density : 1000.00 kg/cu. m -9 of 29- International Standards Laboratory Report Number: ISL-12LR076FSAR Probe Data Name : E-field Probe Model : ALS-E-020 Type : E-Field Triangle Serial No. : 266 Last Calib. Date : 08-Aug-2011 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 4.55 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Measurement Data Crest Factor : 1 Scan Type : Complete Tissue Temp. : 22.00 °C Ambient Temp. : 21.70 °C Set-up Date : 11-May-2012 Set-up Time : 3:29:45 PM Area Scan : 5x10x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Other Data DUT Position : Touch Separation : 5 mm Channel …

Text truncated - open the document above for the full version.

NCL CALIBRATION LABORATORIES Calibration File No.: 1289-1298 Client.: ISL C E R T I F I C A T E OF C A L I B R A T I O N It is certified that the equipment identified below has been calibrated in the NCL CALIBRATION LABORATORIES by qualified personnel following recognized procedures and using transfer standards traceable to NRC/NIST. Equipment: Miniature Isotropic RF Probe Record of Calibration Head and Body Manufacturer: APREL Laboratories Model No.: E-020 Serial No.: 266 Calibration Procedure: D01-032-E020-V2, D22-012-Tissue, D28-002-Dipole Project No: ISL-E020-5612 Calibrated: 8 th August 2011 Released on: 15 th August 2011 Approved By: Stuart Nicol NCL CALIBRATION LABORATORIES 303 Terry Fox Drive, Suite 102 Division of APREL Kanata, Ontario TEL: (613) 435-8300 CANADA K2K 3J1 FAX: (613) 435-8306 NCL Calibration Laboratories Division of APREL Inc. Page 2 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Introduction This Calibration Report reproduces the results of the calibration performed in line with the references listed below. Calibration is performed using accepted methodologies as per the references listed below. Probes are calibrated for air, and tissue and the values reported are the results from the physical quantification of the probe through meteorgical practices. Calibration Method Probes are calibrated using the following methods. <1000MHz TEM Cell for sensitivity in air Standard phantom using temperature transfer method for sensitivity in tissue >1000MHz Waveguide* method to determine sensitivity in air and tissue *Waveguide is numerically (simulation) assessed to determine the field distribution and power The boundary effect for the probe is assessed using a standard flat phantom where the probe output is compared against a numerically simulated series of data points References o IEEE Standard 1528 (2003) including Amendment 1 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques o EN 62209-1 (2006) Human Exposure to RF Fields from hand-held and body-mounted wireless communication devices - Human models. instrumentation, and procedures-Part 1: Procedure to measure the Specific Absorption Rate (SAR) for hand-held mobile wireless devices o IEC 62209-2 Ed. 1.0 (2010-03) Human exposure to RF fields from hand-held and body-mounted wireless devices - Human models, instrumentation, and procedures - Part 2: specific absorption rate (SAR) for wireless communication devices (30 MHz - 6 GHz) o TP-D01-032-E020-V2 E-Field probe calibration procedure o D22-012-Tissue dielectric tissue calibration procedure o D28-002-Dipole procedure for validation of SAR system using a dipole o IEEE 1309 Draft Standard for Calibration of Electromagnetic Field Sensors and Probes, Excluding Antennas, from 9kHz to 40GHz NCL Calibration Laboratories Division of APREL Inc. Page 3 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Conditions Probe 266 was a recalibration. **The probe was received in good working order, although at 1900MHz the uncertainty was higher than our standard (see note**) Ambient Temperature of the Laboratory: 22 °C +/- 1.5°C Temperature of the Tissue: 21 °C +/- 1.5°C Relative Humidity: < 60% Primary Measurement Standards Instrument Serial Number Cal due date Power meter Anritsu MA2408A 90025437 Nov.4, 2011 Power Sensor Anritsu MA2481D 103555 Nov 4, 2011 Attenuator HP 8495A (70dB) 1944A10711 Sept. 14, 2011 Network Analyzer Anritsu MT8801C MB11855 Feb. 8, 2012 Secondary Measurement Standards Signal Generator Agilent E4438C -506 MY55182336 June 7, 2012 Attestation The below named signatories have conducted the calibration and review of the data which is presented in this calibration report. NCL Calibration Laboratories Division of APREL Inc. Page 4 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Probe Summary Probe Type: E-Field Probe E020 Serial Number: 266 Frequency: As presented on page 5 Sensor Offset: 1.56 Sensor Length: 2.5 Tip Enclosure: Composite* Tip Diameter: < 2.9 mm Tip Length: 55 mm Total Length: 289 mm *Resistive to recommended tissue recipes per IEEE-1528 Sensitivity in Air Channel X: 1.2 μV/(V/m) 2 Channel Y: 1.2 μV/(V/m) 2 Channel Z: 1.2 μV/(V/m) 2 Diode Compression Point: 95 mV NCL Calibration Laboratories Division of APREL Inc. Page 5 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Calibration for Tissue (Head H, Body B) Frequency Tissue Type Measured Epsilon Measured Sigma Calibration Uncertainty Tolerance Uncertainty for 5%* Conversion Factor 450 H Head X X X X X 450 B Body X X X X X 750 H Head X X X X X 750 B Body X X X X X 835 H Head 42.35 0.94 3.5 3.4 6.6 835 B Body 56.65 1.018 3.5 3.4 6.8 900 H Head 41.35 0.98 3.5 3.4 6.4 900 B Body 56.08 1.05 3.5 3.4 6.7 1450 H Head X X X X X 1450 B Body X X X X X 1500 H Head X X X X X 1500 B Body X X X X X 1640 H Head X X X X X 1640 B Body X X X X X 1750 H Head X X X X X 1750 B Body X X X X X 1800 H Head 40.56 1.37 3.5 2.7 5.4 1800 B Body 52.16 1.56 3.5 2.7 5.5 1900 H Head 38.19 1.43 3.5 2.7 5.5 1900 B Body 51.87 1.59 3.5 2.7 5.3 2000 H Head X X X X X 2000 B Body X X X X X 2100 H Head X X X X X 2100 B Body X X X X X 2300 H Head X X X X X 2300 B Body X X X X X 2450 H Head 38.06 1.87 3.5 3.5 5 2450B Body 50.52 2.04 3.5 3.5 4.55 2600 H Head X X X X X 2600 B Body X X X X X 3000 H Head X X X X X 3000 B Body X X X X X 3600 H Head X X X X X 3600 B Body X X X X X 5200 H Head X X X X X 5200 B Body X X X X X 5600 H Head X X X X X 5600 B Body X X X X X 5800 H Head X X X X X 5800 B Body X X X X X NCL Calibration Laboratories Division of APREL Inc. Page 6 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Boundary Effect: Uncertainty resulting from the boundary effect is less than 2.1% for the distance between the tip …

Text truncated - open the document above for the full version.

NCL CALIBRATION LABORATORIES Calibration File No: DC-1400 Project Number: ISL-D2450-cal-5639 C E R T I F I C A T E OF C A L I B R A T I O N It is certified that the equipment identified below has been calibrated in the NCL CALIBRATION LABORATORIES by qualified personnel following recognized procedures and using transfer standards traceable to NRC/NIST. ISL Body Validation Dipole Manufacturer: APREL Laboratories Part number: ALS-D-2450-S-2 Frequency: 2450 MHz Serial No: 2450-220-00753 Customer: ISL Calibrated: 25 th January 2012 Released on: 25 th January, 2012 NCL Calibration Laboratories Division of APREL Laboratories. This page has been reviewed for content and attested to by signature within this document. 2 Conditions Dipole 2450-220-00753 was a re-calibration. Ambient Temperature of the Laboratory: 22 °C +/- 0.5°C Temperature of the Tissue: 21 °C +/- 0.5°C NCL Calibration Laboratories Division of APREL Laboratories. This page has been reviewed for content and attested to by signature within this document. 3 Calibration Results Summary The following results relate the Calibrated Dipole and should be used as a quick reference for the user. Mechanical Dimensions Length: 51.5 mm Height: 30.4 mm Electrical Specification S11 R/L -16.32 dB SWR 1.37 U Impedance 10.33 Ω System Validation Results Calibrated @ 100mW Frequency 1 Gram 10 Gram Peak 2450 MHz 55.57 25.80 112.98 NCL Calibration Laboratories Division of APREL Laboratories. This page has been reviewed for content and attested to by signature within this document. 4 Introduction This Calibration Report has been produced in line with the SSI Dipole Calibration Procedure SSI-TP-018-ALSAS. The results contained within this report are for Validation Dipole 235-00801. The calibration routine consisted of a three-step process. Step 1 was a mechanical verification of the dipole to ensure that it meets the mechanical specifications. Step 2 was an Electrical Calibration for the Validation Dipole, where the SWR, Impedance, and the Return loss were assessed. Step 3 involved a System Validation using the ALSAS-10U, along with APREL E-030 130 MHz to 26 GHz E-Field Probe Serial Number 215. References SSI-TP-018-ALSAS Dipole Calibration Procedure SSI-TP-016 Tissue Calibration Procedure IEEE 1528 “Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques” IEC-62209 “Human exposure to radio frequency fields from hand-held and body- mounted wireless communication devices – Human models, instrumentation, and procedures” Part 1: “Procedure to determine the Specific Absorption Rate (SAR) for hand-held devices used in close proximity of the ear (frequency range of 300 MHz to 3 GHz)” IEC-62209 “Human exposure to radio frequency fields from hand-held and body- mounted wireless communication devices – Human models, instrumentation, and procedures” Part 2 Draft: “Procedure to determine the Specific Absorption Rate (SAR) for hand- held devices used in close proximity of the ear (frequency range of 30 MHz to 6 GHz)” Conditions Ambient Temperature of the Laboratory: 22 °C +/- 0.5°C Temperature of the Tissue: 20 °C +/- 0.5°C This was a recalibration. Dipole Calibration uncertainty The calibration uncertainty for the dipole is made up of various parameters presented below. Mechanical 1% Positioning Error 1.22% Electrical 1.7% Tissue 2.2% Dipole Validation 2.2% TOTAL 8.32% (16.64% K=2) NCL Calibration Laboratories Division of APREL Laboratories. This page has been reviewed for content and attested to by signature within this document. 5 Dipole Calibration Results Mechanical Verification APREL Length APREL Height Measured Length Measured Height 51.5 mm 30.4 mm 52.1 mm 31.0 mm Tissue Validation Body Tissue 2450 MHz Measured Dielectric constant, ε r 51.2 Conductivity, σ [S/m] 2.16 NCL Calibration Laboratories Division of APREL Laboratories. This page has been reviewed for content and attested to by signature within this document. 6 Electrical Calibration Test Result S11 R/L -16.32 dB SWR 1.37 U Impedance 10.33 Ω The Following Graphs are the results as displayed on the Vector Network Analyzer. S11 Parameter Return Loss NCL Calibration Laboratories Division of APREL Laboratories. This page has been reviewed for content and attested to by signature within this document. 7 SWR NCL Calibration Laboratories Division of APREL Laboratories. This page has been reviewed for content and attested to by signature within this document. 8 Smith Chart Dipole Impedance NCL Calibration Laboratories Division of APREL Laboratories. This page has been reviewed for content and attested to by signature within this document. 9 Test Equipment The test equipment used during Probe Calibration, manufacturer, model number and, current calibration status are listed and located on the main APREL server R:\NCL\Calibration Equipment\Instrument List May 2011.

Page: 1 of 112 TEST REPORT of FCC Part 15 Subpart C New Application; Class I PC; Class II PC Product : WiFi DAS Brand: FCC: Mapower / IC: PATRIOT MEMORY Model for FCC: WI21, PCGTW25S Model for IC: PCGTW25S Model Difference: Model: PCGTW25S Add 4 LED FCC ID: IC: LD3WIFIDAS21 10374A-PCGTW25S FCC Rule Part: IC Rule Part: §15.247, Cat: DTS RSS-210 issue 8:2010, Annex 8 Applicant: Mapower Electronics Co.,Ltd Address: No.50, Minquan Rd.,Luzhu Shiang, Taoyuan County 33846, Taiwan Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No. BSMI: SL2-IN-E-0013; MRA TW1036; TAF: 0997; IC: IC4067B-3; *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-12LR076FC Issue Date : 2012/05/31 Test results given in this report apply only to the specific sample(s) tested and are traceable to nation- al or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product en- dorsement by TAF, NVLAP or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 112- FCC ID: LD3WIFIDAS21 IC: 10374A-PCGTW25S International Standards Laboratory Report Number: ISL-12LR076FC VERIFICATION OF COMPLIANCE Applicant: Mapower Electronics Co.,Ltd Product Description: WiFi DAS Brand Name: FCC: Mapower / IC: PATRIOT MEMORY Model for FCC: WI21, PCGTW25S Model for IC: PCGTW25S Model Difference: Model: PCGTW25S Add 4 LED FCC ID: LD3WIFIDAS21 IC: 10374A-PCGTW25S Date of test: 2012/05/02 ~ 2012/05/21 Date of EUT Received: 2012/05/02 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards de- scribed above and performed by an independent electromagnetic compatibility consultant, Interna- tional Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equip- ment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2012/05/31 Dion Chang / Engineer Prepared By: Date: 2012/05/31 Eva Kao / Technical Supervisor Approved By: Date: 2012/05/31 Vincent Su / Technical Manager -3 of 112- FCC ID: LD3WIFIDAS21 IC: 10374A-PCGTW25S International Standards Laboratory Report Number: ISL-12LR076FC Version Version No. Date Description 00 2012/05/31 Initial creation of document -4 of 112- FCC ID: LD3WIFIDAS21 IC: 10374A-PCGTW25S International Standards Laboratory Report Number: ISL-12LR076FC Table of Contents 1 GENERAL INFORMATION .................................................................................................... 6 1.1 Related Submittal(s) / Grant (s) ..................................................................................................... 7 1.2 Test Methodology .......................................................................................................................... 7 1.3 Test Facility .................................................................................................................................... 7 1.4 Special Accessories ........................................................................................................................ 7 1.5 Equipment Modifications ............................................................................................................... 7 2 SYSTEM TEST CONFIGURATION ....................................................................................... 8 2.1 EUT Configuration ........................................................................................................................ 8 2.2 EUT Exercise ................................................................................................................................. 8 2.3 Test Procedure ................................................................................................................................ 8 2.4 Configuration of Tested System ..................................................................................................... 9 3 SUMMARY OF TEST RESULTS .......................................................................................... 10 4 DESCRIPTION OF TEST MODES .........…
