LDS-SRIF2002Data Transceiver

ECOS SRIF 2002 Operating Instructions Edition 10/2003 Copyright Siemens AG 2003, All rights reserved This document shall not be transmitted or reproduced, nor shall its contents be exploited or disclosed to third persons without prio r written consent from Siemens. Infringements shall entitle to damage claims. All rights reserved, in particular in case of a patent grant o r utility model registration. Disclaimer of liability Although we have carefully checked the contents of this publication for conformity with the hardware and software described, we cannot guarantee complete conformity since errors cannot be excluded. The information provided in this manual is checked at regula r intervals and any corrections which might become necessary are included in the next editions. The contents of this manual are subject to change without prior notice. Any suggestions fo r improvement are welcome. Siemens AG Automation & Drives Business Unit: Automotive Industry Projects, Training Production Automation, Automotive Industry P.O. Box 48 48, D-90327 Nuremberg © Siemens AG 2003 Subject to technical changes. Siemens AktiengesellschaftPrinted in the Federal Republic of Germany Safety instructions This document contains instructions you are strongly advised to observe in order to guarantee your personal safety and to avoid personal damages. The instructions are marked by a warning triangle and, depending on the degree of risk, are presented as follows: ! Warning means that death or serious physical injuries may be caused if you do not take the respective precautionary measures. ! Caution means that minor physical injuries may be caused if you do not take the respective precautionary measures. Note provides important information on the product, the product handling or the respective part of the documentation which requires special attention and whose observation is recommendable due to possible advantages. Use in accordance with specification Please observe the following: ! Warning The device may only be used for applications specified in the catalogue and the technical descriptions. It may further only be used in combination with non-Siemens devices and components which are recommended or approved by Siemens. Faultless and safe operation is only ensured if the product is transported, stored, mounted and installed properly and if the operation and maintenance is carried out conscientiously. Operating Instructions SRIF 2002 Page 3 of 33 Table of Contents 1General............................................................................................................................. 5 1.1Short description .................................................................................................. 6 1.2Definition of terms ................................................................................................ 6 1.3Important instructions........................................................................................... 7 1.3.1General instructions ............................................................................................. 7 1.3.2Certificates, guidelines and declarations ............................................................. 8 2Block Diagram ............................................................................................................... 11 3Functional Description ................................................................................................. 13 3.1Radio transmission............................................................................................. 14 3.2Parameterization via the parallel interface......................................................... 15 3.3Serial parameterization ...................................................................................... 17 3.4Serial data interface ........................................................................................... 20 3.5Notes on the radio operation.............................................................................. 21 4Settings .......................................................................................................................... 23 4.1Settings for the DIP switch ................................................................................. 24 4.2Settings for the operation in the MDA / SDA...................................................... 25 4.3Settings for the operation in the hand-held terminal .......................................... 25 5Maintenance and Care.................................................................................................. 27 6Technical Data............................................................................................................... 29 7Appendix: Channel / Frequency Table ....................................................................... 31 Operating Instructions SRIF 2002 Page 5 of 33 General 1 1.1Short description .................................................................................................. 6 1.2Definition of terms ................................................................................................ 6 1.3Important instructions........................................................................................... 7 1.3.1General instructions ............................................................................................. 7 1.3.2Certificates, guidelines and declarations ............................................................. 8 General10/2003 Operating Instructions SRIF 2002 Page 6 of 33 1.1 Short description The SRIF 2002 is a radio transmitter/receive module (transceiver) for half-duplex data transmission in the 5.8 GHz ISM range. It transmits digital data with a baud rate up to 115.2 kBaud. Depending on the antenna, the installation environment and the frequency band, the transmission range may be up to 15 m, 100 m as a maximum (comparable to free field). 127 different frequencies (radio channels) …

Text truncated - open the document above for the full version.

EMV-PrüfzentrumEMI/EMC-Testcenter Coordinates: Äussere Frühlingstrasse 45 ü D-94315 Straubing Telefon (0 94 21) 55 22-0 Telefax (0 94 21) 55 22-99 [email protected] ü http://www.senton.de Senton GmbH ü Äussere Frühlingstrasse 45 ü D-94315 Straubing Phoenix Test-Lab TCB 17 October 2003 In reference to FCC ID LDS-SRIF2002 Justification for Part 15 Unlicensed Modular Transmitter Approval according to DA 00-1407 1. Own RF Shielding Complied, see EUT internal Photographs. 2. Buffered Modulation inputs Complied, see schematic diagrams 3. Own power supply regulation Complied, voltage regulated power supply on board, see schematic diagram 4. Antenna requirements Complied, unique antenna couple employed) 5. Test in stand-alone configuration Complied, see test report for details. Cable lengths typical to actual use. 6. Own FCC ID Complied, the exterior label will be „Contains FCC ID LDS-SRIF2002 7. Not applicable, the unit operates under Section 15.249 of the FCC Rules 8. RF Exposure requirements Not applicable since the unit operates under section 15.249 of the FCC Rules, the reference guide contains general installation and operation instructions. Johann Roidt Senton GmbH

Request for Confidentiality 29 September 2003 PHOENIX TEST-LAB GmbH Königswinkel 10 D32825 Blomberg Germany RE: Certification Application FCC ID: LDS-SRIF2002 Please be advised that the following information is to be held confidential on behalf of Siemens AG, Nuernberg: • Schematics • Parts Lists • Block Diagram • Technical Description The application contains technical information which Siemens AG, Nuernberg deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Signatory

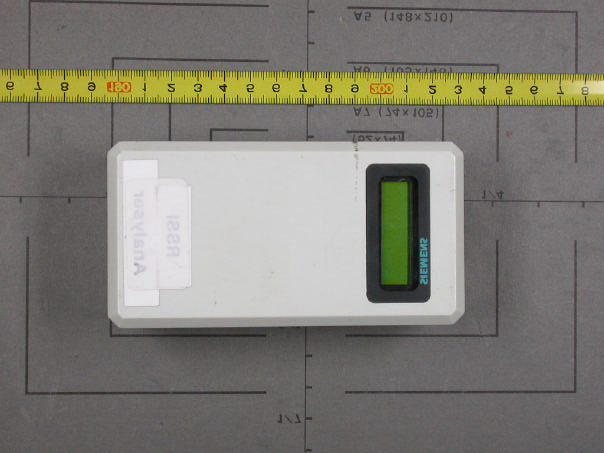

FCC ID: LDS-SRIF2002 External Photos Page 1 of 5 Front view of EUT FCC ID: LDS-SRIF2002 External Photos Page 2 of 5 Rear view of EUT FCC ID: LDS-SRIF2002 External Photos Page 3 of 5 Side view of EUT FCC ID: LDS-SRIF2002 External Photos Page 4 of 5 Top view of EUT FCC ID: LDS-SRIF2002 External Photos Page 5 of 5 Bottom view of EUT

FCC ID: LDS-SRIF2002 Internal Photos Page 1 of 12 EUT disassembled FCC ID: LDS-SRIF2002 Internal Photos Page 2 of 12 Top view of Controller PCB FCC ID: LDS-SRIF2002 Internal Photos Page 3 of 12 Bottom view of Controller PCB FCC ID: LDS-SRIF2002 Internal Photos Page 4 of 12 Controller PCB with RF Module FCC ID: LDS-SRIF2002 Internal Photos Page 5 of 12 RF Section disassembled FCC ID: LDS-SRIF2002 Internal Photos Page 6 of 12 Top view of RF-IF PCB FCC ID: LDS-SRIF2002 Internal Photos Page 7 of 12 Bottom view of RF-IF PCB FCC ID: LDS-SRIF2002 Internal Photos Page 8 of 12 Top view of RF PCB FCC ID: LDS-SRIF2002 Internal Photos Page 9 of 12 Bottom view of RF PCB FCC ID: LDS-SRIF2002 Internal Photos Page 10 of 12 RF PCB with internal shield FCC ID: LDS-SRIF2002 Internal Photos Page 11 of 12 RF PCB with external shield FCC ID: LDS-SRIF2002 Internal Photos Page 12 of 12 Bottom view of RF PCB

Dielectric Antenna (Preliminary ) P / N : MAP5800AEA01Application : Wireless LAN Features 1. Small size - Light weight ( 0.28 cc , 1.25g ) 2. Wide band - High gain 3. Surface Mountable (SMD) Directivity Electrical characteristics •All the technical data and information contained herein are subject to change without prior notice. NGK SPARK PLUG CO.,LTD. 2808 IWASAKI, KOMAKI-SHI, AICHI, JAPAN 485-8510 COMMUNICATION MEDIA COMPONENTS GROUP REV. 1 Dimensions - 50 - 40 - 30 - 20 - 10 0 10 0 30 12 0 15 0 18 0 21 0 24 0 27 0 30 0 33 0 YZ plane Gain[dBi] (Z) (Y) X Y Z Center Freq.Pass BandV.S.W.R.Max. GainAve. GainImpedance [MHz][MHz][ - ][dBi][dBi][ohm] Spec.(5800)5750-58502.0 max.--(50) Typ.(5800)(5750-5850)1.383.59-2.86(50) 3.6 8.9 3.5 8.9 Tol.:+/- 0.20 Unit:mm 1.4 2.4

EMV-Pr ̧fzentrum EMI/EMC-Testcenter Page 1 of 50 Pages Straubing, October 14, 2003 T E S T - R E P O R T No. 51966-30486-1 for MDAV5 DATA Transceiver Applicant: Siemens AG, N ̧rnberg Test Specifications: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.207 and 15.249 Industry Canada (IC) Radio Standards Specification RSS-210, Issue 5, Sections 6.2.2 (m2) and 6.6 Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. EMV-Pr ̧fzentrum EMI/EMC-Testcenter Report Form for Testing to FCC Part 15 V1.0.0 Test Report No. 51966-30486-1 Page 2 of 50 Pages Table of Contents 1. Administrative Data.................................................................................... 3 2. Identification of Test Laboratory................................................................. 4 3. Summary.................................................................................................... 5 4. Operation Mode and Configuration of EUT................................................ 6 5. Measuring Methods ................................................................................... 7 5.1. Conducted AC powerline emissions .................................................... 7 5.2. Radiated spurious emissions in fully-anechoic room ........................... 8 5.3. Radiated spurious emissions at Open Area Test Site ....................... 10 6. Photographs Taken During Testing ......................................................... 11 7. List of Measurements............................................................................... 18 8. Referenced Regulations .......................................................................... 27 9. Charts taken during testing ...................................................................... 28 EMV-Pr ̧fzentrum EMI/EMC-Testcenter Report Form for Testing to FCC Part 15 V1.0.0 Test Report No. 51966-30486-1 Page 3 of 50 Pages 1. Administrative Data Test item (EUT) Type designation MDAV5 Version of EUT: with ceramic antenna Serial number(s): SRIF2002 x 4 module No.01298 Type of equipment: DATA Transceiver 1 Parts/accessories: with ceramic antenna FCC-ID: LDS-SRIF2002 Technical data Frequency range: 5,726.0866 MHz - 5,873.9134 MHz Operational frequencies: Channel 01 (hex): 5,726.0866 MHz Channel 40 (hex): 5,800.0000 MHz Channel 79 (hex): 5,866.8740 MHz Channel 7F (hex): 5,873.9134 MHz (for band edges only) Type of modulation: FSK TX-cycle-time: ≥ 157 ms for long data telegram 14 ms for fast poll telegram TX-on-time: ≤ 24.6 ms for long data telegram 3.9 ms for fast poll telegram Class of emission: 680KF1D Antenna: Integrated antenna, ceramic type Power supply: DC 12 V via external power supply Applicant: (full address) Siemens AG - N ̧rnberg PAMEC-Geb‰ude 2. STOCK, 2B Gleiwitzer Strasse 555 D-94475 N ̧rnberg Germany Contract identification: --- Contact person: Mr. Peter Steinmill Dipl.-Ing. (FH) A&D PT34 Manufacturer: Siemens AG Application details Receipt of EUT: 08/11/2003 Date of test: 08/11/2003 through 09/11/2003, 10/07/2003 Note: --- 1 Receiver part is subject to Senton test report no. 51966-30486-2. EMV-Pr ̧fzentrum EMI/EMC-Testcenter Report Form for Testing to FCC Part 15 V1.0.0 Test Report No. 51966-30486-1 Page 4 of 50 Pages 2. Identification of Test Laboratory Details of the Test Laboratory Company name: Senton GmbH EMI/EMC Test Center Address: Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Laboratory Accreditation: DAR-Registration No. TTI-P-G 062/94-01 FCC Test Site registration number 90926 Industry Canada Test site registration: IC 3050 Name for contact purposes: Mr. Johann Roidt Phone: (+49) (0)9421 5522-0 Fax: (+49) (0)9421 5522-99 EMV-Pr ̧fzentrum EMI/EMC-Testcenter Report Form for Testing to FCC Part 15 V1.0.0 Test Report No. 51966-30486-1 Page 5 of 50 Pages 3. Summary Summary of test results The tested sample complies with the requirements set forth in the Code of Regulations CFR 47, Part 15, Sections 15.207 and 15.249 of the Federal Communication Commission (FCC) and the Radio Standards Specification RSS-210 Issue 5, Sections 6.2.2 (m2) and 6.6 of Industry Canada (IC). Personnel involved in this report Laboratory Manager: Mr. Johann Roidt Responsible for testing: Mr. Thomas Eberl Responsible for test report: Mr. Thomas Eberl EMV-Pr ̧fzentrum EMI/EMC-Testcenter Report Form for Testing to FCC Part 15 V1.0.0 Test Report No. 51966-30486-1 Page 6 of 50 Pages 4. Operation Mode and Configuration of EUT Operation Mode - TX mode - f = 5.8 GHz - EUT powered by 12 V DC Configuration of EUT EUT was tested in three orthogonal positions and connected to a notebook via RS232. List of ports and cables Port Description Classification 2 Cable type Cable length 1 DC supply line dc power Non-shielded (2 wires) 2 m 2 Serial data cable signal/control port Shielded 3 m 3 Parallel data cable signal/control port Shielded 2 m 4 AC supply line note book signal/control port Non-shielded (2 wires) 2 m List of devices connected to EUT Item Description Type Designation Serial no. or ID Manufacturer 1 Notebook HP Omni Book 4150 FR92648140 Hewlett Packard 2 Power supply HP F1454A --- Hewlett Packard 3 Printer parallel HP 2225C 3106591193 Hewlett Packard 4 Printer power supply HAYES 52-00008 --- HAYES 2 Ports shall be classified as ac power, dc power or signal/control port EMV-Pr ̧fzentrum EMI/EMC-Testcenter Report Form for Testing to FCC Part 15 V1.0.0 Test Report No. 51966-30486-1 Page 7 of 50 Pages 5. Measuring Methods 5.1. Conducted AC powerline emissions Rules and Specifications: CFR 47 Part 15 section 15.207 IC RSS-210 Issue 5 section 6.6 Guide: ANSI C63.4 (CISPR 22) Measurement Procedure: Conducted emission tests in the frequency range 0.15 - 30 MHz are required to be performed with quasi-peak and average detector. To simplify testing the following procedure is used: First the whole sp…

Text truncated - open the document above for the full version.

EMV-Pr ̧fzentrum EMI/EMC-Testcenter Report Form for Testing to FCC Part 15 V1.0.0 Test Report No. 51966-30486-1 Page 12 of 50 Pages Test setup for conducted AC powerline emissions test EMV-Pr ̧fzentrum EMI/EMC-Testcenter Report Form for Testing to FCC Part 15 V1.0.0 Test Report No. 51966-30486-1 Page 13 of 50 Pages Test setup for conducted AC powerline emissions test - continued - EMV-Pr ̧fzentrum EMI/EMC-Testcenter Report Form for Testing to FCC Part 15 V1.0.0 Test Report No. 51966-30486-1 Page 14 of 50 Pages Test setup for radiated emissions test (fully anechoic room) EUT in horizontal position - right side on table EUT in horizontal position- bottom side on table EMV-Pr ̧fzentrum EMI/EMC-Testcenter Report Form for Testing to FCC Part 15 V1.0.0 Test Report No. 51966-30486-1 Page 15 of 50 Pages Test setup for radiated emissions test (fully anechoic room) - continued - EUT in vertical position EMV-Pr ̧fzentrum EMI/EMC-Testcenter Report Form for Testing to FCC Part 15 V1.0.0 Test Report No. 51966-30486-1 Page 16 of 50 Pages Test setup for radiated emissions test (open area test site) EMV-Pr ̧fzentrum EMI/EMC-Testcenter Report Form for Testing to FCC Part 15 V1.0.0 Test Report No. 51966-30486-1 Page 17 of 50 Pages Test setup for radiated emissions test (open area test site) - continued -
