Product Safety and RF Energy Exposure Booklet for Unication Two-Way Portable Radios The information provided in this document supersedes the general safety information contained in user guides published prior to August 2010. ~ 2 ~ U3 Radio Safety Booklet English Version BEFORE USING THIS RADIO, PLEASE READ THIS BOOKLET WHICH CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR SAFE USAGES AND RF ENERGY AWARENESS AND CONTROL INFORMATION AND OPERATIONAL INSTRUCTIONS FOR COMPLIANCE WITH RF ENERGY EXPOSURE LIMITS IN APPLICABLE NATIONAL AND INTERNATIONAL STANDARDS. ALSO PLEASE READ THE OPERATIONAL INSTRUCTIONS FOR SAFE USAGE. FOR RADIOS THAT HAVE BEEN APPROVED AS INTRINSICALLY SAFE, READ THE INSTRUCTIONS AND INFORMATION ON INTRINSIC SAFETY ON PAGE 11 OF THIS BOOKLET. ~ 3 ~ U3 Radio Safety Booklet English Version RF Energy Exposure Awareness and Control Information and Operational Instructions for Occupational Use NOTICE: This radio is intended for use in occupational/controlled conditions where users have full knowledge of their exposure and can exercise control over their exposure to meet the occupational limits in FCC and International standards. This radio device is NOT authorized for general population consumer use. This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It applies radio waves or radio frequency (RF) energy to transmit and receive voice calls or data. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly, can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material. Experts in science, engineering, medicine, health, and industry work with organizations to develop standards for safe exposure to RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. All Unication two-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. Additionally, manufacturers also recommend specific operating instructions to users of two-way radios. These instructions are essential as they inform users about RF energy exposure and provide simple procedures on how to control it. ~ 4 ~ U3 Radio Safety Booklet English Version Please refer to the following websites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits: http://www.fcc.gov/oet/rfsafety/rf-faqs.html http://www.osha.gov/SLTC/radiofrequencyradiation/index.html Federal Communication Commission (FCC) Regulations The FCC rules require manufacturers to comply with the FCC RF energy exposure limits for portable two-way radios before they can be marketed in the U.S. When two-way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements. Exposure awareness can be facilitated by the use of a product label directing users to specific user awareness information. Your Unication two-way radio has a RF Exposure Product Label. Also, your Unication user manual or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements. Compliance with RF Exposure Standards Your Unication two-way radio is designed and tested to comply with a number of national and International standards and guidelines (listed below) for human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environments at operating duty factors of up to 50% talk-50% listen and is authorized by the FCC for occupational use only. In terms of measuring RF energy for compliance with these exposure guidelines, your radio generates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. NOTE: The approved batteries, supplied with this radio, are rated for a 5-5-90 duty factor (5% talk - 5% listen - 90% standby) even though this radio complies with FCC occupational exposure limits and may operate at duty factors of up to 50% talk. ~ 5 ~ U3 Radio Safety Booklet English Version Your Unication two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J • American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 • Australian Communications Authority Radio communications (Electromagnetic Radiation – Human Exposure) Standard, 2003 • ANATEL ANNEX to Resolution No. 303 of July 2, 2002 "Regulation of limitation of exposure to electrical, magnetic and electromagnetic fields in the radio frequency range between 9 KHz and 300 GHz" and "Attachment to resolution # 303 from July 2, 2002" ~ 6 ~ U3 Radio Safety Booklet English Version RF Exposure Compliance and Control Guidelines and Operating Instructions To control your exposure and ensure compliance with the occupational/controlled environment exposure limits, always adhere to the following procedures. Guidelines: • Do not remove the RF Exposure Label from the device. • User awareness instructions should accompany device when …

Text truncated - open the document above for the full version.

I. FCC PART 15 DECLARATION OF CONFORMITY .......................................................................... 1 II. SAFETY INFORMATION ..................................................................................................................... 2 III. ACKNOWLEDGEMENT ...................................................................................................................... 9 1. PREPARATION ................................................................................................................................... 10 1.1 CHARGING THE BATTERY .......................................................................................................... 10 1.2 INSTALLING THE ANTENNA ...................................................................................................... 10 1.3 INSTALLING AND REMOVING THE ACCESSORY CONNECTOR COVER ......................... 11 1.4 INSTALLING THE BATTERY PACK .............................................................................................. 11 2. RADIO OVERVIEW ............................................................................................................................ 13 2.1 USER INTERFACE BUTTONS INTRODUCTION ...................................................................... 13 2.2 TURNING U3 ON AND OFF ........................................................................................................... 15 2.3 ADJUSTING THE SPEAKER VOLUME ....................................................................................... 16 2.4 SELECTING CHANNELS .............................................................................................................. 16 2.5 STANDBY AND MAIN MENU FUNCTION ................................................................................... 16 3. GETTING STARTED .......................................................................................................................... 19 3.1 TODAY .............................................................................................................................................. 19 3.2 FUNCTION STATUS ....................................................................................................................... 20 4. VOICE CALLS .................................................................................................................................... 22 4.1 MAKING CALLS .............................................................................................................................. 22 4.2 RECEIVING CALLS ........................................................................................................................ 23 4.3 VOICE CALL BACKGROUND OPERATION ............................................................................... 23 5. MESSAGES ........................................................................................................................................ 24 5.1 SENDING A CANNED MESSAGE ................................................................................................ 24 5.2 WRITING A MESSAGE .................................................................................................................. 25 5.3 READING MESSAGES .................................................................................................................. 26 5.4 REPLY A MESSAGE ........................................................................................................................ 27 5.5 MANAGING YOUR CONTACTS .................................................................................................... 27 6. ADDRESS BOOK ............................................................................................................................... 28 6.1 VIEWING ADDRESS BOOK .......................................................................................................... 28 6.2 MANAGING YOUR CONTACTS ................................................................................................... 29 7. CALL ALERT ...................................................................................................................................... 30 7.1 SENDING A CALL ALERT .............................................................................................................. 30 7.2 RECEIVING A CALL ALERT .......................................................................................................... 30 7.3 CHECKING CALL ALERT RECORD ............................................................................................ 31 8. EMERGENCY ALARM ....................................................................................................................... 32 8.1 SENDING AN EMERGENCY ALARM .......................................................................................... 32 8.2 RECEIVING AN EMERGENCY ALARM....................................................................................... 32 9. RADIO POSITIONING (GPS) ............................................................................................................ 33 9.1 GPS LOCATION INFORM.............................................................................................................. 33 9.2 GPS LOCATION DISPLAY ............................................................................................................. 33 10. PERSONAL ASSISTANT .............................................................................................................. 36 10.1 VOICE MEMO .................................................................................................................................. 36 11. RADIO CHECK .............................................................................................................................. 39 11.1 RADIO CHECK .........................................................................................................................…

Text truncated - open the document above for the full version.

TCB FCC Approvals FCB Industry Canada Approval NB Notified Body for Europe 849 NW State Road 45 P. O. Box 370 Newberry, Florida 32669 USA Telephone (352) 472-5500 (888) 472-2424 FAX (352) 472-2030 email: [email protected] November 30, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Unication Co., Ltd’s FCC ID: LEA-U3-UHF-MID To Whom It May Concern: We are superseding the test report with a revised test report due to a minor typographical error in the original test report. On page 7 of the test report, the emission designator was listed incorrectly. The revised test report shows the correct emission designator. There are no other modifications to the test report from the originally uploaded test report. Regards, Sharon Hoffman

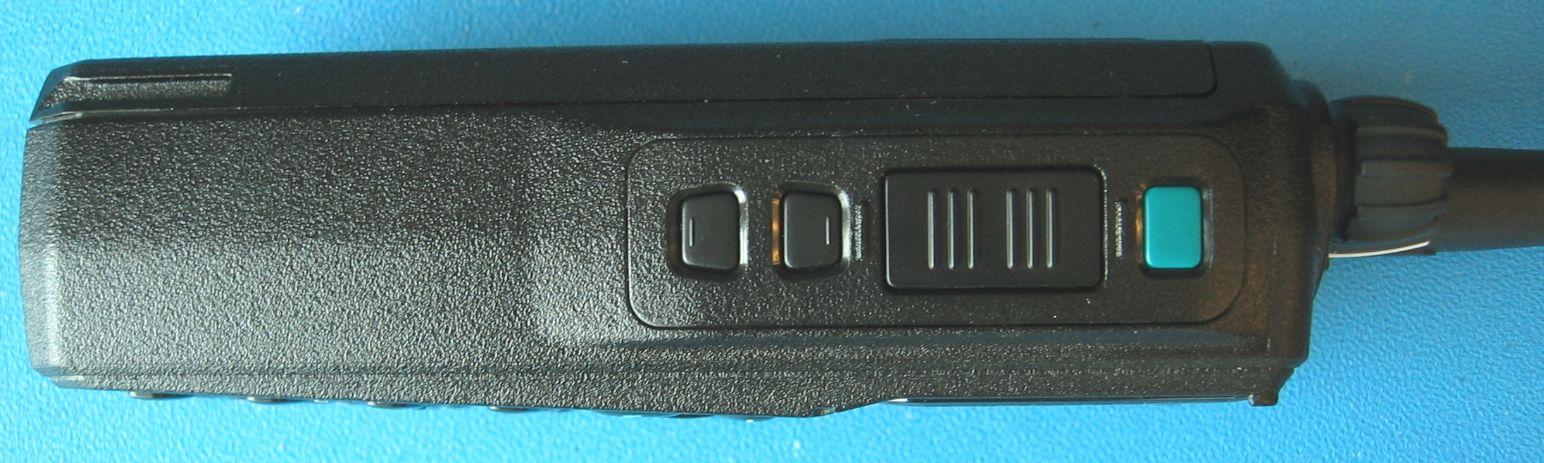

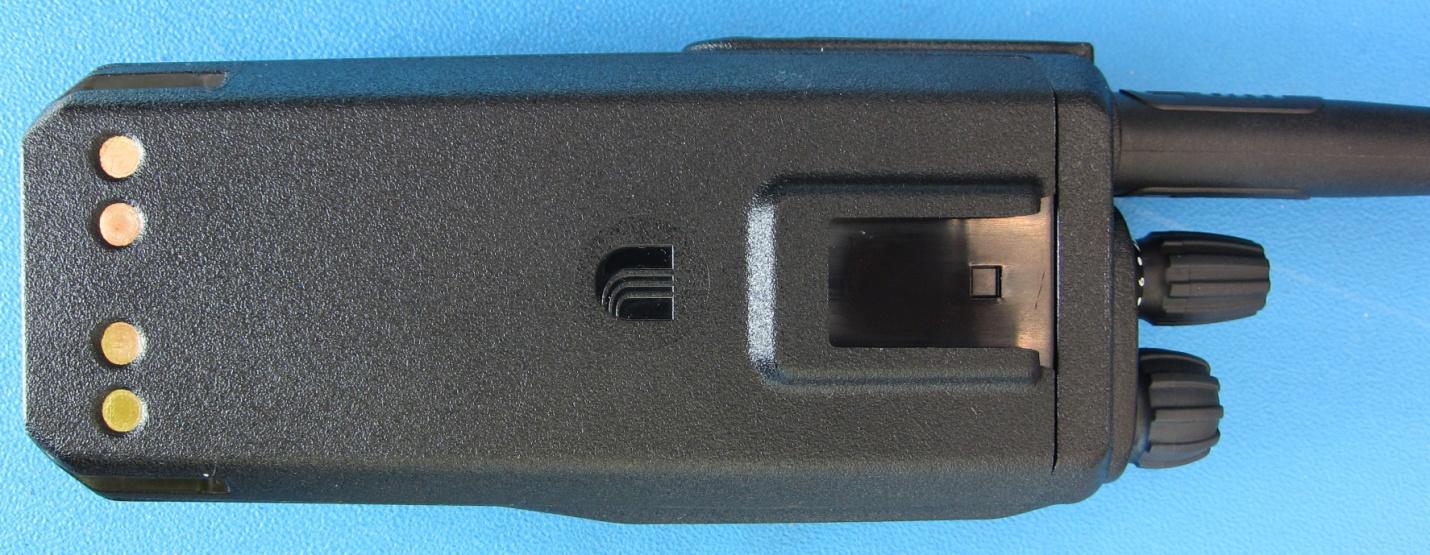

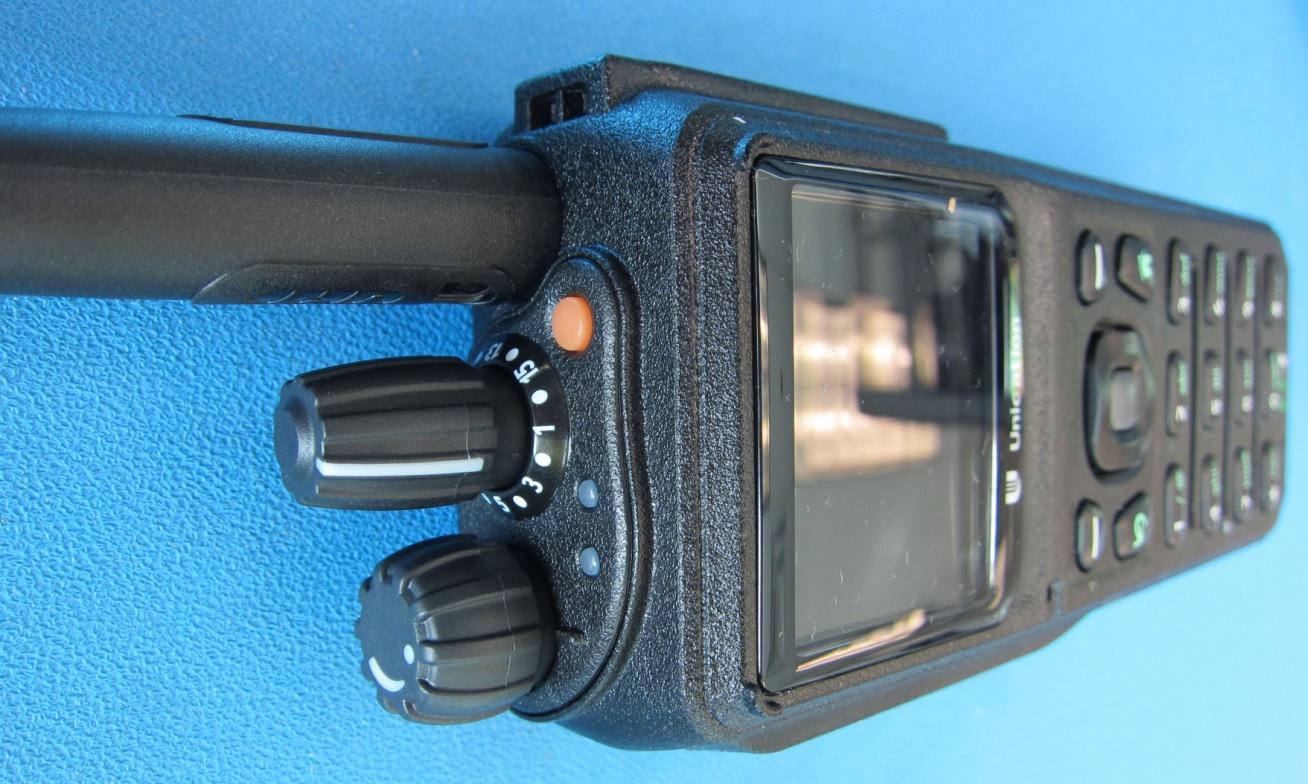

Figure 1: U3 Front Figure 2: U3 left side Figure 3: U3 right side Figure 4: U3 bottom view Figure 5: U3 top view Figure 6: U3 back with battery removed Figure 7: U3 back with battery on Figure 8: U3 with accessory cover on

2 1 F E D C B 3 DRAWN BY: APPROVED BY: ENG: A 12 3 4 5 SHEET 1 OF 1 7 6 8 REV: SIZE B F E D C B 6 7 8 A INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF UNICATION Co, Ltd. REPODUCTION IN PART OR WHOLE WITHOUT THE WRITTEN PERMISSION OF UNICATION Co, Ltd. IS PROHIBITED. 5 4 SCALE:NTS DWG. No. PART No. THIRD ANGLE PROJECTION DEC10, 09 REVISIONS APP'DREV.ECODESCRIPTIONDATE 2250-01300-FAB n/a AW AW U3 PROJECT: U3_TopLvlAsm.slddrw DEC10,09 A ----- FIRST RELEASE DATE: LABEL ATTACHMENT, U3 RADIO TITLE A Unication Co., Ltd. MILLIMETERS INCHES TOLERANCES X: ±0.25 XX: ±0.010 XX: ±0.10 XXX: ±0.005 ANGLES: ±0.5° DIMENSIONS UNLESS OTHERWISE STATED: Do no t b l o c k t hi s ven t ATTENTION 8101-01423 LABEL, CHASSIS VENT Uni.G U 3 8101-01420 LABEL, RADIO BOTTOM 8101-01430 LABEL, RADIO LOGO REFER TO PAGE 2 FOR DETAIL IC: 3819A-U3UHFMID FCC ID: LEA-U3-UHF-MID Please refer to the manual for FCC and safety information MODEL: U3UHFMID XXXXXXXXXXX MSN: XXXXXXXXXXX MODEL: U3UHFMID MADE IN TAIWAN BY UNICATION N O T I C E Restricted to occupationaluse to satisfy FCC RFexposure limits. See usermanual for operatingrequirements.

Figure 1: U3 Internals with main PCB removed - left side Figure 2 U3 Internals with main PCB removed - right side Figure 3: Main PCB assembly - bottom view Figure 4: Main PCB assembly - top view Figure 5: Main PCB - top side Figure 6: Main PCB - bottom side Figure 7: Main PCB assembly - edge view Figure 8: LCD front Figure 9: LCD back Figure 10: Keyboard PCB bottom Figure 11: Keyboard PCB top Figure 12: Keypad Figure 13: Cover Shield bottom Figure 14: Cover shield top Figure 15: Main chassis shield bottom Figure 16: Main chassis shield top Figure 17: Keyboard interconnect FPC bottom Figure 18: Keyboard interconnect FPC top Figure 19: Plastic housing with Accessory FCP and PTT FCP

Applicant: Unication Co., Ltd. FCC ID: LEA-U3-UHF-MID IC: 3819A-U3UHFMID DUT Type: Portable UHF PTT Radio Transceiver Device Model(s): U3UHFMID 406.1 - 470 MHz 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 52 Date(s) of Evaluation October 06-07, 2010 Test Report Serial No. 100410LEA-T1055-S90U Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date October 28, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 DECLARATION OF COMPLIANCE - SAR RF EXPOSURE EVALUATION (FCC/IC) Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Name UNICATION CO., LTD. Applicant Information Address 5F, No. 6, Wu-Kung 5 Road, Hsinchuang City, Taipei, Taiwan R.O.C Standard(s) Applied FCC 47 CFR §2.1093 ICHealth Canada Safety Code 6 FCC OET Bulletin 65, Supplement C FCCKDB 447498 D01v04 Procedure(s) Applied IC RSS-102 Issue 4 IEEE1528-2003 IEC62209-1:2005 FCC Licensed Non-Broadcast Transmitter Held to Face (TNF) - FCC Part 90 Device Classification(s) IC Land Mobile Radio Transmitter/Receiver (27.41-960 MHz) - RSS-119 Issue 10 Device Identifier(s) FCC ID: LEA-U3-UHF-MID IC 3819A-U3UHFMID Device Model(s) U3UHFMID Test Sample Serial No.BUGBCAT2226 (Identical Prototype) Hardware / Firmware Revision No.s Hardware 1500-01300-01 Rev. 13 Firmware DSP 1.05D, Application 1.11 Date of Sample Receipt October 04, 2010 Date of Evaluations October 06-07, 2010 Device Description Portable UHF Push-To-Talk (PTT) Radio Transceiver Device Mode(s) of Operation Analog FM P25 Digital FM 2-Slot TDMA w/ Digital FM Class 2 Bluetooth - Max. Output Power < 5 mW - Closest Distance to UHF Antenna = 34 mm Co-located Transmitter (Simultaneous Transmission) Bluetooth Antenna to Front Keypad = 10.8 mm Bluetooth Antenna to Rear Battery = 22.2 mm FCC 406.1 - 470.0 MHz UHF Transmit Frequency Range(s) IC 406.1 - 430.0 MHz / 450.0 - 470.0 MHz Manufacturer’s Rated Output Power 4 Watts (Conducted) Manufacturer’s Tolerance Spec. + 0.8 Watts (Conducted) 36.2 dBm 4.2 Watts 406.1 MHz Average Conducted 36.0 dBm 4.0 Watts 422.0 MHz Average Conducted 36.0 dBm 4.0 Watts 438.0 MHz Average Conducted 36.0 dBm 4.0 Watts 454.0 MHz Average Conducted RF Output Power Level(s) Tested 36.2 dBm 4.2 Watts 470.0 MHz Average Conducted Antenna Type(s) Tested Dual-Band Whip 403 - 470 MHz Length = 151 mm P/N: 7100-02011 Battery Type(s) Tested Lithium-Ion 7.2 V 2400 mAh P/N: 6653-00002-01 Body-worn Accessories Tested U3 Belt-Clip Assembly (contains metal) P/N: 2160-01003 U3 Basic Remote Speaker-Microphone P/N: 7106-00009-02 Audio Accessories Tested U3 Receive Only Earpiece (for Speaker-Microphone) P/N: P0880516 Face-held 2.85 W/kg 1g50% PTT duty cycle Occupational / Controlled Exp. Max. SAR Level(s) Evaluated Body-worn 4.52 W/kg 1g50% PTT duty cycle Occupational / Controlled Exp. FCC/IC Spatial Peak SAR Limit Head/Body 8.0 W/kg 1g50% PTT duty cycle Occupational / Controlled Exp. Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada Safety Code 6 for the Occupational / Controlled Exposure environment. The device was tested in accordance with the measurement procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), Industry Canada RSS-102 Issue 4, IEEE Standard 1528-2003 and IEC International Standard 62209-1:2005. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Test Report Approved BySean JohnstonLab ManagerCelltech Labs Inc. Applicant: Unication Co., Ltd. FCC ID: LEA-U3-UHF-MID IC: 3819A-U3UHFMID DUT Type: Portable UHF PTT Radio Transceiver Device Model(s): U3UHFMID 406.1 - 470 MHz 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 52 Date(s) of Evaluation October 06-07, 2010 Test Report Serial No. 100410LEA-T1055-S90U Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date October 28, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION __________________________________________________________________ 4 2.0 SAR MEASUREMENT SYSTEM ______________________________________________________ 4 3.0 RF CONDUCTED OUTPUT POWER MEASUREMENTS ___________________________________ 4 4.0 FCC POWER THRESHOLDS FOR PTT DEVICES (f< 0.5 GHz) _____________________________ 5 5.0 SAR PROBE CALIBRATION & MEASUREMENT FREQUENCIES ___________________________ 5 6.0 NO. OF TEST CHANNELS (N C )_______________________________________________________ 5 7.0 MANUFACTURER’S DISCLOSED ACCESSORY LISTING _________________________________ 6 8.0 SAR MEASUREMENT SUMMARY ____________________________________________________ 7 9.0 SAR SCALING (MANUFACTURER TOLERANCE)_______________________________________ 8 10.0 SIMULTANEOUS TRANSMISSION ASSESSMENT ______________________________________ 8 11.0 FLUID DIELECTRIC PARAMETERS__________________________________________________ 9 12.0 DETAILS OF SAR EVALUATION ___________________________________________________ 10 13.0 EVALUATION PROCEDURES________________…

Text truncated - open the document above for the full version.

FCC PART 90 AND IC RSS-119, RSS-GEN TEST REPORT APPLICANT UNICATION CO., LTD. 5F, NO.6, WU-KUNG 5 RD. HSINCHUANG CITY, TAIPEI TAIWAN FCC ID LEA-U3-UHF-MID IC CERTIFICATION 3819A-U3UHFMID MODEL NUMBER U3UHFMID PRODUCT DESCRIPTION UHF PTT HANDHELD TRANSCEIVER WITH GPS AND BLUETOOTH DATE SAMPLE RECEIVED 10/4/2010 DATE TESTED 10/26/2010 TESTED BY Nam Nguyen APPROVED BY Mario de Aranzeta TIMCO REPORT NO. 2352AT10_TestReport_Rev.doc TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. TABLE OF CONTENTS 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Certificate # 0955-01 Applicant: UNICATION CO., LTD. FCC ID: LEA-U3-UHF-MID IC CERT #: 3819A-U3UHFMID Report: Z:\U\UNICATION TWN\2352AT10\2352AT10_TestReport_Rev.doc Page 2 of 42 TABLE OF CONTENTS GENERAL REMARKS ........................................................................................................3 GENERAL INFORMATION .................................................................................................4 TEST PROCEDURES ........................................................................................................5 RF POWER OUTPUT .........................................................................................................6 MODULATION CHARACTERISTICS ...................................................................................7 AUDIO FREQUENCY RESPONSE ......................................................................................8 AUDIO INPUT VERSUS MODULATION ............................................................................ 10 OCCUPIED BANDWIDTH ................................................................................................ 11 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED) ................................... 28 FIELD STRENGTH OF SPURIOUS EMISSIONS ................................................................ 31 RADIATION INTERFERENCE – CO LOCATION ................................................................. 34 RECEIVER RADIATED SPURIOUS EMISSIONS ................................................................ 35 FREQUENCY STABILITY ................................................................................................. 37 TRANSIENT FREQUENCY BEHAVIOR ............................................................................. 38 EQUIPMENT LIST ........................................................................................................... 42 Applicant: UNICATION CO., LTD. FCC ID: LEA-U3-UHF-MID IC CERT #: 3819A-U3UHFMID Report: Z:\U\UNICATION TWN\2352AT10\2352AT10_TestReport_Rev.doc Page 3 of 42 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Testing Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: November 5th, 2010 Applicant: UNICATION CO., LTD. FCC ID: LEA-U3-UHF-MID IC CERT #: 3819A-U3UHFMID Report: Z:\U\UNICATION TWN\2352AT10\2352AT10_TestReport_Rev.doc Page 4 of 42 GENERAL INFORMATION DUT Specification DUT Description UHF PTT HANDHELD TRANSCEIVER WITH GPS AND BLUETOOTH FCC ID LEA-U3-UHF-MID IC Certification 3819A-U3UHFMID Model Number U3UHFMID Serial Number N/A Operating Frequency 406 MHz to 470 MHz Test Frequencies (406.125, 436.625, and 469.125) MHz No. of Channels 16 Type of Emission Analog: 11K0F3E, 16K0F3E, 5K41F2E, 8K87F2E, 7K60FXE, 7K60FXD, 7K60FXW, 8K17F1E, 8K17F1D Digital: See report DUT Power Source 110–120Vac/50– 60Hz DC Power 12V Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Test Conditions The temperature was 26ºC with a relative humidity of 50% . Modification to the DUT None Test Exercise The DUT was placed in continuous transmit mode. Applicable Standards ANSI/TIA 603-C:2004, FCC CFR 47 Part 90, IC RSS- 119, RSS-GEN Test Facility Timco Engineering Inc. at 849 NW State Road 45 Newberry, FL 32669 USA. Applicant: UNICATION CO., LTD. FCC ID: LEA-U3-UHF-MID IC CERT #: 3819A-U3UHFMID Report: Z:\U\UNICATION TWN\2352AT10\2352AT10_TestReport_Rev.doc Page 5 of 42 TEST PROCEDURES Power Line Conducted Interference: The procedure used was ANSI/TIA 603-C:2004 using a 50uH LISN. Both lines were observed with the DUT transmitting. The bandwidth of the spectrum analyzer was 10 kHz with an appropriate sweep speed. Bandwidth 20 dB: The measurements were made with the spectrum analyzer's resolution bandwidth (RBW) = 1 MHz and the video bandwidth (VBW) = 3 MHz and the span set as shown on plot. Power Output: The RF power output was measured at the antenna feed point using a peak power meter. Antenna Conducted Emissions: The RBW = 100 kHz, VBW = 300 kHz and the span set to 10.0 MHz and the spectrum was scanned from 30 MHz to the 10 th harmonic of the fundamental. Above 1 GHz the resolution bandwidth was 1 MHz and the VBW = 3 MHz and the span to 50 MHz. Radiation Interference: The test procedure used was ANSI/TIA 603-C:2004 using an Agilent spectrum receive…
