LF526950MyCareLink Home Communicator Model 26950

Medtronic, Inc.
MyCareLink Home Communicator Model 26950 - FCC ID LF526950 - Medtronic, Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Mar 27, 2026
Application Purpose
Original Equipment
Equipment Note
MyCareLink Home Communicator Model 26950
Frequency Range
2402.00000000 - 2480.00000000
Company
Medtronic, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗
↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗
↗
↗

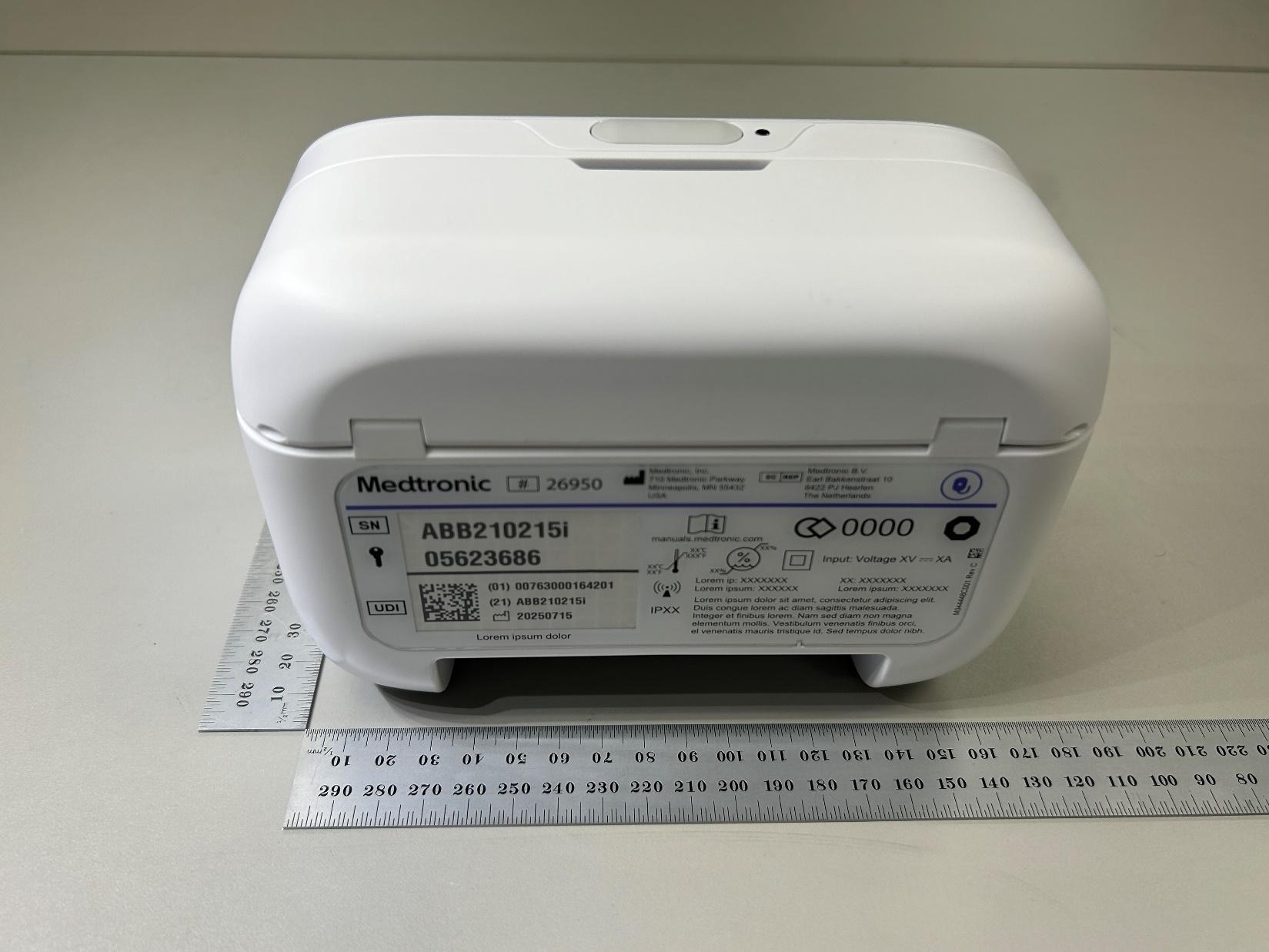

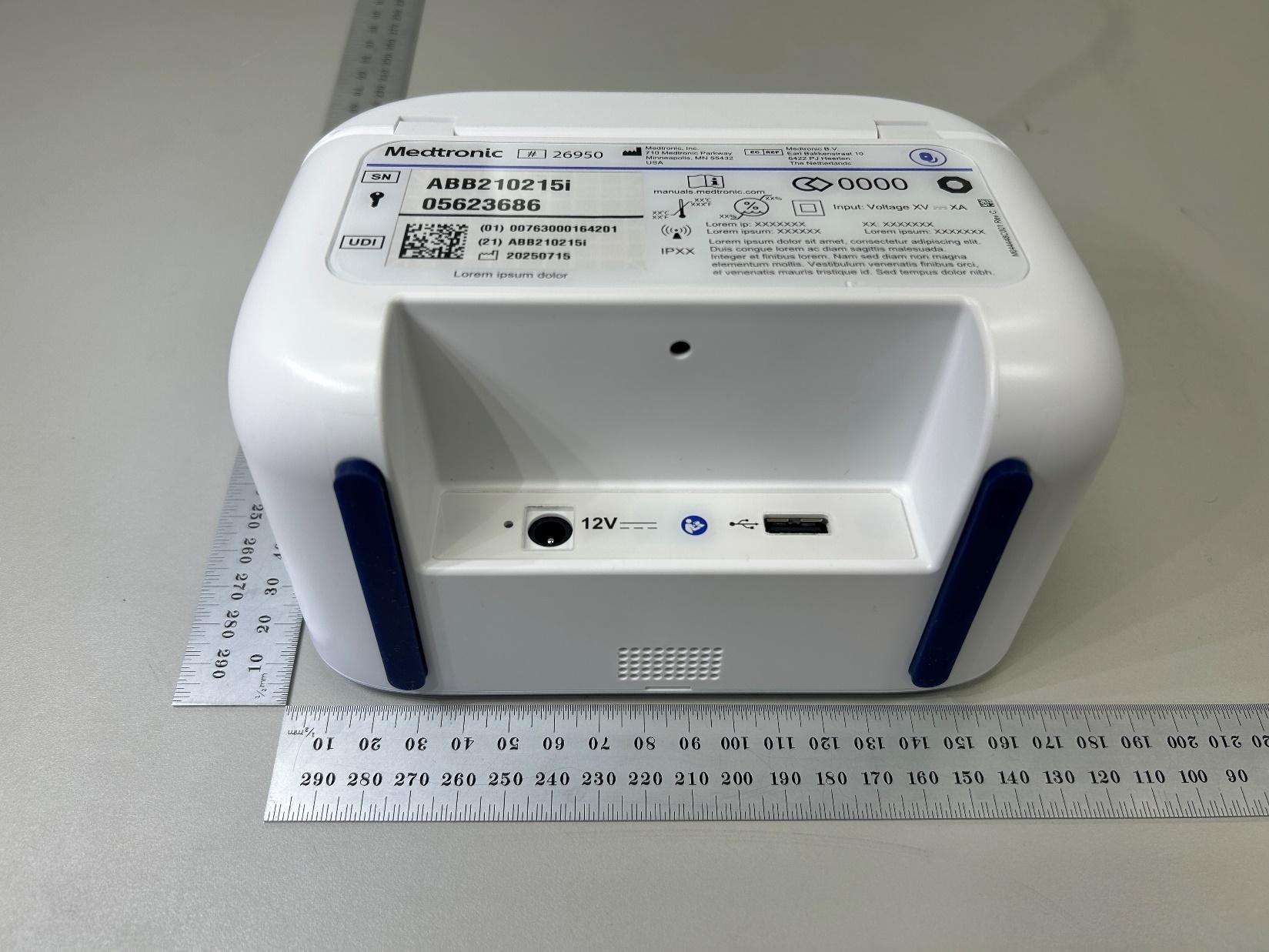

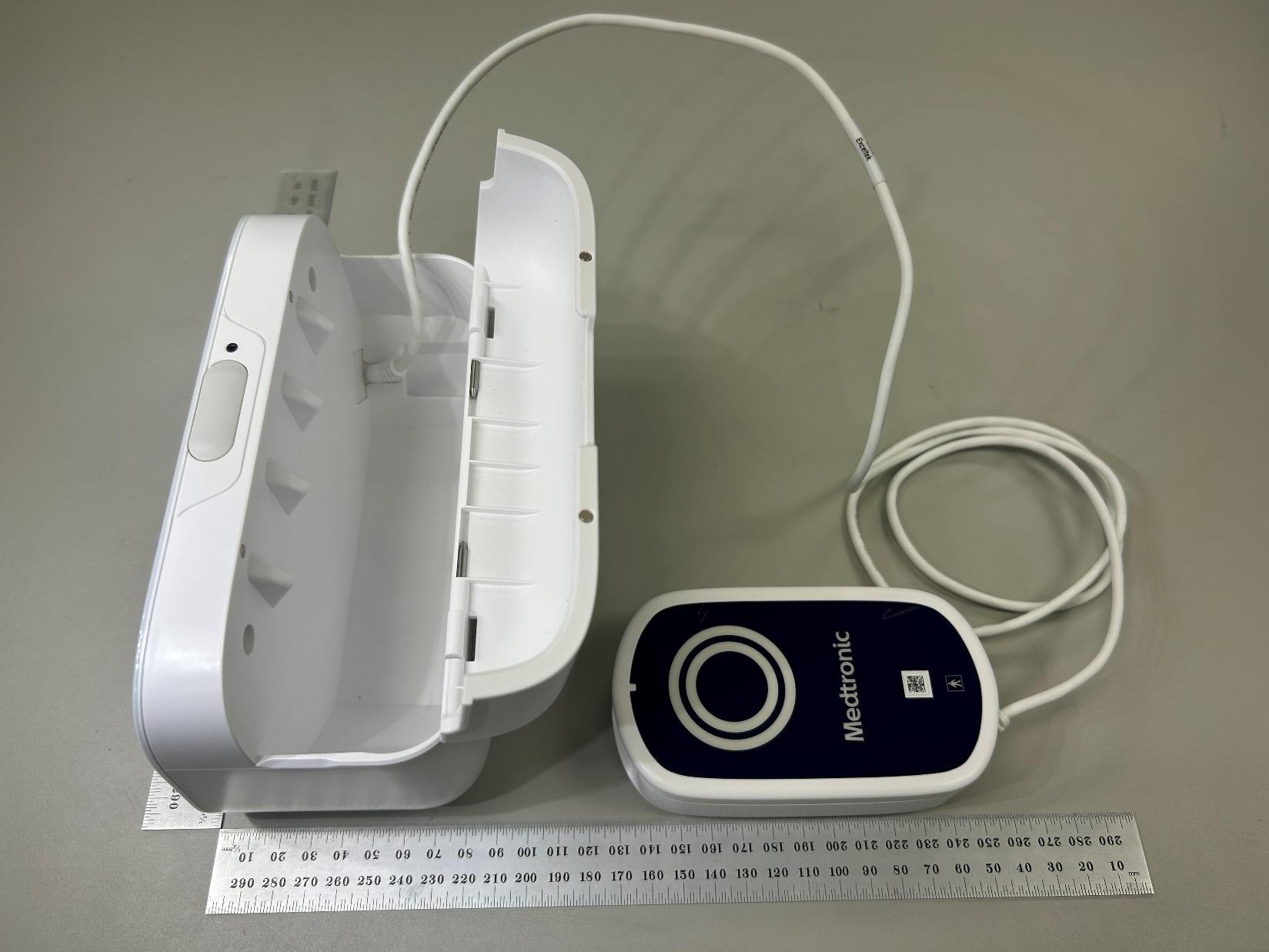

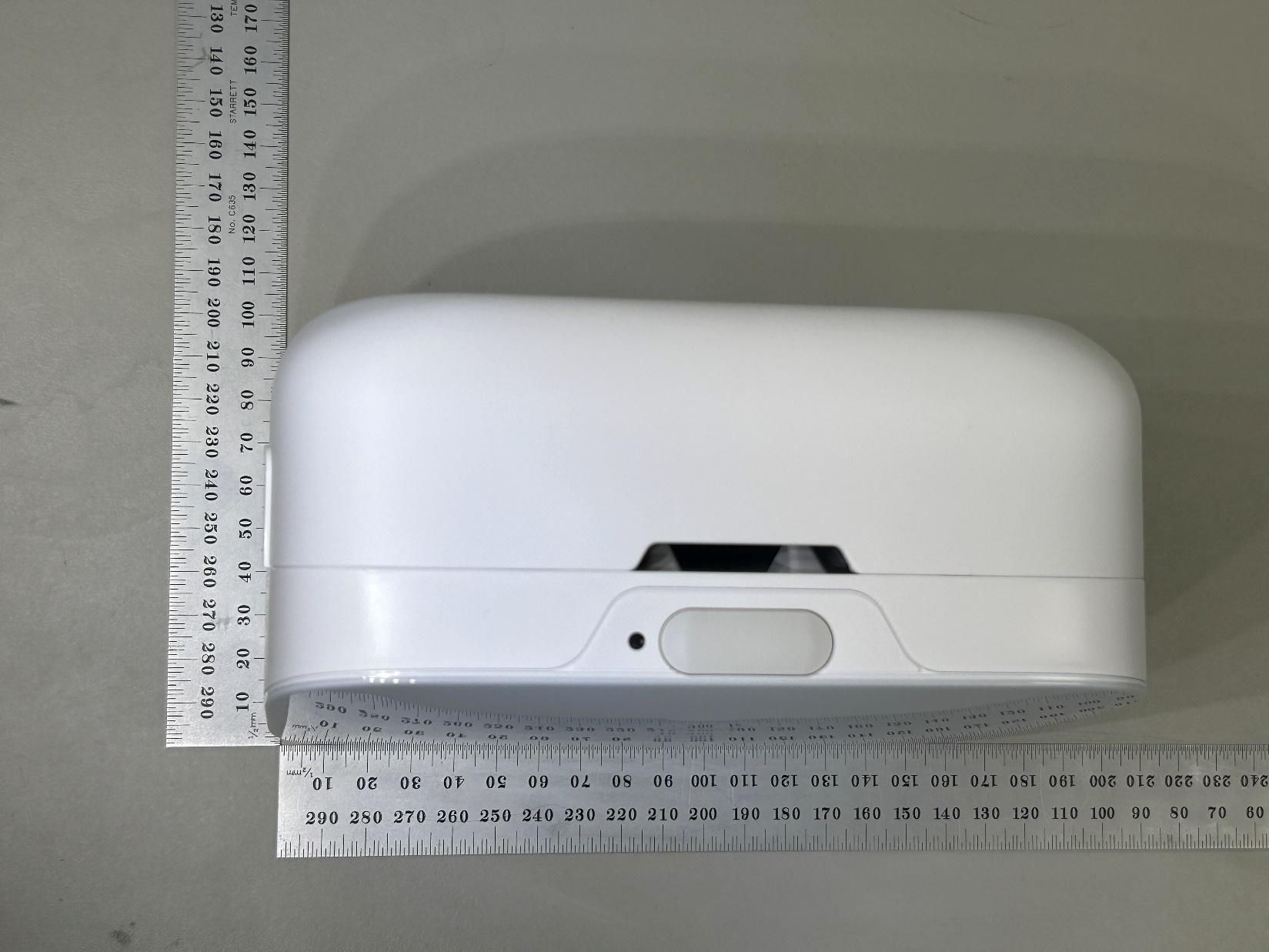

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗
↗

RF Exposure Info

↗
↗
↗
↗
↗

Test Report

↗
↗
↗
↗
↗

Test Setup Photos

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

MyCareLink Home™ Communicator Model 26950 Printing instructions: doc #163256 Category: Thin paper manual Size: 4.25 x 6.75 in (108 x 171 #mm) 530436-072 Patient Manual M036215C001 A Medtronic Confidential Composed: 2025-07-11 13:33:08 PSJ - Size-selectable package manual 14-SEP-2018 Medtronic and Medtronic logo are trademarks of Medtronic. ™* Third-party brands are trademarks of their respective owners. All other brands are trademarks of a Medtronic company. Printing instructions: doc #163256 Category: Thin paper manual Size: 4.25 x 6.75 in (108 x 171 #mm) 530436-072 M036215C001 A Medtronic Confidential Composed: 2025-07-11 13:33:08 PSJ - Size-selectable package manual 14-SEP-2018 Contents 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . 6 2 How to contact Medtronic . . . . . . . . . . . . . 6 3 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 7 3.1 How do I use the communicator? . . . . . . . . 7 3.2 Intended purpose . . . . . . . . . . . . . . . . . . . . . 7 3.3 Intended users . . . . . . . . . . . . . . . . . . . . . . . 8 3.4 Intended patient population . . . . . . . . . . . . . 8 3.5 Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 3.6 Contraindications . . . . . . . . . . . . . . . . . . . . . 8 3.7 Expected clinical benefits . . . . . . . . . . . . . . . 8 3.8 Information flow . . . . . . . . . . . . . . . . . . . . . . . 9 3.9 Indicator lights . . . . . . . . . . . . . . . . . . . . . . . 10 3.10 Front of the communicator . . . . . . . . . . . . 13 3.11 Back of the communicator . . . . . . . . . . . . 14 4 Warnings, precautions, and potential adverse events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 4.1 Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 4.2 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 17 4.3 Potential adverse events . . . . . . . . . . . . . . 17 4.4 Reporting a serious incident . . . . . . . . . . . 18 5 Setting up the communicator . . . . . . . . . 19 5.1 Package contents . . . . . . . . . . . . . . . . . . . . 19 Printing instructions: doc #163256 Category: Thin paper manual Size: 4.25 x 6.75 in (108 x 171 #mm) 530436-072 3 M036215C001 A Medtronic Confidential Composed: 2025-07-11 13:33:08 PSJ - Size-selectable package manual 14-SEP-2018 5.2 Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 6 Connecting the communicator to your Wi-Fi network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 6.1 Connect to your network at home . . . . . . . 24 6.2 Connect to your network from the clinic or hospital . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 7 Checking the connection status . . . . . . . 32 8 Sending a manual transmission . . . . . . . 32 9 Troubleshooting . . . . . . . . . . . . . . . . . . . . 34 9.1 Cellular connection error . . . . . . . . . . . . . . 35 9.2 Wi-Fi network connection error . . . . . . . . . 35 9.3 Reader error . . . . . . . . . . . . . . . . . . . . . . . . 36 9.4 System error . . . . . . . . . . . . . . . . . . . . . . . . 37 9.5 Enrollment error . . . . . . . . . . . . . . . . . . . . . 38 9.6 Error reference numbers . . . . . . . . . . . . . . 38 9.7 Alternative method for connecting to your Wi-Fi network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 10 Additional information . . . . . . . . . . . . . . 43 10.1 Can I travel with the communicator? . . . . 43 10.2 Replacing the communicator or power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 10.3 Cleaning and care . . . . . . . . . . . . . . . . . . 44 10.4 Return for proper disposal . . . . . . . . . . . . 45 10.5 Security . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Printing instructions: doc #163256 Category: Thin paper manual Size: 4.25 x 6.75 in (108 x 171 #mm) 530436-072 4 M036215C001 A Medtronic Confidential Composed: 2025-07-11 13:33:08 PSJ - Size-selectable package manual 14-SEP-2018 10.6 For patients who have a heart device with Bluetooth wireless technology . . . . . . . . . . . . . 47 11 Explanation of symbols . . . . . . . . . . . . . 48 12 Specifications . . . . . . . . . . . . . . . . . . . . . 52 13 Electromagnetic compatibility declaration . . . . . . . . . . . . . . . . . . . . . . . . . . 59 14 Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . 69 Printing instructions: doc #163256 Category: Thin paper manual Size: 4.25 x 6.75 in (108 x 171 #mm) 530436-072 5 M036215C001 A Medtronic Confidential Composed: 2025-07-11 13:33:08 PSJ - Size-selectable package manual 14-SEP-2018 1 Introduction This manual is intended to help you use the Medtronic MyCareLink Home™ communicator Model 26950 (referred to as “the communicator”). If you have questions about your medical condition, talk to your doctor. Your doctor knows your medical history. Warning: If you feel sick, get medical help immediately. If you have an emergency, call your local emergency number. If your doctor has given you instructions, follow them. Waiting to get medical attention could be dangerous to your health. 2 How to contact Medtronic If you have any questions about setting up or using the communicator, or if you have problems with the communicator, contact Medtronic. To get help from a Medtronic CareLink™ Network Stay Connected Service agent, call 1 800 929 4043. Staff is available Monday through Friday from 7:00 AM to 7:00 PM (Central Time). For more information, visit www.medtronic.com. Printing instructions: doc #163256 Category: Thin paper manual Size: 4.25 x 6.75 in (108 x 171 #mm) 530436-072 6 M036215C001 A Medtronic Confidential Composed: 2025-07-11 13:33:08 PSJ - Size-selectable package manual 14-SEP-2018 3 Description The MyCareLink Home communicator is an electronic device that transfers information between your implanted heart device and the Medtronic CareLink™ Network (an internet-based secure server). The communicator allows your doctor to manage your care remotely. The communicat…

Text truncated - open the document above for the full version.

Users Manual

Radio Regulatory Compliance Information MyCareLink Home™ Communicator Model 26950 FCC compliance information FCC ID: LF526950 Contains FCC ID: LF526900 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For radiofrequency exposure safety, the minimum separation distance between the MyCareLink Home base and the patient's body is 20 cm. The cabled telemetry reader located inside the MyCareLink Home base can be used without minimum separation distance limitations. Medtronic, Inc. 710 Medtronic Parkway Minneapolis, MN 55432 USA www.medtronic.com +1 763 514 4000 *M052868C001* © 2025 Medtronic M052868C001 A 2025-04-02

RF Exposure Info

Report No. MDTR1166.24 Rev 0373/99 Report No. MDTR1166.24 Rev 0374/99 Report No. MDTR1166.24 Rev 0375/99 Report No. MDTR1166.24 Rev 0376/99 Report No. MDTR1166.24 Rev 0377/99 Report No. MDTR1166.24 Rev 0378/99 Report No. MDTR1166.24 Rev 0379/99 Report No. MDTR1166.24 Rev 0380/99 Report No. MDTR1166.24 Rev 0381/99 Report No. MDTR1166.24 Rev 0382/99 Report No. MDTR1166.24 Rev 0383/99 Report No. MDTR1166.24 Rev 0384/99 Report No. MDTR1166.24 Rev 0385/99

Test Setup Photos

TEST SETUP PHOTOS WTD.2025.08.28.0 Power Line Conducted Emissions TEST SETUP PHOTOS WTD.2025.08.28.0 Direct Connect TEST SETUP PHOTOS WTD.2025.08.28.0 Spurious Radiated Emissions & Radiated Band Edge TEST SETUP PHOTOS WTD.2025.08.28.0 TEST SETUP PHOTOS WTD.2025.08.28.0 TEST SETUP PHOTOS WTD.2025.08.28.0 Direct Connect – Output Power Spot Check Report No. MDTR1166.62/7 TEST SETUP PHOTOS WTD.2025.08.28.0 Report No. MDTR1166.63/7

Test Setup Photos

TEST SETUP PHOTOS Direct Connect TEST SETUP PHOTOS Direct Connect – Output Power Spot Check TEST SETUP PHOTOS TEST SETUP PHOTOS Radiated Testing TEST SETUP PHOTOS TEST SETUP PHOTOS Power Line Conducted Emissions TEST SETUP PHOTOS

Test Report

Antenna Information MyCareLink Home Communicator 26950 Page 1of 35 1.General Antenna Informaon Bluetooth Antenna TypeTrace Antenna in Base Station PCBA ManufacturerMedtronic Model NumberNA PCBA Number: M059772C001 GL PCBA Number: M059777C001 Antenna Gain5.0 dBi PolarizationLinear Wi-Fi Antenna TypeMetal Stamped ManufacturerTE Connectivity Model Number2108964-1 Antenna Gain (2.4 GHz)4.1 dBi Antenna Gain (5 GHz)4.7 dBi PolarizationLinear Cellular Antenna TypePCB ManufacturerTE Connectivity Model Number2118310-1 Antenna Gain (698-960 MHz) 3.2 dBi Antenna Gain (1710-2170 MHz) 4.1 dBi Antenna Gain (2300-2700 MHz) 5.8 dBi PolarizationLinear Inducve Antenna TypeCoil Assemblyin Telemetry Head ManufacturerMedtronic Model NumberUpper: M027333C Lower: M027334C Antenna GainNA PolarizationNA Antenna Information MyCareLink Home Communicator 26950 Page 8of 35 BLE Theta Log Magnitude Response (dB) -35 5 -30 -25 -20 -15 -10 -5 0 Z XY Azimuth = 180.0 Elevation = -90.0 Roll = 0.0 Theta Log Magnitude Response (dB) -35 5 -30 -25 -20 -15 -10 -5 0 Z Y X Azimuth = 90.0 Elevation = 0.0 Roll = -90.0 3.Antenna Plots Source: MDT30844062OTA Test Data 2024-12- 23 MDT30844082Passive OTA_2025-08- 22 Antenna Information MyCareLink Home Communicator 26950 Page 9of 35 Antenna Information MyCareLink Home Communicator 26950 Page 10of 35 Antenna Information MyCareLink Home Communicator 26950 Page 11of 35 Antenna Information MyCareLink Home Communicator 26950 Page 12of 35 Antenna Information MyCareLink Home Communicator 26950 Page 13of 35 Wi-Fi Theta Log Magnitude Response (dB) -30 5 -25 -20 -15 -10 -5 0 X Z Y Azimuth = 180.0 Elevation = -90.0 Roll = 0.0 Theta Log Magnitude Response (dB) -30 5 -25 -20 -15 -10 -5 0 Y Z X Azimuth = 90.0 Elevation = 0.0 Roll = -90.0 Antenna Information MyCareLink Home Communicator 26950 Page 14of 35 Antenna Information MyCareLink Home Communicator 26950 Page 15of 35 Antenna Information MyCareLink Home Communicator 26950 Page 16of 35 Antenna Information MyCareLink Home Communicator 26950 Page 17of 35 Antenna Information MyCareLink Home Communicator 26950 Page 18of 35 Antenna Information MyCareLink Home Communicator 26950 Page 19of 35 Antenna Information MyCareLink Home Communicator 26950 Page 20of 35 Cellular Theta Log Magnitude Response (dB) -30 0 -25 -20 -15 -10 -5 X Z Y Azimuth = 180.0 Elevation = -90.0 Roll = 0.0 Theta Log Magnitude Response (dB) -30 0 -25 -20 -15 -10 -5 Y Z X Azimuth = 90.0 Elevation = 0.0 Roll = -90.0 Antenna Information MyCareLink Home Communicator 26950 Page 21of 35 Antenna Information MyCareLink Home Communicator 26950 Page 22of 35 Antenna Information MyCareLink Home Communicator 26950 Page 23of 35 Antenna Information MyCareLink Home Communicator 26950 Page 24of 35 Antenna Information MyCareLink Home Communicator 26950 Page 25of 35 Antenna Information MyCareLink Home Communicator 26950 Page 26of 35 Antenna Information MyCareLink Home Communicator 26950 Page 27of 35 Antenna Information MyCareLink Home Communicator 26950 Page 28of 35 Antenna Information MyCareLink Home Communicator 26950 Page 29of 35 Antenna Information MyCareLink Home Communicator 26950 Page 30of 35 Antenna Information MyCareLink Home Communicator 26950 Page 31of 35 Antenna Information MyCareLink Home Communicator 26950 Page 32of 35 Antenna Information MyCareLink Home Communicator 26950 Page 33of 35 Antenna Information MyCareLink Home Communicator 26950 Page 34of 35 Antenna Information MyCareLink Home Communicator 26950 Page 35of 35

Test Report

This report must not be used to claim product certification, approval, or endorsement by A2LA or any agency of the U.S. Government. This Report shall not be reproduced, except in full without written approval of the laboratory. Medtronic, Inc. MyCareLink Home Communicator Model 26950 FCC 15.247:2026 RSS-247 Issue 4:2025 RSS-Gen Issue 5:2018+A1:2019+A2:2021 Bluetooth LE (DTS) Radio Report: MDTR1166.6 Rev. 02, Issue Date: March 24, 2026 This report is Blockchain Verified. To verify the report’s authenticity, please visit https://www.blockchain-verified.com/ or by clicking the logo to the right. TABLE OF CONTENTS 2023.04.17 Section Page Number Certificate of Test ............................................................................................ 3 Revision History .............................................................................................. 5 Facilities .......................................................................................................... 6 Measurement Uncertainty ............................................................................... 7 Test Setup Block Diagrams ............................................................................. 8 Product Description ......................................................................................... 11 Power Settings and Antennas ......................................................................... 12 Configurations ................................................................................................. 13 Modifications ................................................................................................... 17 Powerline Conducted Emissions ..................................................................... 18 Duty Cycle ....................................................................................................... 23 DTS Bandwidth ............................................................................................... 27 Occupied Bandwidth (99%) ............................................................................. 30 RF Output Power ............................................................................................ 33 RF Output Power - Spot Check ....................................................................... 36 Equivalent Isotropic Radiated Power (EIRP) ................................................... 39 Power Spectral Density ................................................................................... 41 Band Edge Compliance .................................................................................. 44 Spurious Conducted Emissions ...................................................................... 48 Spurious Radiated Emissions ......................................................................... 54 Radiated Spurious Emissions Restricted Band Edge ...................................... 61 End of Report .................................................................................................. 65 Report No. MDTR1166.6 Rev 022/65 CERTIFICATE OF TEST 2022.04.01 Product compliance is the responsibility of the client; therefore, the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. This report reflects only those tests from the referenced standards shown in the certificate of test. It does not include inspection or verification of labels, identification, marking or user information. As indicated in the Statement of Work sent with the quotation, Element’s standard process is to always use the latest published version of the test methods even when earlier versions are cited in the test specification. Issuance of a purchase order was de facto acceptance of this approach. Otherwise, the client would have advised Element in writing of the specific version of the test methods they wanted applied to the subject testing. Last Date of Test: November 18, 2025 Medtronic, Inc. EUT: MyCareLink Home Communicator Model 26950 Radio Equipment Testing Standards Specification Method FCC 15.247:2026 ANSI C63.10-2020 + Cor.1-2023 RSS-247 Issue 4:2025 ANSI C63.10-2020 + Cor.1-2023+C63.10a-2024 + Errata to C63.10a-2024 RSS-Gen Issue 5:2018+A1:2019+A2:2021 Guidance FCC KDB 558074 v05r02:2019 Notice 2021 - CEB0001 Results Test Description Result FCC Section(s) RSS Section(s) ANSI C63.10 Section(s) Comments Powerline Conducted Emissions Pass 15.207 RSS-Gen 8.8 6.2 Duty Cycle N/A KDB 558074 -6.0 RSS-Gen 3.2 11.6 See Data. DTS Bandwidth (6 dB) Pass 15.247(a)(2), KDB 558074 -8.2 RSS-247 6.3.1(a) 11.8.2 Occupied Bandwidth (99%) N/A KDB 558074 -2.1 RSS-Gen 6.7 6.9.3 See Data. Output Power Pass 15.247(b)(3), KDB 558074 -8.3.1 RSS-247 6.3.2, RSS-Gen 6.12 11.9.1.1 Equivalent Isotropic Radiated Power Pass 15.247(b)(3), KDB 558074 -8.3.1 RSS-247 6.3.2, RSS-Gen 6.12 11.9.1.1 Power Spectral Density Pass 15.247(e), KDB 558074 - 8.4 RSS-247 6.3.1(b) 11.10.2 Band Edge Compliance Pass 15.247(d), KDB 558074 - 8.5 RSS-247 6.6 11.11 Spurious Conducted Emissions Pass 15.247(d), KDB 558074 - 8.5 RSS-247 6.6 11.11 Spurious Radiated Emissions Pass 15.247(d), KDB 558074 - 8.6, 8.7 RSS-247 6.6, RSS-Gen 6.13, 8.10 11.12.1, 11.13.2, 6.5, 6.6 Radiated Spurious Emissions Restricted Band Edge Pass 15.247(d), KDB 558074 - 8.6, 8.7 RSS-247 6.6, RSS-Gen 6.13, 8.10 11.12.1, 11.13.2, 6.5, 6.6 Report No. MDTR1166.6 Rev 023/65 CERTIFICATE OF TEST 2022.04.01 Product compliance is the responsibility of the client; therefore, the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this cert…

Text truncated - open the document above for the full version.

Test Report

SPURIOUS RADIATED EMISSIONS WTD.2025.03.25.0 EmiR5 2025.04.30.2 PSA-ESCI 2024.11.22.0 TEST DESCRIPTION The highest gain antenna of each type to be used with the EUT was tested. The EUT was configured for the required transmit frequencies and the modes as showed in the data sheets. For each configuration, the spectrum was scanned throughout the specified range as part of the exploratory investigation of the emissions. A reference preview scan (pre-scan) is included in the report. Final measurements on individual emissions were then made and included in this test report. The individual emissions from the EUT were maximized by rotating the EUT on a turntable, adjusting the position of the EUT and EUT antenna in three orthogonal axis if required, and adjusting the measurement antenna height and polarization (per ANSI C63.10). A preamp and high pass filter (and notch filter) were used for this test in order to provide sufficient measurement sensitivity. Measurements were made with the required detectors and annotated on the data for each individual point using the following annotation: QP = Quasi-Peak Detector PK = Peak Detector AV = RMS Detector Measurements were made to satisfy the specific requirements of the test specification for out of band emissions as well as the restricted band requirements. If there are no detectable emissions above the noise floor, the data included may show noise floor measurements for reference only. Measurements within 2 MHz of the allowable band may have been taken using the integration method from ANSI C63.10 clause 11.13.3. This procedure uses the channel power feature of the spectrum analyzer to integrate the power of the emission within a 1 MHz bandwidth. Where the radio test software does not provide for a duty cycle at continuous transmit conditions (> 98%) and the RMS (power average) measurements were made across the on and off times of the EUT transmissions, a duty cycle correction is added to the measurements using the formula of 10*log(1/dc). Report No. MDTR1166.5 Rev 0282/97 SPURIOUS RADIATED EMISSIONS WTD.2025.03.25.0 EmiR5 2025.04.30.2 PSA-ESCI 2024.11.22.0 TEST EQUIPMENT Description Manufacturer Model ID Last Cal. Cal. Due Antenna - Double Ridge ETS Lindgren 3115 AIR 2024-07-23 2026-07-23 Cable Northwest EMC 1-8GHz RE Cables OCJ 2025-04-30 2026-04-30 Amplifier - Pre-Amplifier Cernex CBL01084020-xx PAX 2025-04-30 2026-04-30 Attenuator Fairview Microwave SA18H-20 TKQ 2025-05-01 2026-05-01 Filter - High Pass Micro-Tronics HPM50111 HHX 2025-04-30 2026-04-30 Antenna - Standard Gain ETS Lindgren 3160-07 AHR 2024-12-03 2025-12-03 Cable Northwest EMC 8-18GHz RE Cables OCO 2025-03-18 2026-03-18 Amplifier - Pre-Amplifier Miteq AMF-6F-08001200-30-10P AOE 2025-03-18 2026-03-18 Antenna - Standard Gain ETS Lindgren 3160-08 AHT 2024-12-03 2025-12-03 Amplifier - Pre-Amplifier Miteq AMF-6F-12001800-30-10P AOF 2025-03-18 2026-03-18 Antenna - Standard Gain ETS Lindgren 3160-09 AHN 2024-12-03 2025-12-03 Cable Northwest EMC 18-26GHz RE Cables OCK 2024-12-10 2025-12-10 Amplifier - Pre-Amplifier Miteq AMF-6F-18002650-25-10P AOI 2024-12-10 2025-12-10 Antenna - Biconilog Teseq CBL 6141A AYE 2023-08-08 2025-08-08 Cable Northwest EMC 10kHz-1GHz RE Cables OCH 2025-05-01 2026-05-01 Amplifier - Pre-Amplifier Miteq AM-1402 AOZ 2025-05-01 2026-05-01 Filter - Low Pass Micro-Tronics LPM50004 LFT 2024-12-17 2025-12-17 Antenna - Loop EMCO 6502 AZB 2023-09-06 2025-09-06 Analyzer - Spectrum Analyzer Agilent N9010A AFJ 2025-03-03 2026-03-03 FREQUENCY RANGE INVESTIGATED 9 kHz TO 26.5 GHz POWER INVESTIGATED 230VAC/50Hz CONFIGURATIONS INVESTIGATED MDTR1166-15 MODES INVESTIGATED Transmitting 2.4GHz WiFi Report No. MDTR1166.5 Rev 0283/97 SPURIOUS RADIATED EMISSIONS WTD.2025.03.25.0 EmiR5 2025.04.30.2 PSA-ESCI 2024.11.22.0 EUT: MyCareLink Home Communicator Model 26950 Work Order: MDTR1166 Serial Number: ABB210014i Date: 2025-08-04 Customer: Medtronic, Inc. Temperature: 23.5°C Attendees: Jed Meyer Relative Humidity: 50.2% Customer Project: None Bar. Pressure (PMSL): 1014 mb Tested By: Matthew Ng Job Site: OC10 Power: 110VAC/60Hz Configuration: MDTR1166-15 TEST PARAMETERS Run #: 12 Test Distance (m): 3 Ant. Height(s) (m): 1 to 4(m) COMMENTS None EUT OPERATING MODES Transmitting 2.4GHz Wi-Fi DEVIATIONS FROM TEST STANDARD None Run #: 12 0 10 20 30 40 50 60 70 80 101001,00010,000100,000 dBuV/m MHz Report No. MDTR1166.5 Rev 0284/97 SPURIOUS RADIATED EMISSIONS WTD.2025.03.25.0 EmiR5 2025.04.30.2 PSA-ESCI 2024.11.22.0 RESULTS - Run #12 Freq (MHz) Amplitude (dBuV) Factor (dB/m) Antenna Height (meters) Azimuth (degrees) Test Distance (meters) External Attenuation (dB) Polarity/ Transducer Type Detector Distance Adjustment (dB) Adjusted (dBuV/m) Spec. Limit (dBuV/m) Compared to Spec. (dB) Comments 7387.383 35.2 6.6 1.5 8.0 3.0 0.0 Horz AV 0.0 41.8 54.0 -12.2 Tx 2462MHz, 1Mbps, EUT Horz 14470.550 27.1 14.4 1.5 0.0 3.0 0.0 Horz AV 0.0 41.5 54.0 -12.5 Tx 2412MHz, 1Mbps, EUT Horz 7384.600 34.9 6.6 1.5 331.0 3.0 0.0 Horz AV 0.0 41.5 54.0 -12.5 Tx 2462MHz, 11Mbps, EUT Horz 7388.058 34.7 6.6 1.5 15.0 3.0 0.0 Horz AV 0.0 41.3 54.0 -12.7 Tx 2462MHz, 6Mbps, EUT Horz 7383.642 34.6 6.6 4.0 292.0 3.0 0.0 Horz AV 0.0 41.2 54.0 -12.8 Tx 2462MHz, 36Mbps, EUT Horz 7312.458 34.7 6.4 2.6 122.0 3.0 0.0 Horz AV 0.0 41.1 54.0 -12.9 Tx 2437MHz, 1Mbps, EUT Horz 7383.508 34.5 6.6 3.3 206.0 3.0 0.0 Horz AV 0.0 41.1 54.0 -12.9 Tx 2462MHz, MCS0, EUT Horz 7384.300 34.4 6.6 1.5 75.0 3.0 0.0 Horz AV 0.0 41.0 54.0 -13.0 Tx 2462MHz, 54Mbps, EUT Horz 7384.225 34.4 6.6 2.1 217.0 3.0 0.0 Horz AV 0.0 41.0 54.0 -13.0 Tx 2462MHz, MCS7, EUT Horz 39.064 13.9 8.5 1.0 33.0 3.0 0.0 Horz QP 0.0 22.4 40.0 -17.6 Tx 2437MHz, 1Mbps, EUT Horz 614.489 15.1 12.3 1.3 40.0 3.0 0.0 Horz QP 0.0 27.4 46.0 -18.6 Tx 2437MHz, 1Mbps, EUT Horz 997.492 14.5 20.1 2.0 190.0 3.0 0.0 Vert QP 0.0 34.6 54.0 -19.4 Tx 2437MHz, 1Mbps, EUT Horz 4876.217 38.0 -3.8 1.5 35.0 3.0 0.0 Horz AV 0.0 34.2 54.0 -19.8 Tx 2437MHz, 1Mbps, EUT Horz 4876.183 37.9 -3.8 1.5 148.0 3.0 0.0 Ve…

Text truncated - open the document above for the full version.

Test Report

POWER SPECTRAL DENSITY TbtTx 2025.05.09.1 WTD.2025.03.25.0 TEST DESCRIPTION Testing was performed using the mode(s) of operation and configuration(s) noted within the report. The individuals and/or the organization requesting the test provided the modes, configurations and settings used to complete the evaluation. The actual test parameters are specified in the test data, this includes items such as investigated frequency range (scanned) and test levels. The testing methods and performance specifications, as well as the test site used for the evaluation are indicated in the test data. The measurement was made using a direct connection between the RF output of the EUT and a spectrum analyzer. The power spectral density was measured using the channels and modes as called out in the following data sheets. The method AVGPSD-2 in clause 11.10.5 of ANSI C63.10:2020 was used to make the measurement. This method uses trace averaging and RMS detection across the ON and OFF times of the transmission. The analyzer was configured to the following settings: Span = at least 1.5 * OBW RBW = 100 kHz VBW = 300 kHz Detector = RMS Sweep = 601 mS Points = 601 The peak marker function was used to determine the maximum amplitude level. An additional [ 10*log( 1 / D ) ], where D is the duty cycle was added to the peak marker to compute the average PSD during the actual transmission time. TEST EQUIPMENT Description Manufacturer Model ID Last Cal. Cal. Due Analyzer - Spectrum Analyzer Agilent N9010A AFI 2024-09-03 2025-09-03 Generator - Signal Agilent N5183A TIK 2025-02-13 2028-02-13 Cable Micro-Coax UFD150A-1-0720-200200 MNL 2024-08-28 2025-08-28 Block - DC Fairview Microwave SD3379 ANH 2024-08-28 2025-08-28 Attenuator Fairview Microwave SA4014-20 AQI 2024-08-28 2025-08-28 Report No. MDTR1166.5 Rev 0248/97 POWER SPECTRAL DENSITY TbtTx 2025.05.09.1 WTD.2025.03.25.0 EUT: MyCareLink Home 26900 Work Order: MDTR1166 Serial Number: BTB111014i Date: 2025-06-25 Customer: Medtronic, Inc. Temperature: 21.8°C Attendees: Jedidiah Meyer Relative Humidity: 49.7% Customer Project: None Bar. Pressure (PMSL): 1019 mbar Tested By: Christopher Heintzelman Job Site: MN11 Power: 120VAC/60Hz Configuration: MDTR1166-1 COMMENTS Power setting 15dBm. Reference level offset includes measurement cable, 20db attenuator, DC block, and loss from the customer's SMA-patch cable which was declared by the customer. (Patch cable declared to be 1.0dB at 2400 MHz, 0.9dB at 2450 MHz, and 0.85dB at 2500 MHz.) DEVIATIONS FROM TEST STANDARD A 100 kHz RBW was used instead of 3 kHz. CONCLUSION Pass Tested By TEST RESULTS Value Duty Cycle Value Limit dBm/100kHz Factor (dB) dBm/3kHz ≤ (dBm/3kHz) Results 20 MHz BW 802.11(b) 1 Mbps Low Channel 1, 2412 MHz -2.655 0 -2.7 8 Pass Mid Channel 6, 2437 MHz -2.804 0 -2.8 8 Pass High Channel 11, 2462 MHz -2.88 0 -2.9 8 Pass 802.11(b) 11 Mbps Low Channel 1, 2412 MHz -2.814 0 -2.8 8 Pass Mid Channel 6, 2437 MHz -2.999 0 -3 8 Pass High Channel 11, 2462 MHz -3.095 0 -3.1 8 Pass 802.11(g) 6 Mbps Low Channel 1, 2412 MHz -5.354 0 -5.4 8 Pass Mid Channel 6, 2437 MHz -5.499 0 -5.5 8 Pass High Channel 11, 2462 MHz -5.542 0 -5.5 8 Pass 802.11(g) 36 Mbps Low Channel 1, 2412 MHz -5.247 0 -5.2 8 Pass Mid Channel 6, 2437 MHz -5.391 0 -5.4 8 Pass High Channel 11, 2462 MHz -5.501 0 -5.5 8 Pass 802.11(g) 54 Mbps Low Channel 1, 2412 MHz -5.085 0 -5.1 8 Pass Mid Channel 6, 2437 MHz -5.249 0 -5.2 8 Pass High Channel 11, 2462 MHz -5.291 0 -5.3 8 Pass Report No. MDTR1166.5 Rev 0249/97 POWER SPECTRAL DENSITY TbtTx 2025.05.09.1 WTD.2025.03.25.0 802.11(n) MCS0 Low Channel 1, 2412 MHz -5.373 0 -5.4 8 Pass Mid Channel 6, 2437 MHz -5.496 0 -5.5 8 Pass High Channel 11, 2462 MHz -5.573 0 -5.6 8 Pass 802.11(n) MCS7 Low Channel 1, 2412 MHz -5.336 0 -5.3 8 Pass Mid Channel 6, 2437 MHz -5.481 0 -5.5 8 Pass High Channel 11, 2462 MHz -5.52 0 -5.5 8 Pass Report No. MDTR1166.5 Rev 0250/97 POWER SPECTRAL DENSITY TbtTx 2025.05.09.1 WTD.2025.03.25.0 20 MHz BW 802.11(b) 1 Mbps Low Channel 1, 2412 MHz 20 MHz BW 802.11(b) 1 Mbps Mid Channel 6, 2437 MHz 20 MHz BW 802.11(b) 1 Mbps High Channel 11, 2462 MHz 20 MHz BW 802.11(b) 11 Mbps Low Channel 1, 2412 MHz Report No. MDTR1166.5 Rev 0251/97 POWER SPECTRAL DENSITY TbtTx 2025.05.09.1 WTD.2025.03.25.0 20 MHz BW 802.11(b) 11 Mbps Mid Channel 6, 2437 MHz 20 MHz BW 802.11(b) 11 Mbps High Channel 11, 2462 MHz 20 MHz BW 802.11(g) 6 Mbps Low Channel 1, 2412 MHz 20 MHz BW 802.11(g) 6 Mbps Mid Channel 6, 2437 MHz Report No. MDTR1166.5 Rev 0252/97 POWER SPECTRAL DENSITY TbtTx 2025.05.09.1 WTD.2025.03.25.0 20 MHz BW 802.11(g) 6 Mbps High Channel 11, 2462 MHz 20 MHz BW 802.11(g) 36 Mbps Low Channel 1, 2412 MHz 20 MHz BW 802.11(g) 36 Mbps Mid Channel 6, 2437 MHz 20 MHz BW 802.11(g) 36 Mbps High Channel 11, 2462 MHz Report No. MDTR1166.5 Rev 0253/97 POWER SPECTRAL DENSITY TbtTx 2025.05.09.1 WTD.2025.03.25.0 20 MHz BW 802.11(g) 54 Mbps Low Channel 1, 2412 MHz 20 MHz BW 802.11(g) 54 Mbps Mid Channel 6, 2437 MHz 20 MHz BW 802.11(g) 54 Mbps High Channel 11, 2462 MHz 20 MHz BW 802.11(n) MCS0 Low Channel 1, 2412 MHz Report No. MDTR1166.5 Rev 0254/97 POWER SPECTRAL DENSITY TbtTx 2025.05.09.1 WTD.2025.03.25.0 20 MHz BW 802.11(n) MCS0 Mid Channel 6, 2437 MHz 20 MHz BW 802.11(n) MCS0 High Channel 11, 2462 MHz 20 MHz BW 802.11(n) MCS7 Low Channel 1, 2412 MHz 20 MHz BW 802.11(n) MCS7 Mid Channel 6, 2437 MHz Report No. MDTR1166.5 Rev 0255/97 POWER SPECTRAL DENSITY TbtTx 2025.05.09.1 WTD.2025.03.25.0 20 MHz BW 802.11(n) MCS7 High Channel 11, 2462 MHz Report No. MDTR1166.5 Rev 0256/97 BAND EDGE COMPLIANCE TbtTx 2025.05.09.1 WTD.2025.03.25.0 TEST DESCRIPTION Testing was performed using the mode(s) of operation and configuration(s) noted within the report. The individuals and/or the organization requesting the test provided the modes, configurations and settings used to complete the evaluation. The actual test parameters are specified in the test data, this includes items such as investigated frequency range (scanned) and test levels. The testin…

Text truncated - open the document above for the full version.

Test Report

This report must not be used to claim product certification, approval, or endorsement by A2LA or any agency of the U.S. Government. This Report shall not be reproduced, except in full without written approval of the laboratory. Medtronic, Inc. MyCareLink Home Communicator Model 26950 FCC 15.247:2026 RSS-247 Issue 4:2025 RSS-Gen Issue 5:2018+A1:2019+A2:2021 Wi-Fi 802.11 b/g/n SISO Radio…

Text truncated - open the document above for the full version.
