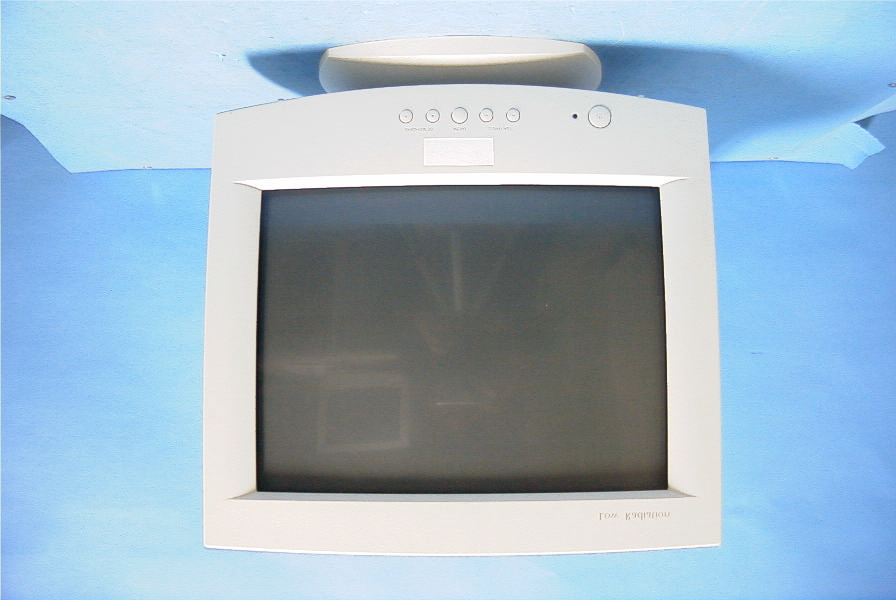

LFVJS50115 inch Color Display Monitor

1. Read all of these instructions.2. Save these instructions for later use. 3. Unplug this monitor from thewall outlet before cleaning. Do notuse liquid cleaners or aerosolcleaners. Use a damp cloth forcleaning. 4. Do not use attachments not recommended bythe monitor manufacturer as they may causehazards. 5. Do not use this monitor near water, e.g., near abathtub, washbowl, kitchen sink, or laundry tub,in a wet basement, or near a swimming pool, etc. 6. Do not place this monitor on anunstable cart, stand, or table. Themonitor may fall, causing seriousinjury to a child or adult, andserious damage to the appliance. 7. Slots and openings in thecabinet and the back or bottom areprovided for ventilation, to ensurereliable operation of the monitor,and to protect it from overheating. These openings must not be blocked or covered.The openings should never be blocked byplacing the monitor on a bed, sofa, rug, or othersimilar surface. This monitor should never beplaced near or over a radiator or heat register.This monitor should not be placed in a built-ininstallation such as a bookcase unless properventilation is provided. 8. This monitor should be operatedonly from the type of power sourceindicated on the marking label. Ifyou are not sure of the powersupplied to your home, consult your monitor dealer or local power company. 9. This monitor is equipped with a3-wire grounding-type plug, Thatis, a plug having a third(grounding) pin. This plug willonly fit into a grounding-type power outlet. This is a safety feature. If you areunable to insert the plug into the outlet, contactyour electrician to replace your obsolete outlet.Do not defeat the purpose of the grounding-typeplug. 10. Do not allow anything to reston the power cord. Do not locatethis monitor where the cord will beabused by people walking on it. 11. Follow all warnings and instructions markedon the monitor. IMPORTANT SAFEGUARDS 12. For added protection for this monitor during a lightning storm,or when it is left unattended andunused for long periods of time,unplug it from the wall outlet. This will prevent damage to the monitor and/or thecomputer due to lightning and power line surges. 13. Do not overload wall outlets and extensioncords as this can result in fire or electric shock. 14. Never push objects of any kind into thismonitor through cabinet slots, as they may touchdangerous voltage points or short out parts thatcould result in a fire or electric shock. Never spillliquid of any kind on the monitor. 15. Do not attempt to service thismonitor yourself, as opening orremoving covers may expose youto dangerous voltages or otherhazards. Refer all servicing to qualified service personnel. 16. Unplug this monitor from the wall outlet andrefer servicing to qualified service personnelunder the following conditions: a. When the power cord or plug is damaged orfrayed. b. If liquid has been spilled into the monitor. c. If the monitor has been exposed to rain orwater. d. If the monitor does not operate normally byfollowing the operating instructions. Adjust onlythose controls that are covered by the operatinginstructions, as improper adjustment of othercontrols may result in damage and will oftenrequire extensive work by a qualified technicianto restore normal operation. e. If the monitor has been dropped or the cabinethas been damaged. f. When the monitor exhibits a distinct change inperformance, this indicates a need for service. 17. When replacement parts arerequired be sure the servicetechnician has used replacementparts specified by the manufacturerthat have the same characteristics as the original part. Unauthorized substitutionsmay result in fire, electric shock, or otherhazards. 18. Upon completion of any service or repairs tothis monitor, ask the service technician toperform routine safety checks to determine thatthe monitor is safe to operate. FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. Theselimits are designed to provide reasonable protection against harmfulinterference in a residential installation. This equipment generates, uses andcan radiate radio frequency energy and, if not installed and used inaccordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will notoccur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined byturning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio or TV technician for help. CAUTION : Any changes or modifications not expressly approved by the party responsible for compliance could void the user ’ s authority to operate the equipment. CANADIAN NOTICEAVIS CANADIEN This Class B digital apparatus meets all requirements of the CanadianInterference-Causing Equipment Regulations. Cet appareil numérique de la Class B respecte toutes les exigences duRèglement sur le matériel brouilleur du Canada. Emission Characteristics Tested by TUVA sample of this type has been tested and has shown compliance with theguidelines in the german document MPR II.This product is also designed for IT power system with phase to phasevoltage of 230V. The power cord is used as a main disconnect device. Disconnect thepower cord before servicing. The outlet must be installed near the monitorand must be easily accessible.The appliance is not intended for use by young children or infirm personswithout supervision ;Young children should be supervised to ensure that they do not play w…

Text truncated - open the document above for the full version.

JS-501 BLOCK DIAGRAM 15 Pin D-SUB R.G.B.H/V Video Pre-Amp TDA9210 OSD NT6828 CRT DRIVER TDA9536 Power SMPS AC Input Rate 100~ 240 Vac 50/60 Hz V-Driver KA2142B H-Drive H.Output TR C/S Switching KSC5801, F06F150 FBT CF1656A Input Video Rate - H:30-54KHz,V:50-160Hz - Max Resolution:1024x768@60Hz Analog CRT : LG 15" R G B R G B - H-Voltage 25Kv - Focus Voltage H.DV.D I2C I2C H/V Power Output Voltage +5V, +6.3V,+13V,+12V +50V, +85V, - 12V I2C bus I2C bus H/V V.Ramp Pulse H.Drive Pulse Curren Drive EEPRO M Output Video Rate * H: 30~54KHz V: 50~160Hz Voltage: 2Vp-p 8MHz Micro-Processor NT6862 50047 H/V OSC Processor KB2511

FCC ID Label Location Infomation

File No. 01-IST-036/FB IST EMC LAB. Page 1 of 13 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. IST EMC LAB. EMISSION TEST REPORT Test report file No. : 01-IST-036/FB Date of issue : Mar. 14, 2001. Model / Type No. Kind of product Applicant Manufacturer Address : JS-501 : 15” Color Display Monitor : Jinsun Information Technology Co., Ltd : Jinsun Information Technology Co., Ltd : Eyon-Hansan Industrial Park, Yulbuk-Ri, Chungbuk-Myun, Pyongteak-Shi, Kyonggi-Do, Korea Test result according to the regulation(s) n Positive o Negative at page 3. This test report without appendix consists of 13 pages. It is not allowed to copy this report even partly without the allowance of the Test Laboratory. This equipment is complied with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. File No. 01-IST-036/FB IST EMC LAB. Page 2 of 13 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. DIRECTORY A) Documentation. Page Directory Test regulations Environmental Conditions Test Conditions Equipment under Test Test Result Test-setup (Figures) Summary 2 3 3 4~5 6 7 8 13 B) Test Data. Conducted emissions (Mains) Radiated emissions : 450 kHz - 30 MHz : 30 MHz – 1 GHz 9 ~ 11 12 C) Appendix File No. 01-IST-036/FB IST EMC LAB. Page 3 of 13 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST REGULATIONS The tests were performed according to the following regulations ;  EN 50081-1 / 2. 1991.  EN 55011 / 3. 1991. Croup 1. Croup 2.  Class A. Class B.  EN 55014 / 4. 1993. Household appliances and similar  Portable tools  Semiconductor devices - EN 55014 / A2:1990 - EN 55015 / A1:1990  - EN 55015/ 2.1987  - EN 55015 / 12.1993 - EN 55022 / 8.1994- Class A  - Class B z - FCC Part 15, Subpart B (Unintentional Radiators, Class B)  - BS  - VCCI  - CISPR All testing were conducted at IST EMC Laboratory. ENVIRONMENTAL CONDITIONS Temperature Humidity Atmospheric pressure 18 45 % 999 mbar File No. 01-IST-036/FB IST EMC LAB. Page 4 of 13 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST CONDITIONS The measurement of the conducted emissions (Interference voltage) was performed in a shielded room. Test location : z - Shielded room. No.1  - Compact chamber 2 Used testing instruments : NameTypeManufacturerCalibration. DateSerial Number z ESH 3Test ReceiverRohde & SchwarzOct. 08, 2000861742/018 z 3725/2LISNEMCOOct. 08, 20009102-1788 z 3825/2LISNEMCODec. 20, 20009103-1788 z ESH 3-Z2Pulse LimiterRohde & SchwarzMar. 30, 2001357.8810.52 Test - accessories : Type Manufacturer z Aneroid BarometerSato z HygrometerSato Measurement Procedures : Conducted emissions measurments were made in accordance with ANSI C-63.4-1992,“Method of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurement were performed over the frequency range of 0.45MHz to 30MHz using a 50Ω/ 50uH LISN as the input transducer to an EMI/Field Intensity Meter. The measurements were made with the detector set for “Peak” amplitude within an IF bandwidth of 10kHz or for “quasi-peak” within a bandwidth of 9kHz. All used test-instruments as well as the test-accessories are calibrated regularly. Test engineer : B. K, Bae. / Research Engineer IST EMC Lab. File No. 01-IST-036/FB IST EMC LAB. Page 5 of 13 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. The measurement of the radiated emissions (Electric field) in the frequency range from 30 MHz to 1GHz was performed in horizontal and vertical antenna polarization at a open-site which meet the site attenuation requirement of ANSI C63.4-1992 and a test distance of : z - Open-site 1  - Compact chamber z - 3 meters.  - 10 meters Used testing instruments : Name TypeManufacturerCalibration. DateSerial Number z ESVPTest ReceiverRohde & Schwarz July. 21, 2000 861744/004 z VULB 9160AntennaSchwarzbeckJuly. 11, 20003048 Test - accessories : TypeManufacturer z Aneroid BarometerSato z HygrometerSato Measurement procedures Radiated measurements were in accordance with ANSI C63.4-1992 “Method of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurements were performed over the frequency range of 30MHz to 1GHz using antenna as the input transducer to a EMI/Field Intensity Meter. The measurements were made with the detector set for “quasi-peak” within a bandwidth of 120kHz. All used test-instruments as well as the test-accessories are calibrated regularly. Test engineer : B. K, Bae. / Research Engineer IST EMC Lab. File No. 01-IST-036/FB IST EMC LAB. Page 6 of 13 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. EQUIPMENT UNDER TEST Equipment Description The Equipment Under Test (EUT) is the 17” Color Monitor of Jinsun Information Technology Co., Ltd. (FCC ID: ***JS501) Picture Tube- Type: 15” (Viewing area:14.0”) Normal Tube Type - Dot Pitch: 0.28mm Video- Input Signal: Analog R,G,B - Max Video Bandwidth: 65 MHz - Input Sync: TTL, separate negative/positive Scan …

Text truncated - open the document above for the full version.

Radiated Emission 30MHz ~ 1000MHz Conducted Emission 450kHz ~ 30MHz

Radiated Emission 30MHz ~ 1000MHz Conducted Emission 450kHz ~ 30MHz
