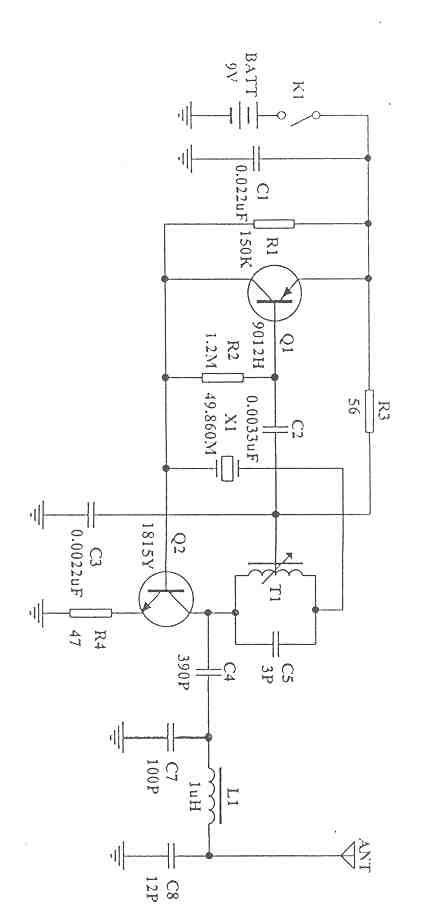

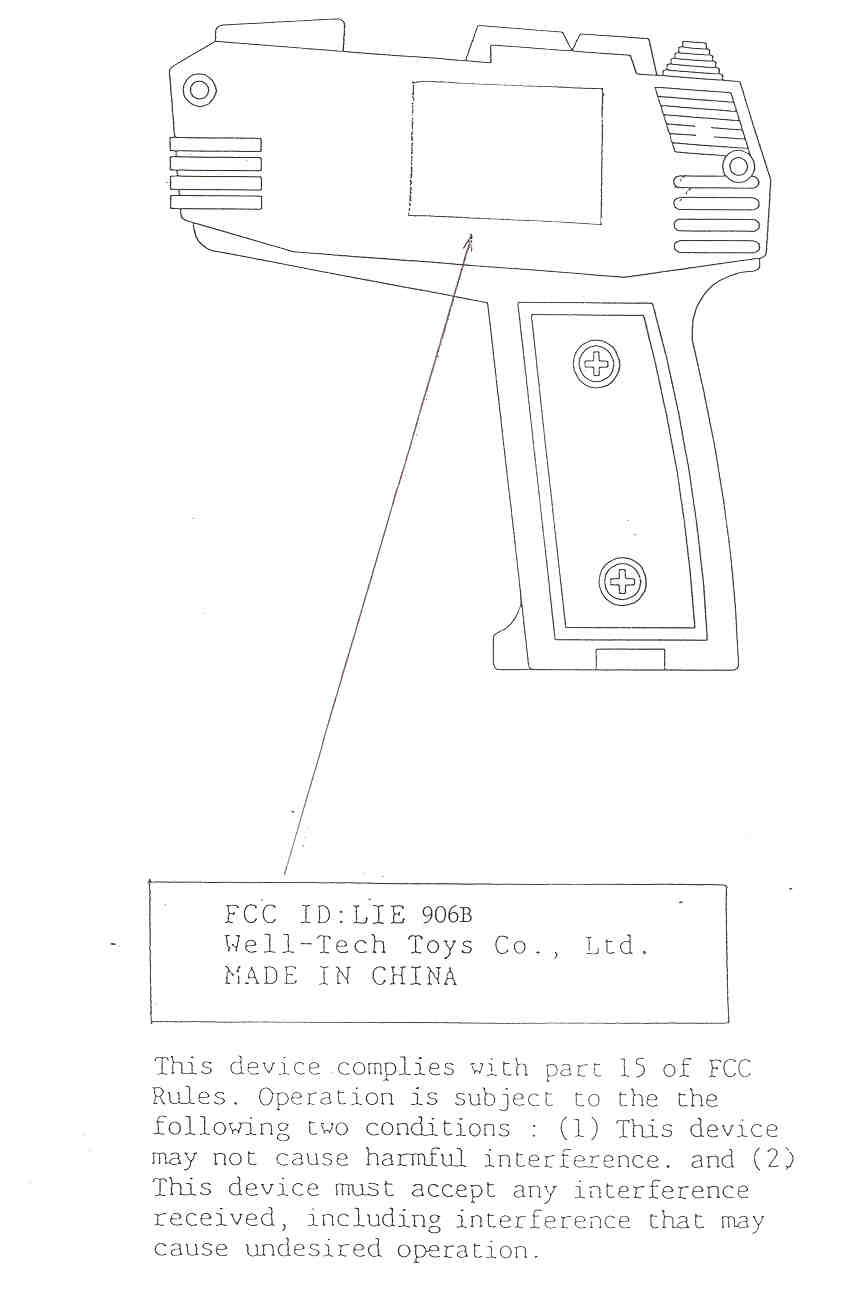

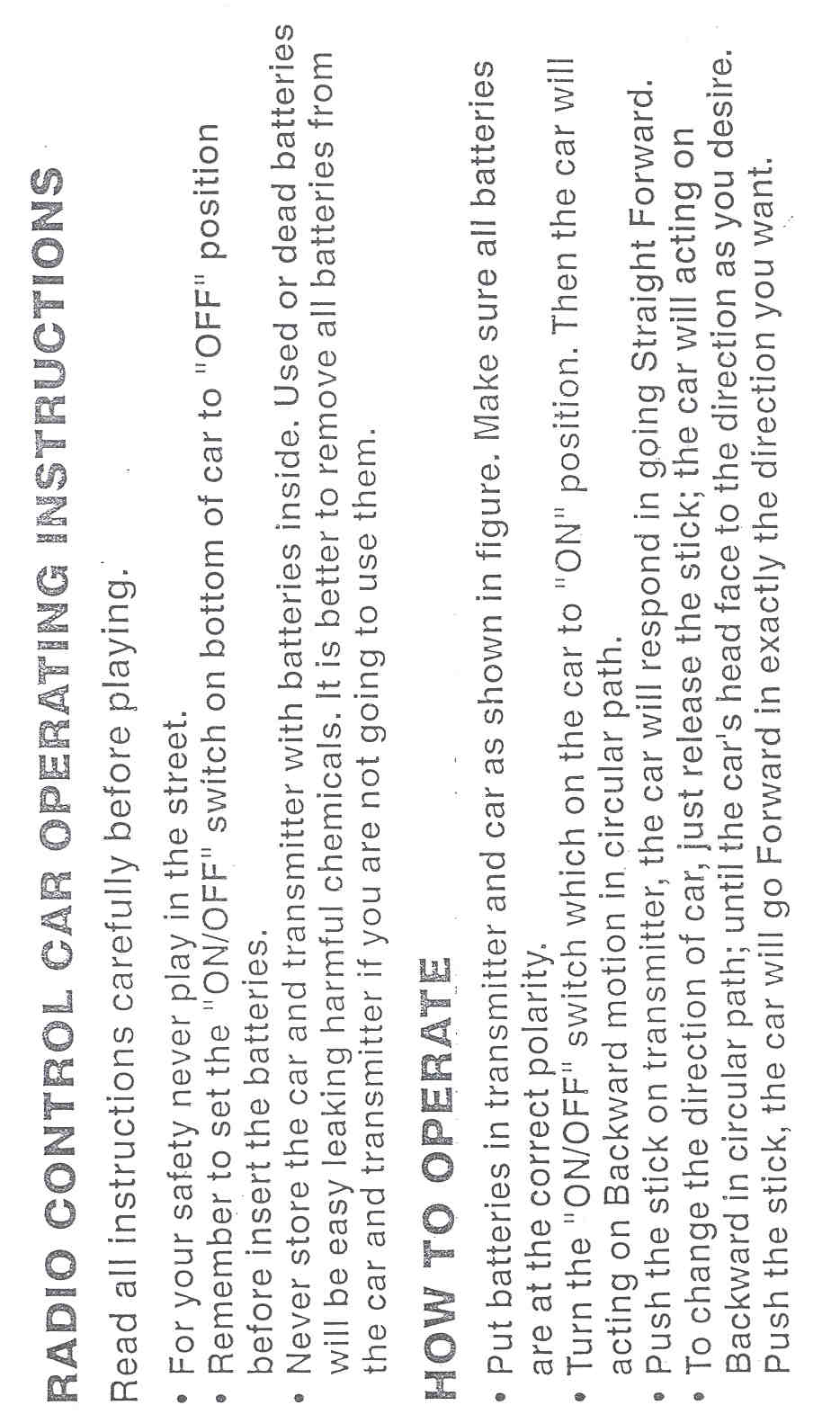

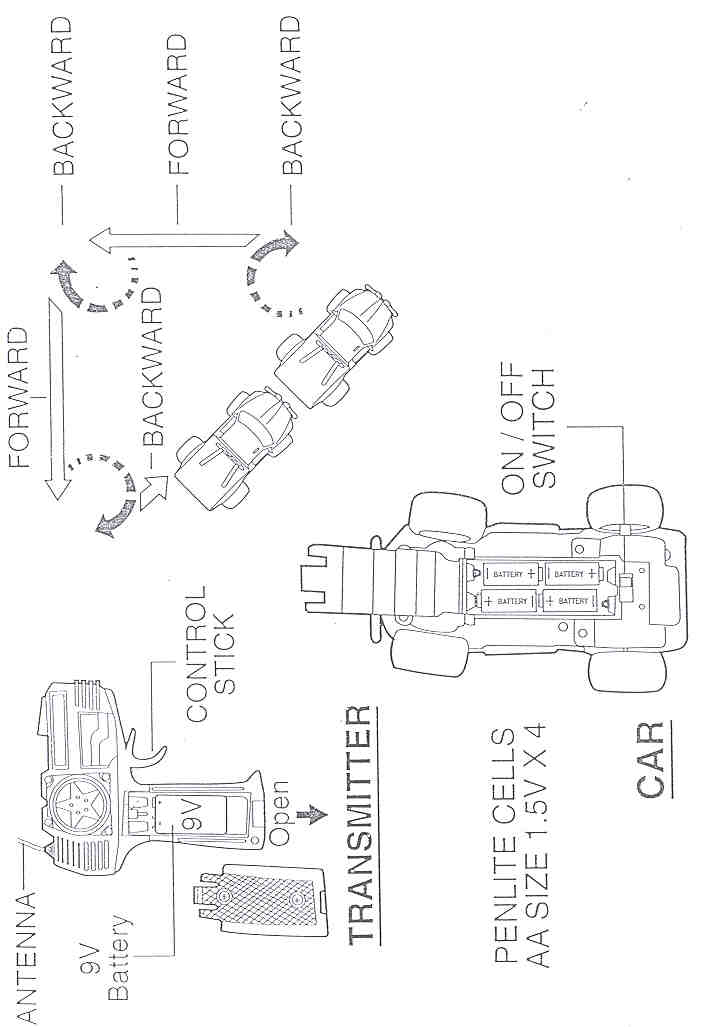

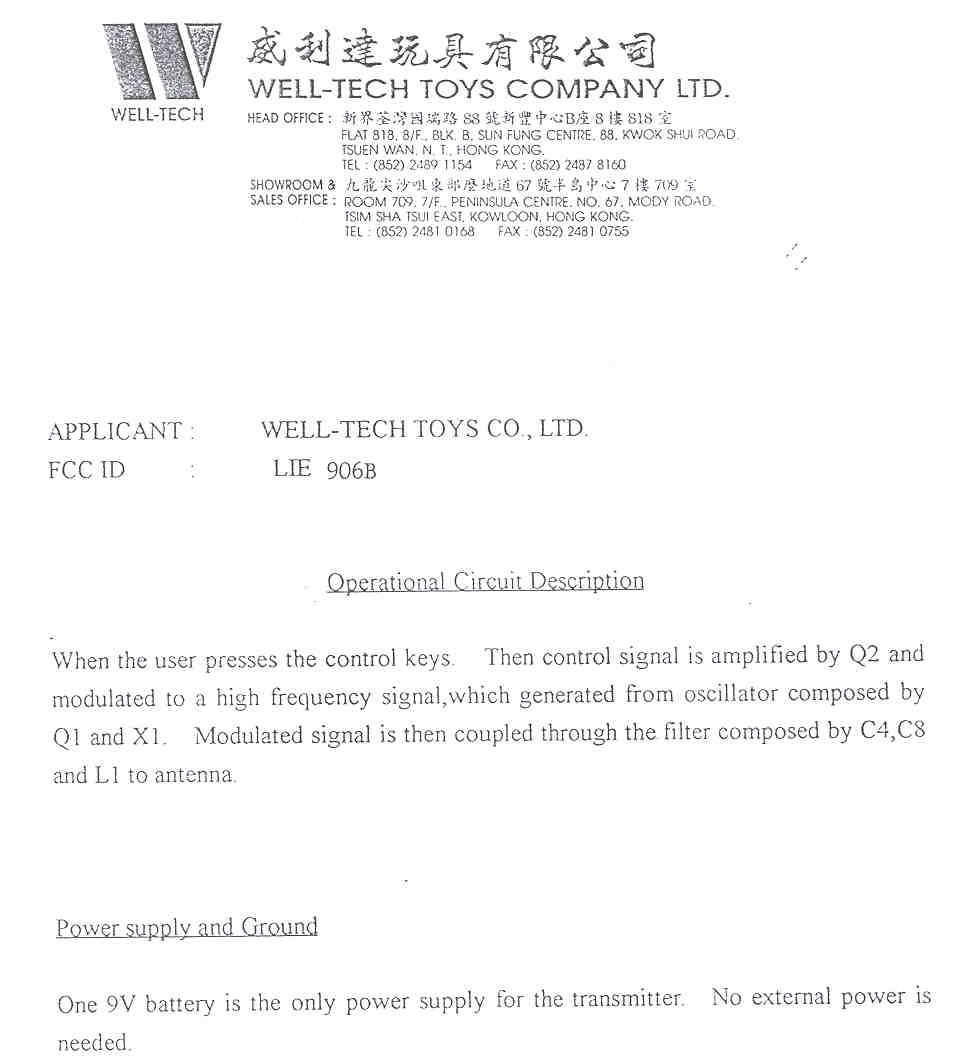

LIE906BRemote Control Toy Transmitter

Page 1 of 1 7/16/02file://C:\WINDOWS\Desktop\0207\FRONT.JPG

Page 1 of 1 7/16/02file://C:\WINDOWS\Desktop\0207\INSIDE.JPG

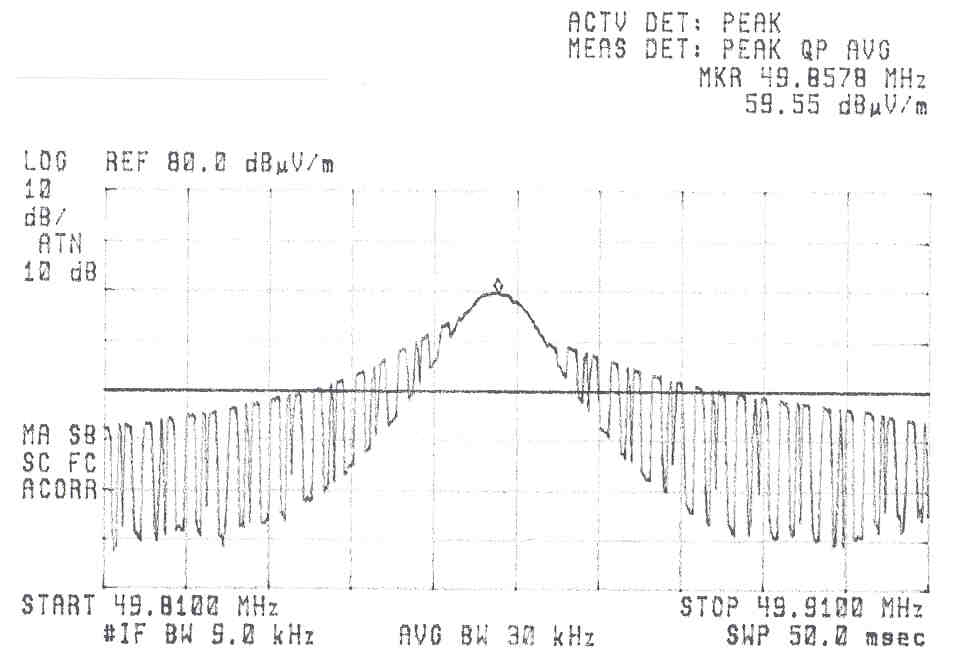

ADVANCED COMPLIANCE LABORATORY 6 Randolph Way Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 ELECTROMAGNETIC EMISSION COMPLIANCE REPORT of RADIO CONTROL TRANSMITTER MODEL: 906B FCC ID: LIE906B July 10, 2002 This report concerns (check one): Original grant x Class II change Equipment type: Low Power Intentional Radiator Deferred grant requested per 47 CF 0.457(d)(1)(ii)? yes no x If yes, defer until: (date) Company agrees to notify the Commission by (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? yes no x If no, assumed Part 15, Subpart B for unintentional radiators - the new 47 CFR [10-1-90 Edition] provision. Report prepared for: WELL-TECH TOYS CO., LTD. Report prepared by:Advanced Compliance Lab Report number:0048-020701-02T The test result in this report IS supported and covered by the NVLAP accreditation FCC ID: LIE906B ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 2 Table of Contents Report Cover Page ........................................................................................................ 1 Table of Contents........................................................................................................... 2 Figures............................................................................................................................ 3 1. GENERAL INFORMATION...................................................................................4 1.1 Verification of Compliance .........................................................................4 1.2 Equipment Modifications............................................................................5 1.3 Product Information....................................................................................6 1.4 Test Methodology ........................................................................................6 1.5 Test Facility..................................................................................................6 1.6 Test Equipment ............................................................................................6 1.7 Statement of the Document Use..................................................................7 2. PRODUCT LABELING............................................................................................8 3. SYSTEM TEST CONFIGURATION.......................................................................9 3.1 Justification..................................................................................................9 3.2 Special Accessories......................................................................................9 3.3 Configuration of Tested System..................................................................9 4. SYSTEM SCHEMATICS .........................................................................................12 5. RADIATED EMISSION DATA...............................................................................13 5.1 Field Strength Calculation .........................................................................13 5.2 Test Methods and Conditions .....................................................................13 5.3 Test Data.......................................................................................................13 6. PHOTOS OF TESTED EUT ....................................................................................15 FCC ID: LIE906B ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 3 Figures Figure 2.1 FCC ID Label ..............................................................................................8 Figure 2.2 Location of Label on Back of the EUT......................................................8 Figure 3.1 Radiated Test Setup, Position 1 .................................................................10 Figure 3.2 Radiated Test Setup, Position 2 .................................................................10 Figure 3.3 Radiated Test Setup, Position 3 .................................................................11 Figure 4.1 EUT Schematics ..........................................................................................12 Figure 6.1 Front View...................................................................................................15 Figure 6.2 Inside View, Cover Opened........................................................................16 Figure 6.3 Component Side ..........................................................................................17 Figure 6.4 Foil Side .......................................................................................................18 FCC ID: LIE906B ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 4 1. GENERAL INFORMATION 1.1 Verification of Compliance EUT:RADIO CONTROL TRANSMITTER Model:906B Applicant:WELL-TECH TOYS CO., LTD.. RM 1004, CHINACHEM GOLDEN PLAZA 77 MODY ROAD, TSIMSHATSUI EAST KOWLOON, HONGKONG Test Type:FCC Part 15C CERTIFICATION Result:PASS Tested by:ADVANCED COMPLIANCE LABORATORY Test Date:July 10, 2002 Report Number:0048-020701-02T The above equipment was tested by Compliance Laboratory, Advanced Technologies, Inc. for compliance with the requirement set forth in the FCC rules and regulations Part 15, subpart C. This said equipment in the configuration described in the report, shows the maximum emission levels emanating from equipment are within the compliance requirements. The estimated uncertainty of the test result is given as following. The method of uncertainty calculation is provided in Advanced Compliance Lab. Doc. No. 0048-01-01. Prob. Dist.Uncertainty(dB)Uncertainty(dB)Uncertaint…

Text truncated - open the document above for the full version.
