1 FCC ID:LK4GB-1000 GB-1000 Iwill four ports thin server THIN SERVER A CPU PGA370 GTL 1 CHIPSET VIA693A+596B PCI SLOT 1 W/RISER CARD LAN INTEL82559 * 4 ULTRA 160(Optional) N/A ATA66 IDE*2 YES FDD YES KEYBOARD YES W/CABLE PS/2 MOUSE N/A Hardware A20gate YES CPU FAN 1 SYS FAN 2 DOC DIP32*1 OR SMD32*2 USB 1 2S, 1P YES POWER CON. ATX 20PIN LAN LED FORNT+BACK SCSI 68PIN N/A FORNT CON. RESET+IDE+POWER CMOS CLEAR YES PCB SIZE 24*17CM HDD DEVICE N/A POWER SUPPLY 180W 5V 16A/12V 7A ACPI N/A 2 User manual Fan Connector JP1 FAN1 JP11 FAN2 JP12 FAN3 JP13 FAN4 CPU ratio JP3 ratio 1-5 2-6 3-7 4-8 3.5X ON OFF ON OFF 4X OFF ON ON ON 4.5X OFF ON ON OFF 5X OFF OFF ON ON 5.5X OFF OFF ON OFF 6X ON ON OFF ON 6.5 ON ON OFF OFF 7X ON OFF OFF ON 7.5X ON OFF OFF OFF 8X OFF ON OFF ON FSB speed JP5 FSB JP5 (OTHER OFF) 66Mhz 8-7,6-5(DEFAULT) 100Mhz 8-7 133Mhz OFF FORNT PANEL JP6 RESET:1-2 POWER LED: 3-4 IDE LED:5-6 CMOS RAM CLEAN JP7 1-2 NORMAL 2-3 CLEAN (MUST ON POWER-OFF SETTING) 3 DOC SELECTOR JP8 (SMD TYPE U23,24) ADDRESS JP8 OTHER OFF C800-C9FF 1-2 ON D000-D1FF 3-4 ON D800-D9FF 5-6 ON DOC SELECTOR JP9 (DIP TYPE U21) ADDRESS JP9 OTHER OFF C800-C9FF 1-2 ON D000-D1FF 3-4 ON D800-D9FF 5-6 ON LAN PORT LED JP10 100MBPS ACTIVE/LINK LAN PORT 1 1-3 2-4 LAN PORT 2 5-7 6-8 LAN PORT 3 9-11 10-12 LAN PORT 4 13-15 14-16 P S/2 keyboard connector J6 1 Keyboard Data 2 NC 3 GND 4 VCC 5 Keyboard Clock FCC GUIDELINES This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ♦ Reorient or relocate the receiving antenna ♦ Increase the separation between the equipment and receiver ♦ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ♦ Consult the dealer or an experienced radio/TV technician for help. ♦ Use only shielded cables to connect I/O devices to this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Information to User: F Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Shielded interface cable, if any, must be used in order to comply with emission limits. IBM AT and PS/2 are registered trademarks of International Business Machines Corporation. Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries. All other trademarks are trademarks of their respective holders. 3100504464 Version 1.0 November 1999 Printed in China

8 8 7 7 6 6 5 5 4 4 3 3 2 2 1 1 DD CC BB AA HOST BUS PCI BUS 324 BGA ISA BUS CLOCK 2 USB CONN. 82C596B ADDR CNTL DATA ADDRCNTLDATA CONTROL CNTL 492 BGA ADDR ADD/DATA PAC MEMORY CNTL CONNECTOR DATA ULTRA I/O KEYBOARD MOUSE FLASH BIOS PARA. CONN. FLOPPY CONN. DATA AD DR CN TL DA TA SER. CONN. SER. CONN. ADDR USBUSB ADDR/DATA CNTL ADDR/DATACNTL PRIM ARY ID E SECO NDARY ID E ADDR/DATA CNTL 2 PCI IDE CONNECTORS PCI CO NNECTOR DATA ADDR CNTL 3 DIMM MODULES VRM VTT GEN. |LINK |2.SCH |3.SCH |4.SCH |5.SCH |6.SCH |7.SCH |8.SCH |9.SCH |10.SCH |11.SCH |12.SCH |13.SCH |14.SCH |15.SCH |16.SCH |17.SCH |18.SCH |19.SCH |20.SCH |21.SCH |23.SCH P. 2,3 P. 4P. 19 P. 5,6,7 P. 8 P. 9,10 P. 15 P. 14 P.16 P. 18 P. 17P. 16 P. 15 P. 15 82C693A Mendocino SOCKET370 |24.SCH |25.SCH |26.SCH |22.SCH P. 11 i82559 LAN x 4ports CNTL ADDR/DATA 66,100,133Mhz 66,100,133Mhz 66,100,133Mhz 33Mhz 33Mhz 24Mhz 33Mhz IWLAN1.3A FLOW CHART IWILL CORPORATION No.10 Wu-Chuan 3 Rd., Hsin-Chuang City, Taipei, Taiwan B 126 IWILL CONFIDENTIAL Wednesday, February 14, 2001 Title SizeDocument NumberRev Date:Sheet of

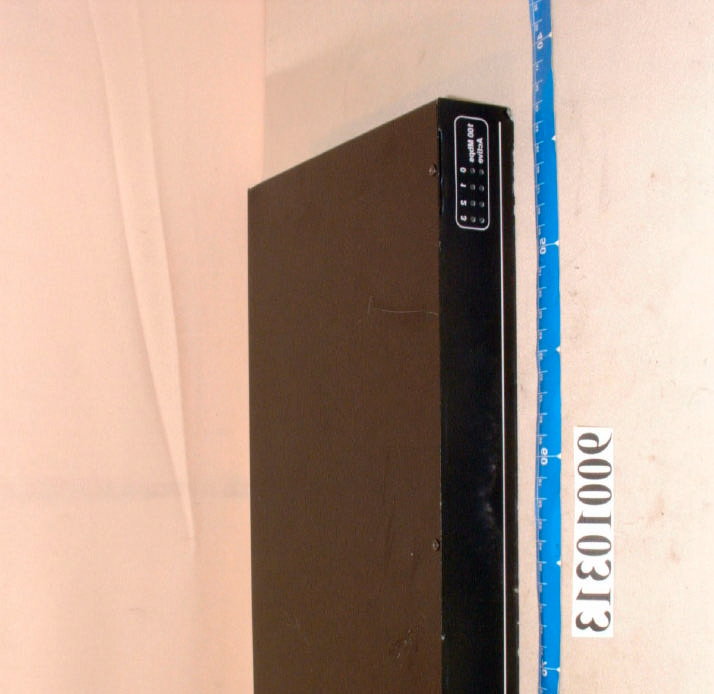

(Photo 1) FCC ID: lkK4GB-1000 (Photo 2) FCC ID: lkK4GB-1000 (Photo 2) FCC ID: lkK4GB-1000
