LM6-LF10WQWCLife Fitness 10W Wireless Charger

9525 BRYN MAWR AVENUE ROSEMONT IL 60018 | 847.288. 3300 | LIFEFITNESS.COM Life Fitness 10W Wireless Charger User Manual V1. 1 10W Wireless Charger User Manual V1.1 2 For your safety, please read this manual carefully before using and integrating this product. 1. Overview Life Fitness 10W Wireless Charger is a universal wireless charging module that can be easily integrated to the various equipment host embedded board. The equipment installed with the module allow user to simply place their mobile phone on its surface to charge wirelessly. LED Indicator Wireless Charging Surface Power Connector Regulatory Labeling Location 10W Wireless Charger User Manual V1.1 3 2. Specification  Product Name: Life Fitness 10W Wireless Charger  Model No: 1011883-0001  Input: 12V/1.5A (powered via host wire cable 1014289-0001 )  Output Power: 10W Max  Operating Frequency: 120KHz ~ 130KHz  Module Dimension: 120mm (L) x 65mm (W) x 10.6mm(H)  Operating Temperature: 0 ºC ~ 40 ºC 3. Installation and Integration Instruction 1. Install the wireless charger with coil facing toward the charging surface of the equipment and secure the wireless charger through the four φ3.5mm mounting hole. 10W Wireless Charger User Manual V1.1 4 2. Plug one end of the power wire cable (P/N: 1014289-0001 ) to the power connector and the other end to the host embedded board. 3. The wireless charger blue LED indicator should come on for 1s when power is supplied to the module. 4. Place a mobile device that is compliant to WPC (Wireless Power Consortium) standard on the wireless charging surface to start charging automatically. 5. When the charger is in normal state and start charging, the blue LED indicator should be constantly on. Wireless Charger State Blue LED1 Blue LED 2 Initialization On (for 1s) Standby Off Charging On (Constant) Error/Fault Off 10W Wireless Charger User Manual V1.1 5 4. Precautions  Do not attempt to disassemble or repair this product. It can cause electric shock and damage to the circuit.  The product should be kept in dry and ventilated environment, do not store in an area of high humidity and high temperature.  Do not use the wireless charger in severely hot, humid or corrosive conditions.  Do not place cards equipped with a magnetic strip or chip (such as ATM and credit cards) on the charging surface when charging to avoid possible card reading failures.  This wireless charger is specifically designed for Life Fitness equipment integration used, so use this module as it original purpose only. 5. Regulatory Compliance Notices FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is Subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not explicitly approved by the party responsible for compliance could void the user's authority to operate this equipment. Note: this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. 10W Wireless Charger User Manual V1.1 6 These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and candidate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. During the operation of device a distance of 15 cm surrounding the device and 20 cm above the top surface of the device must be respected. RSS Compliance Statement This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. During the operation of device a distance of 10 cm surrounding the device and 10 cm above the top surface of the device must be respected. 10W Wireless Charger User Manual V1.1 7 Cet équipement est conforme Canada limites d'exposition aux radiations dans un environnement non contrôlé. A u cours de l'opé ration de l'appareil sur une distance de 10 cm autour de l'appareil et de 10 cm au - dessus de la surface supérieure de l'appareil doit être respecté.

DATE 2020/12/16 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification (FCC ID: LM6-LF10WQWC ) Authority to Act as Agent On our behalf, I appoint Chenz Ker (MRT Technology (Taiwan) Co., Ltd./ No.38 Fuxing 2 nd Road, Guishan Dist., Taoyuan City, Taiwan 33377). to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Life Fitness / 10601 W. Belmont, Franklin Park, Illinois 60131, United States Dated this 2020/12/16 Agency agreement expiration date: 2021/5/15 By: Margaret Wang Signature Printed Title: Regulatory Compliance Manager On behalf of : Life Fitness

DATE : 2020/12/16 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: LM6-LF10WQWC Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2020/12/16 By: Margaret Wang Signature Printed Title: Regulatory Compliance Manager On behalf of : Life Fitness

Cover Letter- Wireless Charger Approval Date: 2020/12/16 To whom it may concern: We have declared below featured for FCC equipment authorization as an Inductive wireless power transfer applications approval ( KDB 680106 D01v03 section 5,b). Device FCC ID: LM6-LF10WQWC, IC: 23315-LF10WQWC Requirements Result (1) Power transfer frequency is less than 1 MHz. Pass, The Device operates at a frequency range is 120KHz ~ 130KHz (2) Output power from each primary coil is less than or equal to 15 watts. Pass, The primary coil is 10watts (3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. Pass, - The transfer system includes charging systems with multiple primary coils. - They are able to detect one coil, but the device does not allow 3 coils to charging at same time. (4) Client device is placed directly in contact with the transmitter. Pass, Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Pass, Mobile exposure conditions only (6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Pass, H-field strengths at 15cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Dated this 2020/12/16 By: Margaret Wang Signature Printed Title: Regulatory Compliance Manager On behalf of : Life Fitness

Report No.: 2010TWA301-U2 Product: Life Fitness 10W Wireless Charger Brand Name: Life Fitness Model Number: 1011883-0001 1 of 3 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2010TWA301-U2 2 of 3 (3) EUT Photo (4) EUT Photo Report No.: 2010TWA301-U2 3 of 3 (5) EUT Photo (6) EUT Photo

Regulatory Labeling Location Regulatory Labeling Location

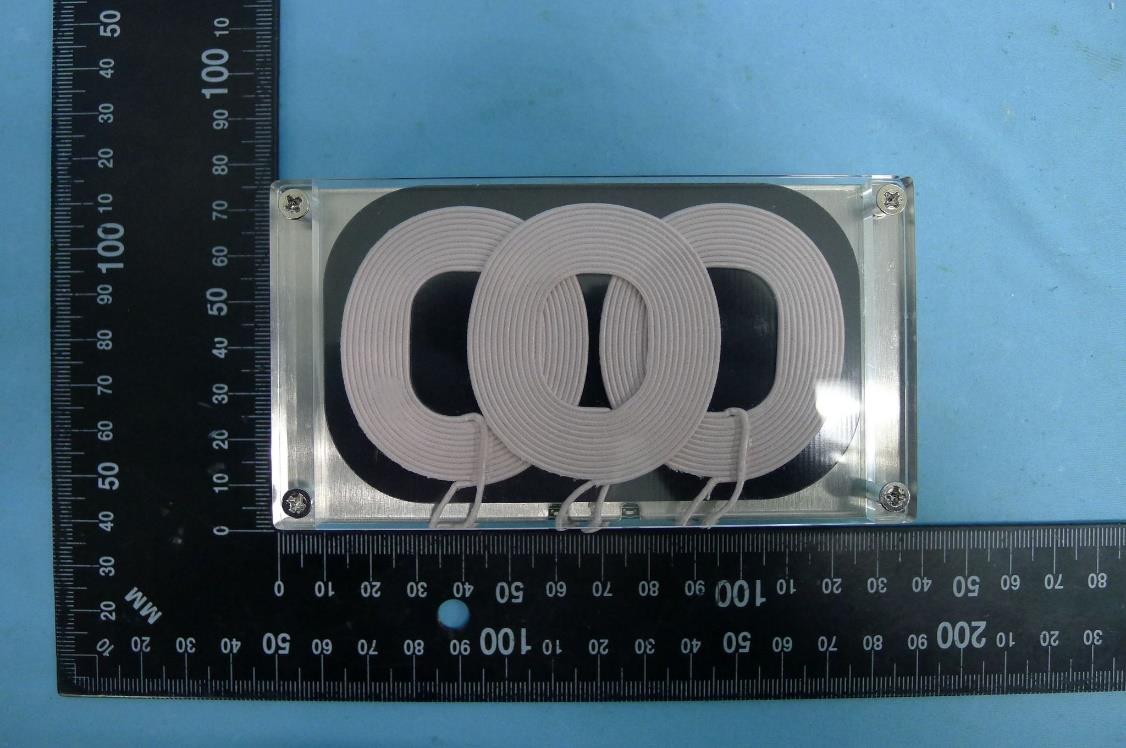

Report No.: 2010TWA301-U2 Product: Life Fitness 10W Wireless Charger Brand Name: Life Fitness Model Number: 1011883-0001 1 of 3 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2010TWA301-U2 2 of 3 (3) EUT Photo (4) EUT Photo Report No.: 2010TWA301-U2 3 of 3 (5) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2012RSU048-U1 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 12-30-2020 1 of 13 RF Exposure Evaluation Declaration FCC ID: LM6-LF10WQWC Application: Life Fitness Application Type: Certification Product: Life Fitness 10W Wireless Charger Model No.: 1011883-0001 Brand Name: Life Fitness FCC Classification: Part 15 Low Power Transmitter Below 1705 kHz (DCD) Test Date: December 15 ~ 22, 2020 Reviewed By : ( Kevin Guo ) Approved By : ( Robin Wu ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2012RSU048-U1 2 of 13 Revision History Report No. Version Description Issue Date Note 2012RSU048-U1 Rev. 01 Initial Report 12-30-2020 Report No.: 2012RSU048-U1 3 of 13 CONTENTS Description Page 1. General Information ............................................................................................................ 4 1.1. Applicant ................................................................................................................ 4 1.2. Manufacturer ......................................................................................................... 4 1.3. Testing Facility ....................................................................................................... 4 2. PRODUCT INFORMATION .................................................................................................. 5 2.1. Equipment Description ........................................................................................... 5 2.2. Description of Coil .................................................................................................. 5 3. TEST EQUIPMENT CALIBRATION DATE ........................................................................... 6 4. RF EXPOSURE EVALUATION ............................................................................................ 7 4.1. Limits ..................................................................................................................... 7 4.2. EQUIPMENT APPROVAL CONSIDERATIONS ON KDB 680106 D01v03 ............ 8 4.3. Test Setup ............................................................................................................. 9 4.4. Test System Details ............................................................................................... 9 4.5. Test Result of RF Exposure Evaluation.................................................................10 Appendix A - Test Setup Photograph .......................................................................................13 Report No.: 2012RSU048-U1 4 of 13 1. General Information 1.1. Applicant Life Fitness 10601 W. Belmont, Franklin Park, Illinois 60131, United States 1.2. Manufacturer Promate Solutions Corporation. 1F, No. 30, Section 1, Huanshan Road. Neihu District, Taipei, 11442 Taiwan. 1.3. Testing Facility Test Site – MRT Suzhou Laboratory Laboratory Location (Suzhou – Wuzhong) D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Laboratory Location (Suzhou – SIP) 4b Building, Liando U Valley, No.200 Xingpu Rd., Shengpu Town, Suzhou Industrial Park, China Laboratory Accreditations A2LA: 3628.01 CNAS: L10551 FCC: CN1166 ISED: CN0001 VCCI: R-20025, G-20034, C-20020, T-20020 Test Site – MRT Shenzhen Laboratory Laboratory Location (Shenzhen) 1G, Building A, Junxiangda Building, Zhongshanyuan Road West, Nanshan District, Shenzhen, China Laboratory Accreditations A2LA: 3628.02 CNAS: L10551 FCC: CN1284 ISED: CN0105 Test Site – MRT Taiwan Laboratory Laboratory Location (Taiwan) No. 38, Fuxing 2 nd Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Laboratory Accreditations TAF: L3261-190725 FCC: 291082, TW3261 ISED: TW3261 Report No.: 2012RSU048-U1 5 of 13 2. PRODUCT INFORMATION 2.1. Equipment Description 2.2. Description of Coil The location of coil Product Name Life Fitness 10W Wireless Charger Model No. 1011883-0001 Brand Name Life Fitness Working Frequency Range 120kHz ~ 130kHz Modulation Type FSK Working Temperature Range -10 ~ 45°C Input 12V⎓1.5A Max Output 10W MAX Report No.: 2012RSU048-U1 6 of 13 3. TEST EQUIPMENT CALIBRATION DATE Instrument Manufacturer Type No. Asset No. Cali. Interval Cali. Due Date CARRIES SENSOR narda EMR-20 MRTSUE10033 1 year 2021/06/15 Report No.: 2012RSU048-U1 7 of 13 4. RF EXPOSURE EVALUATION 4.1. Limits §1.1310 Radiofrequency radiation exposure limits. Below sets forth limits for Maximum Permissible Exposure (MPE) to radiofrequency electromagnetic fields Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) (A) Limits for Occupational/ Control Exposures 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f2 6 30-300 61.4 0.163 1.0 6 300-1,500 -- -- f/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f2 30 30-300 27.5 0.073 0.2 30 300-1,500 -- -- f/1500 30 1,500-100,000 -- -- 1.0 30 f= Frequency in MHz * = Plane-wave equivalent power density Report No.: 2012RSU048-U1 8 of 13 4.2. EQUIPMENT APPROVAL CONSIDERATIONS ON KDB 680106 D01v03 EQUIPMENT APPROVAL CONSIDERATIONS COMPLY 1) Power transfer frequency is less than 1 MHz Yes. Wireless operating frequency range: 120kHz ~ 130kHz 2) Output power from each primary coil is less than or equal to 15 watts. No. Wireless maximum transmitted power: 10W Max. 3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. Yes. Onl…

Text truncated - open the document above for the full version.

MRT Technology (Taiwan) Co., Ltd Report No.: 2010TWA301-U2 Phone: +886-3-3288388 Report Version: 1.0 Fax: +886-3-3288918 Issue Date: 2021-01-18 Web: www.mrt-cert.com FCC ID: LM6-LF10WQWC Page Number: 1 of 65 FCC ID: LM6-LF10WQWC APPLICANT: Life Fitness Application Type: Certification Product: Life Fitness 10W Wireless Charger Model No.: 1011883-0001 Brand Name: Life Fitness FCC Classification: DCD-Part 15 Low Power Transmitter Below 1705KHz FCC Rule Part(s): Part 15.209 Test Procedure(s): ANSI C63.10-2013 Received Date: October 30, 2020 Test Date: November 11~14, 2020 MEASUREMENT REPORT FCC PART 15.209 Tested By : ( Fran Chen ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results only relate to the tested sample. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2010TWA301-U2 FCC ID: LM6-LF10WQWC Page Number: 2 of 65 Revision History Report No. Version Description Issue Date Note 2010TWA301-U2 1.0 Original Report 2021-01-18 Report No.: 2010TWA301-U2 FCC ID: LM6-LF10WQWC Page Number: 3 of 65 CONTENTS Description Page §2.1033 General Information ..........................................................................................................5 1. INTRODUCTION ......................................................................................................................6 1.1. Scope ............................................................................................................................ 6 1.2. MRT Test Location ......................................................................................................... 6 2. PRODUCT INFORMATION ......................................................................................................7 2.1. Equipment Description .................................................................................................. 7 2.2. Test Mode ...................................................................................................................... 7 2.3. Test Software ................................................................................................................. 8 2.4. Test Configuration.......................................................................................................... 8 2.5. EMI Suppression Device(s)/Modifications ...................................................................... 8 2.6. Labeling Requirements .................................................................................................. 8 3. DESCRIPTION of TEST ...........................................................................................................9 3.1. Evaluation Procedure .................................................................................................... 9 3.2. AC Line Conducted Emissions ...................................................................................... 9 3.3. Radiated Emissions ..................................................................................................... 10 4. ANTENNA REQUIREMENTS ................................................................................................. 11 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................. 12 6. MEASUREMENT UNCERTAINTY.......................................................................................... 13 7. TEST RESULT ....................................................................................................................... 14 7.1. Summary ..................................................................................................................... 14 7.2. Radiated Spurious Emissions and Field Strength of Fundamental Emissions Measurement .............................................................................................................................. 15 7.2.1. Test Limit ................................................................................................................. 15 7.2.2. Test Procedure Used ............................................................................................... 15 7.2.3. Test Setup ............................................................................................................... 17 7.2.4. Test Result ............................................................................................................... 18 7.3. 20dB Bandwidth Measurement .................................................................................... 54 7.3.1. Test Limit ................................................................................................................. 54 7.3.2. Test Procedure Used ............................................................................................... 54 7.3.3. Test Setting .............................................................................................................. 54 7.3.4. Test Setup ............................................................................................................... 54 7.3.5. Test Result ............................................................................................................... 55 7.4. AC Conducted Emissions Measurement ..................................................................... 56 Report No.: 2010TWA301-U2 FCC ID: LM6-LF10WQWC Page Number: 4 of 65 7.4.1. Test Limit ................................................................................................................. 56 7.4.2. Test Setup ............................................................................................................... 56 7.4.3. Te…

Text truncated - open the document above for the full version.

Report No.: 2012RSU048-UT 1 of 3 RF Test Setup Photograph Description: RF Exposure Test Setup (Front Side: 15cm) Description: RF Exposure Test Setup (Rear Side: 15cm) 15cm 15cm Report No.: 2012RSU048-UT 2 of 3 Description: RF Exposure Test Setup (Right Side: 15cm) Description: RF Exposure Test Setup (Left Side: 15cm) 15cm 15cm Report No.: 2012RSU048-UT 3 of 3 Description: RF Exposure Test Setup (Top Side: 15cm) 15cm

Report No.: 2010TWA301-U2 Product: Life Fitness 10W Wireless Charger Brand Name: Life Fitness Model Number: 1011883-0001 1 of 2 Test Photograph Test Mode 1 Description: Front View of Conducted Emission Test Setup Test Mode 1 Description: Back View of Conducted Emission Test Setup Report No.: 2010TWA301-U2 2 of 2 Test Mode: Mode 1~6 Description: Radiated Emission Test Setup for 9KHz ~ 30MHz Test Mode: Mode 1~6 Description: Radiated Emission Test Setup for 30MHz ~ 1GHz
