LOH543403Radio Jukebox - RF light

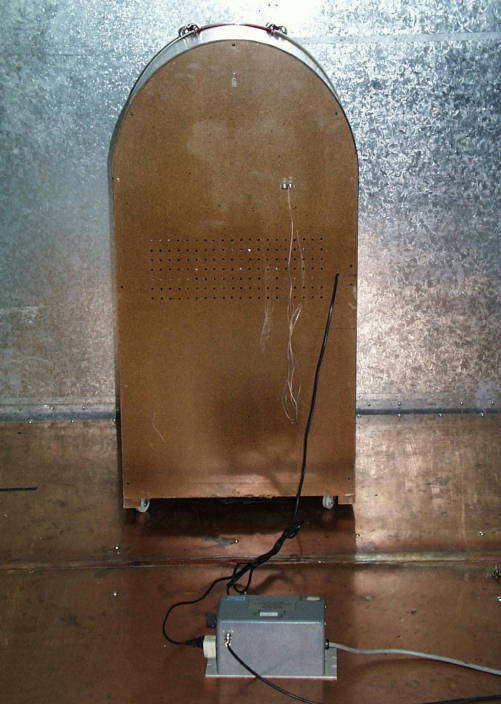

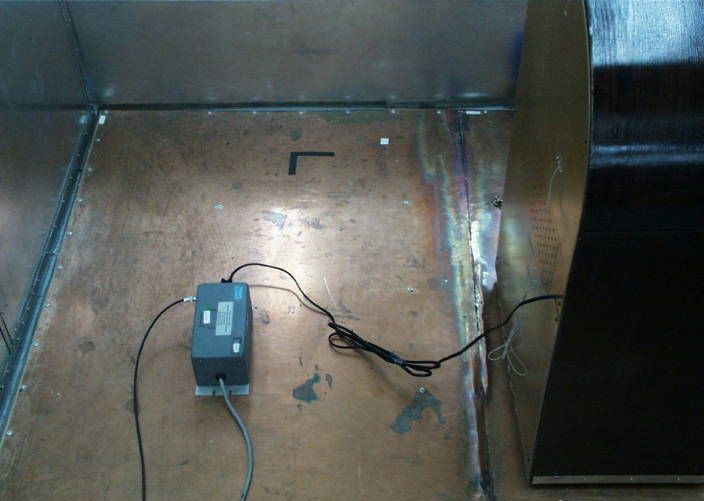

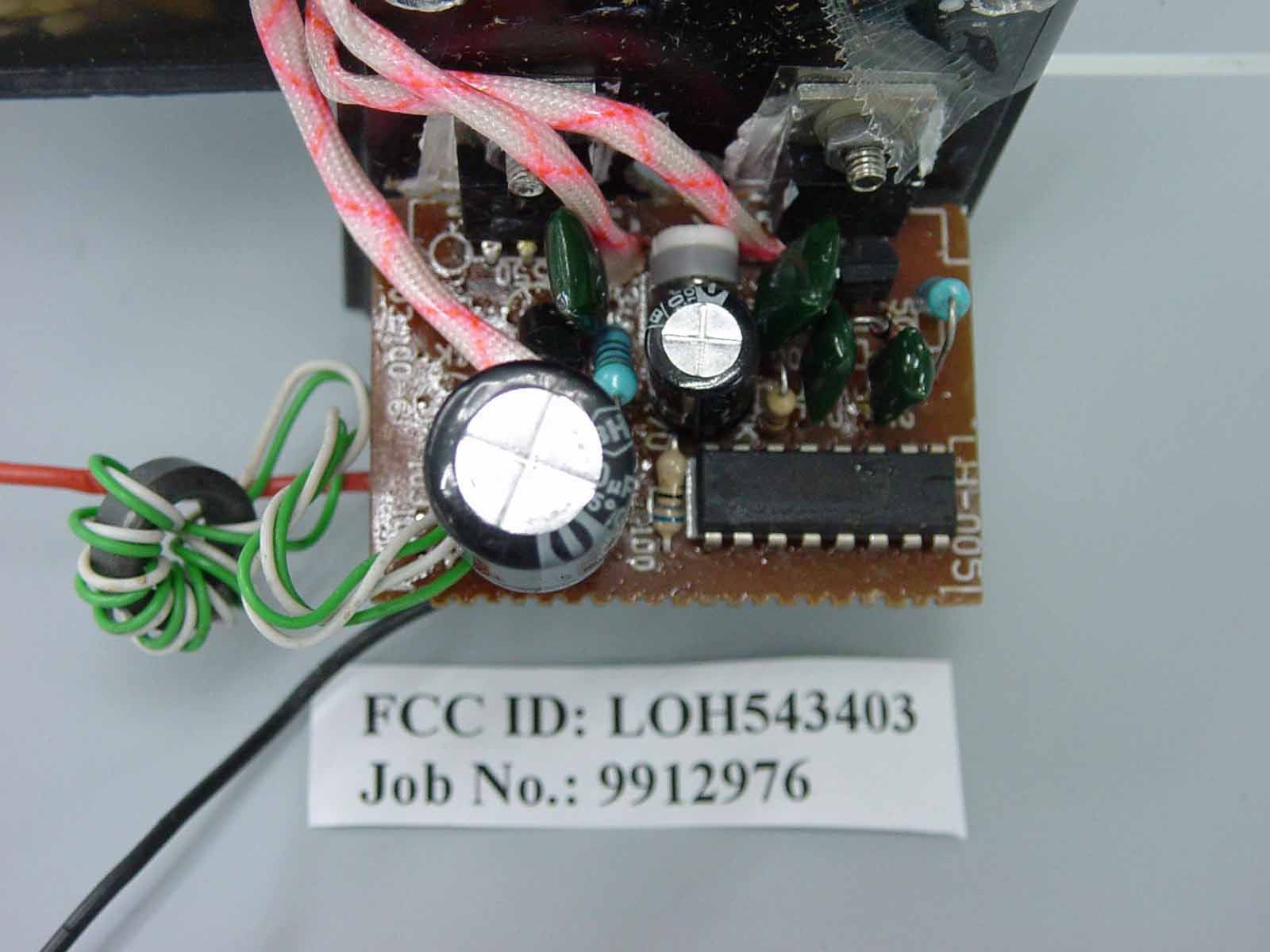

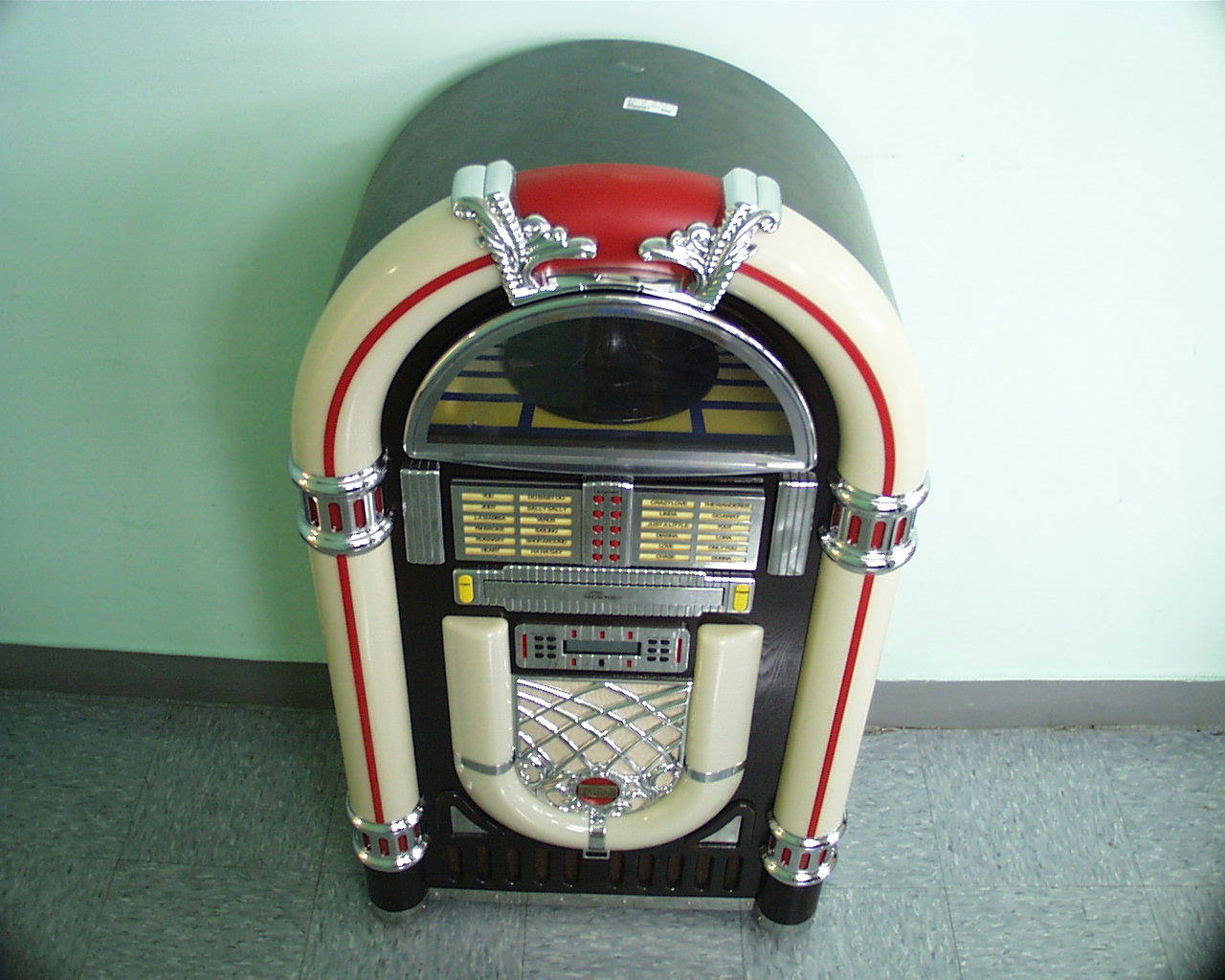

Inte rte k Te sting Se rvice s Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2713 8888 Fax: (852) 2745 8306 Pollyflame Concept (HK) Ltd. Application For Certification (FCC ID: LOH543403) RF Lighting Device WO#9912976 CKL/at April 3, 2000 INTERTEK TESTING SERVICES FCC ID: LOH543403 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1 :General Description EXHIBIT 2 :System Test Configuration EXHIBIT 3 :Emission Results EXHIBIT 4 :Equipment Photographs EXHIBIT 5 :Product Labelling EXHIBIT 6 :Technical Specifications EXHIBIT 7 :Instruction Manual INTERTEK TESTING SERVICES FCC ID: LOH543403 ii MEASUREMENT/TECHNICAL REPORT Pollyflame Concept (HK) Ltd. - MODEL: 543.403 FCC ID: LOH543403 April 3, 2000 This report concerns (check one:)Original Grant X Class II Change Equipment Type: RF Lighting Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by:C. K. Lam Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2713-8512 Fax:852-2742-9149 INTERTEK TESTING SERVICES FCC ID: LOH543403 iii Table of Contents 1.0 General Description ................................................................................................................ 2 1.1 Product Description............................................................................................................. 2 1.2 Related Submittal(s) Grants.................................................................................................2 1.3 Test Methodology................................................................................................................ 3 1.4 Test Facility......................................................................................................................... 3 1.5 Equipment List .................................................................................................................... 4 2.0 System Test Configuration ...................................................................................................... 6 2.1 Justification.......................................................................................................................... 6 2.2 EUT Exercising Software ....................................................................................................6 2.3 Special Accessories ............................................................................................................. 6 2.4 Equipment Modification......................................................................................................7 2.5 Support Equipment List and Description ............................................................................ 7 3.0 Emission Results ...................................................................................................................... 9 3.1 Field Strength Calculation .................................................................................................10 3.1 Field Strength Calculation (cont)....................................................................................... 11 3.2 Radiated Emission Configuration Photograph .................................................................. 12 3.3 Radiated Emission Data .................................................................................................... 13 3.4 Line Conducted Configuration Photograph (cont’d) ........................................................ 15 3.5 Line Conducted Emission Data ......................................................................................... 16 4.0 Equipment Photographs ....................................................................................................... 18 5.0 Product Labelling .................................................................................................................. 20 6.0 Technical Specifications ........................................................................................................ 22 7.0 Instruction Manual ................................................................................................................ 24 INTERTEK TESTING SERVICES FCC ID: LOH543403 iv List of attached file Exhibit typeFile Descriptionfilename Cover LetterLetter of Agencyletter.pdf Test ReportTest Reportreport.doc Test Setup PhotoRadiated Emissionradiated1.jpg to radiated2.jpg Test Setup PhotoConducted Emissionconduct1.jpg to conduct3.jpg Test ReportConducted Emission Test Resultconduct.pdf External PhotoExternal Photoophoto1.jpg Internal PhotoInternal Photoiphoto1.jpg to iphoto4.jpg Block DiagramBlock Diagramblock.pdf SchematicsCircuit Diagramcircuit.pdf ID Label/LocationLabel Artwork and Locationlabel.pdf User ManualUser Manualmanual.pdf INTERTEK TESTING SERVICES FCC ID: LOH543403 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: LOH543403 2 1.0 General Description 1.1Product Description The equipment under test (EUT) is a RF lighting consisting of an electronic ballast which is one of the parts of the 3CD jukebox. It works independently by pressing a switch. The EUT is operated at 32kHz and powered by AC 120V, 60Hz. The brief circuit description is listed as follows: - IC1, Q1, Q2 and associated circuit act as an oscillator - Q3, Q4 and associated circuit act as an amplifier 1.2Related Submittal(s) Grants This is a single application for certification of a consumer RF lighting device. INTERTEK TESTING SERVICES FCC ID: LOH543403 3 1.3Test Methodology Both AC mains line-conducted and radiated emission measurements were performed according to the procedures in MP-5. All measurements were performed in Open Area Test Sites. Preliminary scans were performed in the Open Area Test Sites only to determine worst case modes. For each scan, the procedure for maximizi…
