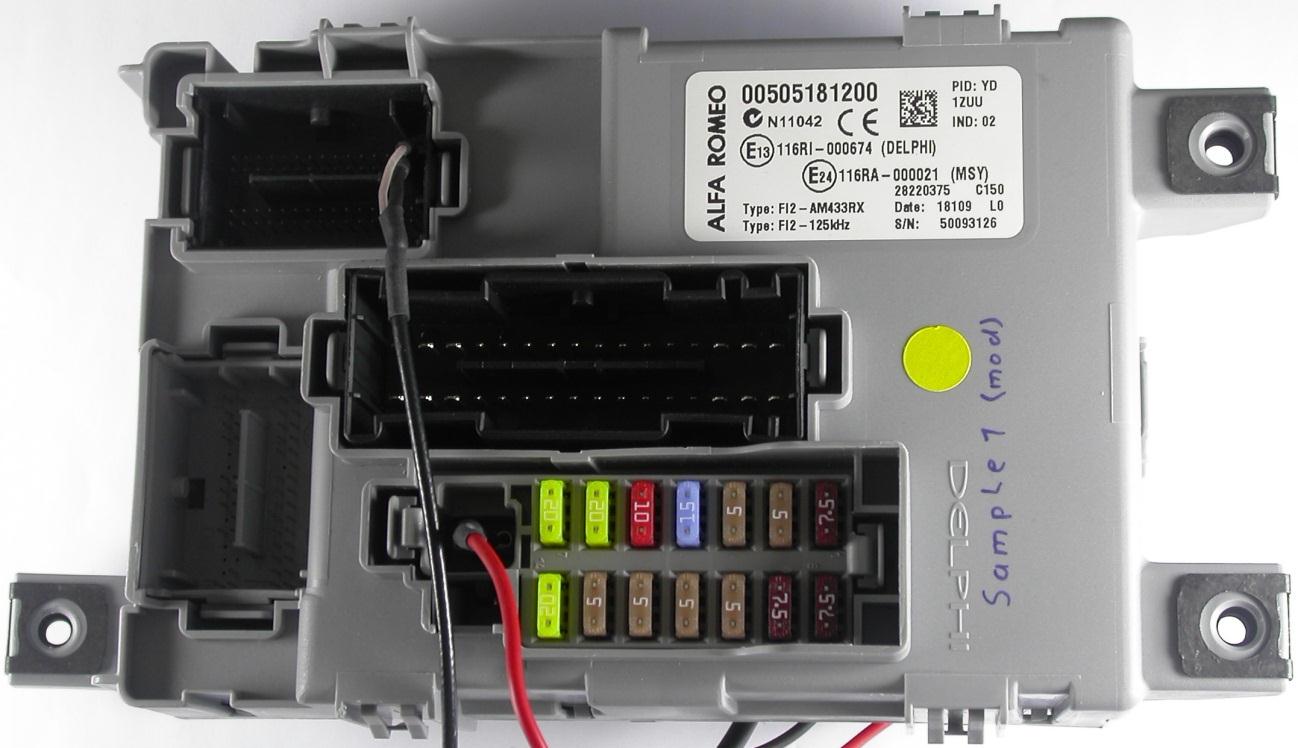

1 E Q U I P M E N T U N D E R T E S T 1.1 Photo documentation of the EUT Test Setup: Front view Rear view Side views:

Bottom view: Rear view: Side views: Rear View: Front view: Front view open cover: Side view:

FCC ID: LTQFI2125 mikes-testingpartners gmbh File No. T31654-26-00HU, page 1 of 24 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 EMI − T E S T R E P O R T - FCC Part 15.209 - Test Report No. : T31654-26-00HU 03. August 2011 ______________________________________________________________________________________________ Date of issue Type / Model Name : FI2-125kHz Product Description : Vehicle Immobilizer Applicant : Delphi Deutschland GmbH Address : Wiehlpuhl 4 D-51766 Engelskirchen Manufacturer : Delphi Deutschland GmbH Address : Wiehlpuhl 4 D-51766 Engelskirchen Licence holder : Delphi Deutschland GmbH Address : Wiehlpuhl 4 D-51766 Engelskirchen Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test FCC ID: LTQFI2125 mikes-testingpartners gmbh File No. T31654-26-00HU, page 2 of 24 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 Contents 1 T E S T S T A N D A R D S 3 2 S U M M A R Y 4 3 E Q U I P M E N T U N D E R T E S T 5 3.1 Photo documentation of the EUT 5 3.2 Power supply system utilised 12 3.3 Short description of the Equipment under Test (EUT) 12 4 T E S T E N V I R O N M E N T 13 4.1 Address of the test laboratory 13 4.2 Environmental conditions 13 4.3 Statement of the measurement uncertainty 13 4.4 Measurement Protocol for FCC, VCCI and AUSTEL 14 5 T E S T C O N D I T I O N S A N D R E S U L T S 15 5.1 Conducted emissions 15 5.2 Field strength of the fundamental wave 16 5.3 Spurious emissions (magnetic field) 9 kHz – 30 MHz 19 5.4 Emission Bandwidth 22 6 U S E D T E S T E Q U I P M E N T A N D A C C E S S O R I E S 24 FCC ID: LTQFI2125 mikes-testingpartners gmbh File No. T31654-26-00HU, page 3 of 24 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (September, 2010) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15, Subpart C - Intentional Radiators (September, 2010) Part 15, Subpart C, Section 15.203 Antenna requirement Part 15, Subpart C, Section 15.204 External radio frequency power amplifiers and antenna modifications Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements ANSI C63.4: 2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C95.1:1992 IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz CISPR 16-4-2: 2003 Uncertainty in EMC measurement FCC ID: LTQFI2125 mikes-testingpartners gmbh File No. T31654-26-00HU, page 4 of 24 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 2 S U M M A R Y GENERAL REMARKS: The carrier frequency is 125.0 kHz FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 21. July 2011 Testing concluded on : 25. July 2011 Checked by: Tested by: Gegenfurtner Klaus Dipl.-Ing.(FH) Manager: Radio Group Huber Markus FCC ID: LTQFI2125 mikes-testingpartners gmbh File No. T31654-26-00HU, page 5 of 24 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 3 E Q U I P M E N T U N D E R T E S T 3.1 Photo documentation of the EUT Test Setup: FCC ID: LTQFI2125 mikes-testingpartners gmbh File No. T31654-26-00HU, page 6 of 24 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 Front view Rear view FCC ID: LTQFI2125 mikes-testingpartners gmbh File No. T31654-26-00HU, page 7 of 24 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 Side views: FCC ID: LTQFI2125 mikes-testingpartners gmbh File No. T31654-26-00HU, page 8 of 24 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 Bottom view: Rear view: FCC ID: LTQFI2125 mikes-testingpartners gmbh File No. T31654-26-00HU, page 9 of 24 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 Side views: FCC ID: LTQFI2125 mikes-testingpartners gmbh File No. T31654-26-00HU, page 10 of 24 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 Rear View: Front view: FCC ID: LTQFI2125 mikes-testingpartners gmbh File No. T31654-26-00HU, page 11 of 24 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 Front view open cover: Side view: FCC ID: LTQFI2125 mikes-testingpartners gmbh File No. T31654-26-00HU, page 12 of 24 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 3.2 Power supply system utilised Power supply voltage: : 13.5 V / DC 3.3 Short description of the Equipment under Test (EUT) The EuT is an immobilizer for vehicular use. Number of tested samples: 1 Serial number: Pre Series FI61BC: Variant: FIAT Art. No.: Delphi Art. No.: L4 51912569 28330968 L3 51912568 28330969 L2 51912567 28330970 FI64BC: Variant: FIAT Art. No.: Delphi Art. No.: L3 50518123 28218148 L2…

Text truncated - open the document above for the full version.

1.1 Field strength of the fundamental wave For test instruments and accessories used see section 6 Part CPR 1. 1.1.1 Description of the test location Test location: OATS1 Test distance: 3 metres 1.1.2 Photo documentation of the test set-up 1.2 Spurious emissions (magnetic field) 9 kHz – 30 MHz For test instruments and accessories used see section 6 Part SER 1. 1.2.1 Description of the test location Test location: OATS1 Test distance: 3 metres 1.2.2 Photo documentation of the test set-up 1.3 Emission Bandwidth For test instruments and accessories used see section 6 Part MB. 1.3.1 Description of the test location Test location: AREA4 1.3.2 Photo documentation of the test set-up Fundamental [kHz] See Plot 1 20dB Bandwidth F1 20dB Bandwidth F2 Measured Bandwidth [kHz] 125.00 111.80 138.70 26.90
