LTQFI2AM433TXKeyless Entry System

Delphi Deutschland GmbH Electronic Controls Customer & Engineering Center Material & Production Center Sitz der Gesellschaft Geschäftsführung: Michael Gassen (Vorsitzender), Albert-Einstein-Straße 5 Wiehlpuhl 4 Wuppertal Peter Gajewski, Diedrich von Behr, D–51674 Wiehl D–51766 Engelskirchen Registergericht AG Wuppertal, Bernd Wegescheide Telefon: (02261) 971-0 Telefon: (02261) 971-0 HRB 2254 Aufsichtsrat: Dr. Rainer Hermeling (Vorsitzender) Telefax: (02261) 7 26 91 Telefax: (02262) 6033 Internet: www.delphi.com Internet: www.delphi.com Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: Compliance Statement in Car Manual / FCC ID: LTQ-FI2AM433TX Dear Madam, Dear Sirs, Our product with the above FCC ID code is a low frequency transmitter. The products will be installed in cars before they will be placed into the market. Hereby we assure that the following caution statement as per CFR 47, Part 15, § 15.21 will be included in the owner’s manual of the cars: The “NOTE:” and “Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.” In addition our client also assures that the following statement will be included in the manual as per CFR 47, Part 15, § 15.19 (a) (3). This device complies with Part 15 of the FCC Rules and with RS–210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. This excerpt of the user manual was provided by Mrs. Liza Sollestre of Chrysler. Contact information: Liza Sollestre EE Components Phone: (248) 576- 4601 Tieline: 776-4601 FAX: (248) 576-2236 CIMS: 482-10-01 Roland Krause Supervisor EMC / CE

27.09.2010 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: Request of Confidentiality Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below for the following FCC ID: LTQFI2AM433TX Schematics, Parts List, Block Diagram Technical Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Thomas Ring Manager Certification mikes-testingpartners gmbh Ohmstrasse 2-4 94342 Strasskirchen Germany

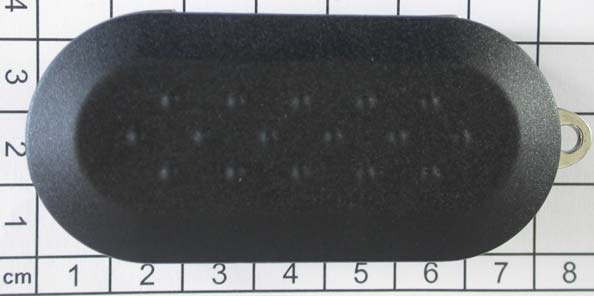

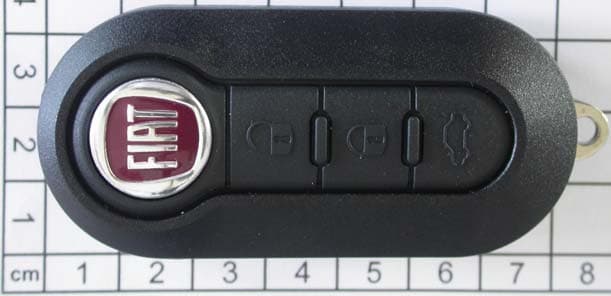

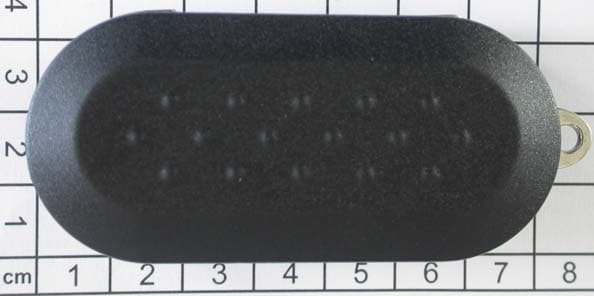

mikes-testingpartners gmbh File No. T31669-15-00HU, page 3 of 5 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.0; 19.2.2009 1 Photo documentation of the EUT 1.1 External views: Front view: Rear view: Side views:

mikes-testingpartners gmbh File No. T31669-15-00HU, page 4 of 5 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.0; 19.2.2009 1.2 Internal views Sample 02: Front view PCB: Rear view PCB: mikes-testingpartners gmbh File No. T31669-15-00HU, page 5 of 5 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.0; 19.2.2009 Sample 03 Front view PCB: Rear view PCB:

FCC ID: LTQFI2AM433TX mikes-testingpartners gmbh File No. T31669-15-02HU, page 1 of 24 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 EMI -- T E S T R E P O R T - FCC Part 15.231 - Test Report No. : T31669-15-02HU 05. October 2010 ______________________________________________________________________________________________ Date of issue Type / Model Name : FI2-AM433TX Product Description : Transmitter of a Keyless Entry System Applicant : Delphi Deutschland GmbH Address : Albert-Einstein-Str. 5 51674 WIEHL, GERMANY Manufacturer : Delphi Deutschland GmbH Address : Albert-Einstein-Str. 5 51674 WIEHL, GERMANY Licence holder : Delphi Deutschland GmbH Address : Albert-Einstein-Str. 5 51674 WIEHL, GERMANY Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. DAT-P-207/05-00 Registration No. DAT-P-207/05 FCC ID: LTQFI2AM433TX mikes-testingpartners gmbh File No. T31669-15-02HU, page 2 of 24 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 Contents 1 TEST STANDARDS 3 2 SUMMARY 4 3 EQUIPMENT UNDER TEST 5 3.1 Photo documentation of the EUT – See Attachment A 5 3.2 Power supply system utilised 6 3.3 Short description of the Equipment under Test (EUT) 6 4 TEST ENVIRONMENT 7 4.1 Address of the test laboratory 7 4.2 Environmental conditions 7 4.3 Statement of the measurement uncertainty 7 4.4 Measurement Protocol for FCC, VCCI and AUSTEL 7 5 TEST CONDITIONS AND RESULTS 9 5.1 Conducted emissions 9 5.2 Field strength of the fundamental wave 11 5.3 Spurious emissions (magnetic field) 9 kHz – 30 MHz 13 5.4 Spurious emissions radiated (electric field) 15 5.5 Emission bandwidth 19 5.6 Signal deactivation 22 6 USED TEST EQUIPMENT AND ACCESSORIES 25 FCC ID: LTQFI2AM433TX mikes-testingpartners gmbh File No. T31669-15-02HU, page 3 of 24 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart C - Intentional Radiators (October, 2009) Part 15, Subpart C, Section 15.231 Periodic operation in the band 40.66-40.70 MHz and above 70 MHz §15.231(a) Signal deactivation §15.231(b) Radiated emissions, Fundamental & Harmonics §15.231(c) Emission Bandwidth Part 15, Subpart C, Section 15.35(c) Correction for Pulse Operation (Duty Cycle) Part 15, Subpart C, Section 15.207(a) AC Line conducted emissions Part 15, Subpart C, Section 15.209(a) Radiated emissions, general requirements FCC Rules and Regulations Part 15 Subpart B - Intentional Radiators (October, 2009) Part 15, Subpart B, Section 15.107(a) AC Line conducted emissions Part 15, Subpart B, Section 15.109(a) Radiated emissions, general requirements Part 15, Subpart B, Section 15.111(a) Antenna power conduction FCC ID: LTQFI2AM433TX mikes-testingpartners gmbh File No. T31669-15-02HU, page 4 of 24 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 2 SUMMARY GENERAL REMARKS: All radiated tests have been performed on samples which are in orginal state. FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 24. June 2010 Testing concluded on : 28. June 2010 Checked by: Tested by: Klaus Gegenfurtner Dipl.-Ing.(FH) Manager: Radio Group Markus Huber FCC ID: LTQFI2AM433TX mikes-testingpartners gmbh File No. T31669-15-02HU, page 5 of 24 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EUT – See Attachment A FCC ID: LTQFI2AM433TX mikes-testingpartners gmbh File No. T31669-15-02HU, page 6 of 24 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 3.2 Power supply system utilised Power supply voltage: : 3.0 V / DC 3.3 Short description of the Equipment under Test (EUT) The EuT is a transmitter of a keyless entry system for vehicles. Number of tested samples: 2 Serial number: see Photo documentation of the EuT under Point 3 / Equipment Under Test Art. No.: 28084450 Version HW 04 Sample No.: Productionsample Variant: 433MHz Project: FI60RF EUT operation mode: The equipment under test was operated during the measurement under the following conditions: - Tx mode at 433.92 MHz - Cont. Tx mode at 433.92 MHz - EUT configuration: (The CDF filled by the applicant can be viewed at the test laboratory.) The following peripheral devices and interface cables were connected during the measurements: - Model : - Model : - Model : - Model : - Model : - Model : FCC ID: LTQFI2AM433TX mikes-testingpartners gmbh File No. T31669-15-02HU, page 7 of 24 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 4 TEST ENVIRONMENT 4.1 Address of the test laboratory mikes-testingpartners gmbh Ohmstrasse 2-4 94342 STRASSKIRCHEN GERMANY 4.2 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 86-106 kPa 4.3 Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader may notice that tolerances within the calibration of the equipment and facilities may cause additional uncertainty. The measurement uncertainty is calculated for all measurements listed in this test report acc. to CISPR 16-4-2 „Uncertainties, statistics and limit modelling – Uncertainty in EMC measurement“ and d…

Text truncated - open the document above for the full version.

FCC ID: LTQFI2AM433TX mikes-testingpartners gmbh File No. T31669-15-00HU, page 10 of 24 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 5.2 Field strength of the fundamental wave For test instruments and accessories used see section 6 Part CPR 2. 5.2.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.2.2 Photo documentation of the test set-up 5.2.1 Applicable standard According to FCC Part 15C, Section 15.231(b): The field strength of emissions from intentional radiators shall not exceed the effective field strength limits. 5.2.2 Description of Measurement The radiated power of the fundamental wave from the EUT is measured in the frequency range of 30 to 1000 MHz using a tuned receiver and appropriate broadband linearly polarized antennas. Measurements between 30 MHz and 1000 MHz are made with 120 kHz/6 dB bandwidth and quasi-peak detection. Table top equipment is placed on a 1.0 X 1.5 metres non-conducting table 80 centimetres above the ground plane. Floor standing equipment is placed directly on the turntable/ground plane. The set up of the EUT will be in accordance to ANSI C63.4. The Interface cables that are closer than 40 centimetres to the ground plane are bundled in the centre in a serpentine fashion so they are at least 40 centimetres from the ground plane. Cables to simulators/testers (if used in this test) are routed through the centre of the table and to a screen room located outside the test area. The antenna was positioned 3, 10 or 30 metres horizontally from the EUT. To locate maximum emissions from the test sample the antenna is varied in height from 1 to 4 metres, measurement scans are made in horizontal and vertical antenna polarization’s and the EUT is rotated 360 degrees. The resolution bandwidth during the measurement is as follows: FCC ID: LTQFI2AM433TX mikes-testingpartners gmbh File No. T31669-15-00HU, page 12 of 24 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 5.3 Spurious emissions (magnetic field) 9 kHz – 30 MHz For test instruments and accessories used see section 6 Part SER 1. 5.3.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.3.2 Photo documentation of the test set-up 5.3.3 Applicable standard According to FCC Part 15C, Section 15.209: The emissions from intentional radiators shall not exceed the effective field strength limits. 5.3.4 Description of Measurement The magnetic field strength from the EUT will be measured on an open area test site in the frequency range of 9 kHz to 30 MHz using a tuned receiver and a shielded loop antenna. The set up of the Equipment under test will be in accordance to ANSI C63.4. The antenna was positioned 3, 10 or 30 meters horizontally from the EUT. Measurements have been made in all three orthogonal axes and the shielded loop antenna was rotated to locate the maximum of the emissions. In the case where larger measuring distances are required the results will extrapolated based on the values measured on the closer distances according to Section 15.31(f)(2)(2). The final measurement will be performed with an EMI Receiver set to Quasi Peak detector except for the frequency bands 9 kHz to 90 kHz and 110 to 490 kHz where an average detector will be used according to Section 15.209(d)(2). FCC ID: LTQFI2AM433TX mikes-testingpartners gmbh File No. T31669-15-00HU, page 14 of 24 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 5.4 Spurious emissions radiated (electric field) For test instruments and accessories used see section 6 Part SER 2, SER 3. 5.4.1 Description of the test location Test location: OATS1 Anechoic Chamber A2 Test distance: 3 metres 5.4.2 Photo documentation of the test set-up
