LTQFI5125Immobilizer for keyless entry system

CSA Group Bayern GmbH  Ohmstrasse 1‐4  94342 Strasskirchen  GERMANY Telefon: +49 (0) 9424 9481‐0  Telefax: +49 (0) 9424 9481‐440  E‐Mail: [email protected]  Web: www.csagroup.org Geschäftsführer: Günter Mikes  Dieter Fröhlich  Magali Depras  Ash K. Sahi  Robert J. Falconi Amtsgericht Straubing HRB 11130  USt.‐Id. Nr.: DE 814 397 903 Raiffeisenbank Straubing: Kto: 558 00 80 BLZ: 742 601 10 IBAN: DE27 7426 0110 0005 5800 80 SWIFT (BIC): GE NO DEF1SR2 Hypo Vereinsbank: Kto: 345 753 540 BLZ: 742 200 75 IBAN: DE70 7422 0075 0345 7535 40 SWIFT (BIC): HYVEDEMM452 Compliance Statement in Car Manual / FCC ID: LTQFI5125 Dear Sirs, Our client’s products with the above FCC ID code are low frequency transmitters. The products will be installed in cars before they will be placed into the market. Hereby our client assures that the following caution statement as per CFR 47, Part 15, § 15.21 will be included in the owner’s manual of the cars: The title “CAUTION TO USERS” or “FCC Warning:” “NOTE:” or relevant title and “Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.” In addition our client also assures that the following statement will be included in the manual as per CFR 47, Part 15, § 15.19 (a) (3). This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Strasskirchen, 24.06.2014 Sincerely, Sonja Sachs Project Specialist Global Market Access Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 CSA Group Bayern GmbH  Ohmstrasse 1‐4  94342 Strasskirchen  GERMANY

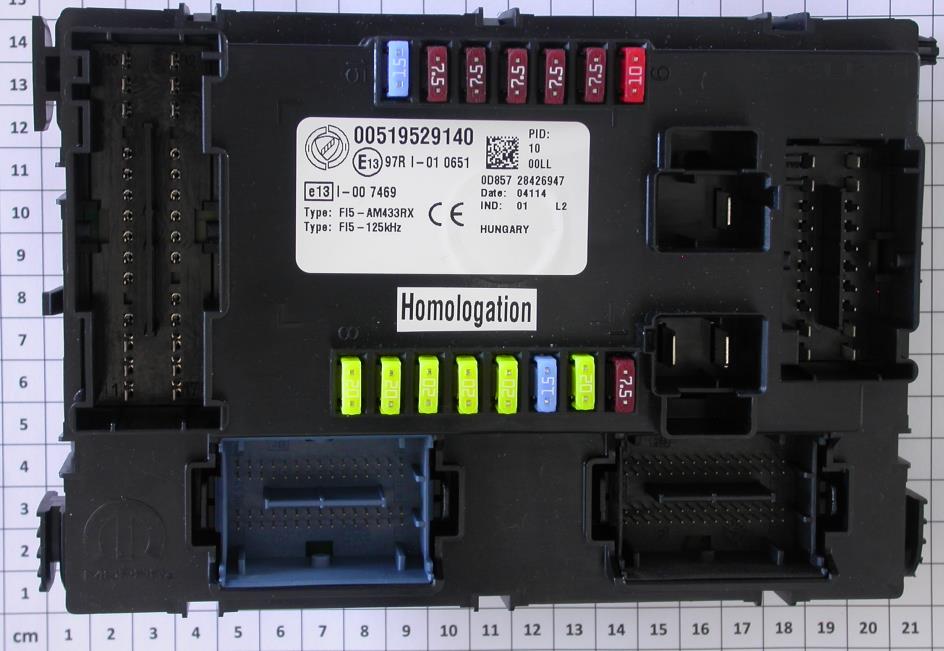

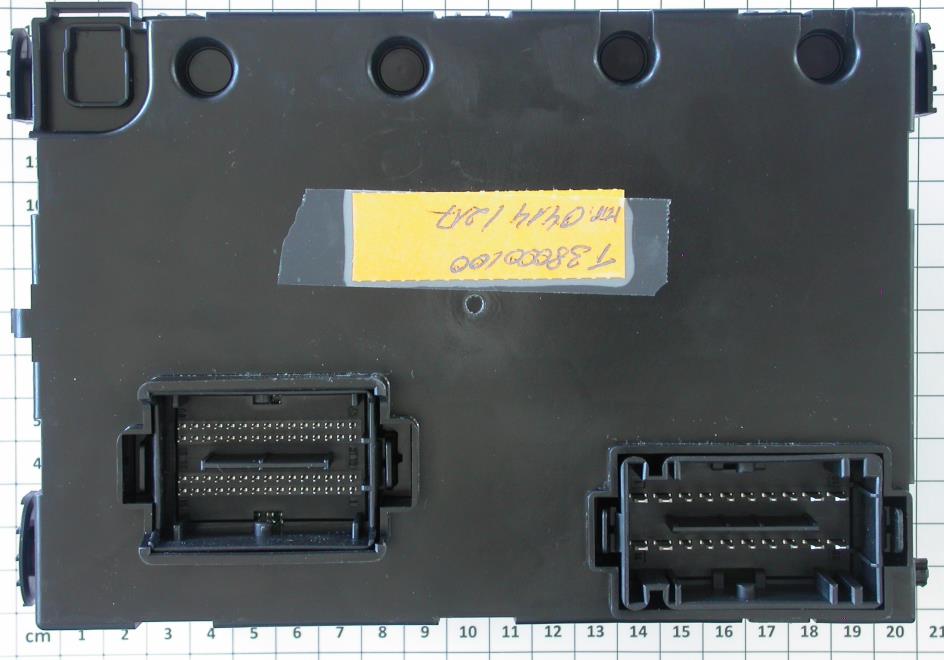

Attachment A to File No.: T38000-00 1 P h o t o d o c u m e n t a t i o n o f t h e E U T Test Setup: 1.1 External views: Front view Rear view Side views: 1.3 Immobilizer Coil: Rear View: Front view: Side view:

M# FI5AM433RX M# FI5 ‐ 125kHz FCC ID: LTQFI5125 116RI –00 0777 Attachment A to File No.: T38000-00 1 P h o t o d o c u m e n t a t i o n o f t h e E U T Test Setup:

1.2 Internal views Bottom view: Rear view: Circuit board 1: Circuit board 2:

FCC ID: LTQFI5125 CSA Group Bayern GmbH File No. T38000-00-03HU, page 1 of 15 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 EMI − T E S T R E P O R T - FCC Part 15.209 - Test Report No. : T38000-00-03HU 26. June 2014 ______________________________________________________________________________________________ Date of issue Type / Model Name : FI5-125kHz Product Description : Immobilizer for keyless entry system Applicant : Delphi Deutschland GmbH Address : Delphiplatz 1 42119 Wuppertal, GERMANY Manufacturer : Delphi Deutschland GmbH Address : Delphiplatz 1 42119 Wuppertal, GERMANY Licence holder : Delphi Deutschland GmbH Address : Delphiplatz 1 42119 Wuppertal, GERMANY Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test FCC ID: LTQFI5125 CSA Group Bayern GmbH File No. T38000-00-03HU, page 2 of 15 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 Contents 1 T E S T S T A N D A R D S 3 2 S U M M A R Y 4 3 E Q U I P M E N T U N D E R T E S T 5 3.1 Photo documentation of the EUT 5 3.2 Power supply system utilised 5 3.3 Short description of the Equipment under Test (EUT) 5 4 T E S T E N V I R O N M E N T 6 4.1 Address of the test laboratory 6 4.2 Environmental conditions 6 4.3 Statement of the measurement uncertainty 6 4.4 Measurement Protocol for FCC, VCCI and AUSTEL 7 5 T E S T C O N D I T I O N S A N D R E S U L T S 8 5.1 Conducted emissions 8 5.2 Field strength of the fundamental wave 9 5.3 Spurious emissions (magnetic field) 9 kHz – 30 MHz 11 5.4 Emission Bandwidth 13 6 U S E D T E S T E Q U I P M E N T A N D A C C E S S O R I E S 15 FCC ID: LTQFI5125 CSA Group Bayern GmbH File No. T38000-00-03HU, page 3 of 15 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (September, 2013) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15, Subpart C - Intentional Radiators (September, 2013) Part 15, Subpart C, Section 15.203 Antenna requirement Part 15, Subpart C, Section 15.204 External radio frequency power amplifiers and antenna modifications Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements ANSI C63.4: 2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C95.1:1992 IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz CISPR 16-4-2: 2003 Uncertainty in EMC measurement FCC ID: LTQFI5125 CSA Group Bayern GmbH File No. T38000-00-03HU, page 4 of 15 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 2 S U M M A R Y GENERAL REMARKS: The carrier frequency is 125.0 kHz FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 19. May 2014 Testing concluded on : 22. May 2014 Checked by: Tested by: Gegenfurtner Klaus Teamleader Radio Huber Markus FCC ID: LTQFI5125 CSA Group Bayern GmbH File No. T38000-00-03HU, page 5 of 15 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 3 E Q U I P M E N T U N D E R T E S T 3.1 Photo documentation of the EUT – Detailed photos see Attachment A 3.2 Power supply system utilised Power supply voltage: : 13.5 V / DC 3.3 Short description of the Equipment under Test (EUT) The EuT is an immobilizer for vehicular use. Number of tested samples: 1 Serial number: Pre-series FI80BC: Art. No.: 28426947 Plattform: Next Generation Body Computer (NGB) Variant: L2 Project: FI80BC EUT operation mode: The equipment under test was operated during the measurement under the following conditions: - Tx mode at 125 kHz - - EUT configuration: The following peripheral devices and interface cables were connected during the measurements: - Model : - Model : - Model : - customer specific cables - unscreened power cables FCC ID: LTQFI5125 CSA Group Bayern GmbH File No. T38000-00-03HU, page 6 of 15 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 4 T E S T E N V I R O N M E N T 4.1 Address of the test laboratory CSA Group Bayern GmbH Ohmstrasse 1-4 94342 STRASSKIRCHEN GERMANY 4.2 Statement regarding the usage of logos in test reports The accreditation and notification body logos displayed in this test report are only valid for standards listed in the accreditation or notification scope of CSA Group Bayern GmbH. 4.3 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 86-106 kPa 4.4 Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. It is noted that the expanded measurement uncertainty corresponds to the measurement results from the standard measurement uncertainty multiplied by the coverage factor k = 2. The true value is located in the corresponding interval with a probability of 95 % The measurement uncertainty was calculated for all measurements listed in this test report acc. to CISPR 16-4-2 / 11.2003 „Uncertainties, s…

Text truncated - open the document above for the full version.

FCC ID: LTQFI5125 CSA Group Bayern GmbH File No. T38000-00-03HU, page 9 of 15 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 5.2 Field strength of the fundamental wave For test instruments and accessories used see section 6 Part CPR 1. 5.2.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.2.2 Photo documentation of the test set-up FCC ID: LTQFI5125 CSA Group Bayern GmbH File No. T38000-00-03HU, page 11 of 15 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 5.3 Spurious emissions (magnetic field) 9 kHz – 30 MHz For test instruments and accessories used see section 6 Part SER 1. 5.3.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.3.2 Photo documentation of the test set-up FCC ID: LTQFI5125 CSA Group Bayern GmbH File No. T38000-00-03HU, page 13 of 15 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 5.4 Emission Bandwidth For test instruments and accessories used see section 6 Part MB. 5.4.1 Description of the test location Test location: AREA4 5.4.2 Photo documentation of the test set-up Fundamental [kHz] See Plot 1 20dB Bandwidth F1 20dB Bandwidth F2 Measured Bandwidth [kHz] 125.00 122.04 127.30 5.26
