LTQFO3AM315RXReceiver of Keyless Entry System

American Certification Body Inc. 6731 Whittier Ave, Suite C110 McLean, VA22101 Date: 10.05.2012 FCC ID: LTQFO3AM315RX IC: 3659A–FO3AM315RX Model Number(s): FO3-AM315RX Subject: Compliance Statement in Car Manual Dear Sirs, Our client’s products with the above listed product identification(s) are marketed together with cars, where it’s operation is included in the individual owner’s manual of the car. We hereby assure that the following caution statement as per CFR 47, §15.21 is included in a prominent location of the owner’s manual of the cars: The title “CAUTION TO USERS” or “FCC WARNING”: “NOTE” or relevant title and “Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.” In addition, we also assure that the following statement is also included in a prominent location in the manual as per CFR 47, §15.19(a)(3) and RSS-GEN 7.1.3: This device complies with Part 15 of the FCC Rules and Industry Canada license- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation In accordance with RSS-Gen Section 5.3 we assure that this statement will also appear in French. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Thomas Ring Manager Certification mikes-testingpartners gmbh Ohmstr. 2-4, 94342 Strasskirchen, Germany

Request for Confidentiality Date: 08.05.2012 Subject: Confidentiality Request for: FCC ID: LTQFO3AM315RX IC: 3659A–FO3AM315RX ______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Delphi Deutschland GmbH has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: Manager Certification Thomas Ring 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.”

Label: Label Placement see page 2 FCC ID: LTQFO3AM315RX IC: 3659A – FO3AM315RX RTM unidirectional housing (N.A.) Assy label (headliner locations only) RTM label (pkg tray locations only)

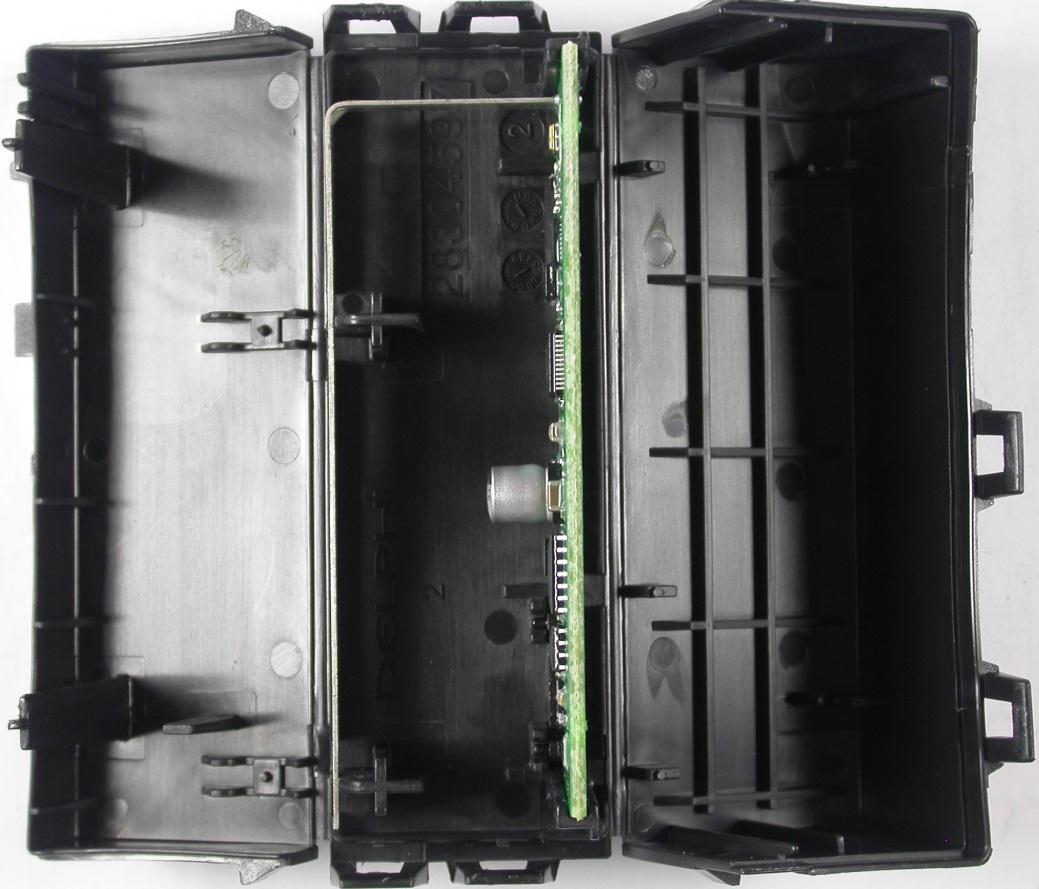

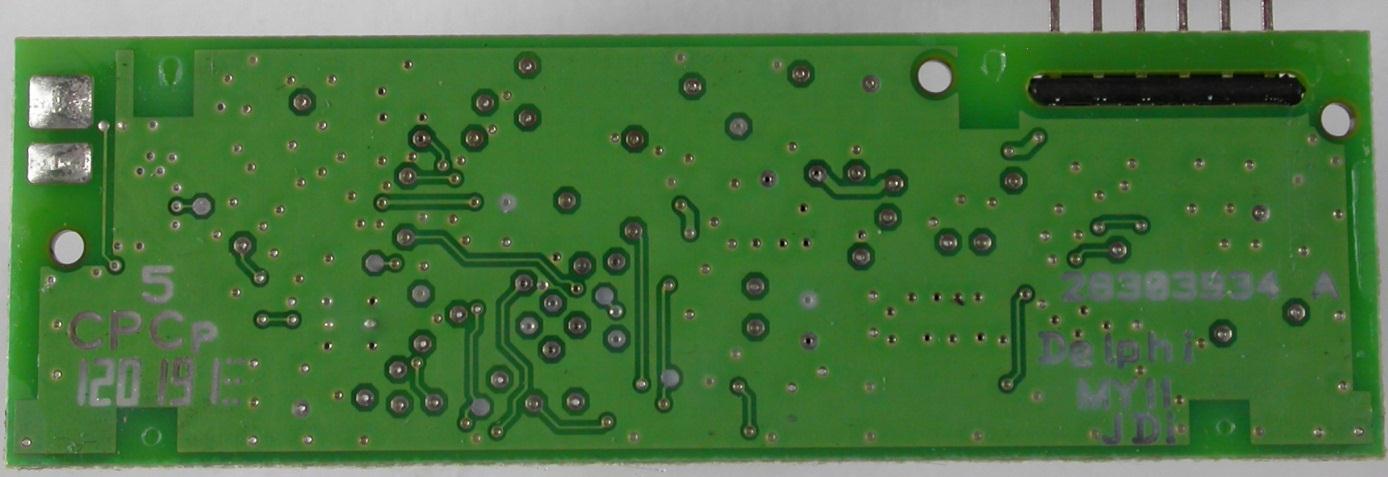

1.2 Internal views:

FCC ID: LTQFO3AM315RX mikes-testingpartners gmbh File No. T35421-00-00HU, page 1 of 15 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 EMI − T E S T R E P O R T - FCC Part 15B - Test Report No. : T35421-00-00HU 22. March 2012 ______________________________________________________________________________________________ Date of issue Type / Model Name : FO3-AM315RX Product Description : Receiver of keyless entry system Applicant : Delphi Deutschland GmbH Address : Wiehlpuhl 4 51766 Engelskirchen Manufacturer : Delphi Deutschland GmbH Address : Wiehlpuhl 4 51766 Engelskirchen Licence holder : Delphi Deutschland GmbH Address : Wiehlpuhl 4 51766 Engelskirchen Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID: LTQFO3AM315RX mikes-testingpartners gmbh File No. T35421-00-00HU, page 2 of 15 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 Contents 1 T E S T S T A N D A R D S 3 2 S U M M A R Y 4 3 E Q U I P M E N T U N D E R T E S T 5 3.1 Photo documentation of the EUT – Detailed photos see Attachment A 5 3.2 Power supply system utilised 5 3.3 Short description of the Equipment under Test (EuT) 5 4 T E S T E N V I R O N M E N T 6 4.1 Address of the test laboratory 6 4.2 Environmental conditions 6 4.3 Statement of the measurement uncertainty 6 4.4 Measurement Protocol for FCC, VCCI and AUSTEL 7 5 T E S T C O N D I T I O N S A N D R E S U L T S 8 5.1 Conducted emissions 8 5.2 Radiated emissions 9 5.3 Spurious emissions radiated (electric field) 12 6 U S E D T E S T E Q U I P M E N T A N D A C C E S S O R I E S 15 FCC ID: LTQFO3AM315RX mikes-testingpartners gmbh File No. T35421-00-00HU, page 3 of 15 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart A - General (October, 2011) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15 Subpart B - Unintentional Radiators (October, 2011) Part 15, Subpart B, Section 15.109 Radiated emissions, general requirements Part 15, Subpart B, Section 15.111 Antenna power conduction ANSI C63.4: 2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C95.1:1992 IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz CISPR 16-4-2: 2003 Uncertainty in EMC measurement CISPR 22: 2005 Information technology equipment EN 55022: 2006 FCC ID: LTQFO3AM315RX mikes-testingpartners gmbh File No. T35421-00-00HU, page 4 of 15 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 2 S U M M A R Y GENERAL REMARKS: Functional test of Receiver function:  Connect receiver module to receiver harness (with LED)  Connect receiver harness to power supply (U=12.5V; red=positive; blue=ground)  Wait approx. 5sec until supply current drops to ~4mA, receiver module now is in polling mode  Connect sender module to sender harness (without LED)  Connect sender harness to power supply (U=12.5V; red=positive; blue=ground)  After approx.. 2sec sender module will continuously transmit frames  Receiver module will indicate reception of the frames by blinking of the LED FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 05. March 2012 Testing concluded on : 22. March 2012 Checked by: Tested by: Klaus Gegenfurtner Dipl.-Ing.(FH) Manager: Radio Group Markus Huber FCC ID: LTQFO3AM315RX mikes-testingpartners gmbh File No. T35421-00-00HU, page 5 of 15 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 3 E Q U I P M E N T U N D E R T E S T 3.1 Photo documentation of the EUT – Detailed photos see Attachment A 3.2 Power supply system utilised Power supply voltage : 12.5 V / DC 3.3 Short description of the Equipment under Test (EuT) The EuT is a receiver of a keyless entry system for vehicles. Number of tested samples: 1 Serial number: Prototype Type/Model Name: DG9T-15K619-DE (Ford PN) Plattform: Ford/Volvo Variant: Dx (High) Project: Fo00RF EuT operation mode: The equipment under test was operated during the measurement under the following conditions: - Rx mode at 315 MHz - - EUT configuration: (The CDF filled by the applicant can be viewed at the test laboratory.) The following peripheral devices and interface cables were connected during the measurements: - Test transmitter at 315 MHz Model : Supplied by manufacturer - Model : - Model : - customer specific cables - unscreened power cables FCC ID: LTQFO3AM315RX mikes-testingpartners gmbh File No. T35421-00-00HU, page 6 of 15 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 4 T E S T E N V I R O N M E N T 4.1 Address of the test laboratory mikes-testingpartners gmbh Ohmstrasse 2-4 94342 Strasskirchen Germany 4.2 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 86-106 kPa 4.3 Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader may notice that tolerances within the calibration of the equipment and facilities may cause additional …

Text truncated - open the document above for the full version.

FCC ID: LTQFO3AM315RX mikes-testingpartners gmbh File No. T35421-00-00HU, page 9 of 15 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 5.2 Radiated emissions For test instruments and accessories used see section 6 Part SER 1, SER 2. 5.2.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.2.2 Photo documentation of the test set-up SER1: SER2: FCC ID: LTQFO3AM315RX mikes-testingpartners gmbh File No. T35421-00-00HU, page 12 of 15 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 5.3 Spurious emissions radiated (electric field) For test instruments and accessories used see section 6 Part SER 3. 5.3.1 Description of the test location Test location: Anechoic Chamber A2 Test distance: 3 metres 5.3.2 Photo documentation of the test set-up SER3: 5.3.1 Applicable standard According to FCC Part 15C, Section 15.231(b), Section 15.209(a) and Section 15.205(a): The emissions from intentional radiators shall not exceed the effective field strength limits. 5.3.2 Description of Measurement The radiated power of the spurious emission from the EUT is measured in the frequency range above 1 GHz using a spectrum analyser and appropriate linear polarised antennas. Measurements are made in the horizontal and vertical polarization of the antenna. The set up of the EUT will be in accordance to ANSI C63.4. The interface cables closer than 40 cm to the ground plane are bundled in the centre in a serpentine fashion so they are at least 40 cm away from the ground plane. Hand-held or body-worn devices are rotated through three orthogonal axes to determine which attitude and configuration results in the highest emission and therefore shall be used for final testing. During the tests the EUT is turned 360 degrees to find the maximum level of emission. For testing above 1 GHz, if the emission level of the EUT in peak mode complies with the average limit is 20 dB lower, then testing will be stopped and peak values of the EUT will be reported, otherwise the emission will be measured in average mode again and reported.
