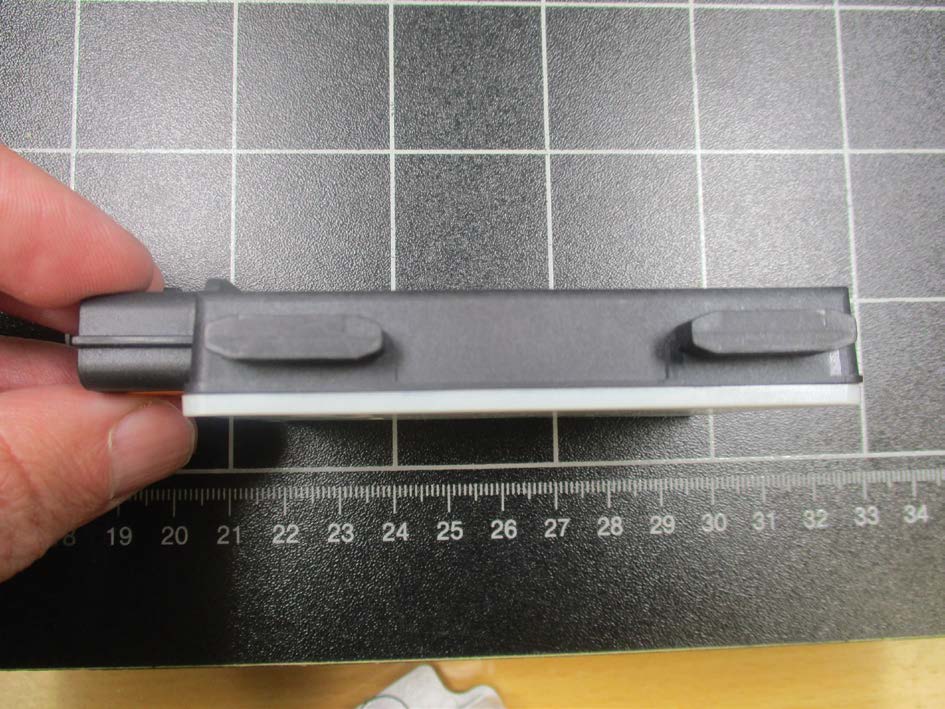

LTQR5TRRadar Sensor

Aptiv Services Deutschland GmbH Postanschrift: D-42367 Wuppertal Hausanschrift: Am Technologiepark 1 D-42119 Wuppertal Telefon: Telefax: Internet: (02 02) 2 91 – 0 (02 02) 2 91 – 2777 www.aptiv.com Sitz der Gesellschaft: Wuppertal Registergericht: AG Wuppertal, HRB 21453 Geschäftsführung: Matthias Laumann (Sprecher) Johannes Bornmüller Aufsichtsrat: Michael Gassen (Vorsitzender) Compliance Statement in Car Manual FCC ID: LTQR5TR / IC: 3659A-R5TR Our products with the above FCC ID/ IC ID are field disturbance sensors. The product will be installed into vehicles by our customers before they will be placed into the market. Hereby we assure that the following caution statement as per CFR 47, Part 15, § 15.21 and RSS Regulation will be included in the owner's manual of the vehicles: The title "CAUTION TO USERS" or "FCC Warning:" "NOTE:" or relevant title and "Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment." In addition our client also assures that the following statement will be included in the manual as per CFR 47, Part 15, § 15.19 (a) (3) and RSS Regulation. This device complies with Part 15 of the FCC Rules and also to RSS Regulation. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. In order to comply with FCC/ISED/MIC RF Exposure requirements, this device must be installed to provide at least 20 cm separation from the human body at all times. Le present appareil est conforme aux CNR d'lndustrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisee aux deux conditions suivantes : 1) l'appareil ne doit pas produire de brouillage; 2) l'appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d'en compromettre le fonctionnement." Afin de se conformer aux exigences d'exposition RF MIC / FCC / ISED, cet appareil doit etre installe pour fournir au moins 20 cm de separation du corps humain en tout temps. Ljiljana Trivic Certification Responsible E-Mail: [email protected] Phone +49 2261 971 415 Date: 13th October 2020

Aptiv Services Deutschland GmbH Postanschrift: D-42367 Wuppertal Hausanschrift: Am Technologiepark 1 D-42119 Wuppertal Telefon: Telefax: Internet: (02 02) 2 91 – 0 (02 02) 2 91 – 2777 www.aptiv.com Sitz der Gesellschaft: Wuppertal Registergericht: AG Wuppertal, HRB 21453 Geschäftsführung: Matthias Laumann (Sprecher) Johannes Bornmüller Aufsichtsrat: Michael Gassen (Vorsitzender) Aptiv Services Deutschland GmbH Power of Attorney Am Technologiepark 1 42119 Wuppertal 14th July 2020 Products: Vehicle Immobilizer; Receiver, Keyfobs for keyless entry system; Radar systems etc. Type Designation: valid for all types ordered by Aptiv Services Deutschland GmbH  Dear Sir or Madam, We, Aptiv Services Deutschland GmbH, Am Technologiepark 1, 42119 Wuppertal, Germany, hereby authorize Mr. Thomas Ring, Sonja Sachs, Benjamin Puls and Stefan Breu TÜV SÜD Product Service GmbH, Aussere Fruehlingstrasse 45, 94315 Straubing, Germany, to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization is valid for all ordered product certifications until further written notice from Aptiv Services Deutschland GmbH. Yours Sincerely

Aptiv Services Deutschland GmbH Postanschrift: D-42367 Wuppertal Hausanschrift: Am Technologiepark 1 D-42119 Wuppertal Telefon: Telefax: Internet: (02 02) 2 91 – 0 (02 02) 2 91 – 2777 www.aptiv.com Sitz der Gesellschaft: Wuppertal Registergericht: AG Wuppertal, HRB 21453 Geschäftsführung: Matthias Laumann (Sprecher) Johannes Bornmüller Aufsichtsrat: Michael Gassen (Vorsitzender) Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request FCC ID: LTQR5TR Dear Sirs, Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Aptiv Services Deutschland GmbH hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation Internal Photos, ( Please see separate letter ) Aptiv Services Deutschland GmbH also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of period of 180 days: (Note: for the X number of days, you can list up to 180 days, but should not go past the date you start product marketing/sale) External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours Sincerely Ljiljana Trivic Certification Responsible E-Mail: [email protected] Phone +49 2261 971 415 Date: 02 nd November 2020

Aptiv Services Deutschland GmbH Postanschrift: D-42367 Wuppertal Hausanschrift: Am Technologiepark 1 D-42119 Wuppertal Telefon: Telefax: Internet: (02 02) 2 91 – 0 (02 02) 2 91 – 2777 www.aptiv.com Sitz der Gesellschaft: Wuppertal Registergericht: AG Wuppertal, HRB 21453 Geschäftsführung: Matthias Laumann (Sprecher) Johannes Bornmüller Aufsichtsrat: Michael Gassen (Vorsitzender) Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request of internal photos Request for long term confidentiality of the Internal photos for our short range radar sensor with FCC ID: LTQR5TR Dear Sirs, We Aptiv Services Deutschland GmbH would like to kindly ask you for a long term confidentiality of the internal photos from our short range radar sensor due to following reasons: Our radar sensors are fully laser welded and cannot be opened and accessed by public persons. Non of the public manuals include internal photos. In case of failures the sensors can only be maintained/replaced by professional designated technicians trained and working at appointed OEM car shops. LTQR5TR sensor is using a special Aptiv developed technology which we would like to protect from competitors. Please see also the enclosed NDA Yours Sincerely Ljiljana Trivic Certification Responsible E-Mail: [email protected] Phone +49 2261 971 415 Date: 02 nd November 2020

Trade Register Munich HRB 85742 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Managing Directors: Dr. Peter Havel (CEO) Dr. Jens Butenandt Patrick van Welij Phone: +49 (0) 9421 55 22-0 Fax: +49 (0) 9421 55 22-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany TÜV SÜD Product Service Report on the FCC and IC Testing of the APTIV Services Deutschland GmbH Radar Sensor. Model: R5TR In accordance with CFR 47, Part 95, Subpart M and ISED RSS-251, Issue 2 Prepared for: APTIV Services Deutschland GmbH Am Technologiepark 1 42119 Wuppertal Germany FCC ID: LTQR5TR IC: 3659A-R5TR COMMERCIAL-IN-CONFIDENCE Date: 2020-11-27 Document Number: TR-00237-97005-03 | Issue: 3 RESPONSIBLE FOR NAME DATE SIGNATURE Project Management Alex Fink 2020-11-27 SIGN-ID 426924 Authorised Signatory Matthias Stumpe 2020-11-27 SIGN-ID 427180 Signatures in this approval box have checked this document in line with the requirements of TÜV SÜD Product Service document control rules. ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC 47 CFR Part 95, Subpart M and ISED Canada RSS-251. The sample tested was found to comply with the requirements defined in the applied rules. RESPONSIBLE FOR NAME DATE SIGNATURE Testing Alex Fink 2020-11-27 SIGN-ID 426924 Laboratory Accreditation DAkkS Reg. No. D-PL-11321-11-02 DAkkS Reg. No. D-PL-11321-11-03 Laboratory recognition Registration No. BNetzA-CAB-16/21-15 ISED Canada test site registration 3050A-2 EXECUTIVE SUMMARY A sample of this product was tested and found to be compliant with FCC 47 CFR Part 95, Subpart M (2018), ISED Canada RSS- 251 Issue 2 (2018-06). Page 1 of 73 DISCLAIMER AND COPYRIGHT This non-binding report has been prepared by TÜV SÜD Product Service with all reasonable skill and care. The document is confidential to the potential Client and TÜV SÜD Product Service. No part of this document may be reproduced without the prior written approval of TÜV SÜD Product Service. © 2020 TÜV SÜD Product Service. ACCREDITATION Our BNetzA Accreditation does not cover opinions and interpretations and any expressed are outside the scope of our BNetzA Accreditation. TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. TR-00237-97005-03 (Issue 3) Page 2 of 73 Summary Prüfergebnisse / Test Results Auftragsnummer / Order No. 453590529 Die Prüfungen wurden nach folgenden Vorschriften durchgeführt: Tests were performed according to: CFR 47, Part 95, Subpart M ISED RSS-251, Issue 2 Durchgeführte Prüfung Test performed Prüfergebnis Test result Power Density Occupied Bandwidth Spurious Radiated Emissions Frequency Stability SAR Evaluation Bemerkungen / Remarks: --- Die Prüfergebnisse beziehen sich ausschließlich auf das zur Prüfung vorgestellte Prüfmuster. Ohne schriftliche Genehmigung des Prüflabors darf der Prüfbericht auszugsweise nicht vervielfältigt werden. The test results relate only to the individual item which has been tested. Without the written approval of the test laboratory this report may not be reproduced in extracts. TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. TR-00237-97005-03 (Issue 3) Page 3 of 73 Table of Contents 1 Administrative Data ....................................................................................................... 4 2 Details about the Test Laboratory ................................................................................. 5 3 Description of the Equipment Under Test ..................................................................... 6 4 Operation Mode and Configuration of EUT ................................................................... 8 5 Test Setups ................................................................................................................... 9 6 Photographs Taken During Testing ............................................................................ 13 7 Referenced Regulations .............................................................................................. 14 8 Measurement Uncertainty Values ............................................................................... 15 9 Test Equipment used .................................................................................................. 18 10 Test Results ................................................................................................................ 19 10.1 Radiated Power .................................................................................................... 21 10.2 Occupied Bandwidth ............................................................................................ 31 10.3 Spurious Radiated Emisions ................................................................................ 37 10.4 Frequency Stability ............................................................................................... 59 10.5 SAR Evaluation .................................................................................................... 72 11 Revision History .......................................................................................................... 73 Annex to Test Report TR-00237-97005-03 | Issue: 01 Pages: 2 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. TR-00237-97005-03 (Issue 3) Page 4 of 73 1 Administrative Data Application details Applicant: APTIV Services Deutschland GmbH Am Technologiepark 1 42119 Wuppertal Germany Contact person: Ljiljana TRIVIC Order number: 453590529 Recei…

Text truncated - open the document above for the full version.

TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. TR-00237-97005-03 (Issue 3) Page 38 of 73 Radiated emission limits 9 kHz – 40 GHz Frequency (MHz) Field strength (μV/m) Measurement distance (m) 0.009 – 0.490 2400/f(kHz) 300 0.490 – 1.705 24000/f(kHz) 30 1.705 – 30 30 30 30 – 88 100 3 88 – 216 150 3 216 – 960 200 3 960 – 40000 500 3 Note(s): 1 In the emissions table the tighter limit applies at the band edges. 2 The limits are based on the frequency of the unwanted emissions and not the fundamental frequency. However, the level of any unwanted emission shall not exceed the level of the fundamental frequency. 3 The emissions limits shown in the table are based on measurement employing CISPR quasi-peak detector except for the frequency bands 9.0 – 90 kHz, 110.0 – 490 kHz, and above 1 GHz. Radiated emissions limits in these three bands are based on measurements employing an average detector with 1 MHz RBW. Table 1: Radiated emission limits 9 kHz – 40 GHz Radiated emission limits 40 GHz – 231 GHz Frequency (GHz) Power Density (pW/cm²) Measurement distance (m) 40 – 200 600 3 above 1000 3 Note(s): 1 According to 47 CFR, Part 95, § 95.3379(a)(3) the spectrum shall be investigated up to 231 GHz. 2 The power density of 600 pW/cm² corresponds to a transmit power of -1.69 dBm, a field strength of 93.5 dBμV/m for 3 m distance and 103.1 dBμV/m for 1 m distance 3 The power density of 1000 pW/cm² corresponds to a field strength of 95.8 dBμV/m for 3 m distance, 105.3 dBμV/m for 1 m distance and 111.3 dBμV/m for 0.5 m distance. Table 2: FCC Radiated emission limits above 40 GHz TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. TR-00237-97005-03 (Issue 3) Page 39 of 73 Radiated emission limits 40 GHz –162 GHz Frequency (GHz) Limit (dBm/MHz e.i.r.p.) Detector 40 – 162 -30 RMS Note(s): 1 For radar devices that operate solely in the 76 – 76 GHz Band (i.e. the occupied bandwidth is entirely contained in the 76 – 77 GHz band), an unwanted emissions limit of 0 dBm/MHz shall apply for the unwanted emission that fall in the 73.5 – 76 GHz band. Outside the 73.5 – 76 GHz band, the unwanted emission limits prescribed above shall apply. Table 3: ISED Radiated emission limits above 40 GHz TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. TR-00237-97005-03 (Issue 3) Page 40 of 73 Plots taken during measurement: Lowest channel, 425 MHz BW Final Results: Frequency QuasiPeak Limit Margin Meas. Time Bandwidth Height Pol Azimuth Corr. MHz dBμV/m dBμV/m dB ms kHz cm deg dB/m 30.330000 21.65 40.00 18.35 1000.0 120.000 100.0 H 208.0 25.6 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 30M 5060 80100M200300400500 8001G Level in dBμV/m Frequency in Hz Preview Result 1V-PK+Preview Result 1H-PK+ FCC Part 15C Electric Field Strength 3m QPFinal_Result QPK TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. TR-00237-97005-03 (Issue 3) Page 41 of 73 Final Results: Frequency MaxPeak CAverage Limit Margin Meas. Time Bandwidth Height Pol Azimuth Corr. MHz dBμV/m dBμV/m dBμV/m dB ms kHz cm deg dB/m 17550.250000 --- 56.19 63.50 7.31 1000.0 1000.000 150.0 H -120.0 54.4 0 10 20 30 40 50 60 70 80 90 1G2G3G4G5G6 8 10G18G Level in dBμV/m Frequency in Hz Preview Result 2V-AVGPreview Result 1V-PK+ Preview Result 2H-AVGPreview Result 1H-PK+ FCC Part 15C Electric Field Strength 1m PKFCC Part 15C Electric Field Strength 1m AV Final_Result PK+Final_Result CAV TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. TR-00237-97005-03 (Issue 3) Page 42 of 73 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 18G 30G40G Level in dBμV/m Frequency in Hz Preview Result 2V-AVGPreview Result 1V-PK+ Preview Result 2H-AVGPreview Result 1H-PK+ FCC Part 15C Electric Field Strength 3m PKFCC Part 15C Electric Field Strength 3m AV -55 -50 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 40 42 44 46 48 50 52 54 56 58 60 Level in dBm Frequency in GHz Preview Result 1H-RMSPreview Result 1V-RMS FCC 95.3379(2) dBmFinal_Result RMS TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. TR-00237-97005-03 (Issue 3) Page 43 of 73 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 60 65 70 75 80 85 90 Level in dBm Frequency in GHz Preview Result 1V-RMSPreview Result 1H-RMS FCC 95.3379(2) dBmFinal_Result RMS -55 -50 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 90 95 100 105 110 Level in dBm Frequency in GHz Preview Result 1V-RMSPreview Result 1H-RMS FCC 95.3379(2) dBmFinal_Result RMS FCC 95.3379(2) dBm TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. TR-00237-97005-03 (Issue 3) Page 44 of 73 Final Results: Frequency RMS Limit Margin Meas. Time Bandwidth Height Pol Azimuth Corr. MHz dBm dBm dB ms kHz cm deg dB 169670.000000 -30.37 -1.69 28.68 20.0 1000.000 150.0 H 180.0 -74 -55 -50 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 110 120 130 140 150 160 170 Level in dBm Frequency in GHz Preview Result 1H-RMSPreview Result 1V-RMS FCC 95.3379(2) dBmFinal_Result RMS FCC 95.3379(2) dBm TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. TR-00237-97005-03 (Issue 3) Page 45 of 73 70 75 80 85 90 95 100 105 110 170 180 190 200 210 220 Level in dBμV/m Frequency in GHz Preview Result 1H-RMSPreview Result 1V-RMSFCC 95.3379(2) (1m) FCC 95.3379(2) (1m) 70 75 80 85 90 95 100 105 11…

Text truncated - open the document above for the full version.

TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. TR-00237-97005-03 (Issue 3) Page 54 of 73 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 18G 30G40G Level in dBμV/m Frequency in Hz Preview Result 1V-PK+Preview Result 2H-AVG Preview Result 1H-PK+Preview Result 2V-AVG FCC Part 15C Electric Field Strength 3m PKFCC Part 15C Electric Field Strength 3m AV -55 -50 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 40 42 44 46 48 50 52 54 56 58 60 Level in dBm Frequency in GHz Preview Result 1V-RMSPreview Result 1H-RMS FCC 95.3379(2) dBmFinal_Result RMS TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. TR-00237-97005-03 (Issue 3) Page 55 of 73 Final Results: Frequency RMS Limit Margin Meas. Time Bandwidth Height Pol Azimuth Corr. MHz dBm dBm dB ms kHz cm deg dB 60060.937500 -34.23 -1.69 32.54 5.0 1000.000 150.0 V 163.0 -63.0 76593.750000 -28.49 -1.69 26.80 5.0 1000.000 150.0 V 313.0 -62.9 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 60 65 70 75 80 85 90 Level in dBm Frequency in GHz Preview Result 1H-RMSPreview Result 1V-RMS FCC 95.3379(2) dBmFinal_Result RMS FCC 95.3379(2) dBm TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. TR-00237-97005-03 (Issue 3) Page 56 of 73 -55 -50 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 90 95 100 105 110 Level in dBm Frequency in GHz Preview Result 1H-RMSPreview Result 1V-RMS FCC 95.3379(2) dBmFinal_Result RMS TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. TR-00237-97005-03 (Issue 3) Page 57 of 73 Final Results: Frequency RMS Limit Margin Meas. Time Bandwidth Height Pol Azimuth Corr. MHz dBm dBm dB ms kHz cm deg dB 169670.000000 -30.55 -1.69 28.86 20.0 1000.000 150.0 V 201.0 -73.9 -55 -50 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 110 120 130 140 150 160 170 Level in dBm Frequency in GHz Preview Result 1V-RMSPreview Result 1H-RMS FCC 95.3379(2) dBmFinal_Result RMS FCC 95.3379(2) dBm TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. TR-00237-97005-03 (Issue 3) Page 58 of 73 70 75 80 85 90 95 100 105 110 170 180 190 200 210 220 Level in dBμV/m Frequency in GHz Preview Result 1H-RMSPreview Result 1V-RMSFCC 95.3379(2) (1m) FCC 95.3379(2) (1m) 70 75 80 85 90 95 100 105 110 115 120 220 230 240 250 260 270 280 290 300 Level in dBμV/m Frequency in GHz Preview Result 1H-RMSPreview Result 1V-RMS FCC 95.3379(2) (0.5m)Final_Result RMS FCC 95.3379(2) (0.5m) TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. TR-00237-97005-03 (Issue 3) Page 59 of 73 10.4 Frequency Stability Date of Test 2020-10-15 and 2020-10-16 Prüfergebnis / Test Result Operator Alex Fink Erfüllt / Passed Test Site Non shielded room Nicht erfüllt / Not passed Barometric pressure: 976 hPa Relative humidity: 44 % Ambient temperature: 22 °C Specifications: CFR 47, Part 95, Subpart M, §95.3379(b) RSS-251, Issue 2, Section 11 Description: b) Fundamental emissions must be contained within the frequency bands specified in this section during all conditions of operation. Equipment is presumed to operate over the temperature range -20 °C to 50 °C with a input voltage varation of 85 % to 115 % of rated input voltage unless justification is presented to demonstrate otherwise. Operation mode: Transmitting continuously on lowest and highest frequency with modulation 175 MHz, 300 MHz and 425 MHz. Comment : See plots of tests for details. All emissions are within the 76 – 77 GHz frequency band. See plots for details TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. TR-00237-97005-03 (Issue 3) Page 60 of 73 Plots taken during test 175 MHz, 20 °C, 9.2 V – Lowest channel 175 MHz, 20 °C, 9.2 V – Highest channel TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. TR-00237-97005-03 (Issue 3) Page 61 of 73 300 MHz, 20 °C, 9.2 V – Lowest channel 300 MHz, 20 °C, 9.2 V – Highest channel TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. TR-00237-97005-03 (Issue 3) Page 62 of 73 425 MHz, 20 °C, 9.2 V – Lowest channel 425 MHz, 20 °C, 9.2 V – Highest channel TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. TR-00237-97005-03 (Issue 3) Page 63 of 73 175 MHz, 20 °C, 17.0 V – Lowest channel 175 MHz, 20 °C, 17.0 V – Highest channel TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. TR-00237-97005-03 (Issue 3) Page 64 of 73 300 MHz, 20 °C, 17.0 V – Lowest channel 300 MHz, 20 °C, 17.0 V – Highest channel TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. TR-00237-97005-03 (Issue 3) Page 65 of 73 425 MHz, 20 °C, 17.0 V – Lowest channel 425 MHz, 20 °C, 17.0 V – Highest channel TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. TR-00237-97005-03 (Issue 3) Page 66 of 73 175 MHz, -40 °C, 12.0 V – Lowest channel 175 MHz, -40 °C, 12.0 V – Highest channel TÜV SÜD Produc…

Text truncated - open the document above for the full version.

Document Number: Annex to TR-00237-97005-03 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 1 of 2 Annex to Test Report TR-00237-97005-03 | Issue: 01 1 Photographs Taken During Testing 1.1 Test setup for radiated emission measurement (alternate test site) Document Number: Annex to TR-00237-97005-03 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 2 of 2 1.2 Test setup for radiated emission measurement (fully anechoic room)
