LTQTXF315P3TXF 315P3

ATTESTATION STATEMENT FCC ID: LTQTXF315P3 Transmitter of Keyless Entry System TXF 315P3 SUMMARY: All tests according to FCC Part Subpart C Paragraph 15.231 n - Performed The equipment under test n - Fulfills the general approval requirements of FCC Part Subpart C Paragraph 15.231 - MIKES BABT PRODUCT SERVICE GmbH - Responsible Engineer ___________________________ Klaus Gegenfurtner Dipl.-Ing. (FH)

Responses to FCC Questions 1). In accordance with Section 15.231(a)(1) is the EUT automatically deactivated within 5 seconds of its switch being released? This requirement did not appear to be addressed in the application. When the switch is released the transmission ceases after around 1.5 seconds. 2). Confidentiality on the internal photos is not allowed. The client requested this. The client has been informed that it is not allowed. 3). Confidentiality was requested on the technical description but was not checked off. Apologies. This was an error when submitting the exhibits. 4). There appears to be an error in the table on page 10 for L:AV = 65.3. The correction factor (summarized) = -15.8 on page 11 appears to be in error. Please correct. The correction factor on page 11 refers to measurement of spurious emissions radiated in the frequency range 1 GHz - 4GHz. This correction factor (-15.8dB) has nothing to do with the measurement result on page 10. Basically the correction factor (-15.8 dB) is the correction value on 1.8 GHz for the measurement above 1 GHz. 5). For future reference please note that if the signal from the EUT is pulsed, we do not allow average detector measurements. In accordance with Section 15.35(c) we would mathematically apply a duty cycle correction factor to the peak reading. If the signal from the EUT is pulsed, you would also need to provide time domain plots from which the duty cycle correction factor could be calculated. This was not an issue in this application because the peak and quasi peak readings met the average limits. The EUT is not operating in pulse mode. Page 10 of the test report shows the test result for spurious emission in the frequency range 30 MHz - 1000 MHz. The measurement was performed in Peak/Average/QuasiPeak-mode for information only. The final judgement is made according to the QuasiPeak measurement. 6). The applicable rule part for the EUT is not 15.231(e) as shown on Form 731. Again a typing error. 30 th August 2001

Attachment E1 FCC ID: LTQTXF315P3 TXF 315P3 File No. T 20725-04 KG MIKES BABT PRODUCT SERVICE GmbH w Ohmstrasse 2-4 w D-94342 Strasskirchen w Tel.:+49 94 24 94 07-0 w Fax:+49 94 24 94 07-60 Rev.Nr. 9.0

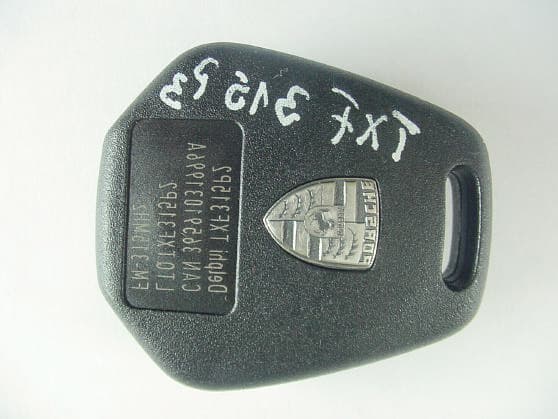

Delphi Automotive Systems FCC ID: LTQTXF315P3 Megamos Type: TXF 315P3

Attachment E2 FCC ID: LTQTXF315P3 TXF 315P3 File No. T 20725-04 KG MIKES BABT PRODUCT SERVICE GmbH w Ohmstrasse 2-4 w D-94342 Strasskirchen w Tel.:+49 94 24 94 07-0 w Fax:+49 94 24 94 07-60 Rev.Nr. 9.0 Attachment E3 FCC ID: LTQTXF315P3 TXF 315P3 File No. T 20725-04 KG MIKES BABT PRODUCT SERVICE GmbH w Ohmstrasse 2-4 w D-94342 Strasskirchen w Tel.:+49 94 24 94 07-0 w Fax:+49 94 24 94 07-60 Rev.Nr. 9.0

FCC ID: LTQTXF315P3 TTI - P-G 009 / 98-00 TTI - P-G 089 / 94-50 File No. T 20725-1-04KG , Page 1 of 16 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 E M I S S I O N -- T E S T R E P O R T Testreport file no. : T 20725-1-04KG ______________ Date : July 16, 2001 of issue __________________ Model / Type No.:TXF 315P3 ______________________________________________ Type:Transmitter 315 MHz ______________________________________________ Applicant:Delphi Automotive Systems Deutschland GmbH ______________________________________________ Manufacturer:Delphi Automotive Systems Deutschland GmbH ______________________________________________ Licence holder:Delphi Automotive Systems Deutschland GmbH ______________________________________________ Address:Wiehlpuhl 4 ______________________________________________ D-51766 Engelskirchen, Germany ______________________________________________ Test result accrdg. to the regulation(s) at page 3 : POSITIVE This testreport with appendix consists of 28 pages. The testresult only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the testlaboratory. FCC ID: LTQTXF315P3 File No. T 20725-1-04KG , Page 2 of 16 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 D I R E C T O R Y Page A) Documentation Directory2________ Testregulations3________ General information4-5________ Discovery of worst case condition6________ Equipment under Test15________ Summary16________ B) Testdata Conducted emissions 10/150 kHz - 30 MHz7________ Spurious emissions (magnetic field) 10 kHz - 30 MHz8-9 ________ Spurious emissions (electric field) 30 MHz - 1000 MHz10 ________ Spurious emissions (electric field) 1 GHz - 18 GHz11-12 ________ Raiated power of the fundamental wave13 ________ Conducted power of the fundamental wave measured on14 the antenna terminals ________ Attachment A)Testdata /Bandwith plotsA1-A3________ B)List of Test EquipmentB1________ C) Photos of the test setupC1-C2________ D)Technical description of the test sampleD1-D3 (e.g.CDF, Declaration) ________ E) Photos of the EuTE1-E3________ F)Measurement Protocol for FCC, VCCI and AUSTEL--________ FCC ID: LTQTXF315P3 File No. T 20725-1-04KG , Page 3 of 16 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 T E S T R E G U L A T I O N S The tests were performed according to following regulations : o- EN 50081-1/ 2.1991 o- EN 50081-2/ 7.1993 -------------------------------------------------------------------------------- o- EN 55011/ 3.1991o- Group 1o- Group 2 o- class Ao- class B o- EN 55014/ 4.1993o- Household appliances and similar o- tools o- Semiconductor devices o- EN 55014 / A2:1990 o- EN 55104/ 5.1995Category: o- EN 55015 / A1:1990 o- EN 55015 / 12.1993 o- EN 55022 / 5.1995o- class Ao- class B o- prEN 55103-1/ 3.1995 o- prEN 50121-3-2/ 3.1995 o- EN 60601-1-2/ 4.1994 o- VCCIo- class 1o- class 2 o- Part 15 Subpart C (15.209) n- Part 15 Subpart C (15.231) FCC ID: LTQTXF315P3 File No. T 20725-1-04KG , Page 4 of 16 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 A D D R E S S O F T H E T E S T L A B O R A T O R Y n-MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 D - 94342 Strasskirchen o-______________________________________ ______________________________________ ______________________________________ E N V I R O N M E N T A L C O N D I T I O N S Temperature:15-35 ° C______ Humidity45-60 %______ Atmospheric pressure 860-1060 mbar_________ POWER SUPPLY SYSTEM UTILIZED Power supply system: Battery Unom = 3 V DC STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error of ±4dB. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) Transmitter of "Keyless Entry System" (for automobiles). Number of received/tested samples:2 / 2 Serial Number:Prototype DEFINITIONS FOR SYMBOLS USED IN THIS TEST REPORT n -Black box indicates that the listed condition, standard or equipment is applicable for this Report. o -Blank box indicates that the listed condition, standard or equipment was not applicable for this Report. FCC ID: LTQTXF315P3 File No. T 20725-1-04KG , Page 5 of 16 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 M E A S U R E M E N T P R O T O C O L F O R F C C , V C C I A N D A U S T E L Test Methodology Conducted and radiated emission testing is performed according to the procedures in International Special Committee on Radio Interference (CISPR) Publication 22 (1993), European Standard EN 55022 and Australian Standard AS 3548 (which are based on CISPR 22). The Japanese standard, "Voluntary Control Council for Interference (VCCI) by Data Processing Equipment and Electronic Office Machines, Technical Requirements" is technically equivalent to CISPR 22 (1993). For official compliance, a conformance report must be sent to and accepted by the VCCI. In compliance with FCC Docket 92-152, "Harmonization of Rules for Digital Devices Incorporate International Standards", testing for FCC compliance may be done following the ANSI C63.4-1992 procedures and using the FCC limits or the CISPR 22 Limits. Measurement Error The test system for conducted emissions is defined as the LISN, tuned receiver and coaxial cable. The test system for spurious emissions is defined as the antenna, the pre-amplifier, the tuned receiver and the coaxial cable. These test systems have a…

Text truncated - open the document above for the full version.

FCC ID: LTQTXF315P3 TTI - P-G 009 / 98-00 TTI - P-G 089 / 94-50 File No. T 20725-1-04KG , Page 1 of 16 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 E M I S S I O N -- T E S T R E P O R T Testreport file no. : T 20725-1-04KG ______________ Date : July 16, 2001 of issue __________________ Model / Type No.:TXF 315P3 ______________________________________________ Type:Transmitter 315 MHz ______________________________________________ Applicant:Delphi Automotive Systems Deutschland GmbH ______________________________________________ Manufacturer:Delphi Automotive Systems Deutschland GmbH ______________________________________________ Licence holder:Delphi Automotive Systems Deutschland GmbH ______________________________________________ Address:Wiehlpuhl 4 ______________________________________________ D-51766 Engelskirchen, Germany ______________________________________________ Test result accrdg. to the regulation(s) at page 3 : POSITIVE This testreport with appendix consists of 28 pages. The testresult only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the testlaboratory. FCC ID: LTQTXF315P3 File No. T 20725-1-04KG , Page 2 of 16 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 D I R E C T O R Y Page A) Documentation Directory2________ Testregulations3________ General information4-5________ Discovery of worst case condition6________ Equipment under Test15________ Summary16________ B) Testdata Conducted emissions 10/150 kHz - 30 MHz7________ Spurious emissions (magnetic field) 10 kHz - 30 MHz8-9 ________ Spurious emissions (electric field) 30 MHz - 1000 MHz10 ________ Spurious emissions (electric field) 1 GHz - 18 GHz11-12 ________ Raiated power of the fundamental wave13 ________ Conducted power of the fundamental wave measured on14 the antenna terminals ________ Attachment A)Testdata /Bandwith plotsA1-A3________ B)List of Test EquipmentB1________ C) Photos of the test setupC1-C2________ D)Technical description of the test sampleD1-D3 (e.g.CDF, Declaration) ________ E) Photos of the EuTE1-E3________ F)Measurement Protocol for FCC, VCCI and AUSTEL--________ FCC ID: LTQTXF315P3 File No. T 20725-1-04KG , Page 3 of 16 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 T E S T R E G U L A T I O N S The tests were performed according to following regulations : o- EN 50081-1/ 2.1991 o- EN 50081-2/ 7.1993 -------------------------------------------------------------------------------- o- EN 55011/ 3.1991o- Group 1o- Group 2 o- class Ao- class B o- EN 55014/ 4.1993o- Household appliances and similar o- tools o- Semiconductor devices o- EN 55014 / A2:1990 o- EN 55104/ 5.1995Category: o- EN 55015 / A1:1990 o- EN 55015 / 12.1993 o- EN 55022 / 5.1995o- class Ao- class B o- prEN 55103-1/ 3.1995 o- prEN 50121-3-2/ 3.1995 o- EN 60601-1-2/ 4.1994 o- VCCIo- class 1o- class 2 o- Part 15 Subpart C (15.209) n- Part 15 Subpart C (15.231) FCC ID: LTQTXF315P3 File No. T 20725-1-04KG , Page 4 of 16 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 A D D R E S S O F T H E T E S T L A B O R A T O R Y n-MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 D - 94342 Strasskirchen o-______________________________________ ______________________________________ ______________________________________ E N V I R O N M E N T A L C O N D I T I O N S Temperature:15-35 ° C______ Humidity45-60 %______ Atmospheric pressure 860-1060 mbar_________ POWER SUPPLY SYSTEM UTILIZED Power supply system: Battery Unom = 3 V DC STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error of ±4dB. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) Transmitter of "Keyless Entry System" (for automobiles). Number of received/tested samples:2 / 2 Serial Number:Prototype DEFINITIONS FOR SYMBOLS USED IN THIS TEST REPORT n -Black box indicates that the listed condition, standard or equipment is applicable for this Report. o -Blank box indicates that the listed condition, standard or equipment was not applicable for this Report. FCC ID: LTQTXF315P3 File No. T 20725-1-04KG , Page 5 of 16 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 M E A S U R E M E N T P R O T O C O L F O R F C C , V C C I A N D A U S T E L Test Methodology Conducted and radiated emission testing is performed according to the procedures in International Special Committee on Radio Interference (CISPR) Publication 22 (1993), European Standard EN 55022 and Australian Standard AS 3548 (which are based on CISPR 22). The Japanese standard, "Voluntary Control Council for Interference (VCCI) by Data Processing Equipment and Electronic Office Machines, Technical Requirements" is technically equivalent to CISPR 22 (1993). For official compliance, a conformance report must be sent to and accepted by the VCCI. In compliance with FCC Docket 92-152, "Harmonization of Rules for Digital Devices Incorporate International Standards", testing for FCC compliance may be done following the ANSI C63.4-1992 procedures and using the FCC limits or the CISPR 22 Limits. Measurement Error The test system for conducted emissions is defined as the LISN, tuned receiver and coaxial cable. The test system for spurious emissions is defined as the antenna, the pre-amplifier, the tuned receiver and the coaxial cable. These test systems have a…

Text truncated - open the document above for the full version.

Attachment C1 of C2: Photo documentationFCC ID: LTQTXF315P3 File No.:T 20725-1-04 KG MIKES BABT PRODUCT SERVICE GmbH w Ohmstrasse 2-4 w D-94342 Strasskirchen w Tel.:+49 94 24 94 07-0 w Fax:+49 94 24 94 07-60 Rev.No. 9.0 Test-Setup: Radiated emission 30 MHz – 1000 MHz (front view) Test-Setup: Radiated emission 30 MHz – 1000 MHz (back view) Attachment C2 of C2: Photo documentationFCC ID: LTQTXF315P3 File No.:T 20725-1-04 KG MIKES BABT PRODUCT SERVICE GmbH w Ohmstrasse 2-4 w D-94342 Strasskirchen w Tel.:+49 94 24 94 07-0 w Fax:+49 94 24 94 07-60 Rev.No. 9.0 Test-Setup: Radiated emission 1000 MHz – 3150 MHz (front view) Test-Setup: Radiated emission 1000 MHz – 3150 MHz (back view)
