LUXTC2000-HHeadset

1 Attention Trainer User Guide About This Guide About ThoughtCaster This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may causeundesired operation. 2 Attention Trainer User Guide Table of Contents About This Guide _____________________________________________________________ 1 About ThoughtCaster ______________________________________________________________ 1 1 Neurofeedback and Effectiveness ______________________________________________ 6 2 Maximizing Results _________________________________________________________ 7 2.1 General Use___________________________________________________________________ 7 2.2 Recommended Usage___________________________________________________________ 7 2.3 Concentration Index (CI)________________________________________________________ 7 2.4 Setting Goals/Expectations_______________________________________________________ 7 2.5 Reward System ________________________________________________________________ 8 2.6 Expanded Learning Opportunities________________________________________________ 8 2.7 Parental Oversight_____________________________________________________________ 9 3 Introduction to The Attention Trainer™ _______________________________________ 10 3.1 How the Games Teach _________________________________________________________ 10 3.2 How Does The Attention Trainer Work?__________________________________________ 10 3.3 What's Required to Use The Attention Trainer?____________________________________ 10 4 The Attention Trainer™ Starter Kit ____________________________________________ 12 4.1 Hardware______________________________________________Error! Bookmark not defined. 4.1.1 Base Station _______________________________________________________________________ 12 4.1.2 Headset___________________________________________________Error! Bookmark not defined. 4.1.2.1 Connecting the Sensors ___________________________________________________________ 12 4.1.2.2 Installing the Battery _____________________________________________________________ 12 4.2 Conditions of use - ThoughtCaster ™ _____________________________________________ 13 4.3 Software_______________________________________________Error! Bookmark not defined. 4.3.1 Instal ling the Software_______________________________________________________________ 13 5 ThoughtCaster Software ______________________________Error! Bookmark not defined. 5.1 Sensor information____________________________________________________________ 15 5.2 System Software Upgrades______________________________________________________ 15 5.3 Managing Accounts____________________________________________________________ 15 5.3.1 Account Administrator (Guardian)______________________________________________________ 15 5.3.2 Player accounts _____________________________________________________________________ 15 5.3.2.1 Create Account _________________________________________________________________ 15 5.3.2.2 Delete an Existing Account ________________________________________________________ 17 5.3.2.3 Configure Account ______________________________________________________________ 18 5.3.3 Guest Accounts____________________________________________________________________ 19 3 Attention Trainer User Guide 5.4 Managing Applications_________________________________________________________ 19 5.4.1 Add an Application _________________________________________________________________ 20 5.4.2 Remove an Application ______________________________________________________________ 20 5.5 Tools__________________________________________________Error! Bookmark not defined. 5.5.1 Upload Session Information to the Web__________________________________________________ 21 5.5.2 Change Guardian Password ___________________________________________________________ 22 5.6 Help___________________________________________________Error! Bookmark not defined. 5.6.1 List Help Topics ____________________________________________________________________ 22 5.6.2 Display Guardian Information _________________________________________________________ 22 6 How to use The Attention Trainer™ ___________________________________________ 23 6.1 Preventive maintenance ________________________________________________________ 23 6.1.1 Battery ___________________________________________________Error! Bookmark not defined. 6.1.2 How to Place Headset on Base Station___________________________________________________ 23 6.2 Player Login__________________________________________________________________ 23 6.3 Fitting the ThoughtCaster ™ headset _____________________________________________ 25 6.3.1 Fitting the Forehead Pad______________________________________________________________ 25 6.3.2 Fitting the Inner Comfort Pads _________________________________________________________ 25 6.3.3 Attaching the Sensors________________________________________________________________ 26 6.3.4 Correct Headset Placement ___________________________________________________________ 26 6.3.5 Sensor Size Legend_________________________________________________________________ 26 6.3.6 Conditions of Use - Sensors___________________________________________________________ 26 6.3.7 Hair Tips__________________________________________________________________________ 26 6.3.8 Other Important Hints _______________________________________________________________ 26 6.4 Calibration_____________________________________________Error! Bookmark not defined. 6.4.1 Steps to Follow for Calibration ________________________________________________________ 27 6.5 Baseline________________________________________________Error! Bookmark not defined. 6.5.1 Steps to Follow for Baselining_________________________________________________________ 27 6.6 Launching a Game___________________________________________________________…

Text truncated - open the document above for the full version.

Client: Patapsco Designs Report #: 2311-02 FCC ID: LUXTC2000-H Date: 12/01/00 Model: TC2000-H Page 1 of 2 EXTERNAL PHOTOGRAPHS Prepared for: Patapsco Designs, Inc. 5350 Partners Court Frederick, MD 21703 FCC ID: LUXTC2000-H Client: Patapsco Designs Report #: 2311-02 FCC ID: LUXTC2000-H Date: 12/01/00 Model: TC2000-H Page 2 of 2 PHOTOGRAPH OF EUT - Top view PHOTOGRAPH OF EUT - Back view Switch and LED

DECEMBER 2001 Headset || |||| | ||| ||| | ||| ||||| | ||| ||| ||||| || |||| | HA9912345678X || |||| | ||| ||| | ||| ||||| | ||| ||| ||||| || |||| | HA9912345678X HA9912345678X || |||| | ||| ||| | ||| ||||| | ||| ||| ||||| || |||| | HA9912345678X MANUFACTURED IN USA Label Size: 1.625” x 0.43” Printed at final assembly by test fixture Registration Card Label Affixed to Registration Card Inventory / Package Label Carried with finished product / Affixed to shipping package Inventory / Package Label Carried with finished product / Affixed to shipping package Headset Serial Number Label Affixed to inside shell of headset FCC ID Label w/Grantee Code Affixed to inside shell of headset Label Size: 2” x 0.752” Preprinted label Affixed to inside wall of battery compartment Print area: 1” x 0.27” Date field printed in batch Patapsco Designs, Inc. east3, FCC ID: LUXTC2000-H Ltd. Model: TC2000-H

Client: Patapsco Designs Report #: 2311-02 FCC ID: LUXTC2000-H Date: 12/01/00 Model: TC2000-H Page 1 of 4 LABEL PLACEMENT Prepared for: Patapsco Designs, Inc. 5350 Partners Court Frederick, MD 21703 FCC ID: LUXTC2000-H Client: Patapsco Designs Report #: 2311-02 FCC ID: LUXTC2000-H Date: 12/01/00 Model: TC2000-H Page 2 of 4 Client: Patapsco Designs Report #: 2311-02 FCC ID: LUXTC2000-H Date: 12/01/00 Model: TC2000-H Page 3 of 4 Client: Patapsco Designs Report #: 2311-02 FCC ID: LUXTC2000-H Date: 12/01/00 Model: TC2000-H Page 4 of 4

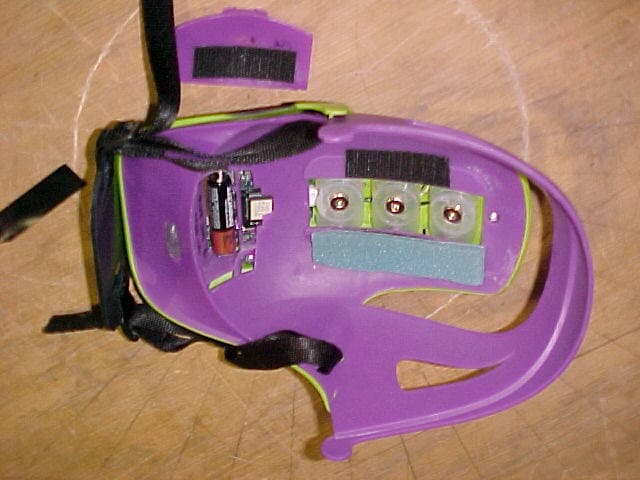

Client: Patapsco Designs Report #: 2311-02 FCC ID: LUXTC2000-H Date: 12/01/00 Model: TC2000-H Page 1 of 3 INTERNAL PHOTOGRAPHS Prepared for: Patapsco Designs, Inc. 5350 Partners Court Frederick, MD 21703 FCC ID: LUXTC2000-H Client: Patapsco Designs Report #: 2311-02 FCC ID: LUXTC2000-H Date: 12/01/00 Model: TC2000-H Page 2 of 3 PHOTOGRAPH OF EUT – Inside whole view PHOTOGRAPH OF EUT – Inside view Client: Patapsco Designs Report #: 2311-02 FCC ID: LUXTC2000-H Date: 12/01/00 Model: TC2000-H Page 3 of 3 PHOTOGRAPH OF EUT – Main board component side view PHOTOGRAPH OF EUT – Main board soldering side view

Client: Patapsco Designs, Inc. Report #: 2311-02 FCC ID: LUXTC2000-H Date: 12/01/00 Model: TC2000-H EMC006 Rev. 0 Page 2 of 12 Client: Patapsco Designs, Inc. Report #: 2311-02 FCC ID: LUXTC2000-H Date: 12/01/00 Model: TC2000-H EMC006 Rev. 0 Page 3 of 12 Table of Contents Exhibit Title Page Cover Page 1 Authorization Letter 2 Table of Contents 3 I Engineering Statement 4 II Measurement Instrument List 6 III EUT Information 7 IV EUT Configuration 9 V Radiated Data 10 VI Modifications 11 VII Compliance Information 12 Client: Patapsco Designs, Inc. Report #: 2311-02 FCC ID: LUXTC2000-H Date: 12/01/00 Model: TC2000-H EMC006 Rev. 0 Page 4 of 12 Exhibit I Engineering Statement This report has been prepared on behalf of Patapsco Designs, Inc. to provide documentation for the testing described herein. This equipment has been tested and found to comply with Part 15 subpart C of the FCC Rules and under the regulation section 15.249 and section 15.209 procedure, using ANSI C63.4 1992 standards. The test results found in this report relate only to the items tested. EQUIPMENT UNDER TEST: Headset Trade Name: Patapsco Designs, Inc. FCC ID: LUXTC2000-H Model #: TC2000-H Power Supply: 1.5VDC (One “AA” alkaline battery) APPLICABLE RULES: CFR 47 Part 15 EQUIPMENT CATEGORY: Headset MEASUREMENT LOCATION: F-Squared Laboratories in Damascus, MD. Site description and attenuation data are on file with the FCC’s Sampling and Measurement Branch at the FCC Laboratory in Columbia, MD. MEASUREMENT PROCEDURE: All measurements were performed according tot he 1992 version of ANSI C63.4. A list of the measurement equipment can be found in Exhibit II. A2LA STATEMENT: This laboratory is accredited by the American Association for Laboratory Accreditation (A2LA) and the results shown in this test report have been determined in accordance with the laboratory’s terms of accreditation unless stated otherwise in the report. A2LA CERTIFICATE NUMBER: 793.01 Client: Patapsco Designs, Inc. Report #: 2311-02 FCC ID: LUXTC2000-H Date: 12/01/00 Model: TC2000-H EMC006 Rev. 0 Page 5 of 12 UNCERTAINTY BUDGET: • Radiated Emission Combined Uncertainty (+ or -) 2.24 dB Expanded Uncertainty (+ or -) 4.48 dB • Conducted Emission Combined Uncertainty (+ or -) 1.13 dB Expanded Uncertainty (+ or -) 2.26 dB ENGINEERING STATEMENT: I hereby state that: The measurements shown in this application were made in accordance with the procedures indicated and the energy emitted by this equipment was found to be within the limits. I assume full responsibility for the accuracy and completeness of these measurements. I further state that: On the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 15 of the FCC Rules under normal use and maintenance. Certified by: ______________________________________ Robert Pellizze, General Manager Client: Patapsco Designs, Inc. Report #: 2311-02 FCC ID: LUXTC2000-H Date: 12/01/00 Model: TC2000-H EMC006 Rev. 0 Page 6 of 12 Exhibit II List of Measurement Instrumentation Equipment Type Manufacturer Model # Serial # Calibration Due Date Receiver Systems Rohde & Schwarz ESMI DE23119 Feb. 2001 LISN #1 Solar 8012-50-R-24-BNC 910488 Feb. 2001 LISN #2 Solar 8012-50-R-24-BNC 933201 Feb. 2001 Biconical Antenna Compliance Design, Inc. B100 643 Mar. 2001 Biconical Antenna Compliance Design, Inc. B200 292 Jan. 2001 Biconical Antenna Compliance Design, Inc. B300 318 Jan. 2001 Horn Antenna Antenna Research Associates DRG-118/A 1105 Jan. 2001 Antenna Mast Compliance Design, Inc. M100 NA NA Amplifier HP 8447F 3113A04704 Aug.2001 Turntable F-Squared Laboratories Site 1 NA NA Spectrum Analyzer HP 8391A 3149A07546 Feb. 2001 Client: Patapsco Designs, Inc. Report #: 2311-02 FCC ID: LUXTC2000-H Date: 12/01/00 Model: TC2000-H EMC006 Rev. 0 Page 7 of 12 Exhibit III Equipment Under Test Information and Data TEST ITEM CONDITION: The equipment to be tested was received in good condition. TESTING ALGORITHM: A 1.5VDC battery was installed into the EUT. The power switch was pressed twice to initiate the transmission during the test. The fundamental emission, 10 th harmonic emissions and the other highest emissions are recorded in the data tables. RADIATED EMISSION TESTING: The EUT was tested at a distance of 3 meters. The emissions were maximized by rotating the table and raising/lowering the antenna mounted on a 4 meter mast. Both horizontal and vertical field components were measured. The output of the antenna was connected through a pre-amplifier, to the input of the receiver. The emissions were measured at the fundamental frequency range of 26.96 MHz to 27.28 MHz with a resolution bandwidth of 9 KHz. These measurements are quasi-peak readings in the range of 30 MHz to 1 GHz values with a resolution bandwidth of 120 KHz. These measurements are quasi-peak reading made at 3 meters. All data for radiated emissions is found in Exhibit VI. CALCULATION OF DATA: RADIATED EMISSIONS – The antenna factors (included cable losses) of the biconical antennas used, and the pre- amplifier gain, are input into the memory of the receiver. The receiver then corrects the reading for amplitude automatically. The field strength reading can then be taken directly from the receiver and compared to the FCC limits in dBuV/m. The following equation is used to convert to uV/m: E uV/m = antilog( E dBuV/m /20 ) Client: Patapsco Designs, Inc. Report #: 2311-02 FCC ID: LUXTC2000-H Date: 12/01/00 Model: TC2000-H EMC006 Rev. 0 Page 8 of 12 SAMPLE OF FIELD STRENGTH CALCULATION: Ea=Va + AF + Ae + (-AG) Where Ea = Field Strength(dBuV/m) Va = 20 x log10 (measure RF voltage, uV) Ae = Cable Loss Factor, dB AG = Amplifier Gain, dB AF = Antenna Factor dB(m-1) i.e. if the reading is 57.0 dBuV, the antenna factor 8.0 dB, cable loss factor 1.0 dB and Amplifier gain is 25.0 dB, so the field strength will be: Ea(dBuV/m) = 57 + 8 + 1 + (-25) = 41 dBuV/m OR Ea(uV/m) = 10 (41/20) = 112.20 uV/m Client: Patapsco Designs, Inc. Report #: …

Text truncated - open the document above for the full version.

Client: Patapsco Designs Report #: 2311-02 FCC ID: LUXTC2000-H Date: 12/01/00 Model: TC2000-H Page 1 of 2 TEST SET-UP PHOTOGRAPHS Prepared for: Patapsco Designs, Inc. 5350 Partners Court Frederick, MD 21703 FCC ID: LUXTC2000-H Client: Patapsco Designs Report #: 2311-02 FCC ID: LUXTC2000-H Date: 12/01/00 Model: TC2000-H Page 2 of 2 RADIATED TEST – Front view RADIATED TEST – Back view
