LXPP006LF Transmitter

ABN 48 004 315 628 BOSCH and the symbol are registered trademarks of Robert Bosch GmbH, Germany Citibank Pty. Ltd., BSB 242-000 Account No. 201455006 for domestic AUD transactions Deutsche Bank AG Stuttgart, Swift Code DEUTDESS, Account No. 0165005000 for overseas and foreign currency transactions Robert Bosch (Australia) Pty. Ltd Locked Bag 66 Clayton South VIC 3169 Visitor: 1555 Centre Road Clayton VIC 3168 Tel +61 3 9541 5555 www.bosch.com.au The device under test is manufactured by the grantee (Robert Bosch (Australia) Pty Ltd) and sold as an OEM product. Per 47 CFR 2.909, 2.927, 2.931, 2.1033, etc..., the grantee must ensure the end-user has all applicable / appropriate operating instructions. When end-user instructions are required, as in the case of this product, the grantee must notify the OEM to notify the end- user. Robert Bosch (Australia) Pty Ltd will supply this document to the reseller/distributor dictating what must be included in the end user’s manual for the commercial product. INFORMATION TO BE INCLUDED IN THE END USER’S MANUAL The following information (in blue) must be included in the end-product user’s manual to ensure continued FCC and Industry Canada regulatory compliance. The ID numbers must be included in the manual if the device label is not readily accessible to the end user. The compliance paragraphs below must be included in the user's manual. ****************************************************************************** FCC ID: LXPP006 IC: 2298A-P006 PMN: P006 This device complies with Part 15 of the FCC Rules and with ISED Canada license- exempt RSSs. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 24 June 2020

Willow Run (WR) Test Labs, Inc. 7117 Fieldcrest Dr., Brighton, Michigan 48116 USA Tel: (734) 252-9785, Fax: (734) 926-9785, e-mail: [email protected] Attn.:Certification and Engineering Bureau, Innovation, Science and Economic Development Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Robert Bosch (Australia) Pty Ltd P006 IC: 2298A-P006 If necessary, we have enclosed application materials for certification of Robert Bosch (Australia) Pty Ltd P006. It has been verified to comply with ISED RSS-210v10/GENv5. Current Variants: There is only a single variant of the EUT. HVIN P006 is fully populated and was tested herein. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 252-9785, or e-mail [email protected]. Sincerely, Joseph D. Brunett Willow Run (WR) Test Labs, Inc. Willow Run (WR) Test Labs, Inc. 7117 Fieldcrest Dr., Brighton, Michigan 48116 USA Tel: (734) 252-9785, Fax: (734) 926-9785, e-mail: [email protected] Attn.:Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Robert Bosch (Australia) Pty Ltd P006 FCC ID: LXPP006 If necessary, we have enclosed application materials for certification of Robert Bosch (Australia) Pty Ltd P006. It has been verified to comply with CFR Title 47, Part 15.209. Current Variants: There is only a single variant of the EUT. HVIN P006 is fully populated and was tested herein. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 252-9785, or e-mail [email protected]. Sincerely, Joseph D. Brunett Willow Run (WR) Test Labs, Inc.

0 BOSCH ToWhomIt May Concern: Authority toActas Agent and REL Listing RobertBosch (Australia) Pty. Ltd Locked Bag 66 Clayton SouthVIC3169 Visitors: 1555CentreRoad Clayton VIC3168 Tel+613 95415555 www.bosch.com.au 03 February 2020 We appointBradley J. KoskionbehalfofWireless Approval Consultantsand Joseph D.Brunettonbehalfof WillowRun TestLabsandAmber Helm Development, LCtoact asour agentin the preparation ofthis application for equipment certification. Wecertifythatsubmitteddocuments properly describethedeviceor systemforwhichequipmentcertificationis sought. Wealso certifythateachunit manufactured, imported or marketed, asdefinedin IndustryCanada's regulationswillhaveaffixedtoit alabelidenticaltothatsubmitted for approval withthis application.Further,in accordancewithsection 6.5of ICCB -02, we herebyacknowledge thatourcompany's product cannotbe distributed, leased orofferedforsale in Canada untilit'slistedonthe Industry CanadaRadio Equipment List (REL). Forinstanceswhereourauthorized agentsigns the application forcertification onourbehalf,we acknowledge thatallresponsibility for complyingwiththetermsandconditions for Certification, as specifiedbyAmerican Certification Body, Inc.and/orTUVRheinland Groupand/orVista Laboratories, Inc.stillresideswithRobert Bosch (Australia)Pty Ltd. ForTCB applications, wecertifythatwearenot subject todenial of federal benefits, that includesFCCbenefits, pursuant toSection5301of theAnti -DrugAbuseActof 1988,21 U.S.C. 862. Further, no party, asdefined in 47CFR1.2002(b), tothe application is subjecttodenialof federal benefits, that includesFCCbenefits.We alsodeclarethattheinformation provided to theFCCistrueandcorrectto thebestofour knowledge(47 CFR 2.911(d)) andwehavebeeninformedofthe grantee responsibilities(47 CFR 2.909)regardingcertified equipment. Dated: 3February2020 Signature: _________________________________ Name: RoyRamm Title: GeneralManager - Engineering(AE-BE/ENG -AU) email: roy.rammau.bosch.com On behalfof: RobertBosch (Australia)PtyLtd. 1555Centre Road,Clayton,Victoria, Australia, 3168 Telephone: +613 9541 7755 ABN48 004315628 BOSCHand the symbol are registered trademarksofRobertBosch GmbH, Germany Banking connection:Citibank Pty.Ltd., BSB242-000AccountNo.201455006 fordomesticAUDtransactions DeutscheBankAG Stuttgart, SwiftCode DEUTDESS, AccountNo.0165005000foroverseas and foreigncurrency transactions

Willow Run (WR) Test Labs, Inc. 7117 Fieldcrest Dr., Brighton, Michigan 48116 USA Tel: (734) 252-9785, Fax: (734) 926-9785, e-mail: [email protected] Re: Certification for Robert Bosch (Australia) Pty Ltd FCC ID: LXPP006 IC: 2298A-P006 REQUEST FOR CONFIDENTIALITY Pursuant to USA FCC 47 CFR 0.457(d) and 0.459 and Canada IC RSP-100, Section 10, Robert Bosch (Australia) Pty Ltdrequests that a part of the subject application be held confidential. Robert Bosch (Australia) Pty Ltd has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to ”competition” would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality:Robert Bosch (Australia) Pty Ltd requests that any exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only):Robert Bosch (Australia) Pty Ltd requests that any exhibits selected above as short term confidential be withheld from public view for a period of days (noted above) from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 252-9785, or e-mail [email protected]. Sincerely, Joseph D. Brunett Willow Run (WR) Test Labs, Inc. 9 ExhibitConf. TypeRational Exh 04 - Block DiagramPermanentIncludes proprietary internal oscillator information. Exh 05 - SchematicsPermanentIncludes proprietary design information Exh 10 - BOM + PlacementPermanentIncludes proprietary design information

13*/5&%
-"#&-
"55"$)&%
#:
1&3."/&/5
"%)&4*7&
/0/
3&.07"#-&
"6 50.05*7&
(3"%&
-"#&-*/( *%
-BCFM
-PDBUJPO

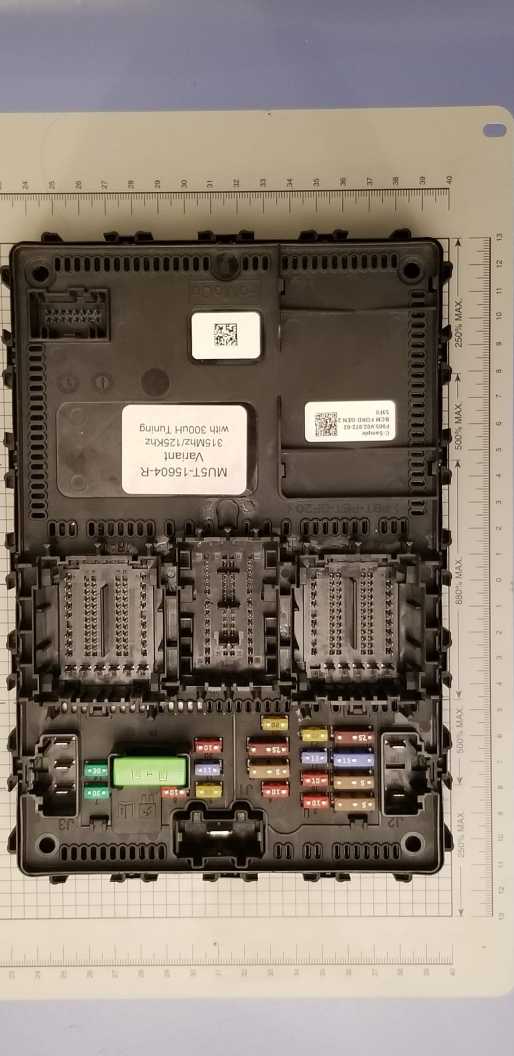

ThisBody Controller Module (BCM)incorporates aPassive Entry PassiveStart (PEPS) Systems which allows the vehicle user to you to automatically unlock and lock thevehicle doors by touching the any of the vehicles door handles, and start the enginebypushing the Start Stop button without the need of taking the Key fob out of users pockets orhand bags...etc.Also included inone variant of thissystem is aUHFReceiver used forreceivingTire PressureMonitoring sensorand/orKeyfob transmissions. Thesystemconsists of the following components 1-Vehicle mounted Ferrite core LF antennae(ContinentalModel KV-ANTENNA) 2-Sensors on Doors Handles used as Locking and Unlocking triggersandStart/Stop Push Button used as Vehicle Start Trigger 3-315MHzIntegralRF receiver(onevariantonly). 4-BCM which containsthe LF Driver (125 kHz) The PEPS systemworks as follows: 1-Once system is triggered by any of the user inputs, an LF challenges is sent to the Key Fob by the LF driver. The LF challengeswith a keyfob wake up and data (4Kbaud modulated data) 2-If theKey fob is in the presence of the LF field created by the LF antennae, it sends its response to theBCMRF receiver(if integral) or aseparate receiver in the vehicle. Key fob sends RF (315MHz) data which is received by theRF receiver.Receiver sendskey fobdata to the BCM. 3-If the Key Fob is authenticated, the BCM will activateddoor lock / vehicle startoutputs based on the user intention (trigger).

Amber Helm Development L.C. 92723 Michigan Hwy-152 Sister Lakes, Michigan 49047 USA Tel: 888-847-8027 EMC Test Report BOSCH2-WR2011TX Issued:June 29, 2020 regarding USA: CFR Title 47, Part 15.209(Emissions) Canada: ISED RSS-210v10/GENv5(Emissions) for P006 Category: LF Initiator Judgments: 15.209/RSS-210v10 Compliant Transmitter Testing Completed: June 25, 2020 TESTING NVLAP LAB CODE 200129-0 Prepared for: Robert Bosch (Australia) Pty Ltd 1555 Centre Road, Clayton Victoria 3168 Australia Phone: +61 3 9541 7755, Fax: +61 3 9541 7755 Contact: Ben Meure, [email protected] Data Recorded by: Reviewed by: Dr. Joseph Brunett, EMC-002790-NEGordon Helm, EMC-002401-NE Prepared by:Date of Issue: June 29, 2020 Dr. Joseph Brunett, EMC-002790-NE A copy of this report will remain on file until July 2030.Page 1 of 17 Date: June 29, 2020Prepared For: Robert Bosch (Australia) Pty LtdReport No.: BOSCH2-WR2011TX Revision History Rev. No.DateDetailsRevised By r0June 29, 2020Initial Release.J. Brunett Contents Revision History2 Table of Contents2 1 Test Report Scope and Limitations4 1.1 Laboratory Authorization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.2 Report Retention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.3 Subcontracted Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.4 Test Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.5 Limitation of Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.6 Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.7 Endorsements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.8 Test Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 1.9 Traceability and Equipment Used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2 Test Specifications and Procedures6 2.1 Test Specification and General Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 3 Configuration and Identification of the Equipment Under Test7 3.1 Description and Declarations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 3.1.1EUT Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.2Modes of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.3Variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 3.1.4Test Samples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 3.1.5Functional Exerciser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 3.1.6Modifications Made . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 3.1.7Production Intent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 3.1.8Declared Exemptions and Additional Product Notes . . . . . . . . . . . . . . . . . . . . . . . .9 4 Emissions10 4.1 General Test Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 4.1.1Radiated Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 4.1.2Conducted Emissions Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . 12 4.1.3Power Supply Variation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 4.2 Intentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 4.2.1Fundamental Emission Pulsed Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 4.2.2Fundamental Emission Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 4.2.3Fundamental Emission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 4.3 Unintentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 4.3.1Transmit Chain Spurious Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 5 Measurement Uncertainty and Accreditation Documents17 Amber Helm Development L.C., 92723 Michigan Hwy-152, Sister Lakes, Michigan 49047 USAPage 2 of 17 Date: June 29, 2020Prepared For: Robert Bosch (Australia) Pty LtdReport No.: BOSCH2-WR2011TX List of Tables 1Test Site List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2Equipment List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 3EUT Declarations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 4Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 5Intentional Emission Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 6Fundamental Radiated Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 7Transmit Chain Spurious Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 8Measurement Uncertainty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 List of Figures 1Photos of EUT.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2EUT Test Configuration Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3Radiated Emissions Diagram of the EUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10…
