LXV69100Transmitter Part of 900MHz V Mail

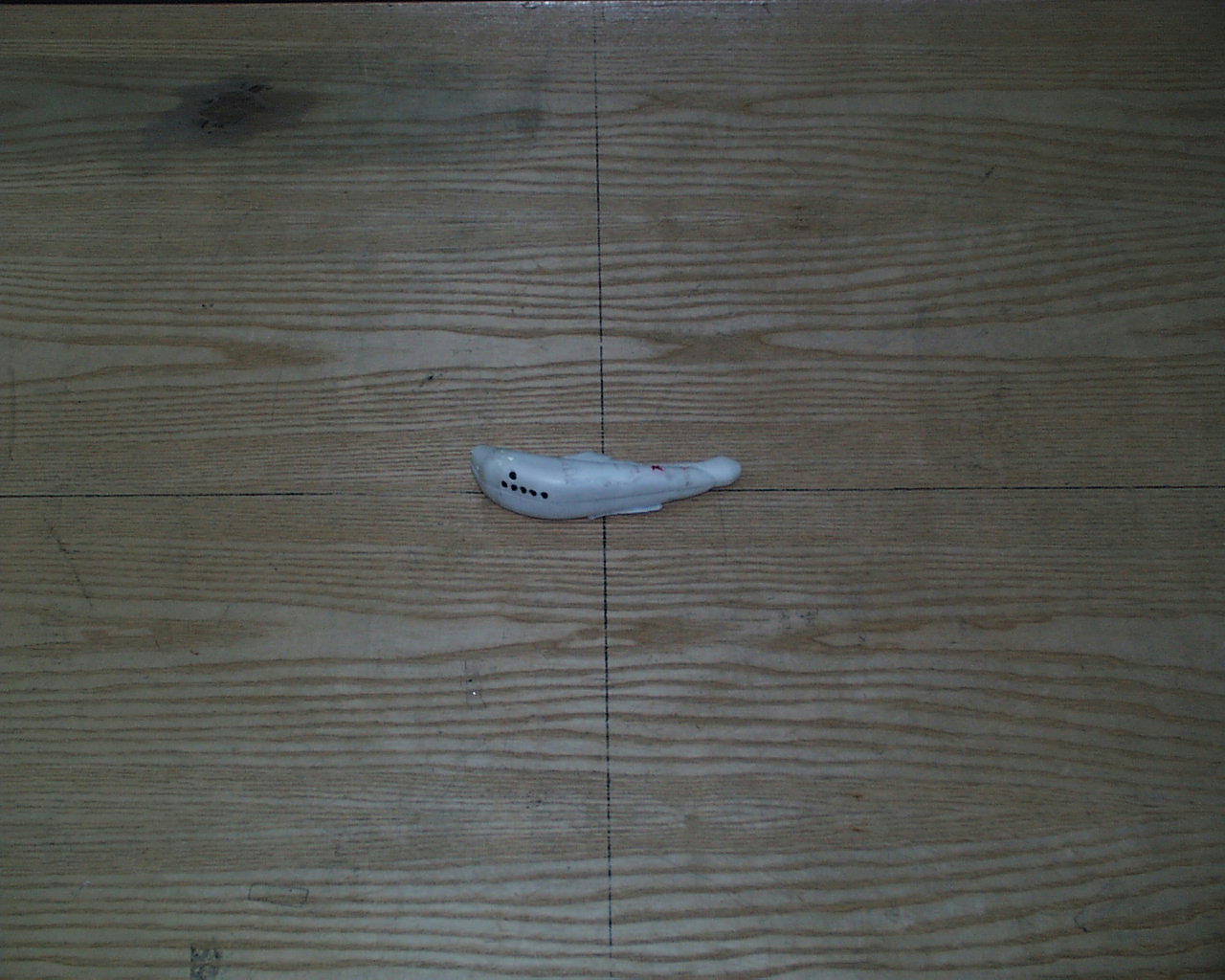

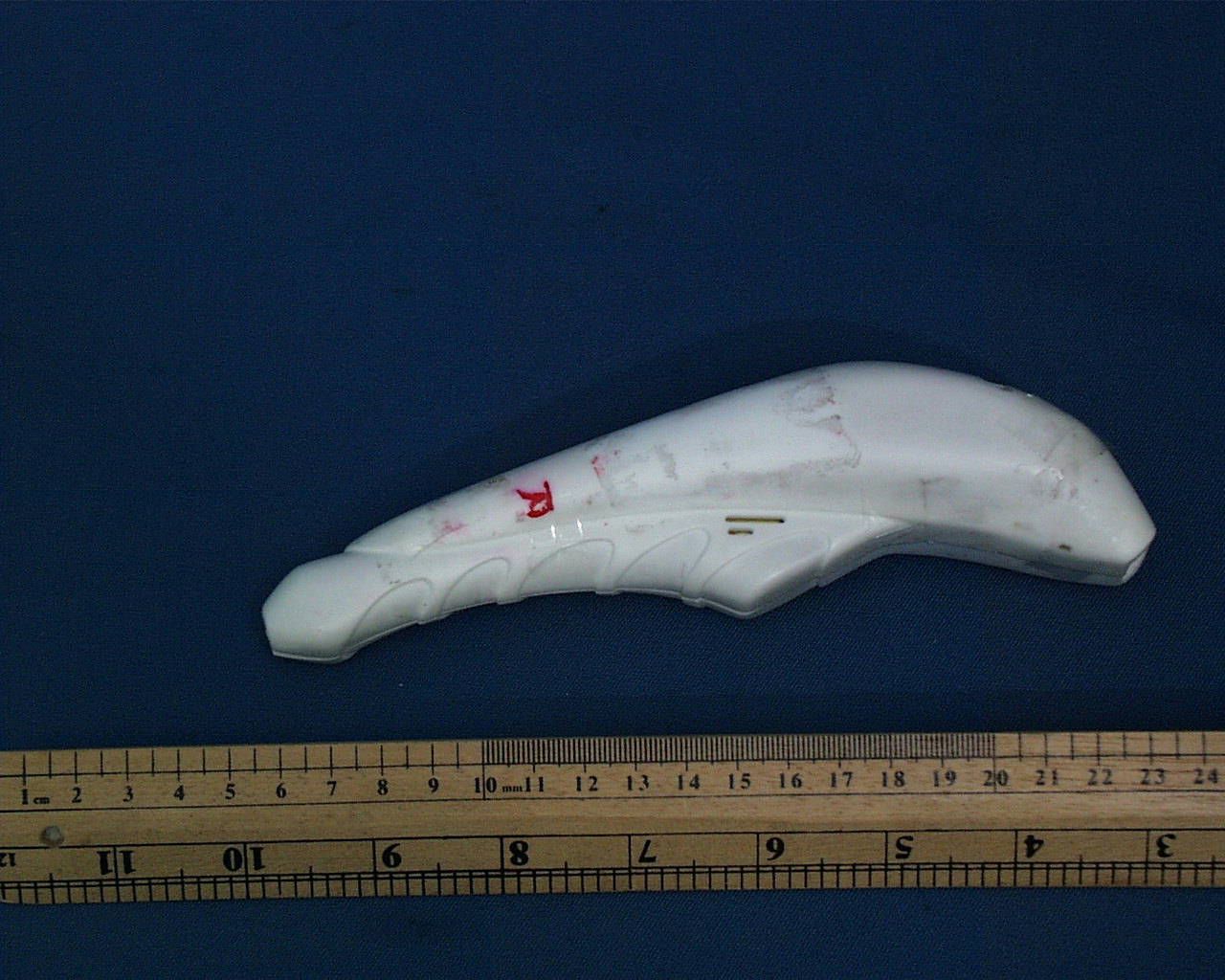

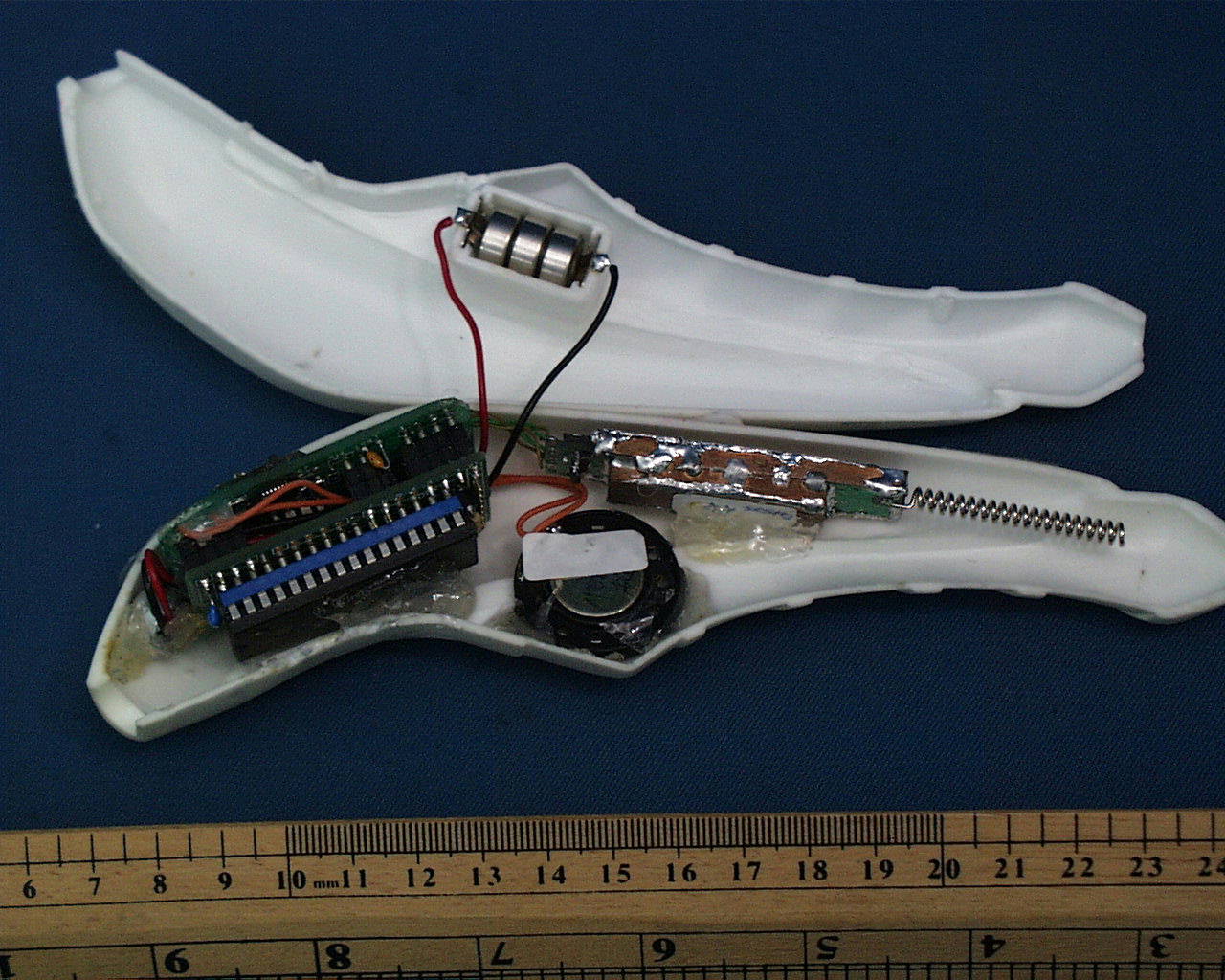

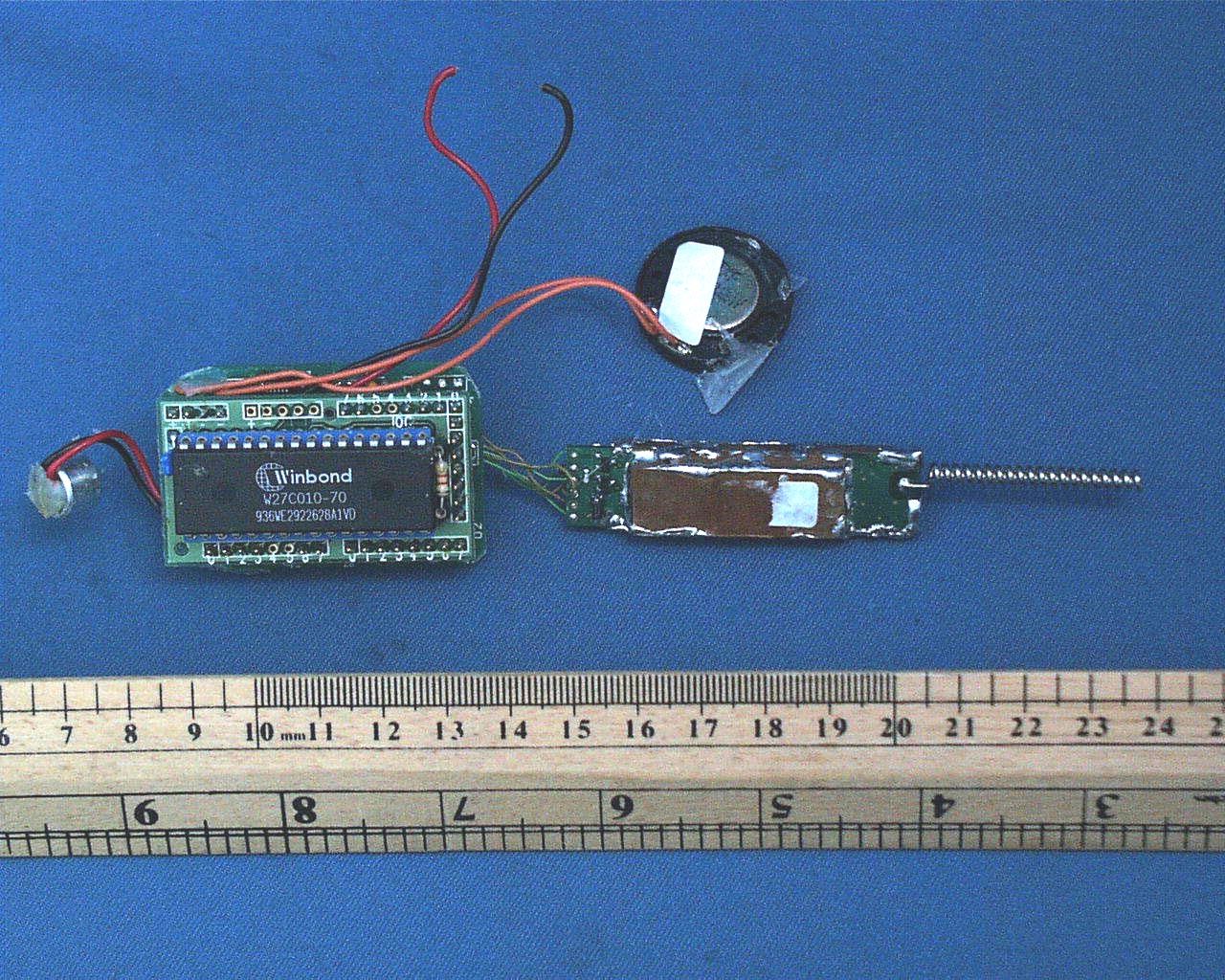

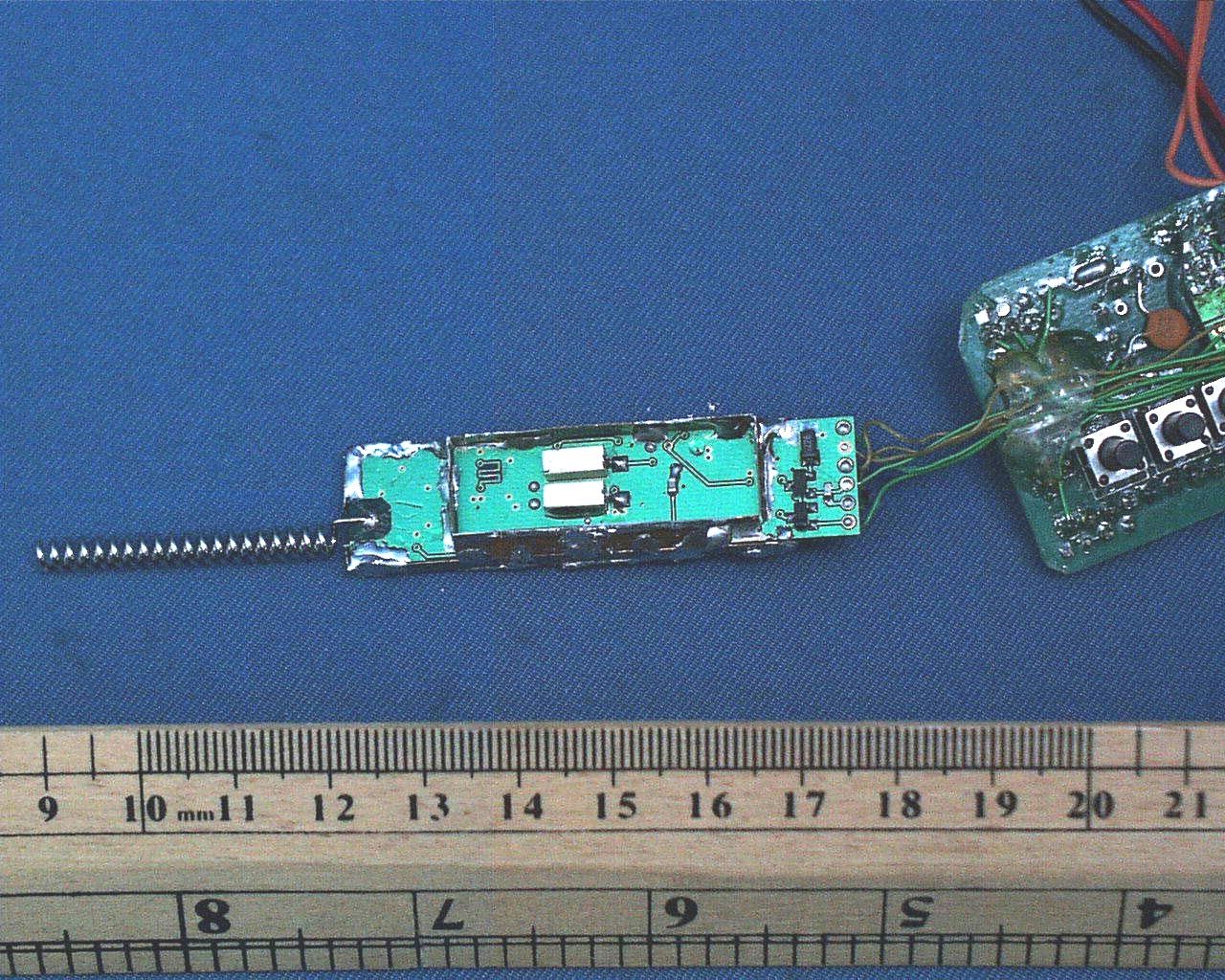

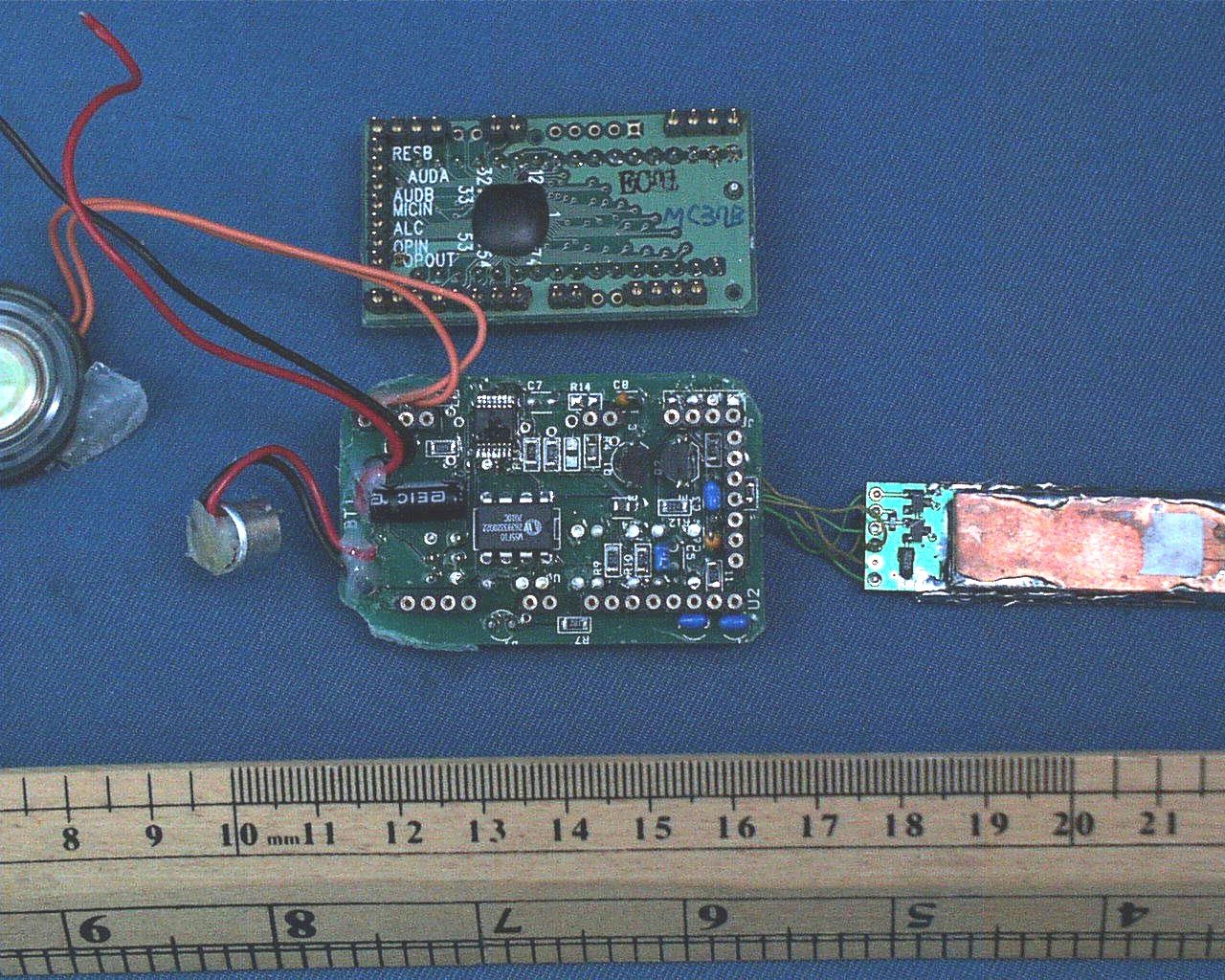

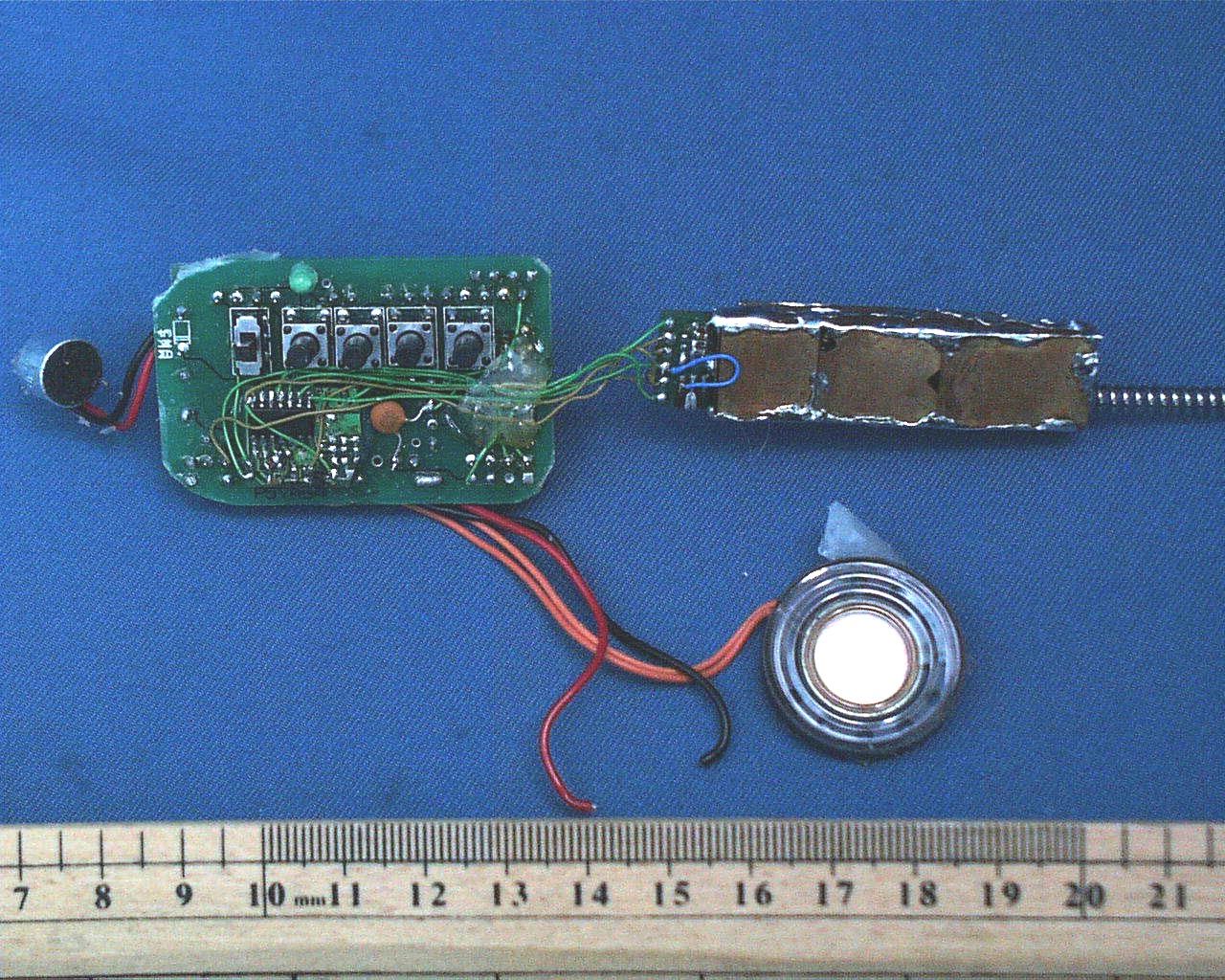

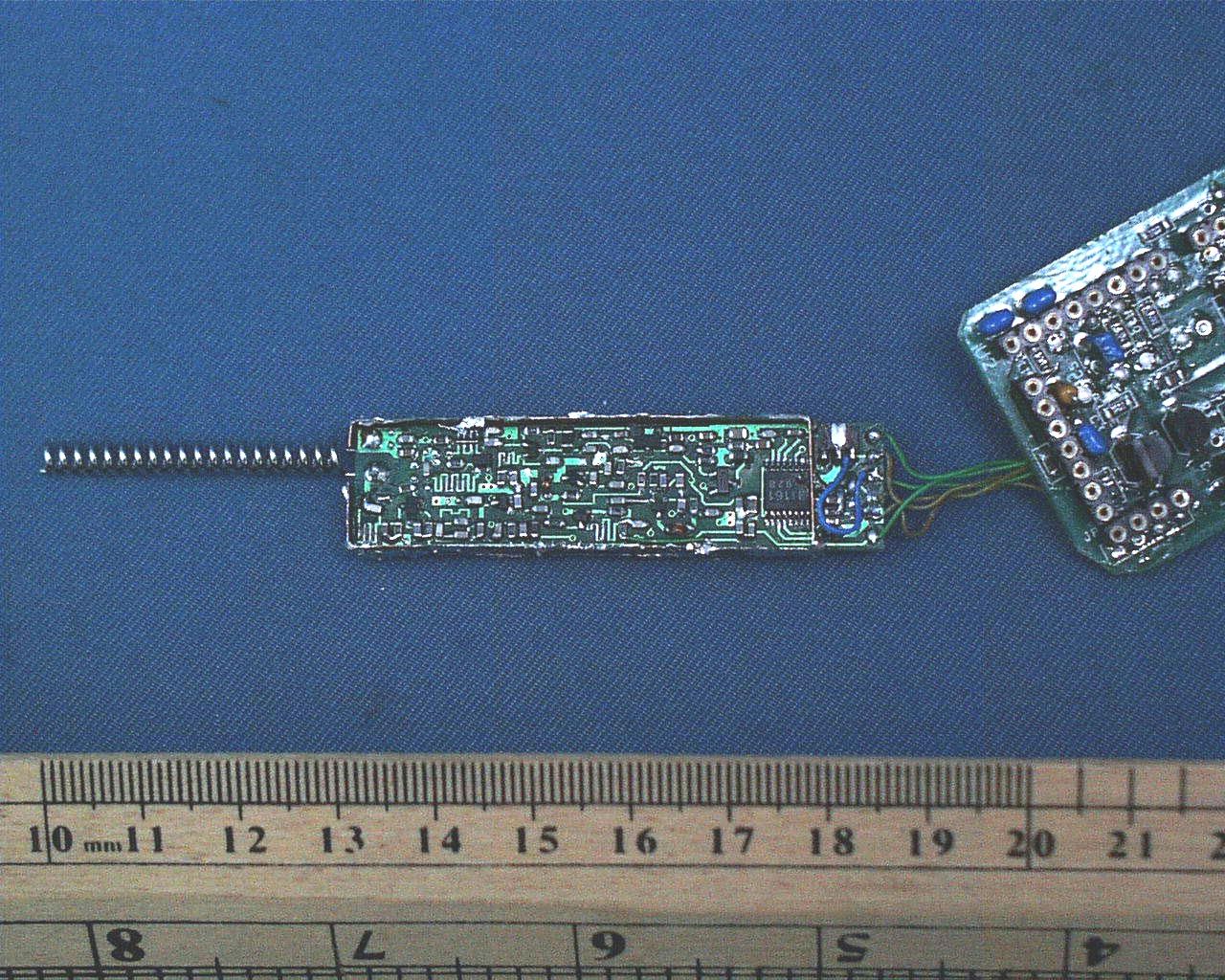

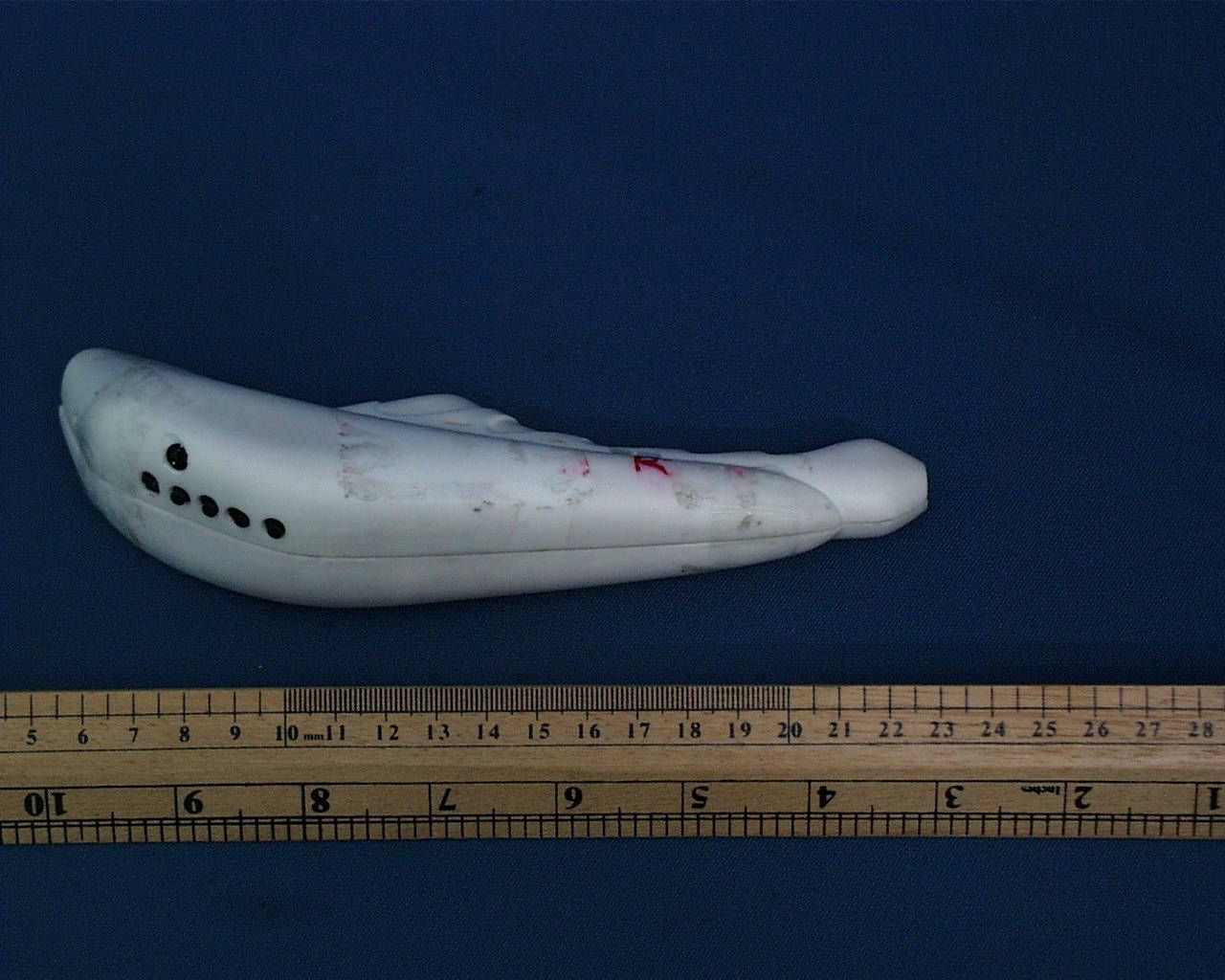

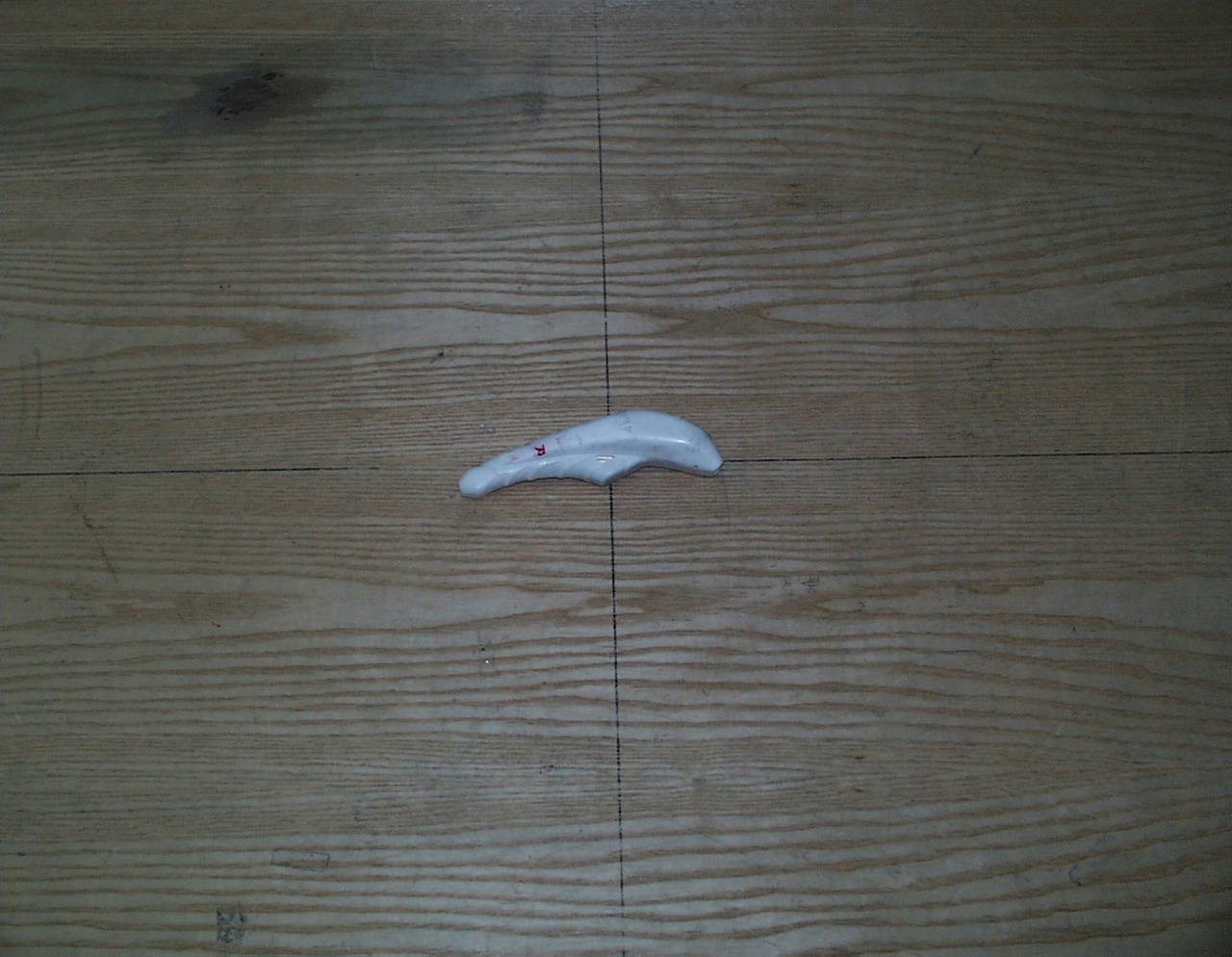

Toy Biz Inc. Application For Certification (FCC ID: LXV69100) Transmitter WO# 0008293 WL/at September 1, 2000 INTERTEK TESTING SERVICES FCC ID: LXV69100 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1 :General Description EXHIBIT 2 :System Test Configuration EXHIBIT 3 :Emission Results EXHIBIT 4 :Equipment Photographs EXHIBIT 5 :Product Labelling EXHIBIT 6 :Technical Specifications EXHIBIT 7 :Instruction Manual EXHIBIT 8 :Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: LXV69100 ii MEASUREMENT/TECHNICAL REPORT Toy Biz Inc. - MODEL: V Mail 69100 FCC ID: LXV69100 September 1, 2000 This report concerns (check one:)Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-1-96 Edition] provision. Report prepared by:Wilson Loke Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8575 Fax:852-2745-8306 INTERTEK TESTING SERVICES FCC ID: LXV69100 iii Table of Contents 1.0 General Description................................................................................................................ 2 1.1 Product Description ............................................................................................................... 2 1.2 Related Submittal(s) Grants ................................................................................................... 2 1.3 Test Methodology .................................................................................................................. 3 1.4 Test Facility............................................................................................................................ 3 2.0 System Test Configuration...................................................................................................... 5 2.1 Justification ............................................................................................................................ 5 2.2 EUT Exercising Software ....................................................................................................... 5 2.3 Special Accessories ................................................................................................................ 5 2.4 Equipment Modification ........................................................................................................ 6 2.5 Support Equipment List and Description ............................................................................... 6 3.0 Emission Results...................................................................................................................... 8 3.1 Field Strength Calculation ...................................................................................................... 9 3.2 Radiated Emission Configuration Photograph ..................................................................... 11 3.3 Radiated Emission Data ....................................................................................................... 12 4.0 Equipment Photographs....................................................................................................... 15 5.0 Product Labelling.................................................................................................................. 17 6.0 Technical Specifications........................................................................................................ 19 7.0 Instruction Manual................................................................................................................ 21 8.0 Miscellaneous Information................................................................................................... 23 8.1 Discussion of Pulse Desensitization ..................................................................................... 24 8.2 Calculation of Average Factor ............................................................................................. 25 8.3 Emissions Test Procedures...................................................................................................26 INTERTEK TESTING SERVICES FCC ID: LXV69100 iv List of attached file Exhibit typeFile Descriptionfilename Cover LetterLetter of Agencyletter.pdf Test ReportTest Reportreport.doc Operation DescriptionTechnical Descriptiondescri.pdf Test Setup PhotoRadiated Emissionradiated1.jpg, radiated2.jpg External PhotoExternal Photoophoto1.jpg to ophoto2.jpg Internal PhotoInternal Photoiphoto1.jpg to iphoto6.jpg Block DiagramBlock Diagramblock.pdf SchematicsCircuit Diagramcircuit.pdf ID Label/LocationLabel Artwork and Locationlabel.pdf User ManualUser Manualmanual.pdf INTERTEK TESTING SERVICES FCC ID: LXV69100 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: LXV69100 2 1.0General Description 1.1Product Description The Equipment Under Test (EUT) is a Transmitter Part of a transceiver operating at 918 MHz. The EUT is powered by 4.5V dc (3 x 1.5V “LR44” battery). It can record the voice message of the user and then transmit the voice message to another unit by pressing the button. After the unit received the voice message, the message can be played back. For electronic filing, the brief circuit description is saved with filename: descri.pdf 1.2Related Submittal(s) Grants This is a single application for certification of a transmitter. The receiver part is subjected to verification procedure. INTERTEK TESTING SERVICES FCC ID: LXV69100 3 1.3Test Methodology Both AC mains line-conducted and radiated emission measurements were performed according to the procedures in ANSI C63.4 (1992). All measurements were performed in Open Area Test …
