M48T432SRemote Control Transmitter

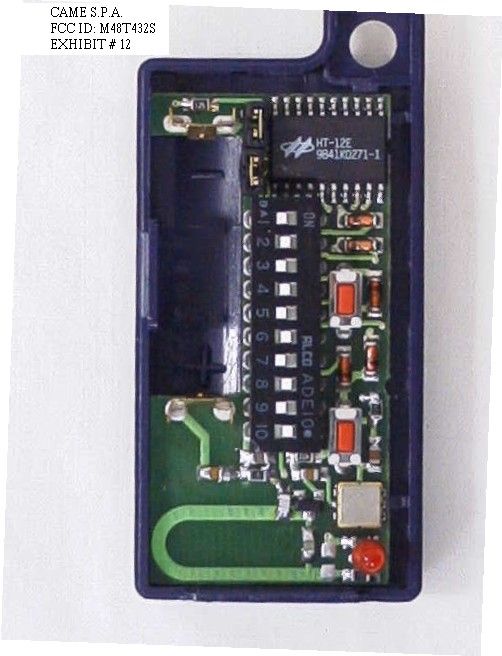

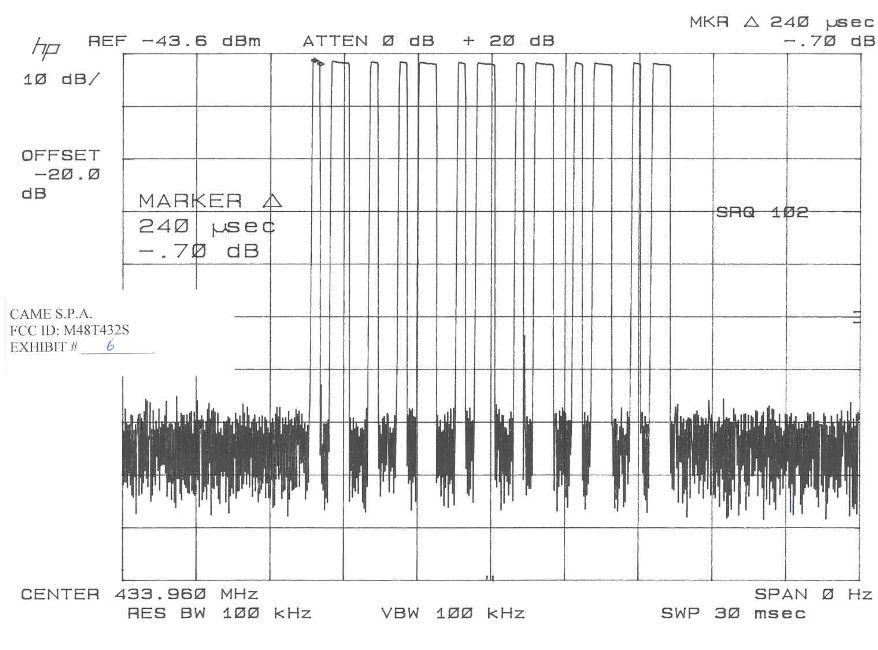

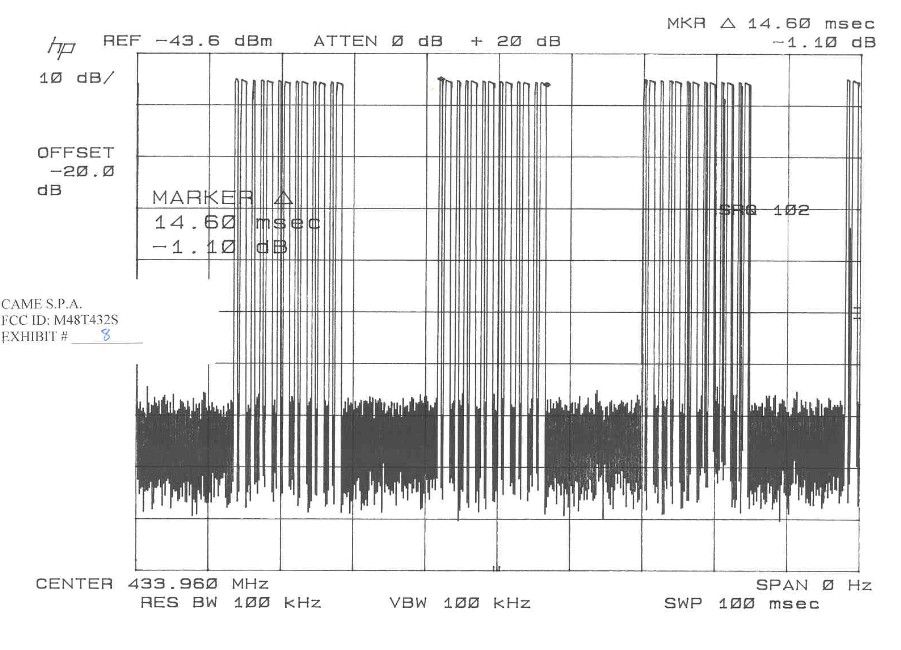

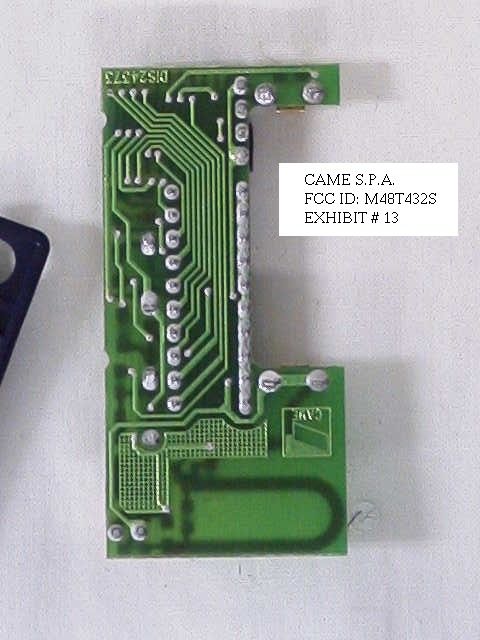

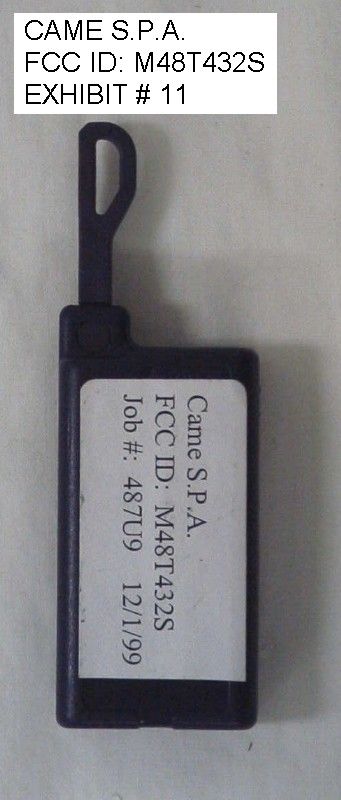

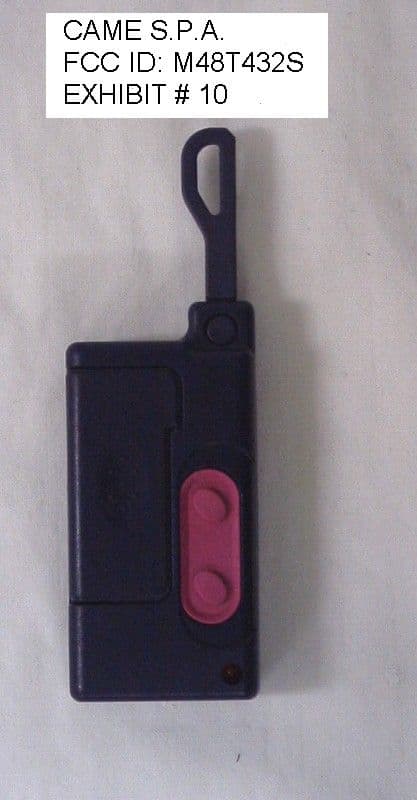

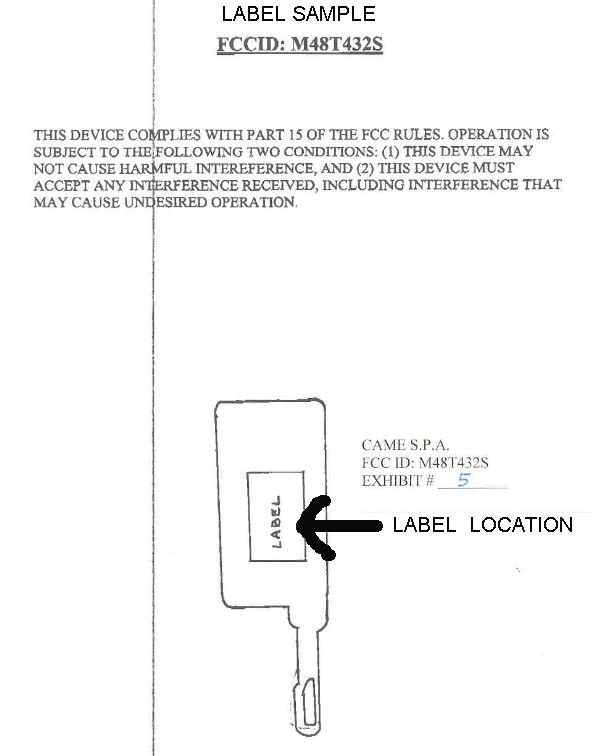

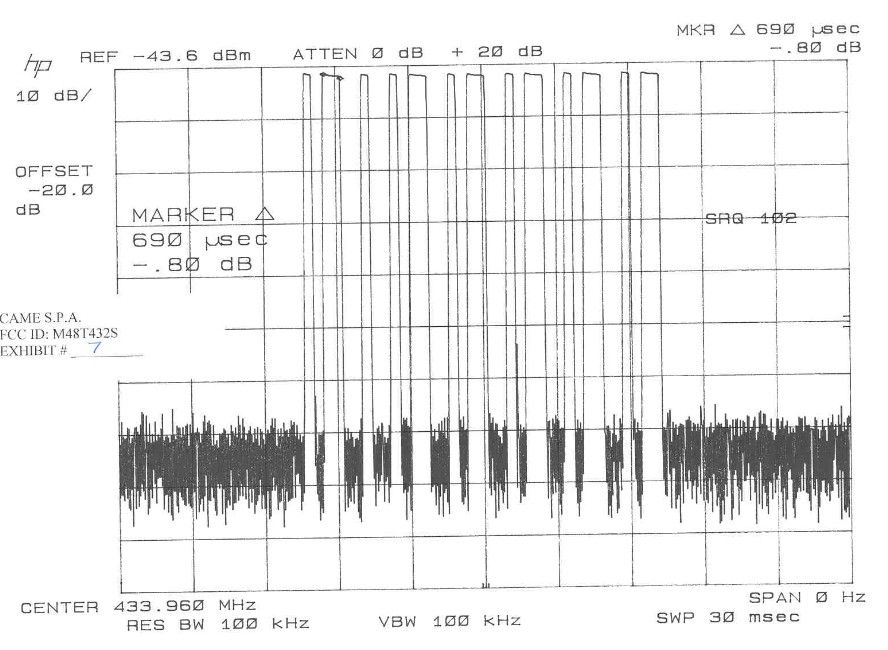

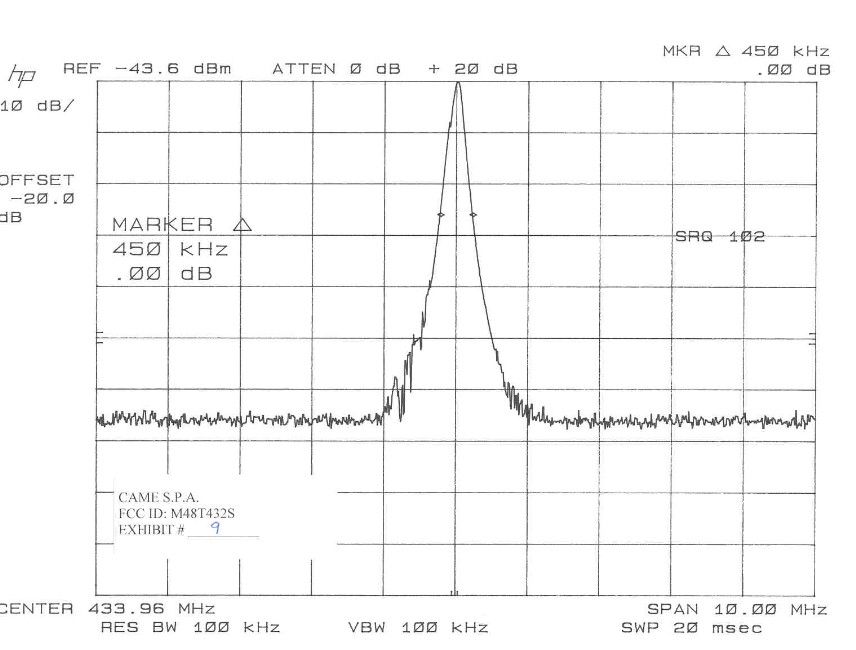

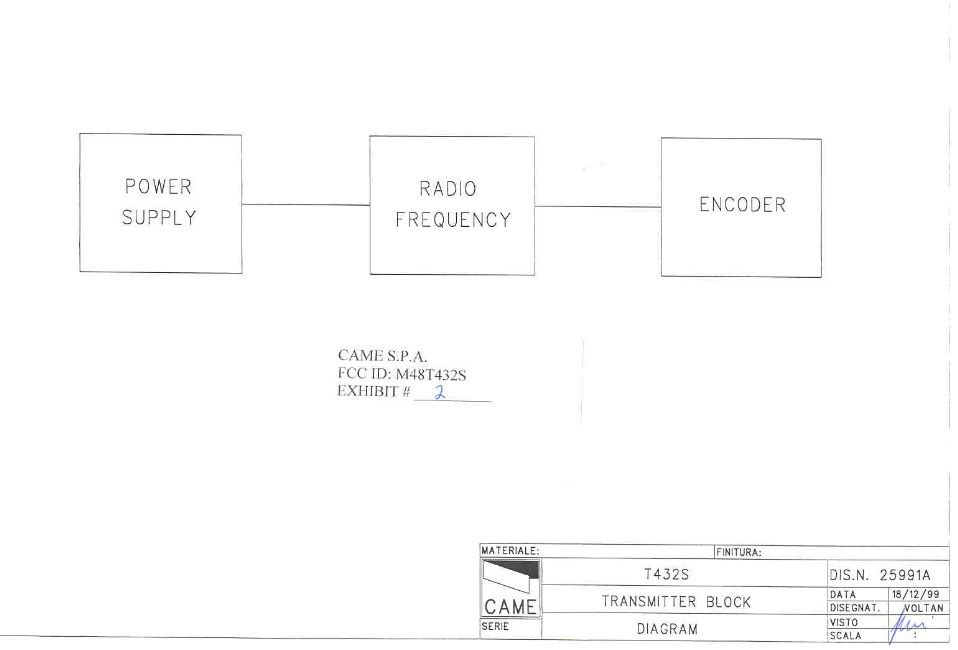

TABLE OF CONTENTS APPLICANT: CAME SPA FCC ID: M48T432S TEST REPORT CONTAINING: PAGE 1.............TEST PROCEDURE PAGE 2.............CIRCUIT DESCRIPTION & TEST PROCEDURE PAGE 3.............RADIATION INTERFERENCE TEST DATA PAGE 4.............CALCULATION OF DUTY CYCLE PAGE 5.............OCCUPIED BANDWIDTH EXHIBIT ATTACHMENTS: EXHIBIT 1...........POWER OF ATTORNEY LETTER EXHIBIT 2...........BLOCK DIAGRAM EXHIBIT 3...........SCHEMATIC EXHIBIT 4A-4D.......INSTRUCTION MANUAL EXHIBIT 5...........FCC ID LABEL SAMPLE AND LOCATION EXHIBIT 6...........DUTY CYCLE PLOT - SMALL PULSES EXHIBIT 7...........DUTY CYCLE PLOT - LARGE PULSES EXHIBIT 8...........DUTY CYCLE PLOT EXHIBIT 9...........OCCUPIED BANDWIDTH PLOT EXHIBIT 10..........FRONT VIEW EXTERNAL PHOTO EXHIBIT 11..........REAR VIEW EXTERNAL PHOTO EXHIBIT 12..........COMPONENT SIDE INTERNAL PHOTO EXHIBIT 13..........COPPER SIDE INTERNAL PHOTO APPLICANT: CAME SPA FCC ID: M48T432S REPORT #: T:\CUS\C\CAME\CAM52U0\CAM52U0.RPT PAGE: TABLE OF CONTENTS LIST APPLICANT: CAME SPA FCC ID: M48T432S TEST EQUIPMENT LIST 1._x_Spectrum Analyzer: HP 8566B-Opt 462, S/N 3138A07786, w/ preselector HP 85685A, S/N 3221A01400, Quasi-Peak Adapter HP 8565OA, S/N 3303A01690 & Preamplifier HP 8449B-OPT H02, S/N 3008A00372 Cal. 10/17/99 2.___Signal Generator: HP 8640B, S/N 2308A21464 Cal. 9/23/99 3.___Signal Generator: HP 8614A, S/N 2015A07428 Cal. 5/29/99 4.___Passive Loop Antenna: EMCO Model 6512, 9KHz to 30MHz, S/N 9706-1211 Cal. 6/23/97 5._X_Biconnical Antenna: Eaton Model 94455-1, S/N 1057 6._X_Log-Periodic Antenna: Electro-Metrics Model EM-6950, S/N 632 7.___Dipole Antenna Kit: Electro-Metrics Model TDA-30/1-4, S/N 153 Cal. 11/24/99 8._X_Double-Ridged Horn Antenna: Electro-Metrics Model RGA-180, 1-18 GHz, S/N 2319 Cal. 4/27/99 9.___Horn 40-60GHz: ATM Part #19-443-6R 10.___Line Impedance Stabilization Network: Electro-Metrics Model ANS-25/2, S/N 2604 Cal. 2/9/00 11.___Line Impedance Stabilization Network: Electro-Metrics Model EM-7820, S/N 2682 Cal. 12/1/99 12.___Temperature Chamber: Tenney Engineering Model TTRC, S/N 11717-7 13.___AC Voltmeter: HP Model 400FL, S/N 2213A14499 Cal. 9/21/99 14.___Digital Multimeter: Fluke Model 8012A, S/N 4810047 Cal 9/21/99 15.___Digital Multimeter: Fluke Model 77, S/N 43850817 Cal 9/21/99 16.___Oscilloscope: Tektronix Model 2230, S/N 300572 Cal 9/23/99 17.___Frequency Counter: HP Model 5385A, S/N 3242A07460 Cal 10/6/99 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was 81.1oF with a humidity of 25%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m FCC ID: M48T432S REPORT #: T:\CUS\C\CAME\CAM52U0\CAM52U0.RPT PAGE #: 1 TEST PROCEDURES CONTD. ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The UUT was placed in the center of the table. The table used for radiat- ed measurements is capable of continuous rotation. The spectrum was scanned from 30 MHz to 10th harmonic of the fundamental. Peak readings were taken in three (3) orthogonal planes and the high- est readings were converted to average readings based on the duration of "ON" time. Measurements were made by TIMCO ENGINEERING INC. at the registered open field test site located at 849 N.W. State Road 45, Newberry, Fl 32669. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. RULES:2.1033(b)(4) CIRCUIT DESCRIPTION This unit is a low power security device transmitter. The oscil- lator is a SAW oscillator formed by the transistor T3 and the SAW filter Q2 tuned circuit made up of antenna L4, C5, C9, & C182. The inductor is printed on the PCB. The digital code is provided by the integrated circuit IC1. The unit is completely self contained and is powered by a 12Volt batteries. The calculations are shown in the report and the duty cycle was 39.86%. ANTENNA & GROUND: This unit uses the PCB inductor as the antenna. There is no provision for an external antenna. APPLICANT: CAME SPA FCC ID: M48T432S REPORT #: T:\CUS\C\CAME\CAM52U0\CAM52U0.RPT PAGE #: 2 APPLICANT: CAME SPA FCC ID: M48T432S NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.231 REQUIREMENTS: Fundamental Field Strength Field Strength of Frequency of Fundamental Harmonics and Spurious MHz dBuV Emissions (dBuV/m @ 3m) 40.66 to 40.70 67.04 47.04 70 to 130 61.94 41.94 130 to 174 61.94 to 71.48 41.94 to 51.48 174 to 260 71.48 51.48 260 to 470 71.48 to 81.94 51.48 to 61.94 470 and above 81.94 61.94 THE LIMIT FOR AVERAGE FIELD STRENGTH dBuV/m FOR THE FUNDAMENTAL FREQUENCY= 80.82 dBuV/m dBuV/m. NO FUNDAMENTAL IS ALLOWED IN THE RESTRICTED BANDS. THE LIMIT FOR AVERAGE FIELD STRENGTH dBuV/m FOR THE HARMONICS AND SPURIOUS FREQUENCIES = 60.82 dBuV/m dBuV/m. SPURIOUS IN THE RESTRICTED BANDS MUST BE LESS THAN 54dBuV/m OR 15.209. TEST DATA: PEAK AVERAGE EMISSION METER COAX FIELD FIELD FREQ. READING LOSS ACF STRNGTH STRNGTH MARGIN MHz @ 3m dBuV dB dB dBuV/m dBuV/m dB ANT. 433.94 64.30 1.60 17.7…
