M5RNTP-33182.4 GHz Cordless Phone with Remote Control

Special Features A 32 Wall Mounting be installed onto two screws (not included) fas- tened into the wall.When installing screws into plasterboard walls, use wall anchors (not included) to ensure that the screws remain secure.Insert the screws into the wall leaving 3/16" of each screw extending out from the wall. with mounting on a standard telephone wall . plate Wall Mounting Instructions: 1.Remove the handset from the base. 2.Turn the base over so the under- side of the base faces you. 3.Adjust the base to the wall mount position. 4.Plug telephone cord into the LINEjack on the telephone. 5.Connect the telephone line cord tothe wall jack. 6.Insert the AC adapter into the 9V DCjack on the top of the base. 7.Run the cables down through the cable channel to allow for flush wall mounting. 8.Slip the telephone base onto the wall, lining up the wall mounting holes over the screws.Slide the telephone base down so it is firmlyin place. 9.Return the handset to the telephone base. 10.Plug the other end of the AC adapter into the AC outlet. TELEPHONE SETUP The PMP-3318 telephone may The PMP-3318 is not compatible ongratulations on your selection of a quality My One Remote product. With proper care and by following the setup and user instructions in this manual, this unit will provide you with trouble free service. We are committed to providing quality products that fit your needs. We would like to Innovative Intelcom Industries 3839 Constellation Road, Suite C Lompoc, CA 93436 website: www.myoneremote.com When examining your new cordless telephone, you will find an array of special Filtered Sound System - Receives considerably less noise than conventional cordless telephones because of a special circuit which delivers the clearest possible reception. 40 Channel Auto Scan - Press the /SCAN button on the HANDSET to find and lock on to the clearest channel for any call. TONE or PULSE Dialing - Use this phone for either TONE or push-button PULSE(rotary ) Automated Functions - Redial the last number called and automatic STANDBY mode. Security - Ensures greater privacy because a built-in security code with 65,536 combina- tions prevent use of your telephone line by another nearby cordless phone. Dependable Battery - Recharge your BATTERY PACK many times with the built-in charger. The battery low warning tone tells you when the BATTERY PACK needs recharging Special Services - Use the / FLASH button to access special services such as Call Waiting supplied by your telephone company or company switchboard . STANDBY Mode - When in STANDBY mode (ON-HOOK),the telephone is capable of call. When the HANDSET is on the BASE UNIT, it is automatically in the STANDBY mode ( ON-HOOK).When the HANDSET is taken off the BASE UNIT, it STANDBY mode until you activate the button. Battery Power Saver - Once fully charged, in STANDBY mode, the HANDSET can receive/send calls for a maximum of three days without the need for recharging. Length of charge depends on amount of time phone is on over a period of a day or days. DEL EDIT C features including: dialing . (See page 27) receiving a remains in the TALK have any comments or suggestions you might have on this product . You may mail your comments to: Special Features B Specifications/Warranty 31 SPECIFICATIONS LIMITED WARRANTY This product is warranted by Innovative Intelcom Industries against manufacturing defects in material and workmanship under normal use for ninety days from the date of purchase, if and only if purchased directly from Innovative IntelcomIndustries or from its authorized retailers. EXCEPT AS PROVIDED HEREIN, INNOVATIVE INTELCOM INDUSTRIES MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE DURA-TION OF THE WRITTEN LIMITED WARRANTIES CONTAINED HEREIN. INNOVATIVE INTELCOM INDUSTRIES SHALL HAVE NO LIABILITY OR RESPONSIBIBILITY TO CUSTOMER OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS, OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE, LOSS OF DATA, PROPERTY, REVENUE, OR PROFIT OR ANY INDIRECT, SPECIAL, INCIDENTIAL, OR CONSEQUENTIAL DAMAGES, EVEN IF INNOVATIVE INTELCOM INDUSTRIES HAS BEEN ADVISED OF THE POSSIBLE DAMAGES. In the event of a product defect or failure during the warranty period, call Innovative Intelcom Industries at 1-805-733-7316 for assistance and to obtain a Return Authorization Number. Proof of purchase is required. RETURN POLICY Purchases are not refundable from Innovative Intelcom Industries. The purchaser must contact the retailer where the product was purchased. This warranty gives you specific rights and you may also have other rights which vary from state to state. Innovative Intelcom Industries 3839 Constellation Road, Suite C Lompoc, CA 93436 PURCHASER RIGHTS Phone: 2.4GHz carrier, 40 channels, Type 2 LCD, Wall mountable. Battery: 3.6Vdc, 600 mah, rechargable, Ni-MH Luminous LCD Screen - The LCD Screen emits light for 8 seconds every time you press any of the TELEPHONE KEYPAD buttons. HANDSET Ringer Volume Level - Select the ringer volume level (HI, LOW, OFF). HANDSET Volume Control Switch - Select the receiver volume level(HI.MID,LOW). HEADSET JACK - Your telephone can utilize a headset for hands-free communication CALLER ID SYSTEM Multi-Function Large LCD Screen - Shows the number you are dialing and with Caller ID service (available through subscription from your local telephone company), displays information about the caller before you answer the call. Name and Number Directory - Stores up to 64 names and numbers so that you can call them with a single key stroke. Caller List - Available with Caller ID service .Stores up to 80 calls to keep track of every- one who called. The name, phone number ,time and date of the call are recorded. Allows you to return their ca…

Text truncated - open the document above for the full version.

Security 26 1 Contents Safety Instructions............................................................................................................3 Getting Started................................................................................................................. 5 Cordless Telephone Operation.........................................................................................8 Preparing for Use.....................................................................................................8 Receiving Calls ......................................................................................................8 Placing Calls...........................................................................................................9 Using the Headset Feature...................................................................................10 Redial Feature......................................................................................................10 Caller ID System Operation............................................................................................12 Caller ID System...................................................................................................... 12 12 Viewing Caller Information During Incoming Calls............................................. Message Waiting ..............................................................................................12 13 Call Waiting ....................................................................................................... Voice Mail Function........................................................................................... 13 Forwarded Call..................................................................................................13 13 Long Distance Call............................................................................................. Caller List ...............................................................................................................13 Viewing the Caller List ................................................... ..................................14 14 Placing a Call from the Caller List ..................................................................... Saving the Name and Number in the Caller List into the Phone Book..............14 Deleting All Records in the Caller list............... ................................................15 Selective Deleting in the Caller List...................................................................15 Phone Book............................................ ..........................................................15 Viewing the Phone Book....................................................................................15 Speed Viewing the Phone Book................................... . ...................................16 Mute/page/icm ..................................................................................................... 11 NOTES: 1. You can store a maximum of 16 characters on the letter icon. 2. You can store a maximum of 16 digits on the number icon. Security System Your cordless telephone uses a digital coding security system to prevent unauthorized use of your telephone line by another nearby cordless telephone. The system has its own identifying signal created by microcomputers in both the BASE UNIT and the HANDSET. Security Code This telephone has an internal security code with 65,536 possible combinations. Resetting Security Code and Channel Information Communication between HANDSET and BASE UNIT may not be possible in any of the following situations: 1. After a power failure. 2. After relocating the BASE UNIT by disconnecting the AC ADAPTOR. 3. After replacing the HANDSET BATTERY PACK. To reset, place the HANDSET on the BASE UNIT for 2 to 5 seconds. Multi-Channel Access Your cordless telephone lets you select a channel from the 40 frequencies available to transmit signals between the BASE UNIT and the HANDSET. When you notice interference from other cordless telephones, change to another channel by pressing the /SCAN button on the HANDSET. DEL 2 Contents 2 ABC 2 ABC 2 ABC 9 WXYZ 9 WXYZ 9 WXYZ Telephone keypad 25 DIRDIR DEL 1 * # 2 ABC 2 ABC 2 ABC 2 ABC 2 ABC 2 ABC EXAMPLE: If you want to enter the character "Abc" on the HANDSET LCD Screen. 1. Press the button. 2. Press the /EDIT Button. 3. Press the TELEPHONE KEYPAD button,"A" will be displayed. The cursor will automatically move to the next character after 2 seconds. 4. Press the TELEPHONE KEYPAD button 2 times to display"b". 5. Press the TELEPHONE KEYPAD button 3 times to display"c". The cursor will automatically move to the next character within 2 seconds after entering the first character. Press the SHIFT RIGHT button to produce a space. If you want to change any character, you can go back to the incorrect character by pressing the SHIFT LEFT button. To delete the character inside the cursor, press the button. KEYPAD BUTTONS CHARACTERS SPACE1 &' ( ). ABCabc2 DEFdef3 GHIghi4 JKLjkl5 MNOmno6 PQRSpqrs7 TUVtuv8 WXYZwxyz9 1 2 3 4 5 6 7 8 9 * * 0 0 # # TELEPHONE KEYPAD Characters The TELEPHONE KEYPAD button are used to enter characters when entering names. You can enter names in the UPPER CASE or LOWER CASE letters. Press the appropriate TELEPHONE KEYPAD button to get the following characters. /SCAN * FLASH Saving in the Phone Book.............................................................................16 Preferred Calls............................................................................................... 16 Blocked Calls................................................................................................16 Editing the Number in the Phone Book ......................................................... 17 Placing Calls from the Phone Book................................................................18 Deleting All Records in the Phone Book..............................................…

Text truncated - open the document above for the full version.

OWNER'S MANUAL INSTALLATION AND OPERATING INSTRUCTIONS PLEASE READ THIS MANUAL CAREFULLY BEFORE USE. KEEP FOR YOUR REFERENCE. SPEAKER PHONE CALLER ID CALL WAITING DATA PORT 40 CHANNEL AUTO SCAN WALL MOUNT 2.4GHz CORDLESS TELEPHONE I 3 My One Remote TM FCC Part 15 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The equipment has been tested and found to comply with part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interfe- rence in a residential installation. This equipment generates, uses and can radiate radio frequency energy and , if not installed and used in accordance with the instr- uctions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Correct the equipment into an outlet or on a ciucuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Part 68 The FCC requires that you connect your cordless telephone to the nationwide telephone network through a modular telephone jack (USOC RJ11C or RJ11W). Your telephone company may discontinue your service if your equipment causes harm to the telephone network. They will notify you in advance of disconnection, if possible. During notification, you will be informed of your right to file a complaint with the FCC. If it is determined that your telephone equipment is manufacturing, the FCC requires that it not be used and that it be unplugged from the modular jack until the problem has been corrected. Repairs to this telephone equipment can only be made by the manufacturer or its authorized agents or by others who may be authorized by the FCC. For repair procedures, follow the instructions outlined under the VTECH Limited Warranty. The REN is useful in determining the number of devices you may connect to your telephone line and still enable the devices to ring when you receive call. The general rule is that the REN value should not exceed 5.0 total; however, contact your local telephone company for the specific number in your area. FCC REGULATIONS 3 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the telephone. 3. Do not use this telephone near a bathtub, kitchen sink, wash bowl, laundry tub, in a wet basement, near a swimming pool, or anywhere else where there is water. 4. Avoid using a telephone(other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lighting. 5. Do not use the telephone to report a gas leak in the vicinity of the leak. 6. Use only the power cord and BATTERY PACK indicated in the Owner's Manual. Do not dispose of the BATTERY PACK in a fire .The BATTERY PACK may explode . Check with local codes for possible special disposal instructions. 7. Unplug this telephone from the wall outlet before cleaning or replacing the BATTERY PACK. Do not use liquid cleaners or aerosol cleaners on the telephone. Use a damp cloth for cleaning. 8. Place this telephone on a stable surface. Serious damage and/or injury may result if the telephone falls. 9. Do not cover the slots and openings on this telephone. This telephone should never be placed near or over a radiator or heat register. This telephone should not be placed in a built-in installation unless proper ventilation is provided. 10.Operate this telephone using the electrical voltage as stated on the BASE UNIT or in the Owner's Manual .If you are not sure of the voltage in your home , consult your dealer or local power company. 11.Do not place anything on the power cord. Install the telephone where no one will step or trip on the cord. 12.Do not overload wall outlets or extension cords as this can increase the risk of fire or electric shock. 13.Never push any objects through the slots in the telephone. They could touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the telephone. 14.To reduce the risk of electric shock, do not take this telephone apart. If service or repair work is required on this telephone, take it to a qualified service representative. Opening or removing covers may expose you to dangerous voltage or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used. 15. Unplug this telephone from the wall outlet and consult a qualified service representative in any of the following situations: A. When the power supply cord is frayed or damaged. B. If liquid has been spilled into the telephone. C. If the telephone has been exposed to rain or water. D. If the telephone does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions. Improper adjustment may require extensive work by a qualified technician to restore the telephone to normal operation. Safety Instructions IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electric shock and /or injury, always follow these basic safety precautions when using your cordless telephone equipment. I .VOICE MAIL This telephone enables you to store the Voice Mail Post Code number in your area. This will automatically connect you to the Voice Mail service provider with one touch dialing. 1. Press the button and hold down. 2. Press the TELEPHONE KEYPAD button. 3. Press the /FLASH button. 4. Enter the Voice Mail Post Code number by using the TELEPHONE KEYPAD butto…

Text truncated - open the document above for the full version.

RX DATA ANT 5V 9V 9V BASE MODEL ： NTP3318 RF EXPAND DATA CPU SPEECH TEL LINE CD DETECT TXB PLL R XB COMPANDERER AF I/P TX DATA RESET RING CHG DETECT AF O/P HOOK FSK 5V DC 7805 5V 5V 5V SPK PHONE MC34018 FSK RX DATA 天线 HANDSET MODEL ： NTP-3318 RF EXPAND DATA DETECT CPU CD DETECT TXB PLL DATA R XB Compander AF I/P RESET key AF O/P AF AMP. SP mic LCD BATT LOW DETECT CHG DETECT TX DATA 3.8V BATTERY REMOTE

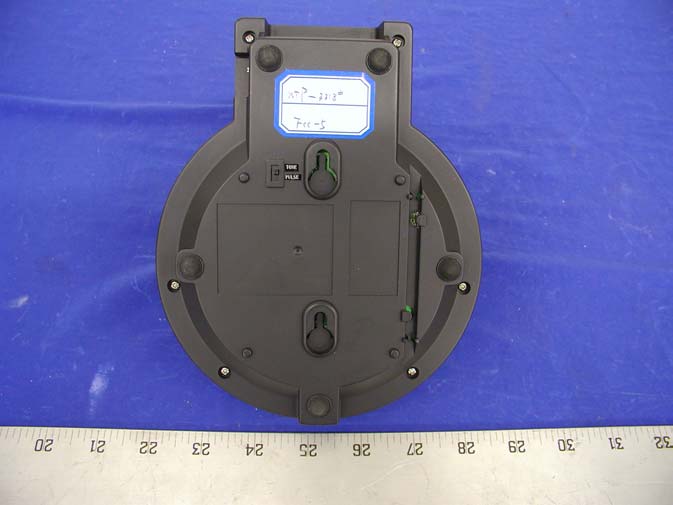

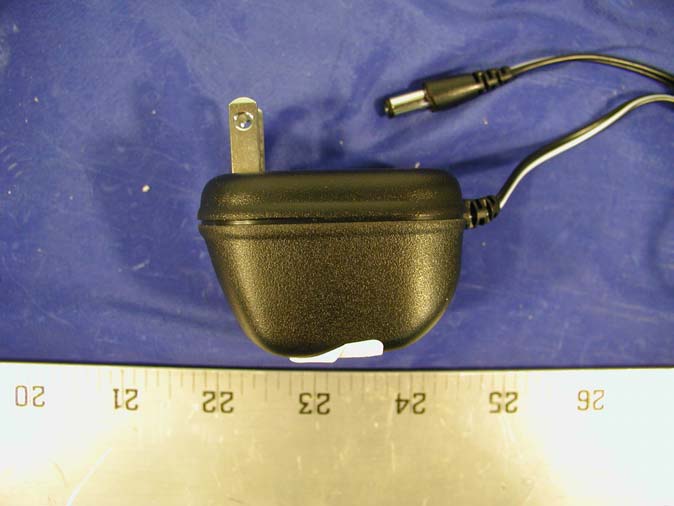

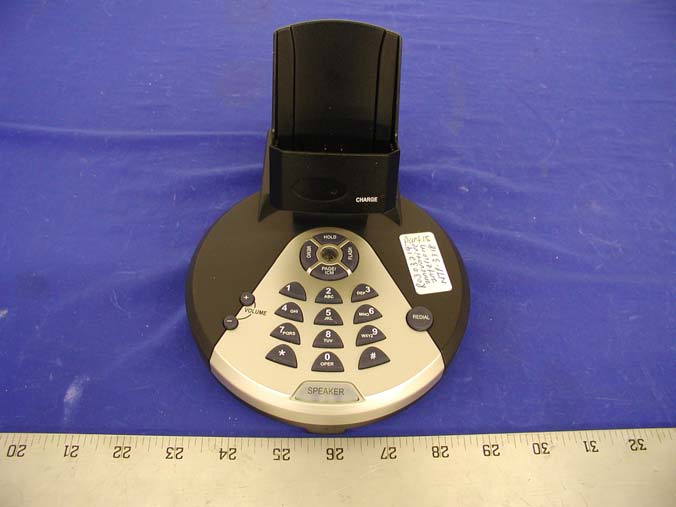

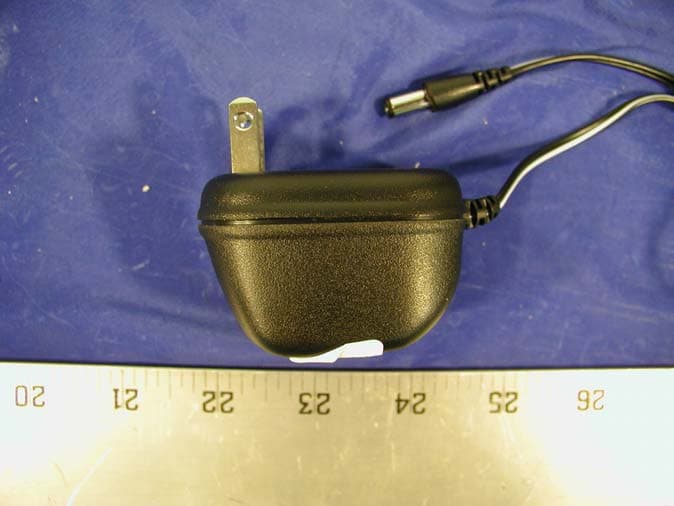

APPENDIX C - EUT EXTERNAL PHOTOGRAPHS Handset - Top View Handset – Bottom View Base – Top View Base - Bottom View Power Adapter – Top View

APPENDIX A - FCC PRODUCT LABELING AND WARNING STATEMENT FCC ID Label Specifications: Text is black or white in color and is left justified. Labels are silk- screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Bottom Side of EUT Base/Proposed FCC ID Label Location / EUT Handset FCC Warning Statement A FCC Warning Statement is provided in the product manual. FCC ID: M5RNTP-3318 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. 2.1875" 1.0" FCC ID: M5RNTP-3318 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. 2.1875" 1.0" FCC ID: M5RNTP-3318 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. 2.1875" 1.0"

APPENDIX C - EUT INTERNAL PHOTOGRAPHS Handset – Main Board Component and Housing Handset – Main Board Solder View Handset – Transceiver Component View Handset – Transceiver Solder View Base – Main Board and Housing Base – Main Board Component View Base – Main Board Solder View Base – Transceiver Component View Base – Transceiver Solder View

NTP3318 CIRCUIT DESCRIPTION 1 Base a. RF Transmitter Section – RF Board The compressed audio signal (RF module pin 10) is modulated through the varactor diode VD201. These components, i.e. VD201, C216, L201, Q5 and the external components of Q5 compose the voltage controlled oscillator circuit for the transmitter part. This circuit generates the TX VCO frequency. A portion of this signal is fed back to the PLL IC (LMX1602)’s pin12 (FIN1) for phase comparison. Once the phase of oscillation stabilized, the PLL circuit generates the error voltage necessary for the VCO to oscillate at the desired transmitter’s RF frequency. The VCO circuit impedance is matched with the succeeding circuit through the transistor Q202 that also acts as the buffer amplifier. The RF amplifier Q201 boosts the signal for transmission. This amplified RF signal is trimmed to the desired frequency band by F2 (BPF2403) so as not to interfere with the receiver circuit. The transmitter RF signal is then propagated through the antenna. b. RF Receiver Section – RF Board The Base Unit antenna receives RF signal. The Band Pass Filter F1 (BPF2475) trims the signal to the desirable frequency band. Transistor Q101 $ Q104 is a low noise amplifier that boosts the RF signal to a specific level for mixing. PLL U2 (LMX1602) is used as a Universal Phase Lock Loop circuit. The frequency from the Voltage Controlled Oscillator (VCO) VD101, L102 and Q103, is fed back to the PLL IC through pin 5 (FIN2) for phase comparison. During channel scanning or turning the unit on, once the phase of oscillation stabilized (locked), the PLL circuit generates the first local oscillator frequency for down-converting the received RF signal into the first IF frequency 10.7Mhz. This process is accomplished through the IF mixer circuit Q104. Q104 is used for matching the impedance of the mixer circuit with the succeeding circuits. The resulting IF signal is kept constant by the IF Filter F3 to 10.7MHz which is then mixed with the second local oscillator frequency 11.150MHz (derived from X1 & VC1) to produced a much lower IF frequency. This lower IF frequency if further filtered by IF Filter FL4 to produce a more stable signal of 450KHz. Quadrature signal detection is accomplished internally by the Narrow-band Detector IC2 (KA3361) with the IF coil T1. The recovered audio frequency can be taken from U1 audio output pin9. c. Transmitter Audio Section – Main Board The Audio Frequency signal from the telephone line that is through Q1, R4, R5, R8, C4, IC2-D, R97, C89, U4-B, etc is compressed through the compressor part of IC4 to minimize the transmission noise. The degree of compression depends on the external RC combinations. AGC is also utilized by IC4 to avoid shock noise caused by abrupt change of audio levels. The compressed audio is filtered and amplified for better acoustical performance. d. Receiver Audio Section – Main Board The compressed Audio Frequency signal from the RF module (pin3) is passed through passive RC filters for acoustic compliance. The filtered audio is then fed to the Compander IC4 (pin16 and pin17) for expansion thus retrieving the original Audio signal with noise filtered out. Q4 is used as buffer circuit. Bridge rectifier D1-D4 isolates the high-voltage telephone line to the rest of the circuit. 2 Handset a. RF Transmitter Section – RF Board Refer to portion 1.b for this section. All circuit performance is the same except that Band Pass Filter BPF2403 is changed to BPF2475 for the handset transmission. b. RF Receiver Section – RF Board Refer to portion 1.b for this section. All circuit performance is the same except that Band Pass Filter BPF2475 is changed to BPF2403 for the handset transmission. c. Transmitter Audio Section – Main Board Audio Frequency signal from the handset or from the headset microphone is compressed through the compressor part of IC1 to minimize the transmission noise. The degree of compression depends on the external RC combinations. AGC is also utilized by IC1 to avoid shock noise caused by abrupt change of audio levels. The compressed audio is filtered and amplified for better acoustical performance. Q3 is a switching transistor that controls the power supply for the TX RF part. d. Receiver Audio Section – Main Board The compressed Audio Frequency signal from the RF module is passed through passive RC filters for acoustic compliance. The filtered audio is then fed to the Compander IC1 for expansion thus retrieving the original audio signal with noise filtered out. Q2 & Q10 act as audio amplifier to sufficiently drive the handset speaker. Q7 and Q8 are switching transistors that control the power supply for the RF part, the Compander part and the AF amplifier respectively. An earphone jack is provided for an optional headset unit for hands free conversation on the handset. 3 OTHERS (Handset): a. Charging and Reset Controls Recharging the handset battery is accomplished by putting the handset on the cradle. Q4 and its external components are the reset circuit. R24 and R25 detect this action and send a command to the CPU (IC2 pin24) for proper exchange of security code. b. Ring Detection When the handset receives the ring command from the base unit, the CPU will send buzzer signal to the ringer amplifier Q5 and Q6 that drives the Buzzer. 4 OTHERS (Base): a. Hook Switching and Dialing The transistor Q3 that is controlled by the U1 (pin34) accomplishes the hook switching and the pulse dialing function. The DTMF signal from the U1(pin38) is amplified by Q13. b. Over-voltage Protection Fuse 1 and varistor Z1 act as high current and high voltage protectors for the telephone line interface. In case of presence of voltage surge across the telephone line, Fuse 1 decreases its resistance and dumps the line voltage to a safe level. Fuse1 opens when excessive current is present on the line thus protecting both the user and the line interface. c. Battery Charging & Code Setting Battery charging commences when Q7 detects t…

Text truncated - open the document above for the full version.

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15 Subpart C EMI MEASUREMENT AND TEST REPORT For Innovative Intelcom Industries Corporation 3839 Constellation Road, Suite C Lompoc, CA 93436 FCC ID: M5RNTP-3318 2003-04-21 This Report Concerns: Original Report Equipment Type: 2.4GHz Cordless Phone with Remote Control Test Engineer: Ming Jing / Report No.: R0303214 Test Date: 2003-04-14 Reviewed By: Hans Mellberg / Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel (408) 732-9162 Fax (408) 732-9164 Innovative Intelcom Industries Corporation FCC ID: M5RNTP-3318 Report # R0303214Rpt.doc Page 2 of 20 FCC Part 15 Subpart C Test Report TABLE OF CONTENTS 1 - GENERAL INFORMATION..................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..............................................................................3 1.2 OBJECTIVE.............................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) ......................................................................................................................3 1.4 TEST METHODOLOGY............................................................................................................................................3 1.5 TEST FACILITY.......................................................................................................................................................3 1.6 TEST EQUIPMENT LIST...........................................................................................................................................4 1.7 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS...................................................................................................4 1.8 EXTERNAL I/O CABLING LIST AND DETAILS.........................................................................................................5 2 - SYSTEM TEST CONFIGURATION.....................................................................................................................6 2.1 DESCRIPTION OF TEST CONFIGURATION................................................................................................................6 2.2 CONFIGURATION OF TEST SYSTEM (BASE)............................................................................................................6 2.3 TEST SETUP BLOCK DIAGRAM...............................................................................................................................7 2.4 EQUIPMENT MODIFICATIONS.................................................................................................................................7 3 - CONDUCTED EMISSIONS TEST DATA............................................................................................................8 3.1 MEASUREMENT UNCERTAINTY..............................................................................................................................8 3.2 EUT SETUP....................................................................................................…

Text truncated - open the document above for the full version.
