M5X-MTM24Wireless Transmitter

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021-05-21 To whom it may concern: We, the undersigned, hereby authorize Worldwide Testing Services (Taiwan) Co., Ltd to act on our behalf in all matters relating to applications for equipment authorization FCC ID: M5X-MTM24 including the signing of all documents related to these matters. Any and all acts carried out by Worldwide Testing Services (Taiwan) Co., Ltd on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name: Solomon Chang Title: President Company: MIPRO Electronics Co., Ltd.

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021-05-21 Request for Long-Term Confidentiality Company name: MIPRO Electronics Co., Ltd. FCC ID: M5X-MTM24 FCC Part 15 Certification To whom it may concern: In accordance with §§ 0.457(d) and 0.459 of CFR 47, MIPRO Electronics Co., Ltd. hereby requests Long-Term confidentiality of all Block Diagrams, Schematics, Operational Description attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which MIPRO Electronics Co., Ltd. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, MIPRO Electronics Co., Ltd. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Name: Solomon Chang Title: President Company: MIPRO Electronics Co., Ltd.

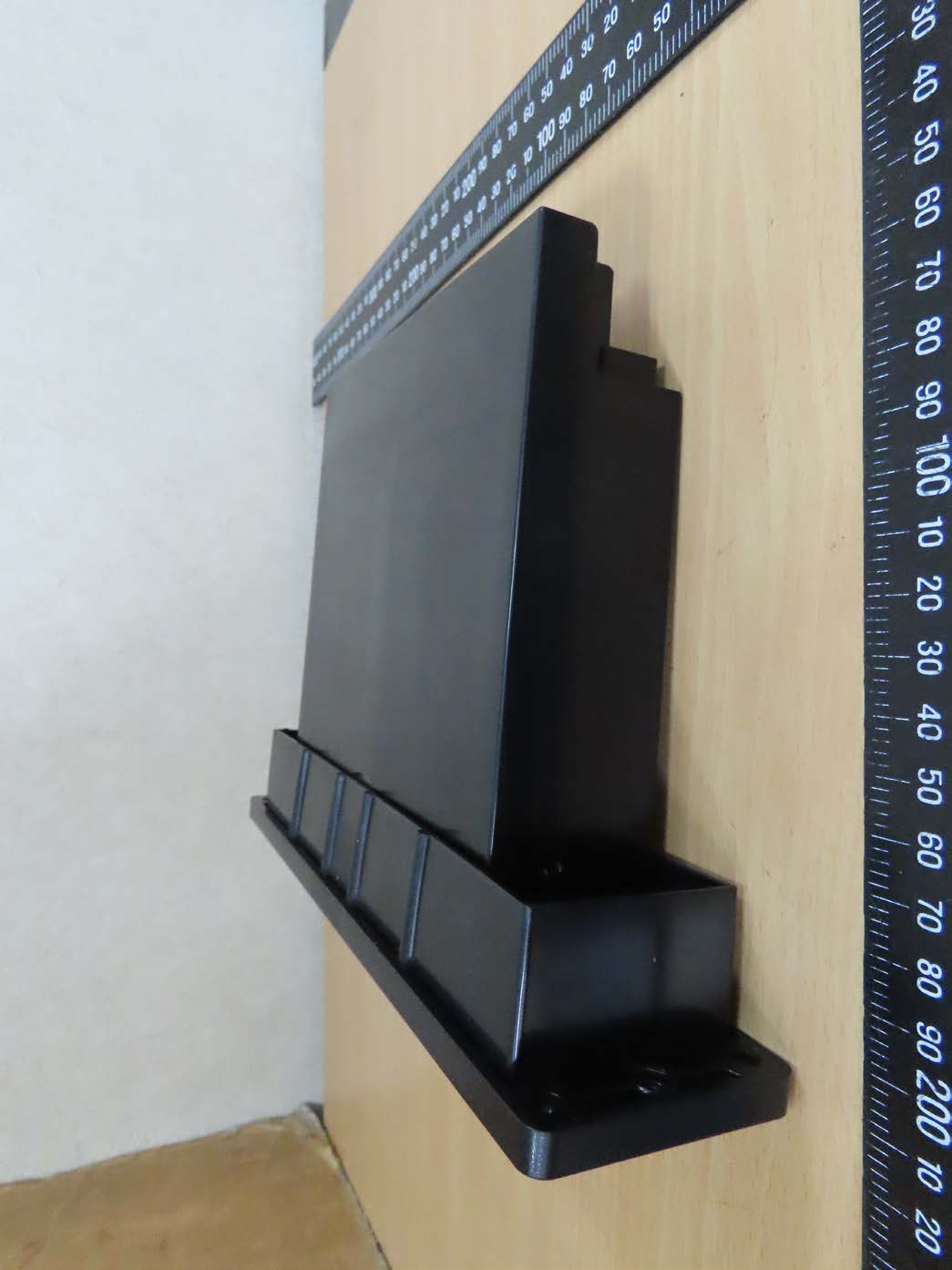

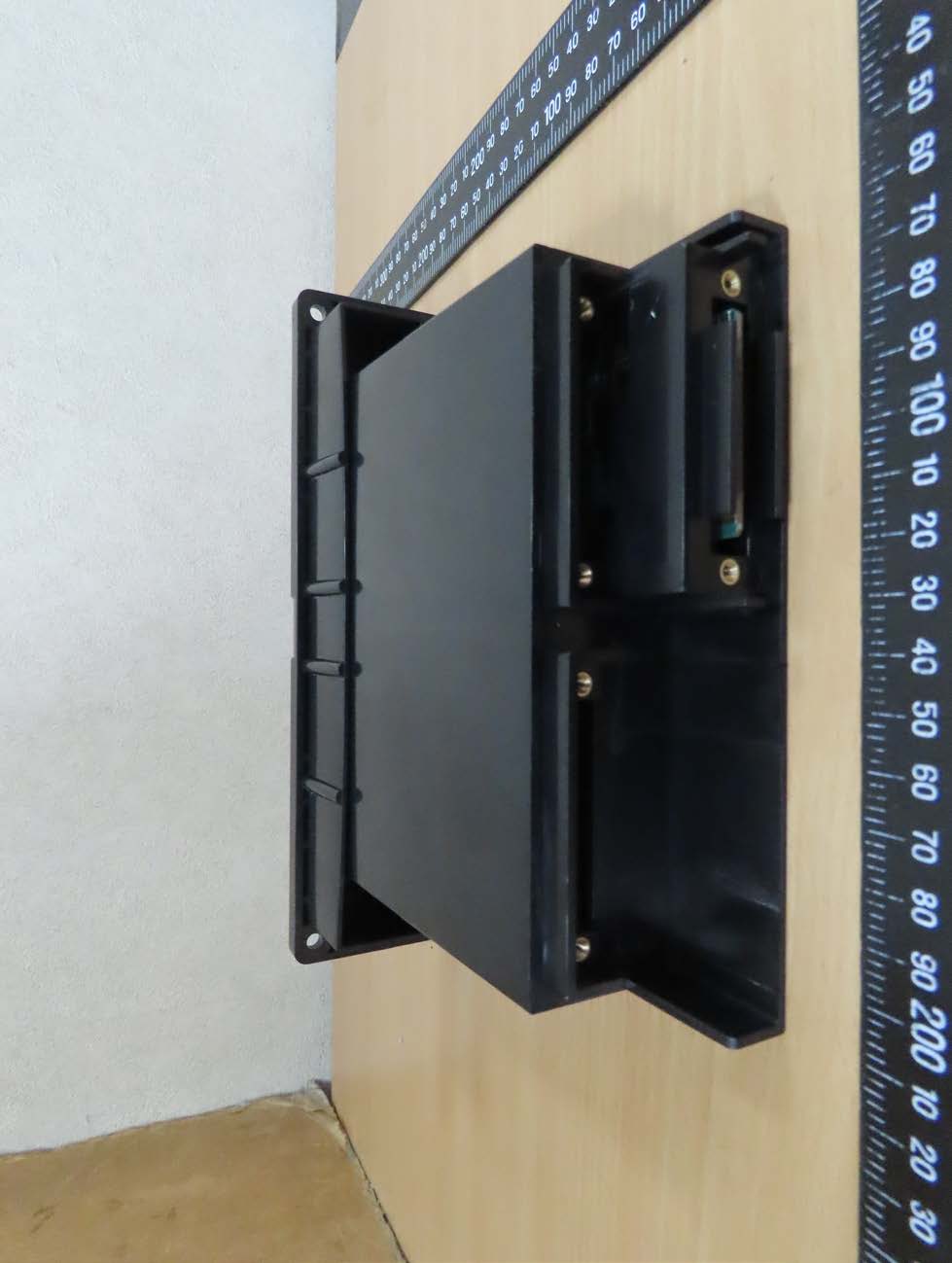

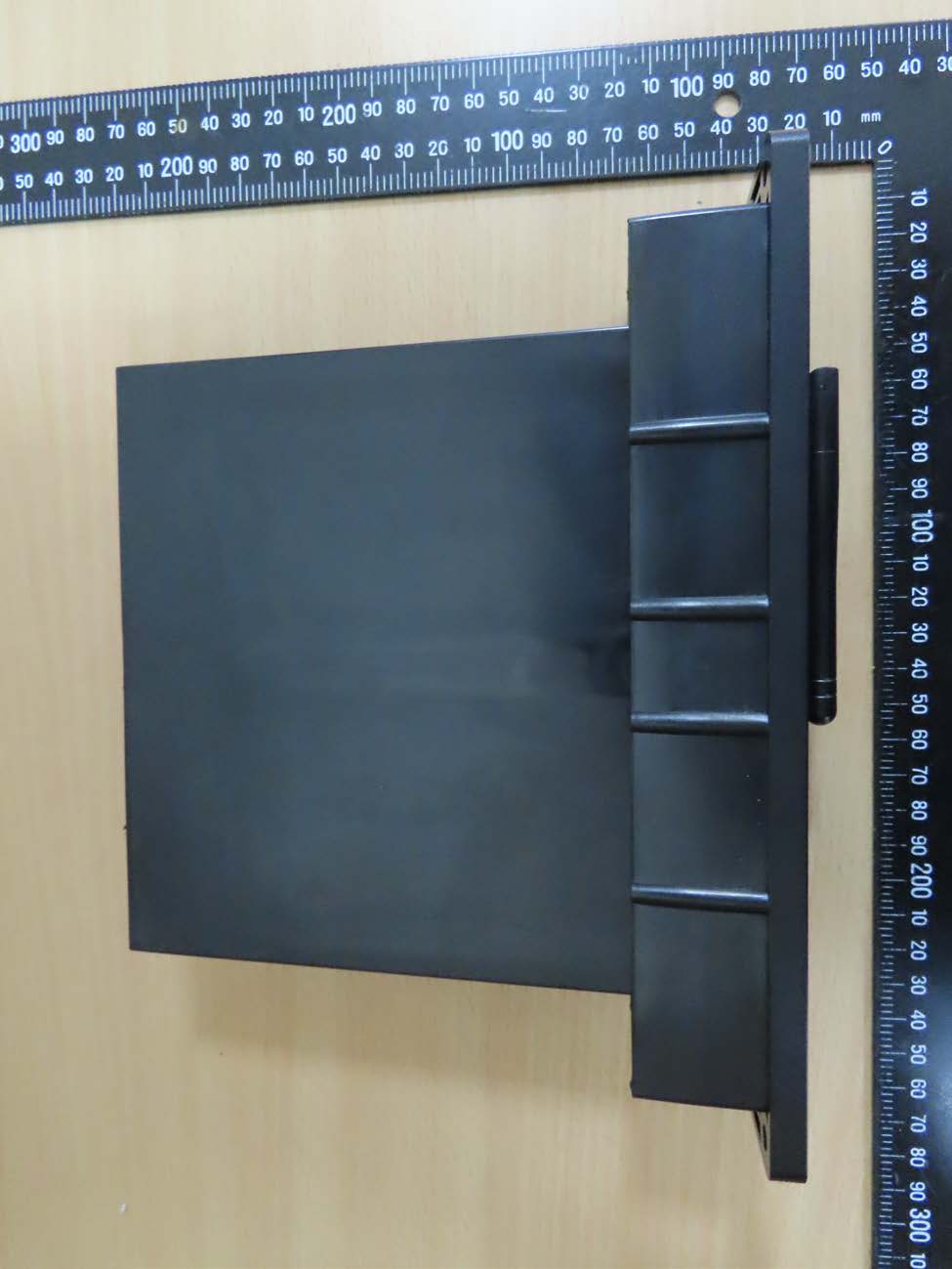

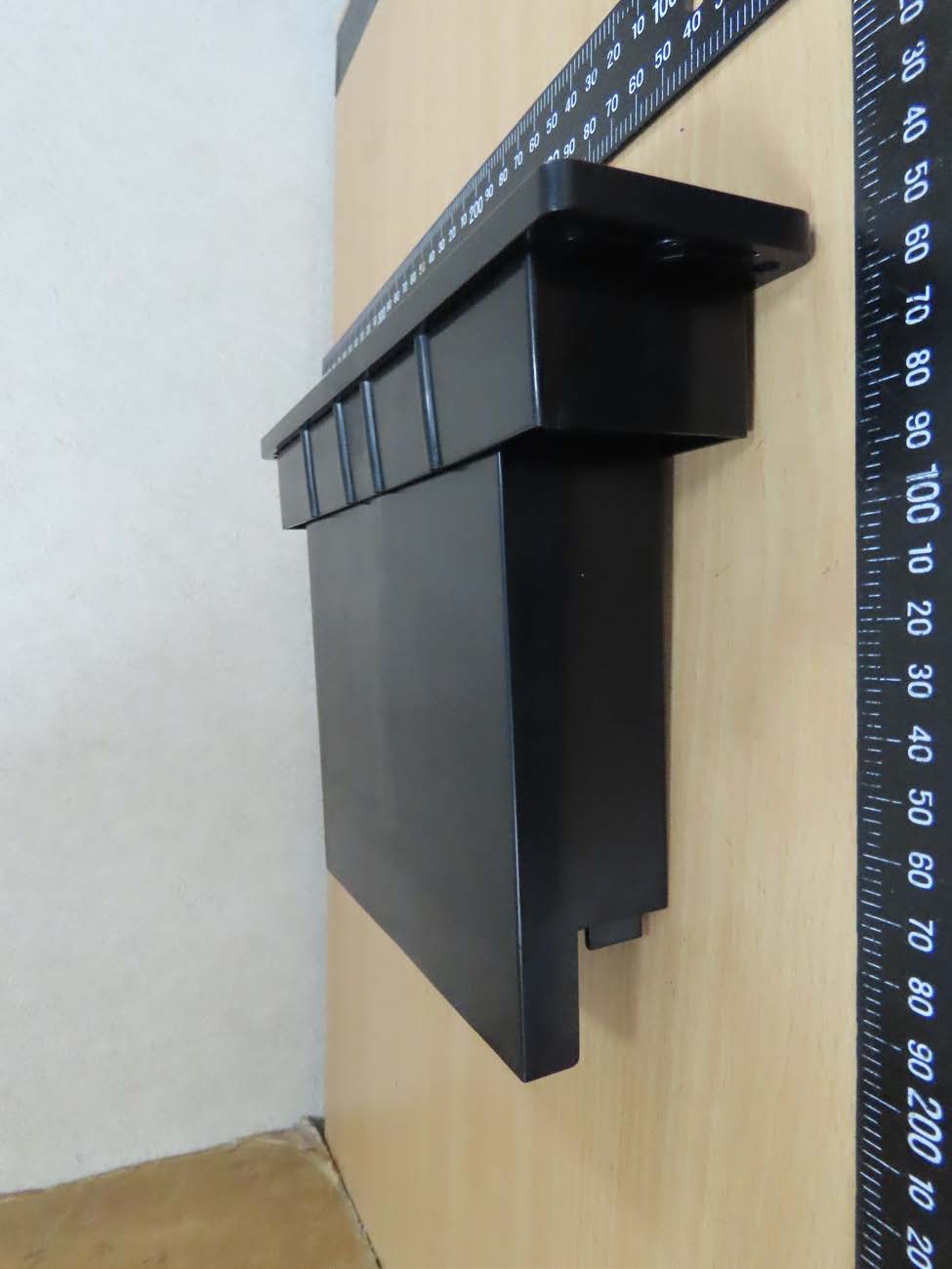

Registration number: W6M22104-20821-C-1 FCC ID: M5X-MTM24 External Photos Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 1 of 19 Registration number: W6M22104-20821-C-1 FCC ID: M5X-MTM24 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 2 of 19 Registration number: W6M22104-20821-C-1 FCC ID: M5X-MTM24 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 3 of 19 Registration number: W6M22104-20821-C-1 FCC ID: M5X-MTM24 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 4 of 19 Registration number: W6M22104-20821-C-1 FCC ID: M5X-MTM24 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 5 of 19 Registration number: W6M22104-20821-C-1 FCC ID: M5X-MTM24 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 6 of 19

Registration number: W6M22104-20821-C-1 FCC ID: M5X-MTM24 Internal Photos Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 7 of 19 Registration number: W6M22104-20821-C-1 FCC ID: M5X-MTM24 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 8 of 19 Registration number: W6M22104-20821-C-1 FCC ID: M5X-MTM24 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 9 of 19 Registration number: W6M22104-20821-C-1 FCC ID: M5X-MTM24 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 10 of 19 Registration number: W6M22104-20821-C-1 FCC ID: M5X-MTM24 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 11 of 19 Registration number: W6M22104-20821-C-1 FCC ID: M5X-MTM24 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 12 of 19 Registration number: W6M22104-20821-C-1 FCC ID: M5X-MTM24 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 13 of 19 Registration number: W6M22104-20821-C-1 FCC ID: M5X-MTM24 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 14 of 19 Registration number: W6M22104-20821-C-1 FCC ID: M5X-MTM24 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 15 of 19 Registration number: W6M22104-20821-C-1 FCC ID: M5X-MTM24 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 16 of 19

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Applicant’s declaration concerning RF Radiation Exposure We hereby indicate that the product Product description: Wireless Transmitter Model No: MTM-24, MXX-2XXXXX (X=0~9,a~z,A~Z or Blank) The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The integral antennas used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter within the host device. A safety statement concerning minimum separation distances from enclosure of the Product : Wireless Transmitter will be integrated in the user’s manual to provide end-users with transmitter operating conditions for satisfying RF exposure compliance. The appropriate information can be drawn from the test report no: W6M22104-20821-C-54 and the accompanying calculations. Company: MIPRO Electronics Co., Ltd. Address: 814, Beigang Rd., Chiayi City 60096, Taiwan Date: 2021-05-21 Registration number: W6M22104-20821-C-1 FCC ID: M5X-MTM24 3.2 Equivalent Isotropic Radiated Power (EIRP) FCC Rule: 15.247(b)(3) EIRP = max. conducted output power + antenna gain EIRP = 7.98 dBm + 0 dBi [antenna gain claimed by manufacturer] = 7.98 dBm = 6.2806 mW 3.3 Exemption Limits for Routine Evaluation according to 47 CFR FCC Part 2 Subpart J, section 2.1091 FCC OET Bulletin 65 Edition 97.01 determines the equations for predicting RF fields and applicable limits. The prediction for power density in the far-field but will over-predict power density in the near field, where it could be used for walking a “worst case” or conservative prediction. Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 20 cm normally can be maintained between the user and the device. MPE Calculation Method Worldwide Testing Services(Taiwan) Co., Ltd. Page 16 of 33 Registration number: W6M22104-20821-C-1 FCC ID: M5X-MTM24 E ＝ Electric field (V/m) P ＝ output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to mW/m2. Established separation distance is 20 cm. Operating frequency band: 2402.5~2480 MHz The product meets RF exposure requirement. Because the power density of 0.0013 mW/cm 2 at 2402.5 MHz is below the power density limit of 1 mW/cm 2 . Worldwide Testing Services(Taiwan) Co., Ltd. Page 17 of 33

of Applicant: MIPRO Electronics Co., Ltd. Address: 814, Beigang Rd., Chiayi City 600079, Taiwan, R.O.C Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: TW1477, TW0020, TW1072 Industry Canada filed test laboratory Reg. No. 20037 Report No.: W6M22104-20821-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E- mail: [email protected] 47 CFR PART 15 SUBPART C TEST REPORT for Wireless Transmitter Model No.: MTM-24 FCC ID: M5X-MTM24 Registration number: W6M22104-20821-C-1 FCC ID: M5X-MTM24 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................. 2 1.1 N OTES ......................................................................................................................................... 2 1.2 TESTING LABORATORY ................................................................................................................ 3 1.2.1 Location .................................................................................................................................. 3 1.2.2 Details of accreditation status ................................................................................................ 3 1.3 DETAILS OF APPROVAL HOLDER .................................................................................................. 3 1.4 A PPLICATION DETAILS ................................................................................................................. 4 1.5 G ENERAL INFORMATION OF TEST ITEM ....................................................................................... 4 1.6 TEST STANDARDS ........................................................................................................................ 5 2 TECHNICAL TEST ................................................................................................................. 6 2.1 SUMMARY OF TEST RESULTS ....................................................................................................... 6 2.2 TEST ENVIRONMENT .................................................................................................................... 6 2.3 TEST EQUIPMENT LIST ................................................................................................................ 7 2.4 GENERAL TEST PROCEDURE ...................................................................................................... 10 3 TEST RESULTS (ENCLOSURE) ........................................................................................ 12 3.1 P EAK OUTPUT POWER (TRANSMITTER) ..................................................................................... 13 3.2 EQUIVALENT ISOTROPIC RADIATED POWER (EIRP) .................................................................. 16 3.3 EXEMPTION LIMITS FOR ROUTINE EVALUATION ACCORDING TO 47 CFR FCC PART 2 SUBPART J, SECTION 2.1091 ..................................................................................................................... 16 3.4 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS ................................................... 18 3.5 SPURIOUS EMISSIONS (TX)......................................................................................................... 19 3.6 RADIATED EMISSION ON THE BAND EDGE .................................................................................. 21 3.7 MINIMUM 6 DB BANDWIDTH ..................................................................................................... 23 3.8 PEAK POWER SPECTRAL DENSITY ............................................................................................. 26 3.9 R ADIATED EMISSION FROM RECEIVER PART ............................................................................. 29 3.10 POWER LINE CONDUCTED EMISSION ......................................................................................... 30 APPENDIX .............................................................................................................................................. 33 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 33 Registration number: W6M22104-20821-C-1 FCC ID: M5X-MTM24 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. Tester: July 08, 2021 Kent Lin Date WTS-Lab. Name Signature Technical responsibility for area of testing: July 08, 2021 Kevin Wang Date WTS Name Signature Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 33 Registration number: W6M22104-20821-C-1 FCC ID: M5X-MTM24 1.2 Testing…

Text truncated - open the document above for the full version.

Registration number: W6M22104-20821-C-1 FCC ID: M5X-MTM24 Set Up Photo of Radiated Emission Below 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 17 of 19 Registration number: W6M22104-20821-C-1 FCC ID: M5X-MTM24 Above 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 18 of 19 Registration number: W6M22104-20821-C-1 FCC ID: M5X-MTM24 Set Up Photo of Conducted Emission Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 19 of 19
