M72-VVX601Desktop VOIP Bluetooth Telephone

Package Contents VVX 500 or VVX 600 Series Phone For more information, contact your reseller. Quick Start Guide ® VVX 500 and 600 Series VVX 500/501 VVX 600/601 ®® Note: For more information on your Polycom VVX 500 series and VVX 600 series business media phones, see user documentation, including Quick User Guides and User Guides, on your phone’s Support page on Polycom Voice Support: http://support.polycom.com/voice. Optional Accessories AC Power Cord and AdapterVVX Camera VVX Expansion Module (paper display) VVX Expansion Module (LCD color display) AUX AUX (Note: If you have a VVX 600, the network cable has a ferrite clamp. Attach the ferrite-end of the cable to the phone’s LAN port.) AC power connection (optional accessory) Use if Power over Ethernet (PoE) is unavailable. Connect Cables Features Security slot (on side) Headset key Message Waiting Indicator Microphone Home/Lines key Speaker Mute key Dialpad USB ports (on back) Speakerphone key Volume keys Touchscreen Reversible tab (to secure handset at high angles) Cable groove (Press headset cable into groove) Auxiliary port Cable groove (Press straight part of handset cable into groove) Passthrough ethernet connection to PC (optional; extra cable not included) AUX Connect Stand* Connect Optional Headset Connect Optional USB Devices USB port Press and slide the cover up and off You can attach a USB headset, or a USB flash drive (to record calls, use the Digital Picture Frame feature, or to change the background picture on your phone). To learn more, see your phone’s User Guide. Fully insert the stand into one of the slots on the back of the phone. The slot you choose determines the angle of the phone. For high-angle use, secure the handset with the reversible tab (see Features). Your phone supports wired and wireless headsets, including electronic hookswitch (EHS) headsets. VVX 600/601 phones also support Bluetooth headsets. For connection directions, refer to your headset documentation. Standard headsets typically use the RJ-9 or USB port, while EHS headsets use the RJ-9 and serial port. The ports are on the back of your phone, as shown in the diagram. *For wallmount installation, an optional accessory is available. For more information, contact your reseller. Serial port RJ-9 port USB ports USB port cover Polycom (UK) Ltd tímto prohlašuje, že tento Polycom je ve shodě se základními VVX 500/501/600/601 požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Undertegnede Polycom (UK) Ltd erklærer herved, at følgende udstyr Polycom VVX 500/501/600/601 overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Käesolevaga kinnitab Polycom (UK) Ltd seadme Polycom vastavust direktiivi VVX 500/501/600/601 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. Por medio de la presente Polycom (UK) Ltd declara que el Polycom cumple con los VVX 500/501/600/601 requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Polycom (UK) Ltd ΔΗΛΩΝΕΙ ΟΤΙ Polycom ΣΥΜΜΟΡΦΩΝΕΤΑΙ VVX 500/501/600/601 ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ. Par la présente Polycom (UK) Ltd déclare que l’appareil Polycom est conforme aux VVX 500/501/600/601 exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Con la presente Polycom (UK) Ltd dichiara che questo Polycom è conforme ai requisiti essenziali VVX 500/501/600/601 ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Hér með lýsir Polycom (UK) Ltd yfir því að Polycom er í samræmi við grunnkröfur og aðrar kröfur, VVX 500/501/600/601 sem gerðar eru í tilskipun 1999/5/EC Ar šo Polycom (UK) Ltd deklarē, ka Polycom atbilst Direktīvas 1999/5/EK būtiskajām VVX 500/501/600/601 prasībām un citiem ar to saistītajiem noteikumiem. Šiuo Polycom (UK) Ltd deklaruoja, kad šis Polycom atitinka esminius reikalavimus ir VVX 500/501/600/601 kitas 1999/5/EB Direktyvos nuostatas. Hierbij verklaart Polycom (UK) Ltd dat het toestel Polycom in overeenstemming is met VVX 500/501/600/601 de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. Hawnhekk, Polycom (UK) Ltd, jiddikjara li dan Polycom jikkon-forma mal-ħtiġijiet essenzjali u ma VVX 500/501/600/601 provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC. Alulírott, Polycom (UK) Ltd nyilatkozom, hogy a Polycom megfelel a vonatkozó VVX 500/501/600/601 alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Polycom (UK) Ltd erklærer herved at utstyret Polycom er i samsvar med de grunnleggende krav VVX 500/501/600/601 og øvrige relevante krav i direktiv 1999/5/EF. Niniejszym Polycom (UK) Ltd oświadcza, że Polycom jest zgodne z zasadniczymi VVX 500/501/600/601 wymaganiami oraz innymi stosownymi postanowieniami Dyrektywy 1999/5/WE Polycom (UK) Ltd declara que este Polycom está conforme com os requisitos VVX 500/501/600/601 essenciais e outras disposições da Directiva 1999/5/CE. Polycom (UK) Ltd izjavlja, da je ta Polycom v skladu z bistvenimi zahtevami in VVX 500/501/600/601 ostalimi relevantnimi določili direktive 1999/5/ES. Polycom (UK) Ltd týmto vyhlasuje, že Polycom spĺňa základné požiadavky a všetky VVX 500/501/600/601 príslušné ustanovenia Smernice 1999/5/ES. Polycom (UK) Ltd vakuuttaa täten että Polycom tyyppinen laite on direktiivin 1999/5/EY oleellisten VVX 500/501/600/601 vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. Härmed intygar Polycom (UK) Ltd att denna Polycom står I överensstämmelse med de väsentliga VVX 500/501/600/601 egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. Hiermit erklärt Polycom (UK) Ltd, dass sich das Gerät Polycom in Übereinstimmung VVX 500/501/600/601 mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Hereby, Polycom (UK) Ltd. declares that this is in compliance wi…

Text truncated - open the document above for the full version.

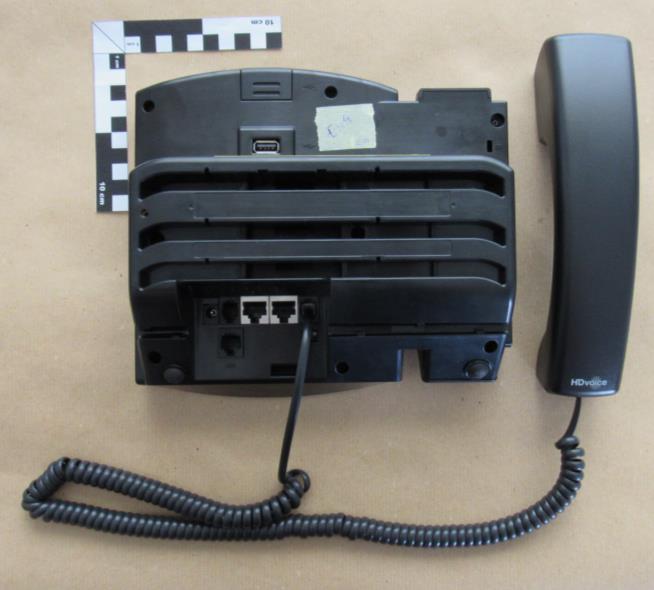

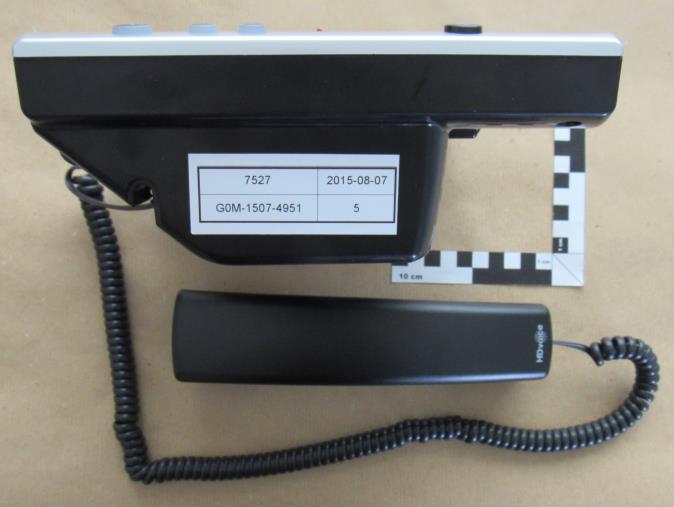

Test Report No.: G0M-1507-4951-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 105 1.1 Photos – Equipment External EUT FRONT EUT BACK Test Report No.: G0M-1507-4951-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 105 EUT LEFT EUT RIGHT

Product Service Label Sample / Location page 1 FCC ID: M72-VVX601 IC: 1849C-VVX601 Model No.: VVX601 Project No.: G0M-1507-4951 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany

Test Report No.: G0M-1507-4951-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 105 1.2 Photos – Equipment internal EUT PCB II BACK EUT PCB I BACK / PCB II FRONT Test Report No.: G0M-1507-4951-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 105 EUT Bluetooth module EUT PCB I FRONT

Test Report No.: G0M-1507-4951-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 34 EMC TEST REPORT FCC 47 CFR Part 15B Industry Canada ICES-003 Electromagnetic compatibility - Unintentional radiators Report Reference No. .................... : G0M-1507-4951-EF0115B-V01 Testing Laboratory ........................ : Eurofins Product Service GmbH Address ............................................ : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation .................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ........................... : Polycom Inc. Address ............................................ : 6001 America Center Drive 95002 San Jose USA Test specification: Standard ........................................... : 47 CFR Part 15 Subpart B ICES-003, Issue 5:2012 ANSI C63.4:2014 Equipment under test (EUT): Product description Desktop VolP Bluetooth Telephone Model No. VVX601 Additional Models None Hardware version 2201-48600-001 Firmware / Software version 5.4.0.xxxx IDs FCC-ID: M72-VVX601 IC: 1849C-VVX601 Test result Passed Test Report No.: G0M-1507-4951-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 34 Version History Version Issue Date Remarks Revised by V01 2015-09-29 Initial Release Test Report No.: G0M-1507-4951-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 34 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION 5 1.1 Photos – Equipment external 6 1.2 Photos – Equipment internal 8 1.3 Photos – Test setup 11 1.4 Supporting Equipment Used During Testing 12 1.5 Input / Output Ports 12 1.6 Operating Modes and Configurations 13 1.7 Test Equipment Used During Testing 14 1.8 Sample emission level calculation 15 2 RESULT SUMMARY 16 3 TEST CONDITIONS AND RESULTS 17 3.1 Test Conditions and Results – Radiated emissions 17 3.2 Test Conditions and Results – AC power line conducted emissions 31 Test Report No.: G0M-1507-4951-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 34 1 Equipment (Test item) Description Description Desktop VolP Bluetooth Telephone Model VVX601 Additional Models None Serial number None Hardware version 2201-48600-001 Software / Firmware version 5.4.0.xxxx FCC-ID M72-VVX601 IC-ID 1849C-VVX601 Power supply 100 – 240 VAC 50/60 Hz Dedicated AC/DC-Adaptor Model : FSP025-DINANS Manufacturer : Polycom Input : 100-240VAC / 50-60Hz Output : 48VDC / 0.52A PoE Adapter Model : FS116P Manufacturer : Netgear Input : 100-240VAC / 50-60Hz Output : 48VDC Radio module Type Bluetooth Module Model CC2564 Manufacturer Murata Manufacturer Polycom Inc. 6001 America Center Drive 95002 San Jose USA Highest emission frequency Fmax [MHz] = 2400 Device classification Class B Equipment type Tabletop Number of tested samples 1 Test Report No.: G0M-1507-4951-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 12 of 34 1.4 Supporting Equipment Used During Testing Product Type* Device Manufacturer Model No. Comments AE RJ11 Headset Sundely - - AE USB Stick maxell - - AE USB Stick sandisk cruzer - AE Telephone Polycom Soundpoint IP321 - AE Switch Netgear FS116P - *Note: Use the following abbreviations: AE : Auxiliary/Associated Equipment, or SIM : Simulator (Not Subjected to Test) CABL : Connecting cables 1.5 Input / Output Ports Port # Name Type* Max. Cable Length Cable Shielded Comments 1 AC Mains AC >3m No 2 Ethernet TP 1.82m No 2x, Cat.5 3 USB I/O - - 2x, USB Stick connected 4 RJ 11 I/O <3m No Headset *Note: Use the following abbreviations: AC : AC power port DC : DC power port N/E : Non electrical I/O : Signal input or output port TP : Telecommunication port Test Report No.: G0M-1507-4951-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 13 of 34 1.6 Operating Modes and Configurations Mode # Description 1 EUT AC powered from AC/DC Adapter, continuous call established, LAN ping, Bluetooth scanning. 2 EUT powered from Power over Ethernet Adapter, continuous call established, LAN ping, Bluetooth scanning. Configuration # EUT Configuration 1 Fully configured with wired Headset, 2 USB Sticks and Ethernet connection Test Report No.: G0M-1507-4951-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 14 of 34 1.7 Test Equipment Used During Testing Measurement Software Description Manufacturer Name Version EMC Test Software Dare Instruments Radimation 2014.1.15 Radiated emissions Description Manufacturer Model Identifier Cal. Date Cal. Due Biconical Antenna R&S HK 116 EF00012 2013-02 2016-02 LPD-Antenne R&S HL 223 EF00187 2014-03 2017-03 Horn antenna Schwarzbeck BBHA 9120D EF00018 2013-09 2016-09 EMI Test Receiver R&S ESU26 EF00887 2015-01 2016-01 Conducted emissions Description Manufacturer Model Identifier Cal. Date Cal. Due AMN R&S ESH2-Z5 EF00182 2014-11 2016-11 AMN R&S ESH3-Z5 EF00036 2014-12 2016-12 EMI Test Receiver R&S ESCS 30 EF00295 2014-10 2015-10 Test Report No.: G0M-1507-4951-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 15 of 34 1.8 Sample emission level calculation The following is a description of terms and a sample calculation, as appears in the radiated emissions data table. The numbers used in the calculation are for example only. There is no direct correlation to the specific data taken for the product described in this document: Reading: This is the reading obtained on the spectrum analyzer in dBμV. Any external preamplifiers used are taken into account through internal analyzer settings. A.F.: This is the antenna factor for the receiving antenna. It is a conversion factor, which converts electric fields strengths to voltages, which can be measured d…

Text truncated - open the document above for the full version.

Test Report No.: G0M-1507-4951-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 105 1.3 Photos – Test setup Test setup radiated emission Test setup AC-Power line
