MADG2021-49-02B

Microelectronics Technology Inc

Dual Mid-Band RU

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Aug 15, 2022
Application Purpose: Original Equipment
Date of Application: Aug 06, 2022
Equipment Note: Dual Mid-Band RU
Frequency Range: 2000.00000000 - 2020.00000000
Company: Microelectronics Technology Inc
Country: Taiwan

Documents & Files

Select a file to view

Attestation Statements

Cover Letter(s)

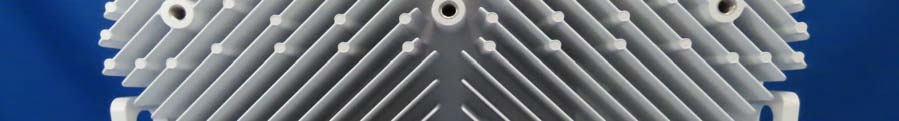

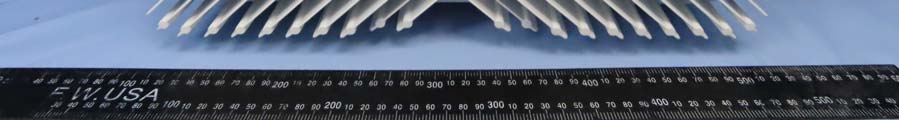

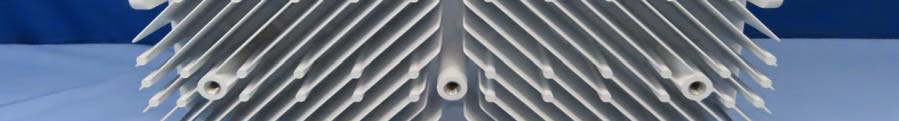

External Photos

ID Label/Location Info

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

Kevin Ku(Product Quality Section Manager-Radio)

[email protected]886-3-577-3335Fax: 886-3-577-0936

Test Firm

Bureau Veritas CPS(H.K.) Ltd., Taoyuan BranchLiu Ken

[email protected]+886-3-2600609Fax: +886-3-2115834

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
28	27	2.00 GHz - 2.02 GHz	19.54 W	8M96D7W	0.02 ppm

Confidentiality

Long Term

Grant Notes

Power listed is total conducted power per MHz. Professional installation required. The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-locating requirements of 1.1307 (b)(3). This device supports 4x40W 4T4R Band n70 + 4x40W 4T4R Band n66 or 4x20W 4T4R Band n70 + 4x60W 4T4R Band n66 configurations, where power indicated is conducted power per port. This device has 5/10/15/20 MHz bandwidth modes for band n66 and 5/10/15/20/25 MHz bandwidth modes for band n70. Intra-band carrier aggregation with a maximum aggregate bandwidth of 40 MHz and 25MHz is supported for bands n66 and n70 respectively. Equipment is authorized for operation under the conditions of FCC DA 13-2409.
