MCRUT-03Universal Transmitter

ID Label The Label Size : 35mm(L)*15mm(W) Label This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Model: FCC ID.: MCRUT-03

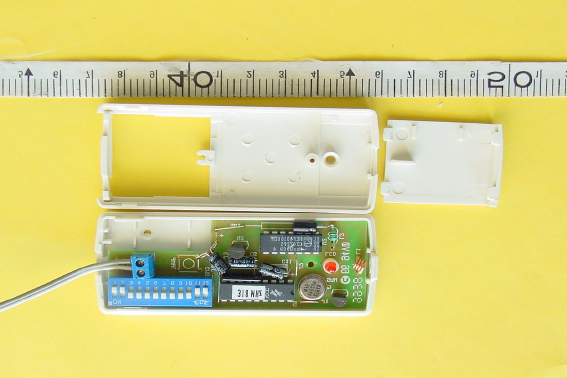

ETC Report No.:ET91R-06-070-01 FCC ID.: MCRUT-03 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Component View of Main PCB ETC Report No.:ET91R-06-070-01 FCC ID.: MCRUT-03 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Solder View of Main PCB

1. The Universal Transmitters can be used for a number of function. The most popular is protection of doors and windows; however, the unit can be connected to a panic switch and by setiting all Zone code Switches to OFF, the Panic Zone can be activated. This is ideal as a fixed Wireless Panic Alarm. 2. The detector connedted with the transmitter should be N/C type (normal close). Or monentary N/O (normal open) type.

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : UNIVERSAL TRANSMITTER FCC ID. : MCRUT-03 MODEL : TX-0123 Working Frequency : 318 MHz for APPLICANT : Aeonstar Technology Corp. ADDRESS : Fl., 6, No. 12, Sung-Teh Road, Taipei, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)26023052, 26023054 Fax:(02)26010910 Report Number : ET91R-06-070-01 ETC Report No.:ET91R-06-070-01 FCC ID.: MCRUT-03 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Aeonstar Technology Corp. Fl., 6, No. 12, Sung-Teh Road, Taipei, Taiwan, R.O.C. Manufacturer : AEONSTAR TECHNOLOGY CORP. Fl., 6, No. 12, Sung-Teh Road, Taipei, Taiwan, R.O.C. Description of EUT : a) Type of EUT : UNIVERSAL TRANSMITTER b) Trade Name : AEONSTAR c) Model No. : TX-0123 d) The data also apply to model: UT-0123, MT-02 e) FCC ID : MCRUT-03 f) Working Frequency : 318 MHz g) Power Supply : DC 12V Battery Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2001) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Issued Date : Jul. 06, 2002 Test Engineer : ( Tien Lu Liau ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET91R-06-070-01 Sheet 1 of 16 Sheets FCC ID.: MCRUT-03 Rev. No 1.0 1. GENERAL INFORMATION 1.1 Product Description a) Type of EUT : UNIVERSAL TRANSMITTER b) Trade Name : AEONSTAR c) Model No. : TX-0123 d) FCC ID : MCRUT-03 e) Working Frequency : 318 MHz f) Power Supply : DC 12V Battery 1.2 Characteristics of Device: 1. The Universal Transmitters can be used for a number of function. The most popular is protection of doors and windows; however, the unit can be connected to a panic switch and by setting all Zone code Switches to OFF, the Panic Zone can be activated. This is ideal as a fixed Wireless Panic Alarm. 2. The detector connected with the transmitter should be N/C type (normal close). Or momentary N/O (normal open) type. 1.3 Test Methodology Both conducted and radiated testing were performed according to the procedures in chapter 13 of ANSI C63.4. The Transmitter under test was operated continuously in its normal operating mode for the purpose of the measurements. In order to secure the continuous operation of the device under test, rewiring in the circuit was done by the manufacturer so as to affect its intended operation. The receiving antenna polarized horizontally was varied from 1 to 4 meters and the wooden turntable was rotated through 360 degrees to obtain the highest reading on the field strength meter or on the display of the spectrum analyzer. And also, each emission was to be maximized by changing the orientation of the Transmitter under test. In order to determining the average value during one pulse train of the radiated power generated from the Transmitter under test, the encoded wave form in the time domain was used. 1.4 Test Facility The open area test site and conducted measurement facility used to collect the radiated data is located on the roof top of Building at No.34, Lin 5, Ding Fu Tsun, Linkou Hsiang, Taipei Hsien, Taiwan, R.O.C. This site has been fully described in a report submitted to your office, and accepted in a letter dated Feb. 10, 2000. ETC Report No.:ET91R-06-070-01 Sheet 2 of 16 Sheets FCC ID.: MCRUT-03 Rev. No 1.0 2. DEFINITION AND LIMITS 2.1 Definition Intentional radiator: A device that intentionally generates and emits radio frequency energy by radiation or induction. 2.2 Restricted Bands of Operation Only spurious emissions are permitted in any of the frequency bands listed below: MHz MHz MHz GHz 0.090 - 0.110 16.42-16.423 399.9-410 4.5-5.25 0.495 - 0.505 ** 16.69475 - 16.69525 608-614 5.35-5.46 2.1735 - 2.1905 16.80425 - 16.80475 960-1240 7.25-7.75 4.125-4.128 25.5-25.67 1300-1427 8.025-8.5 4.17725-4.17775 37.5-38.25 1435-1626.5 9.0-9.2 4.20725-4.20775 73-74.6 1645.5-1646.5 9.3-9.5 6.215-6.218 74.8-75.2 1660-1710 10.6-12.7 6.26775-6.26825 108-121.94 1718.8-1722.2 13.25-13.4 6.31175-6.31225 123-138 2200-2300 14.47-14.5 8.291-8.294 149.9-150.05 2310-2390 15.35-16.2 8.362-8.366 156.52475 - 156.52525 2483.5-2500 17.7-21.4 8.37625-8.38675 156.7-156.9 2655-2900 22.01-23.12 8.41425-8.41475 162.0125-167.17 3260-3267 23.6-24.0 12.29-12.293 167.72-173.2 3332-3339 31.2-31.8 12.51975-12.52025 240-285 3345.8-3358 36.43-36.5 12.57675-12.57725 322-335.4 3360-4400 Above 38.6 13.36-13.41 Remark “**”: Until February 1, 1999, this restricted band shall be 0.490-0.510 MHz 2.3 Limitation (1) Conducted Emission Limits: For an intentional radiator which is designed to be connected to the public utility (AC) power line, the conducted limit is the following: Frequency ( MHz ) Emission (μV ) Emission ( dBμV ) 0.45 - 30.0 250 48.0 ETC Report No.:ET91R-06-070-01 Sheet 3 of 16 Sheets FCC ID.: MCRUT-03 Rev. No 1.0 (2) Radiated Emission Limits : According to 15.231,Periodic operation in the band 40.66-40.70 MHz and above 70 MHz, the field strength of emissions from intentional radiators operated under this section shall not exceed the following: Frequency Band (MHz) Field strength of Fundamental (uV/m) Field strength of Spurious (uV/m) 40.66-40.70 2250 225 70-130 1250 125 130-174 *1,250 to 3,750 *125 to 375 174-260 3750 375 260-470 *3,750 to 12,500 *375 to 1250 Above 470 12500 1250 * Linear interpolations. According to 15.235, the field strength of emissions from intentional radiators operated under these frequency bands shall not exceed the following: Fundamental Frequency (MHz) Field Strength of Fundamental μV/meter dBμV/meter 49.82 - 49.90 100…

Text truncated - open the document above for the full version.

ETC Report No.:ET91R-06-070-01 FCC ID.: MCRUT-03 Rev. No 1.0 Radiated Measurement Photos
