MCV-FSU3FSU-3

FireFly ® DR31 Field Operations Quick Reference Guide for FCC Use Release 3.0 100-500nn Rev. A November 2011 INOVA Geophysical Equipment Limited 12200 Parc Crest Drive Stafford, Texas 77477 USA P: +1.281.552.3800 F: +1.281.552.3811 www.inovageo.com Copyright © 2010 INOVA Geophysical Equipment Limited. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language in any format or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise, without prior written permission of INOVA Geophysical Equip- ment Limited. Copyright violators also may be subject to civil penalties. INOVA Geophysical makes no warranties as to the accuracy, validity, or fitness for use or application of the contents of this document. INOVA reserves the right to revise the information in this document at any time without notice. Although an attempt has been made to ensure the accuracy of the following material, no respon- sibility is assumed by ION for any use, or for any consequences resulting from any use, of the information contained herein. No guarantee of suitability for any pur- pose is offered or implied. FireFly ® is a registered trademark of INOVA Geophysical Equipment Limited; SCORPION ® is a registered trademark of INOVA Geophysical Equipment Limited. INOVA has attempted, throughout this document, to distinguish proprietary trademarks from descriptive terms by following the capitalization style used by the manufacturer. All brand names and product names used in this document are trade names, service marks, trademarks, or registered trademarks of their respective owners. Print date: November 2011 Original publication date: November, 2011 Part Number: 100-500nn FireFly Field Operations Quick Reference Guide3 Contents NavTool Start Up..............................................................................................................................................................................7 NavTool Point Selection ...................................................................................................................................................................8 NavTool Map ....................................................................................................................................................................................9 Receiver Station Equipment ...........................................................................................................................................................11 Task – Layout/Deployment (SVSM) ..............................................................................................................................................12 Task – Layout/Deployment (GDU/Geophone String)....................................................................................................................13 Task – Battery Swap .......................................................................................................................................................................14 Task – Pickup..................................................................................................................................................................................15 Task – QC .......................................................................................................................................................................................16 Task – Troubleshoot .......................................................................................................................................................................17 Task – Shooting ..............................................................................................................................................................................18 Task – Wireline Sims......................................................................................................................................................................20 Task – Drilling ................................................................................................................................................................................22 FireFly Field Operations Quick Reference Guide4 This device complies wi th Part 15 of the FCC and RSS210 Issue 8 rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Health Cana da's Safety Code. The installer of this device should ensure that RF radiation is not emitted in excess of the Health Canada's requirement. Information can be obtained at http://www.hc-sc.gc.ca/ewh- sem/pubs/radiation/radio_guide-lignes_direct-eng.php Français Cet appareil est conforme à FCC Partie15 de Industrie Canada RSS210 numero 8 standard exempts de licence(s). Son utilisation est soumise à Les deux conditions suivantes: (1) cet appareil ne peut pas provoquer d 'interférences e (2) cet appareil doit accepter Toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement du dispositif. Per Industry Canada RSS rules: Cet appareil est conforme avec Santé Canada Code de sécurité 6. Le programme d 'installation de cet appareil doit s' assurer que les rayonnements RF n'est pas émis au-delà de I'exigence de Santé Canada. Les informations peuvent être obtenues: http://www.hc-sc.gc.ca/ewhsemt/pubs/radiation/radio_ guide-lignes_direct-eng.php FireFly Field Operations Quick Reference Guide5 Warning RF Exposure Compliance The antenna(s) used for this transmitter must be installed to provide a separation distance of a…

Text truncated - open the document above for the full version.

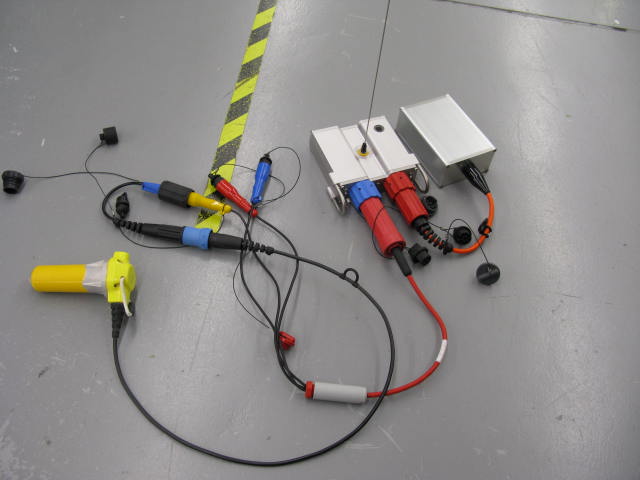

Tune-up Procedure for INOVA Geophysical FSU-3 FACTORY TEST FOR THE FSU AND CRU INCLUDE PROGRAMMING A POWER LEVEL AND MAKE TRANSMISSIONS THAT ARE DECODED BY THE OPPOSITE UNIT, THE POWER OUTPUT IS MEASURED WITH A SPECTRUM ANALYZER (AUTOMATED). 1. Unit is connected to FSU-3 final test fixture. 2. Software is commanded to transmit. 3. Software ramps up power until it reaches it preset limit of 39 dBm (8 watts) maximum. 4. This limit is verified by an external Spectrum Analyzer. There are no provisions for changing power levels by field personnel. Herb Blair RF Engineering Manager INOVA Geophysical Equipment Limited 850 N. Dorothy, STE 504 Richardson, TX 75081 Main + 1.972.234.3950 x7596 Fax +1.972.437.5817 Mobile + 1.214.263.8942 [email protected] www.inovageo.com

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:39.4(dBm)* Maximum peak output power at antenna input terminal:8709.6(mW) Antenna gain(maximum):5.2(dBi)* Maximum antenna gain:3.31(numeric) Time Averaging:100(%)* Prediction distance:120(cm)* Prediction frequency:152(MHz)* MPE limit for uncontrolled exposure at prediction frequency:0.20(mW/cm^2) Power density at prediction frequency:0.1594 (mW/cm^2) This equates to:1.594 W/m^2 2 4R PG S  

Nemko Test Report: 1028167RUS1 Applicant: INOVA Geophysical Equipment Limited 850 Dorothy, Suite 504 Richardson, Texas 75081 USA Equipment Under Test: FSU-3 (FCC ID.: MCV-FSU3) (E.U.T.) In Accordance With: FCC Part 90, Subpart I Tested By: Nemko USA Inc. 802 N. Kealy Lewisville, TX 75057-3136 TESTED BY: DATE: 7 June, 2011 David Light, Senior Wireless Engineer APPROVED BY: DATE: 7 July, 2011 Mike Cantwell, GM Total Number of Pages: 30 Nemko USA, Inc. FCC PART 90, SUBPART I EQUIPMENT: FSU-3 PROJECT NO.: 1028167RUS1 Page 2 of 30 Table of Contents SECTION 1. SUMMARY OF TEST RESULTS 3 SECTION 2. GENERAL EQUIPMENT SPECIFICATION 5 SECTION 3. RF POWER OUTPUT 7 SECTION 4. OCCUPIED BANDWIDTH 8 SECTION 5. SPURIOUS EMISSIONS AT ANTENNA TERMINALS 10 SECTION 6. FIELD STRENGTH OF SPURIOUS EMISSIONS 15 SECTION 7. FREQUENCY STABILITY 16 SECTION 8. TRANSIENT FREQUENCY BEHAVIOUR 18 SECTION 9. TEST EQUIPMENT LIST 21 ANNEX A - TEST METHODOLOGIES 22 ANNEX B - TEST DIAGRAMS 27 Nemko USA, Inc. FCC PART 90, SUBPART I EQUIPMENT: FSU-3 PROJECT NO.: 1028167RUS1 Page 3 of 30 Section 1. Summary of Test Results Manufacturer: INOVA Geophysical Equipment Limited Model No.: FSU-3 Serial No.: None General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 90, Subpart I. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. Nemko USA, Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety, for use by the company’s employees only. This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Nemko USA, Inc. is a NVLAP accredited laboratory. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA, Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA, Inc. FCC PART 90, SUBPART I EQUIPMENT: FSU-3 PROJECT NO.: 1028167RUS1 Page 4 of 30 Summary Of Test Data NAME OF TEST PARA. NO. SPEC. RESULT RF Power Output 90.205 Table 1 Complies Occupied Bandwidth 90.210 Mask D Complies Spurious Emissions at Antenna Terminals 90.210 Mask D Complies Field Strength of Spurious Emissions 90.210 Mask D Complies Frequency Stability 90.213 5 ppm Complies Transient Frequency Behavior 90.214 Mask Complies . Nemko USA, Inc. FCC PART 90, SUBPART I EQUIPMENT: FSU-3 PROJECT NO.: 1028167RUS1 Page 5 of 30 Section 2. General Equipment Specification Supply Voltage Input: 12 Vdc Nominal Frequency Range: 151.01 to 173.0 MHz Necessary Bandwidth: 12.5 kHz Emission Designator: 12K5GXW Output Impedance: 50 ohms RF Power Output (rated): 8 Watts Channel Spacing(s): 12.5 kHz Operator Selection of Operating Frequency: Software controlled Power Output Adjustment Capability: Software controlled Necessary BW [(data rate/2) x 2] + [deviation]: (9600bps/2)x2 + 2900Hz = 12.5 kHz Nemko USA, Inc. FCC PART 90, SUBPART I EQUIPMENT: FSU-3 PROJECT NO.: 1028167RUS1 Page 6 of 30 System Description Unit is a remote data collection system for Geophysical Survey utilizing a radio channel for command and control. System Diagram Nemko USA, Inc. FCC PART 90, SUBPART I EQUIPMENT: FSU-3 PROJECT NO.: 1028167RUS1 Page 7 of 30 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 2.985 TESTED BY: David Light DATE: 24 May 2011 Measurement Results: Complies. Measurement Data: Frequency (MHz) Measured Power (dBm) Measured Power (Watts) Rated Power (Watts) 151.01 39.4 8.7 8.0 160.0 38.5 7.1 8.0 173.0 38.1 6.5 8.0 Resolution BW: 300 kHz Video BW: 300 kHz Measurement Conditions: Temperature: 20 C Humidity: 30 % Measurement Uncertainty: +/- 1.7 dB Test Equipment: 1767-1082-1472-1469 Nemko USA, Inc. FCC PART 90, SUBPART I EQUIPMENT: FSU-3 PROJECT NO.: 1028167RUS1 Page 8 of 30 Section 4. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 2.989 TESTED BY: David Light DATE: 24 May 2011 Measurement Results: Complies. Measurement Data: See attached data Measurement Conditions: Temperature:20 C Humidity:30 % Measurement Uncertainty: +/- 1 X 10 -7 ppm Test Equipment: 1767-1082-1472-1469 Nemko USA, Inc. FCC PART 90, SUBPART I EQUIPMENT: FSU-3 PROJECT NO.: 1028167RUS1 Page 9 of 30 Test Data – 99% Occupied Bandwidth Nemko USA, Inc. FCC PART 90, SUBPART I EQUIPMENT: FSU-3 PROJECT NO.: 1028167RUS1 Page 10 of 30 Section 5. Spurious Emissions at Antenna Terminals NAME OF TEST: Spurious Emissions @ Antenna Terminals PARA. NO.: 2.991 TESTED BY: David Light DATE: 24 May 2011 Measurement Results: Complies. Measurement Data: See attached data Measurement Conditions: Temperature:20 C Humidity:30 % Measurement Uncertainty: +/- 1.7 dB Test Equipment: 1767-1082-1472-1469 Nemko USA, Inc. FCC PART 90, SUBPART I EQUIPMENT: FSU-3 PROJECT NO.: 1028167RUS1 Page 11 of 30 Test Data – Spurious Emissions MASK D LOW CHANNEL Nemko USA, Inc. FCC PART 90, SUBPART I EQUIPMENT: FSU-3 PROJECT NO.: 1028167RUS1 Page 12 of 30 Test Data – Spurious Emissions MASK D MID CHANNEL Nemko USA, Inc. FCC PART 90, SUBPART I EQUIPMENT: FSU-3 PROJECT NO.: 1028167RUS1 Page 13 of 30 Test Data – Spurious Emissions MASK D HIGH CHANNEL Nemko USA, Inc. FCC PART 90, SUBPART I EQUIPMENT: FSU-3 PROJECT NO.: 1028167RUS1 Page 14 of 30 Test Data – Spurious Emissions SPURS Nemko USA, Inc. FCC PART 90, SUBPART I EQUIPMENT: FSU-3 PROJECT NO.: 1028167RUS1 Page 15 of 30 Section 6. Field Strength of Spurious Emissions NAME OF TEST: Field Strength of Spurious Emissions PARA. NO.: 2.993 TESTED BY: David Light DATE: 24 May 2011 Measurement Results: …
