MDXRF1012Automobile Alarm Transceiver

Federal Communications Commission (FCC) Statement The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

From: Eva Kao [[email protected]] Sent: Tuesday, October 15, 2002 2:32 AM To: Mike Kuo Subject: Re: Win Far Technology Co., Ltd., FCC ID:MDXRF1012, AN02T2316 Hi Mike, Please find the attached is new version of operation description for your reference. Thanks! Eva ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: "'Eva Kao'" <[email protected]> Sent: Tuesday, October 15, 2002 1:35 PM Subject: RE: Win Far Technology Co., Ltd., FCC ID:MDXRF1012, AN02T2316 > Hi Eva: > > Take a look the operational description. Why it mention pulse code ? > > M.Kuo > > -----Original Message----- > From: Eva Kao [mailto:[email protected]] > Sent: Monday, October 14, 2002 8:15 PM > To: Mike Kuo > Subject: Re: Win Far Technology Co., Ltd., FCC ID:MDXRF1012, AN02T2316 > > > Dear Mike > > Yes, I know your means. But we had discussed this question with the > manufacturer. > This Device is not pulse modulation. It is Frequency Modulation . So the > average value > was measured by average detector. > > > > > ----- Original Message ----- > From: "Mike Kuo" <[email protected]> > To: "Eva Kao (E-mail)" <[email protected]>; <[email protected]> > Sent: Tuesday, October 15, 2002 10:04 AM > Subject: FW: Win Far Technology Co., Ltd., FCC ID:MDXRF1012, AN02T2316 > > > > > > > > -----Original Message----- > > From: CERTADM > > Sent: Monday, October 14, 2002 7:04 PM > > To: '[email protected]' > > Subject: Win Far Technology Co., Ltd., FCC ID:MDXRF1012, AN02T2316 > > > > > > Notice_content > > ------------- > > Question #1: In accordance with 15.35( c ), when the radiated emission > > limits are expressed in terms of the average value of the emission, and > the > > pulsed operation is employed, the measurement field strength shall be > > determined by averaging over one complete pulse train, including blanking > > intervals...". For pulsed operation, once the duty cycle is determined by > > following 15.35( c ) procedures, the average readings are equal to peak > > readings minus duty cycle. Average detector can not be used for pulsed > > operation. Since the peak readings are over the average limits, please > > provide duty cycle measurements and calculate the average readings. > > > > Best Regards > > > > Mike Kuo / TCB Certifier > > The items indicated above must be submitted before processing can continue > > on the above referenced application. Failure to provide the requested > > information within 60 days of the original e-mail date may result in > > application dismissal and forfeiture of the filing fee. Also, please note > > that partial responses increase processing time and should not be > submitted. > > Any questions about the content of this correspondence should be directed > to > > the e-mail address listed below the name of the sender.

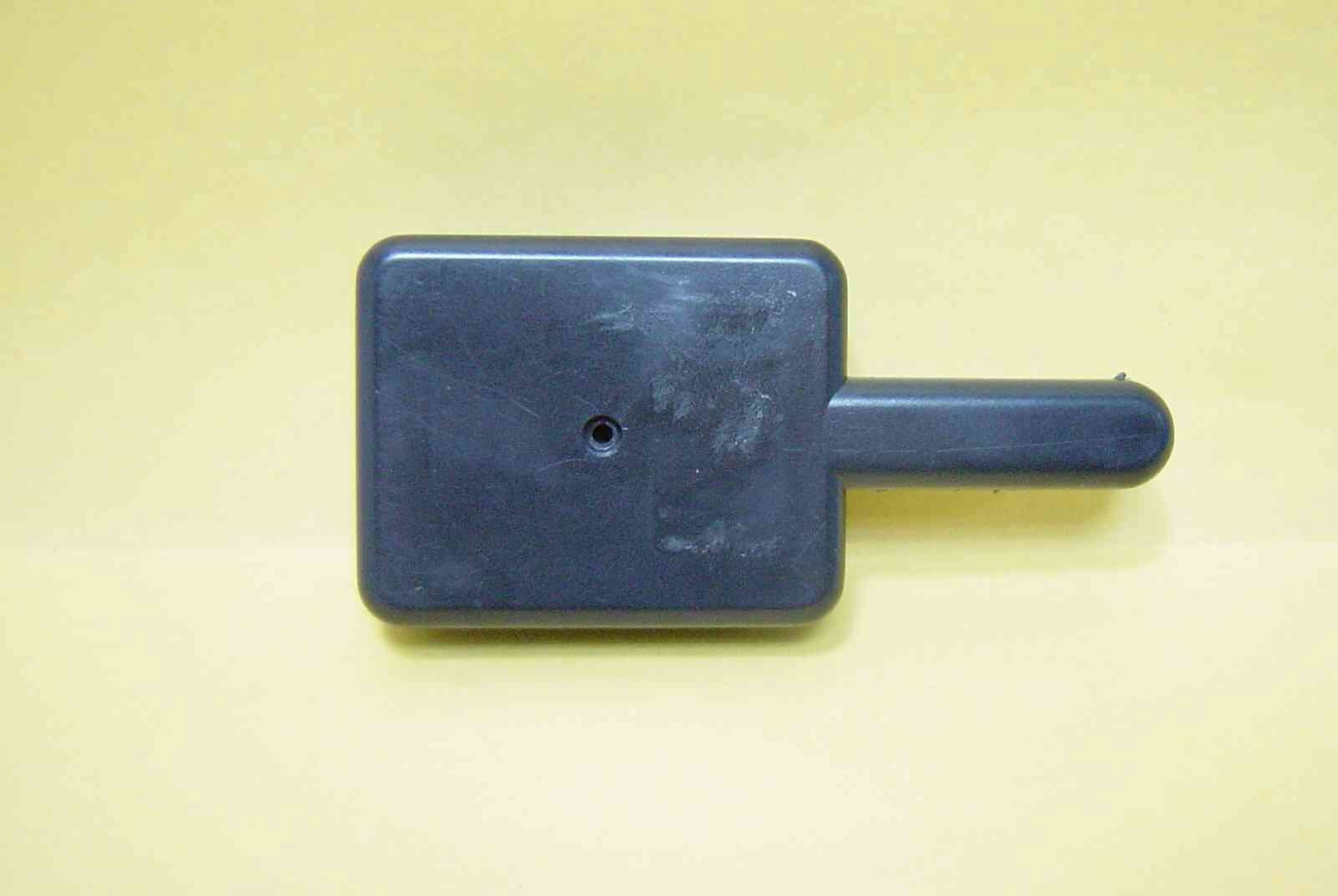

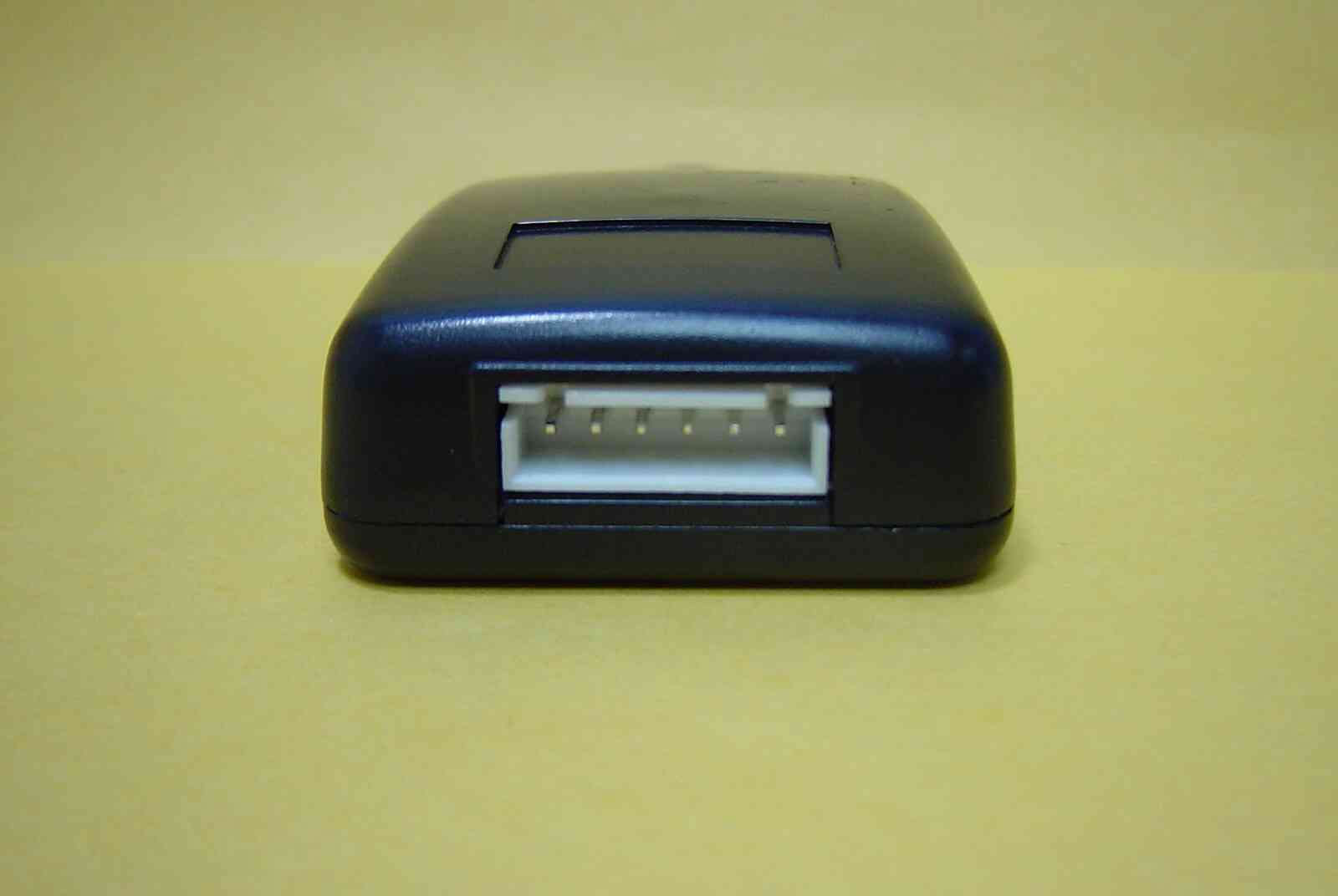

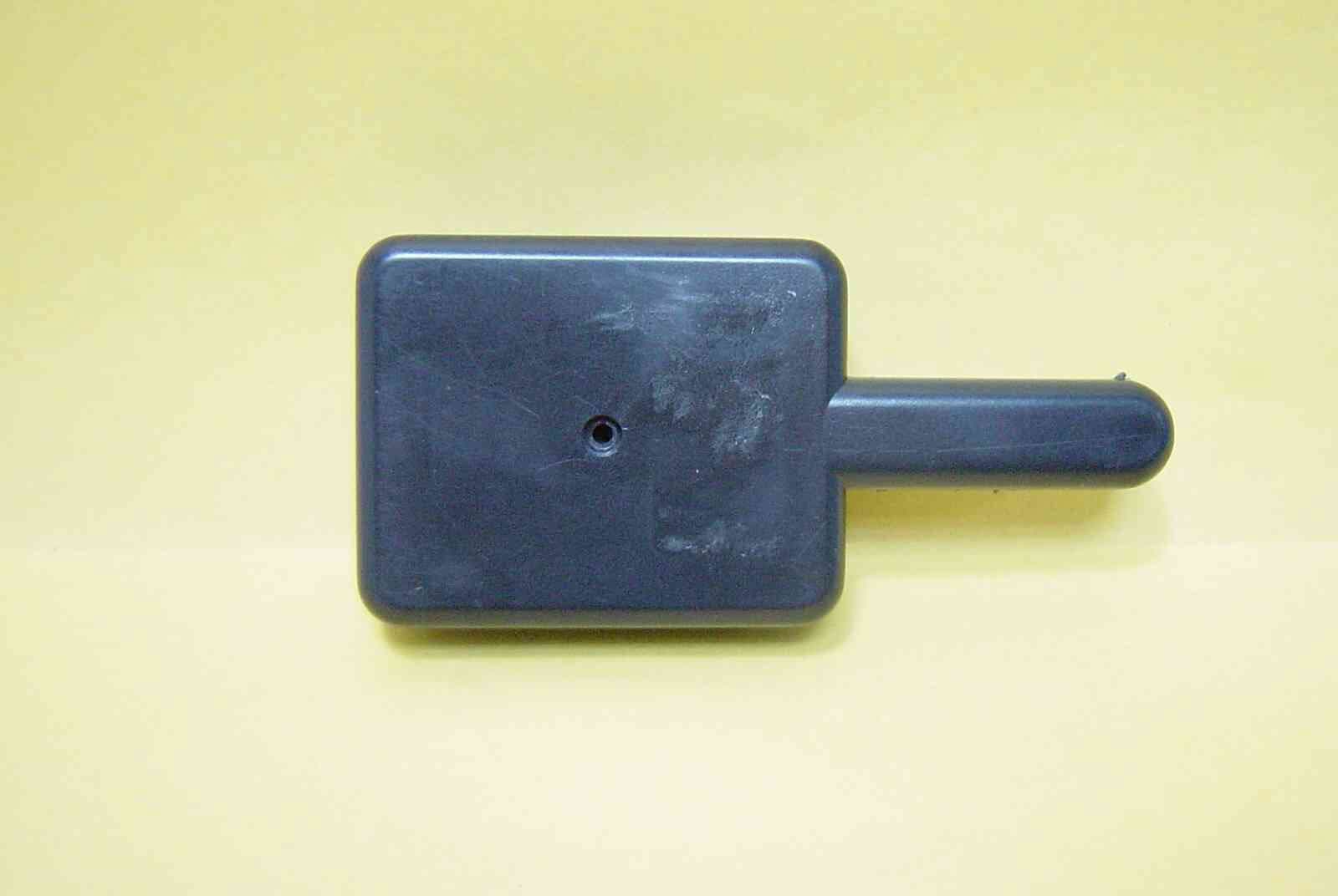

C&C Laboratory Co. Ltd. REPORT NO: 020038-RF-ID FCC ID: MDXRF1012 DATE: 10/08/2002 APPENDIX 2 EXTERNAL PHOTOGRAPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 020038-RF-ID FCC ID: MDXRF1012 DATE: 10/08/2002 Front View of EUT Back View of EUT C&C Laboratory Co. Ltd. REPORT NO: 020038-RF-ID FCC ID: MDXRF1012 DATE: 10/08/2002

FCC ID LABEL FORMAT AND LOCATION Applicant: Win Far Technology Co., Ltd. FCC ID: MDXRF1012 FCC ID: MDXRF1012 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

C&C Laboratory Co. Ltd. REPORT NO: 020038-RF-ID FCC ID: MDXRF1012 DATE: 10/08/2002 APPENDIX 3 INTERNAL PHOTOGRAPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 020038-RF-ID FCC ID: MDXRF1012 DATE: 10/08/2002 Internal of EUT 1 Internal of EUT 2 C&C Laboratory Co. Ltd. REPORT NO: 020038-RF-ID FCC ID: MDXRF1012 DATE: 10/08/2002 Internal of EUT 3

RF1012 The encoder generates a digital code serially transmit (typical designation) when press any button into the Central Processor Unit (modulator or called as mixer) stage in circuit. The serially digital signal mixed with the carrier at modulator (mixer) stage by way of FSK mode (Frequency Modulation) and to the Transmitter antenna. The modulation depth is designed such as ± 5KHz in this application, that means the pulse (may be at high level state or low level state) will trigger the oscillator to generate a frequency at a specified fundamental frequency +5KHz or −5KHz, depended on the designation. For example, if the carrier frequency defined as fundamental frequency +5KHz at high level state, then the alternative carrier frequency will be fundamental frequency −5KHz at low level state. The Central Processor will trigger the oscillator to generate a carrier frequency when receive the signal. HT-491 The encoder generates a pulse code serially transmit (typical designation) when press any button into the Central Processor Unit (modulator or called as mixer) stage in circuit. The pulse signal mixed with the carrier at modulator (mixer) stage by way of Pulse Modulation and to the Transmitter antenna. The Central Processor will trigger the oscillator to generate a carrier frequency when any button was press and show the button on the LCD display.

C&C Laboratory Co. Ltd. REPORT NO: 020038-RF-ID FCC ID: MDXRF1012 DATE: 10/08/2002 Page 1 of 23 Rev. 00 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Automobile Alarm Transceiver MODEL No.: RF1012 BRAND NAME: King’s GUN FCC ID: MDXRF1012 REPORT NO: 020038-RF-ID ISSUE DATE: Oct. 08, 2002 Prepared for Win Far Technology Co., Ltd. 4F, No. 21-1, Lane 333, Yuan Ho Road, Chun Ho City, Taipei Hsin, Taiwan, R.O.C. Prepared by C&C LABORATORY, CO., LTD. #B1, 1 st Fl., Universal Center, No. 183, Sec. 1, Tatung Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. TEL: (02)8642-2071~3 FAX: (02)8642-2256 C&C Laboratory Co. Ltd. REPORT NO: 020038-RF-ID FCC ID: MDXRF1012 DATE: 10/08/2002 Page 2 Rev. 00 Table of Contents 1. GENERAL INFORMATION ............................................................................................... 4 1.1 P RODUCT D ESCRIPTION ........................................................................................................................ 4 1.2 R ELATED S UBMITTAL ( S ) / G RANT ( S )................................................................................................... 4 1.3 T EST M ETHODOLOGY ............................................................................................................................ 4 1.4 T EST F ACILITY ...................................................................................................................................... 4 1.5 S PECIAL A CCESSORIES .......................................................................................................................... 4 1.6 E QUIPMENT M ODIFICATIONS ................................................................................................................ 4 2. SYSTEM TEST CONFIGURATION .................................................................................. 5 2.1 EUT C ONFIGURATION ........................................................................................................................... 5 2.2 EUT E XERCISE ...................................................................................................................................... 5 2.3 T EST P ROCEDURE .................................................................................................................................. 5 2.4 L IMITATION ........................................................................................................................................... 6 2.5 C ONFIGURATION OF T ESTED S YSTEM ................................................................................................... 7 3. SUMMARY OF TEST RESULTS ..................................................................................... 10 4. DESCRIPTION OF TEST MODES .................................................................................. 10 5. CONDUCTED EMISSIONS TEST ................................................................................... 11 5.1 M EASUREMENT P ROCEDURE : ............................................................................................................. 11 5.2 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ) ..................................................................... 11 5.3 MEASUREMENT EQUIPMENT USED: .................................................................................................... 11 5.4 M EASUREMENT R ESULT : .................................................................................................................... 11 5.5 C ONDUCTED M EASUREMENT P HOTOS :............................................................................................... 11 6. RADIATED EMISSION TEST .......................................................................................... 12 6.1 MEASUREMENT PROCEDURE............................................................................................................... 12 5.2 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ) ..................................................................... 13 5.3 M EASUREMENT E QUIPMENT U SED : .................................................................................................... 14 5.4 FIELD STRENGTH CALCULATION........................................................................................................ 14 5.5 M EASUREMENT R ESULT ..................................................................................................................... 15 7. OCCUPIED BANDWIDTH................................................................................................ 21 7.1 M EASUREMENT P ROCEDURE ............................................................................................................... 21 7.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ..................................................................... 21 7.3 M EASUREMENT E QUIPMENT U SED : .................................................................................................... 21 7.4 M EASUREMENT R ESULTS : R EFER TO ATTACHED DATA CHART ....................................................... 21 C&C Laboratory Co. Ltd. REPORT NO: 020038-RF-ID FCC ID: MDXRF1012 DATE: 10/08/2002 Page 3 Rev. 00 8. DUTY CYCLE MEASUREMENT .................................................................................... 23 8.1 MEASUREMENT PROCEDURE............................................................................................................... 23 8.2 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ) ..................................................................... 23 8.3 M EASUREMENT E QUIPMENT U SED : .................................................................................................... 23 8.4 M EASUREMENT R ESULTS : R EFER TO ATTACHED DATA CHART ....................................................... 23 C&C Laboratory Co. Ltd. REPORT NO: 020038-RF-ID FCC ID: MDXRF1012 DATE: 10/08/2002 Page 4 Rev. 00 1. GENERAL…

Text truncated - open the document above for the full version.

C&C Laboratory Co. Ltd. REPORT NO: 020038-RF-ID FCC ID: MDXRF1012 DATE: 10/08/2002 APPENDIX 1 PHOTOGRAPHS OF SET UP C&C Laboratory Co. Ltd. REPORT NO: 020038-RF-ID FCC ID: MDXRF1012 DATE: 10/08/2002 Radiated Emission Setup Photos
