MDZ-WB118C

Amtran Technology Co Ltd

BT V4.0LE Dual Mode Bluetooth Stereo Audio Module

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Nov 13, 2014
Application Purpose: Original Equipment
Date of Application: Nov 13, 2014
Equipment Note: BT V4.0LE Dual Mode Bluetooth Stereo Audio Module
Frequency Range: 2402.00000000 - 2480.00000000
Company: Amtran Technology Co Ltd
Country: Taiwan

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

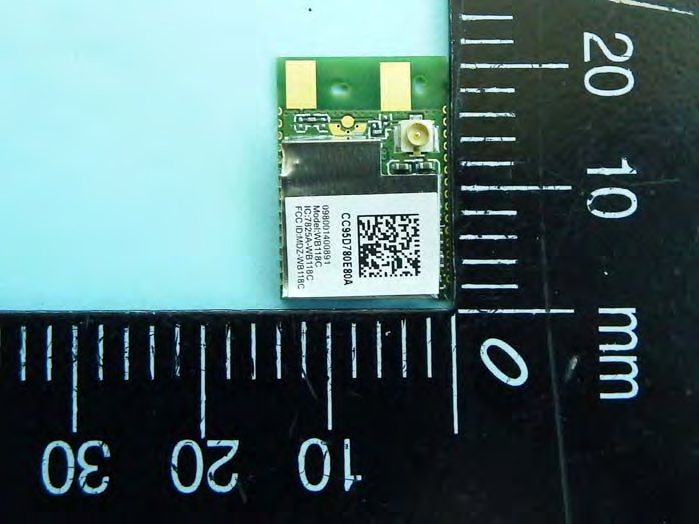

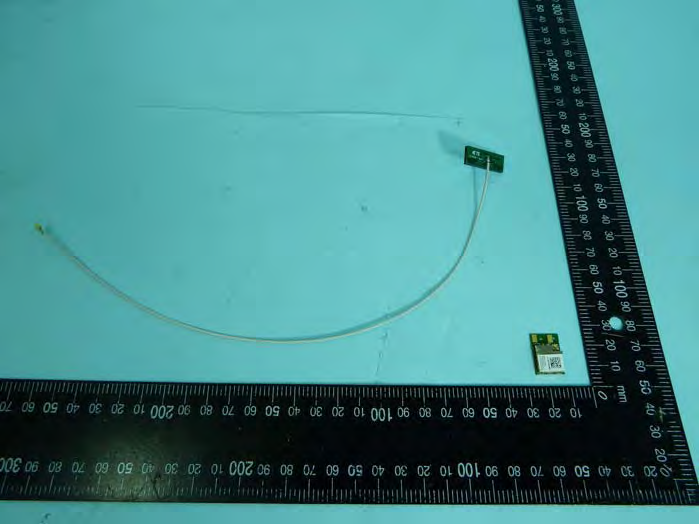

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission
1	15C	2.40 GHz - 2.48 GHz	3.30 mW	1M04F1D

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Modular Approval. Power Output is conducted. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons to satisfy the requirements of 2.1091 and must not be co-located or operated in conjunction with any other antenna or transmitter not described in this application. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance
