MG3-0602284JPN Panasonic Viera TV Touch Pad BT Remote 2013

Panasonic Remote Control Quick Reference Guide Setup 1. Insert 2 AA battery (Heavy duty is supplied with remote or Alkaline, not lithium battery) CONTROLLING YOUR TV 1. Press Power key to turn on the TV 2. Set TV for pairing mode via menu 3. Press and hold <Home> and <Option Key> on the remote to pairing remote with TV Touchpad 1. Allow 360 degrees control for menu navigation COMPLIANCE WITH FCC RULES AND REGULATIONS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, the user is encouraged to try to correct the interference by one or more of the following measures: • Increase or decrease the separation between the equipment and receiver. • Consult the dealer or an experienced remote control/ TV technician for help. This equipment has been verified to comply with the limits for a Class B computing device, pursuant to FCC Rules. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment. FCC Authorization Label This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2 This device must accept any interference received, including interference that may cause undesired operation. Responsible Party: Panasonic Corporation of North America One Panasonic Way Secaucus, NJ 07094

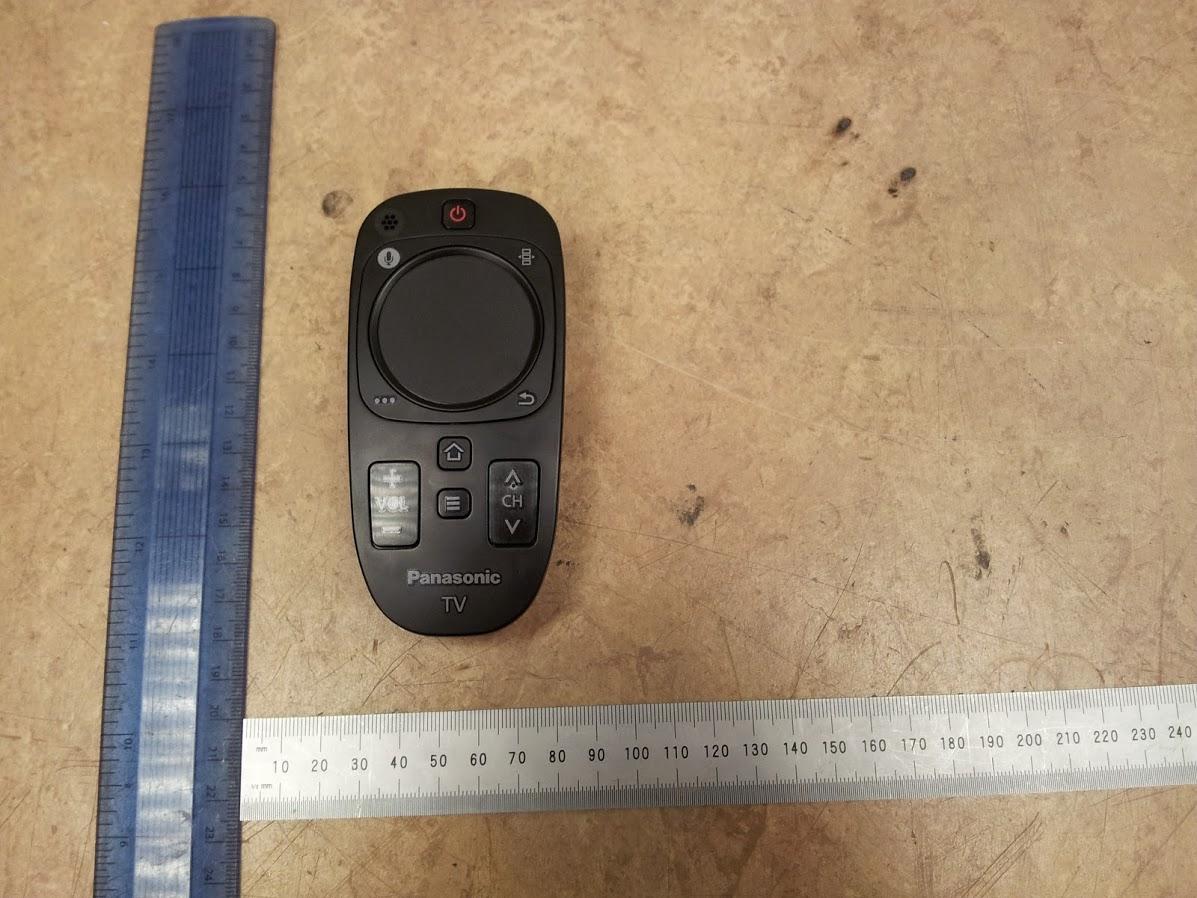

External Photos

Internal Photos

RADIO FREQUENCY RADIATION EXPOSURE MPE calculation: Test setup 1: EUT Measuring Receiver Attenuator Formula: S=EIRP / 4π R 2 S = Power Density (mW/cm 2 ) EIRP = Radiated power (mW) R = distance for body (cm) Calculation: S = 4.5mW / 4 π 0.6 mW/cm 2 S = 0.994mW/cm 2 Notes: 1. The unit will be mounted at least 0.6 cm away from the body. 2. The Conducted carrier power of 10 dBm was the worst case peak level measured. 3. Antenna Gain of -3.83 dBi stated by manufacturer. 4. The EIRP based on antenna gain and conducted output power 10.0mW Limit The limit of Powe r density for the General Population/ Uncontrolled Exposure is 1 mW/cm 2 . Result The EUT me et the 1 mW/cm 2 limit at a distance of 0.6cm.

Radio Test Report for Universal Electronics on JPN Panasonic Viera Touch Bluetooth Remote 2013 Document No: TRA-011552-W-US-1 Total number of pages: 83 TRaC Wireless Test Report : TRA-011552-W-US-1 Applicant : Universal Electronics Apparatus : JPN Panasonic Viera Touch Bluetooth Remote 2013 Specification(s) : CFR47 Part 15.247 FCCID : MG3-0602284 Purpose of Test : Certification Authorised by : (Radio Product Manager) Issue Date : 20 th December 2012 Authorised Copy Number : PDF TRaC Global Test Report: TRA-011552-W-US-1 3 Contents Section 1: Introduction 4 1.1 General 4 1.2 Tests Requested By 5 1.3 Manufacturer 5 1.4 Apparatus Assessed 5 1.5 Test Result Summary 6 1.6 Notes relating to the assessment 7 1.7 Deviations from Test Standards 8 Section 2: Measurement Uncertainty 9 2.1 Measurement Uncertainty Values 9 Section 3: Modifications 11 3.1 Modifications Performed During Assessment 11 Appendix A: Formal Emission Test Results 12 A1 Transmitter Peak Output Power 13 A2 Conducted Spurious Emissions 14 A3 Radiated Emissions 18 A4 20dB Bandwidth and Channel Separation 29 A5 Hopping frequencies 30 A6 Channel Occupancy 31 A7 Antenna Gain 32 A8 Unintentional Radiated Emissions 33 Appendix B: Supporting Graphical Data 36 Appendix C: Additional Test and Sample Details 72 C1 Test samples 73 C2 EUT operating mode during testing 74 C3 EUT Configuration Information 75 C4 List of EUT Ports 76 C5 Details of Equipment Used 77 Appendix D: Additional Information 78 Appendix E: Calculation of the duty cycle correction factor 79 Appendix F: Photographs and Figures 80 TRaC Global Test Report: TRA-011552-W-US-1 4 Section 1: Introduction 1.1 General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed by: TRaC Global [ ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TRaC Global [X] Unit 1 Pendle Place Skelmersdale West Lancashire, WN8 9PN United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: Daniel Winstanley Author(s): Daniel Winstanley This report must not be reproduced except in full without prior written permission from TRaC Global Ltd. TRaC Global Test Report: TRA-011552-W-US-1 5 1.2 Tests Requested By All testing in this report was requested by: Universal Electronics 201 E. Sandpointe Ave 8th Floor Santa Ana CA 92707 USA 1.3 Manufacturer Gemstar Te chnology (China) Co., Ltd. Gemstar Industrial Park, 45# Shiguang Road, Zhong’er Village, Zhongcun Town, Panyu District Guangzhou City, Guangdong Province 511495, P.R China 1.4 Apparatus Assessed The followin g products were assessed between 3 rd – 11 th December 2012 JPN Panasonic Viera Touch Bluetooth Remote 2013. Model Number: 060-2284 The above equipment is a FHSS transmitter operating in the 2400 MHz to 2483.5 MHz band. TRaC Global Test Report: TRA-011552-W-US-1 6 1.5 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test Type Regulation Measurement standard Result Radiated spurious emissions (Restricted bands) Title 47 of the CFR: Part 15 Subpart (c) 15.247 ANSI C63.10:2009 Pass Conducted spurious emissions (Non-restricted bands) Title 47 of the CFR: Part 15 Subpart (c) 15.247 ANSI C63.10:2009 Pass AC Power conducted emissions Title 47 of the CFR: Part 15 Subpart (c) 15.207 ANSI C63.10:2009 N/A Note 1 20dB Bandwidth and Channel Spacing Title 47 of the CFR : Part 15 Subpart (c) 15.247(a)(1)(i) ANSI C63.10:2009 Pass Conducted Carrier Power Title 47 of the CFR : Part 15 Subpart (c) 15.247(b)(2) ANSI C63.10:2009 Pass Hopping Frequencies Title 47 of the CFR : Part 15 Subpart (c) 15.247(a)(1) ANSI C63.10:2009 Pass Channel Occupancy Title 47 of the CFR : Part 15 Subpart (c) 15.247(a)(1)(i) ANSI C63.10:2009 Pass Unintentional Radiated Spurious Emissions Title 47 of the CFR: Part 15 Subpart (b) 15.109 ANSI C63.10:2009 Pass Note 1: The JPN Panasonic Viera Touch Bluetooth Remote 2013 is a battery power device. Abbreviations used in the above table: ANSI C 63.10:2009 is outside the scope of the laboratories UKAS accreditation. Mod : Modification CFR : Code of Federal Regulations ANSI : American National Standards Institution REFE : Radiated Electric Field Emissions PLCE : Power Line Conducted Emissions TRaC Global Test Report: TRA-011552-W-US-1 7 1.6 Notes relating to the assessment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed except where identified in Section 1.7 of this test report (Deviations from Test Standards). For emissions testing, throughout this test report, “Pass” indicates that the results for the sample as tested were below the specified limit (refer also to Section 2, Measurement Uncertainty). Where relevant, the apparatus was only assessed using the monitoring methods and susceptibility criteria defined in this report. All testing with the exception of testing at the Open Area Test Site was performed under the following environmental conditions: Temperature : 20 to 23 C Humidity : 45 to 75 % All …

Text truncated - open the document above for the full version.

TRaC Global Test Report: TRA-011552-W-US-1 80 Appendix F: Photographs and Figures The following photographs were taken of the test samples: 1. Radiated electric field emissions arrangement: Overview. 2. Radiated electric field emissions arrangement: Close Up. TRaC Global Test Report: TRA-011552-W-US-1 81 Photograph 1 TRaC Global Test Report: TRA-011552-W-US-1 82 Photograph 2
