MG3-0602331Touch Pad Controller

Panasonic Remote Control Quick Reference Guide Model: 060‐2331 Setup 1. Insert 2 AAA battery (Heavy duty is supplied with remote or Alkaline, not lithium battery) CONTROLLING YOUR TV 1. Press Power key to turn on the TV 2. Set TV for pairing mode via menu 3. Press and hold <S Menu> and <Cursor Down> key on the remote to pairing remote with TV Touchpad 1. Allow 360 degrees control for menu navigation Caution Please read these safety instructions to ensure our personal safety and prevent property damage Warning ‐ Do not put remote in a fire ‐ Do not disassemble the remote control ‐ Disposal of the remote control A warning that batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Important Safety Instruction 1. Read these instruction 2. Keep these instruction 3. Head all warning 4. Follow all instructions 5. Do not use this apparatus near water 6. Clean only with dry cloth 7. Do not install near any heat source such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. 8. Only use attachment/accessories specified by manufacture 9. Refer all servicing to qualified service personnel. Service is required when apparatus has been damaged in any way, such as liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, dose not operate normally, or has been dropped. Specification Operating Temperature: 0 degree ‐ 45 degree Battery Type: 2 AAA batteries COMPLIANCE WITH FCC RULES AND REGULATIONS 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐Reorient or relocate the receiving antenna. ‐Increase the separation between the equipment and receiver. ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. This Class B digital apparatus complies with Canadian ICES‐003 This device complies with Industry Canada licence‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co‐located or operating in conjunction with any other antenna or transmitter Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Cet appareil numérique de classe B est conforme à la norme NMB‐003. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Pour se conformer aux exigences de conformité RF canadienne l'exposition, cet appareil et son antenne ne doivent pas être co‐localisés ou fonctionnant en conjonction avec une autre antenne ou transmetteur. 安裝／移除電池 VIERA 觸控板控制器 本觸控板控制器設計用於方便操作，尤其是 VIERA Connect 或網際網路內容的操作。可以用此控制器直觀地操作電視。 通過用藍牙無線技術將觸控板控制器註冊到本電視便可以進行使用。初次使用電視時，會在“自動搜尋＂中出現註冊用設定畫面。 進行註冊後，無需將此控制器對準電視就可以操作電視（待機開啟／關閉開關除外）。 若想使用待機開啟／關閉開關，由於該開關由紅外線控制，請將控制器直接對準電視的遙控訊號接收器 （無需註冊就可以操作該開關。） 1 待機開啟／關閉開關 ● 與遙控器按鍵 1 功能相同 2 確定 3 觸控板（參見以下） 4 跳出 5 VIERA 工具／螢幕顯示遙控 ● 螢幕顯示遙控：按下並按住可顯示遙控 GUI（圖形用戶界面）。再 次按下可移動圖形用戶界面的位置。（若想改變圖形用戶界面的頁面， 在觸控板上向左／右滑動手指。） 6 音量調高／降低 7 [ 副目錄設定] 8 返回 9 選台調上／調下 10 網際網路（[VIERA Connect]） * The drawing is for reference only 將VIERA 觸控板控制器註冊到本電視 (Bluetooth Setup Instruction) 將電視連接電源插座，並開啟電源 ● 需要數秒時間才能顯示。 ● 若電視上顯示紅色指示燈，請按下遙控器上的待機開啟／關閉開 選擇語言 選擇 [配對] 依照螢幕上的指示說明使用觸控板控制器（隨附）。 按下並按住可首頁 安全注意事項 NCC : <Spanish> “La operación de este equipo está sujeta a las siguientes dos condiciones” 1. Es posible que este equipo o dispositivo no cause interferencia perjudicial …

Text truncated - open the document above for the full version.

RF_160, Issue 03 Declaration of Authorization We Name: Universal Electronics Inc. Address: 201 E. Sandpointe Ave, 8th Floor, Santa Ana CA 92707 City: Santa Ana Country: United States Declare that: Name Representative of agent: Willis Chen (1) Agent Company name: SGS Taiwan Ltd. Address: 134, Wu Kung Rd., Wuku Industrial Zone City: Wuku Area New Taipei City Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Touch Pad Controller Type designation: 60-2331 Trademark: Panasonic on our behalf. Date: Nov. 3, 2014 City: Santa Ana Name: Jesse Mendez (2) Function: Staff Engineer Electrical Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Universal Electronics Inc. Address : 201 E. Sandpointe Ave, 8th Floor, Santa Ana CA 92707 City: Santa Ana Country: United States To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: MG3-0602331 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: Nov. 3, 2014 Name and signature of applicant: Jesse Mendez Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

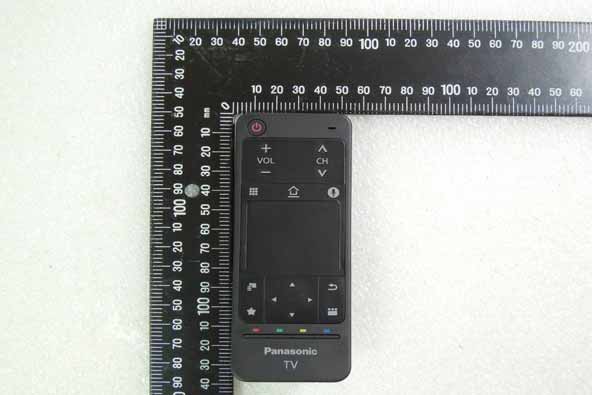

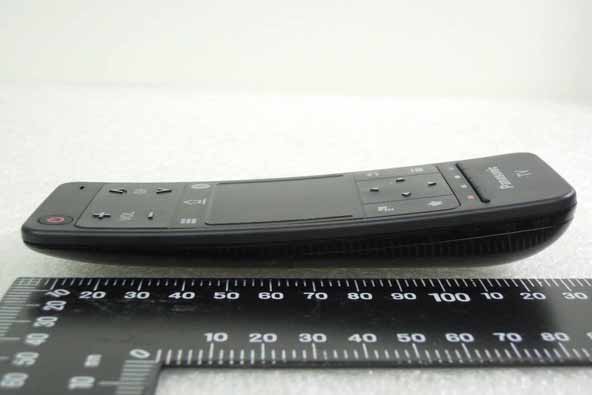

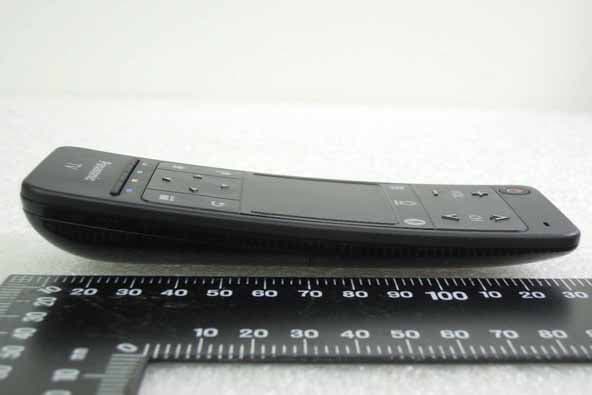

Report No.: ER/2014/A0023 FCC ID: MG3-0602331 Issue Date: Oct. 31, 2014 IC: 2575A-0602331 Page: 3 of 97 EXTERNAL PHOTOGRAPHS OF EUT Report No.: ER/2014/A0023 FCC ID: MG3-0602331 Issue Date: Oct. 31, 2014 IC: 2575A-0602331 Page: 4 of 97 Front View of EUT Back View of EUT Side View of EUT – 1 Report No.: ER/2014/A0023 FCC ID: MG3-0602331 Issue Date: Oct. 31, 2014 IC: 2575A-0602331 Page: 5 of 97 Side View of EUT – 2 Report No.: ER/2014/A0023 FCC ID: MG3-0602331 Issue Date: Oct. 31, 2014 IC: 2575A-0602331 Page: 6 of 97 Side View of EUT – 3 Side View of EUT – 4 ~ End of Report ~

Back Side Location

Report No.: ER/2014/A0023 FCC ID: MG3-0602331 Issue Date: Oct. 31, 2014 IC: 2575A-0602331 INTERNAL PHOTOGRAPHS OF EUT Report No.: ER/2014/A0023 FCC ID: MG3-0602331 Issue Date: Oct. 31, 2014 IC: 2575A-0602331 Internal View of EUT – 1 Internal View of EUT – 2 Report No.: ER/2014/A0023 FCC ID: MG3-0602331 Issue Date: Oct. 31, 2014 IC: 2575A-0602331 Internal View of EUT – 3 Internal View of EUT – 4 Report No.: ER/2014/A0023 FCC ID: MG3-0602331 Issue Date: Oct. 31, 2014 IC: 2575A-0602331 Internal View of EUT – 5 Internal View of EUT – 6 Report No.: ER/2014/A0023 FCC ID: MG3-0602331 Issue Date: Oct. 31, 2014 IC: 2575A-0602331 Internal View of EUT – 7 Antenna Location (BT) ~ End of Report ~

Report No.: ER/2014/A0023 FCC ID: MG3-0602331 Issue Date: Oct. 31, 2014 1. RF Exposure 1.1 Standard Applicable: According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Com- mission’s guideline. This is a Portable device with its physical nature to be used nearby, the distance between radiating structure and human is less than 20cm. As per KDB 447498 D01 $4.3.1, The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g Head & Body SAR and ≤ 7.5 for 10-g extremity Hand SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 1.2 Measurement Result: Step 1: (<50mW) This is a portable device and the Max peak output power is (3.94 mW) lower than the threshold given and de- rived as formula given above, where =12.61 (mW)/5 (mm)*√2.441 (GHz) = 3.94< 7.5 Frequency (MHz) Reading Power (dBm) Output Power (W) Limit (W) 2441 11.01 0.01261827535 1 Watt = 30 dBm As the result of calculation result indicates, the RF exposure generating from given transmitter (transmitter employed digital modulation) can be excluded from SAR measurement, and is deemed compliant with RF exposure as per FCC. Report No.: ER/2014/A0023 FCC ID: MG3-0602331 Issue Date: Oct. 31, 2014 1.3 The table of quick reference in terms of power threshold Note that the table present above is the table of quick reference, indexing the level of power threshold with respect to the corresponding frequency. The value of the index may be deviated, and therefore, the deriva- tion of exemption based on KDB447498 D01 is used in this test report, relevantly. ~ End of Report ~

Report No.: ER/2014/A0023 FCC ID: MG3-0602331 Issue Date: Oct. 31, 2014 IC: 2575A-0602331 Page: 1 of 97 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/北北路134 t (8862) 22993279 f (8862) 22980488 www.tw.sgs.com Member of SGS Group ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT AND INDUSTRY CANADA RSS 210 OF Equipment Under Test: Touch Pad Controller Brand Name: Panasonic Model No.: 060-2331 Model Difference: N/A FCC ID: MG3-0602331 IC: 2575A-0602331 Report No.: ER/2014/A0023 Issue Date: Oct. 31, 2014 FCC Rule Part: §15.247, Cat: DSS IC Rule Part: RSS-210 issue 8 :2010, Annex 8 Prepared for: Universal Electronics Inc. 201 E. Sandpointe Ave, 8th Floor, Santa Ana CA 92707 Prepared by: SGS Taiwan Ltd. Electronics & Communication Laboratory No.134, Wu Kung Road, New Taipei Industrial Park, Wuku District, New Taipei City, Taiwan 24803 Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This docu- ment may be altered or revised by SGS Taiwan Ltd. person- nel only, and shall be noted in the revision section of the document. Report No.: ER/2014/A0023 FCC ID: MG3-0602331 Issue Date: Oct. 31, 2014 IC: 2575A-0602331 Page: 2 of 97 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/北北路134 t (8862) 22993279 f (8862) 22980488 www.tw.sgs.com Member of SGS Group VERIFICATION OF COMPLIANCE Applicant: Universal Electronics Inc. 201 E. Sandpointe Ave, 8th Floor, Santa Ana CA 92707 Equipment Under Test: Touch Pad Controller Brand Name: Panasonic Model No.: 060-2331 Model Difference: N/A FCC ID: MG3-0602331 IC: 2575A-0602331 File Number: ER/2014/A0023 Date of test: Oct 03, 2014 ~ Oct. 31, 2014 Date of EUT Received: Oct 03, 2014 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. Electronics & Communication Laboratory The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2009 and RSS-Gen. issue 3 the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 and IC RSS 210 issue 8: 2010 Annex 8. The test results of this report relate only to the tested sample identified in this report. Test By: Date: Oct. 31, 2014 Marcus Tseng / Engineer Prepared By: Date: Oct. 31, 2014 Allen Tsai / Engineer Approved By: Date: Oct. 31, 2014 Jim Chang / Supervisor Report No.: ER/2014/A0023 FCC ID: MG3-0602331 Issue Date: Oct. 31, 2014 IC: 2575A-0602331 Page: 3 of 79 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to it…

Text truncated - open the document above for the full version.

Report No.: ER/2014/A0023 FCC ID: MG3-0602331 Issue Date: Oct. 31, 2014 IC: 2575A-0602331 APPENDIX 1 PHOTOGRAPHS OF SET UP Report No.: ER/2014/A0023 FCC ID: MG3-0602331 Issue Date: Oct. 31, 2014 IC: 2575A-0602331 Radiated Emission Set up Photos (Below 1GHz) Report No.: ER/2014/A0023 FCC ID: MG3-0602331 Issue Date: Oct. 31, 2014 IC: 2575A-0602331 Radiated Emission Set up Photos (Above 1GHz) Report No.: ER/2014/A0023 FCC ID: MG3-0602331 Issue Date: Oct. 31, 2014 IC: 2575A-0602331 Conducted Setup Photo (Measurement at Antenna Port) ~ End of Report ~
