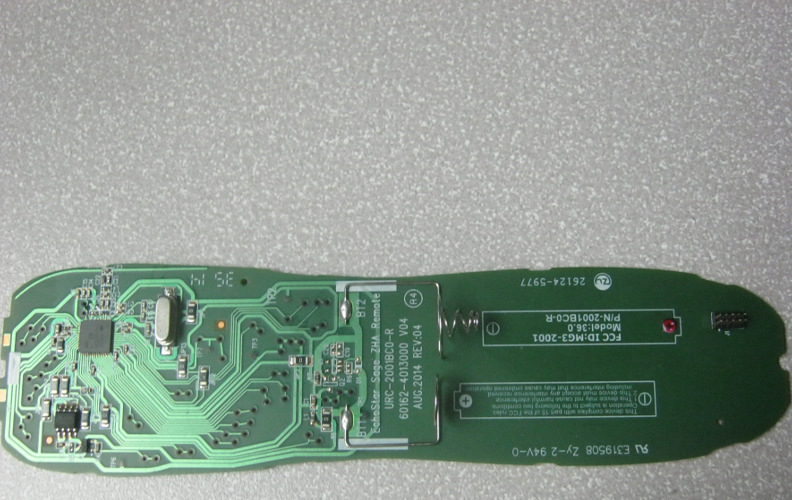

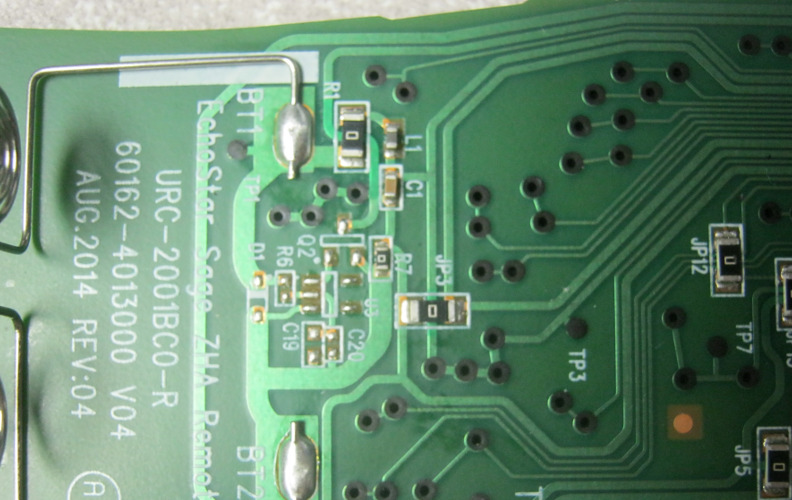

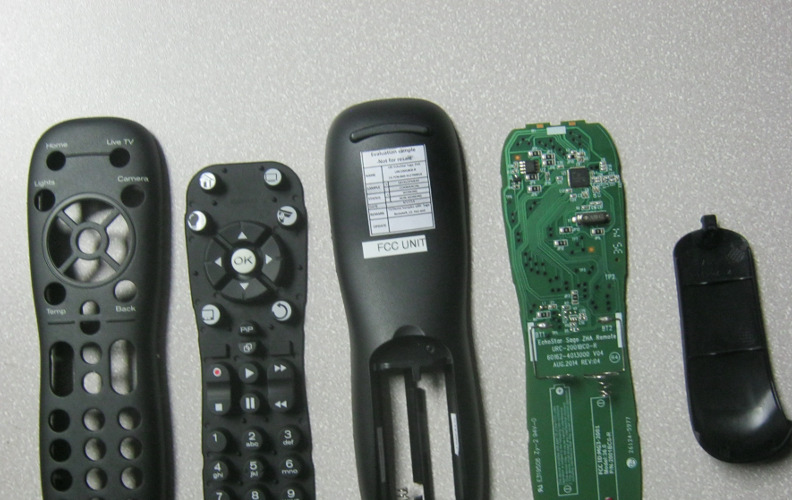

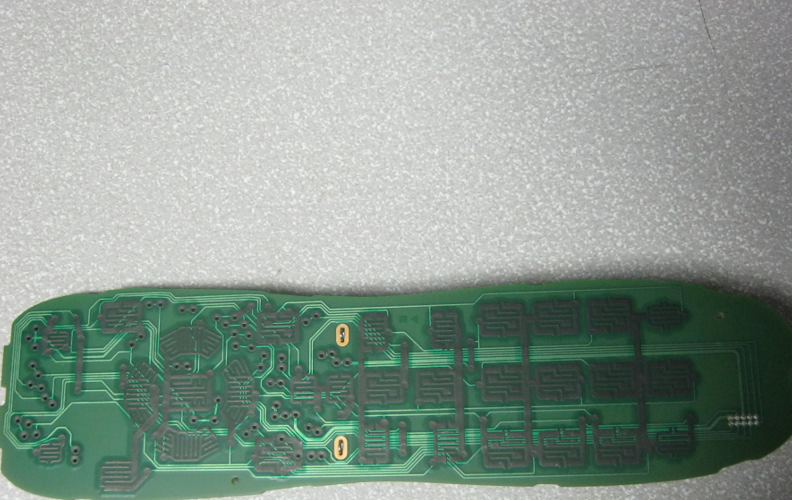

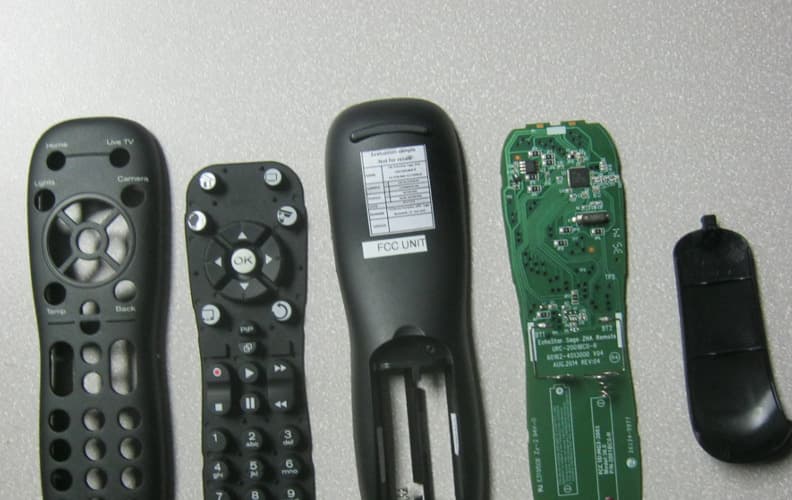

MG3-2001AEchoStar Sage ZHA Remote 2014

REMOTE USER GUIDE Safety Instructions You must keep safety in mind while using this device. Keep these and any other instructions for future reference. Observe Warnings: Carefully follow all warnings on the device and in the operating instructions. Heat: Do NOT place the device near heat sources such as radiators, stoves, heat registers, or other appliances that produce heat. Care and Use Cleaning: Do NOT use liquid, abrasive, solvent, or aerosol cleaners. Use a damp cloth for cleaning. When Not in Use: Remove the batteries if this device is to be left unattended or unused for a long period of time. Refer servicing to qualified personnel when a solid object or liquid has fallen onto or into the device. Do NOT attempt to service this device. Refer all servicing to qualified personnel. Opening covers other than the battery cover will void the warranty. Publishing Information Copyright © 2015. EchoStar Technologies L.L.C., Englewood, Colorado 80112. All rights reserved. The information in this User Guide may change without notice. Revisions may be issued to tell you about such changes. Send comments or questions about this User Guide to [email protected] or Technical Publications, EchoStar Technologies L.L.C, 90 Inverness Circle East, Englewood, Colorado 80112. Document Number: 204884 Printed in All product names, trade names, or corporate names mentioned in this User Guide are acknowledged to be the proprietary property of the registered owners. 1 Slide the remote battery cover off. Insert two (2) AA batteries, making sure to match the plus (+) ends with the plus markings on the battery case (opposite each other). Replace the remote battery cover. INSERT THE BATTERIES 1 2 3 2 PAIRING AND UNPAIRING THE REMOTE To Pair the Remote For the remote to work with the SAGE receiver, it must be paired. Use the following procedure to pair the remote. Press the RESET button on SAGE’s back panel. On SAGE’s remote, press the CAMERA and LIGHTS buttons simultaneously. SAGE confirms pairing is successful. 2 1 To Unpair the Remote To unpair a remote from the SAGE receiver, press and hold the THERMOSTAT and BACK buttons simultaneously for 13 seconds. SAGE confirms unpairing is successful. Sec. 3 SAGE REMOTE Your SAGE remote provides you the following features to control and manage your home automation and security system. Home Access receiver features and settings Live TV Exits out of any menu or the guide and returns to viewing live TV Camera Displays the Camera menu/ settings Thermostat Displays the temperature settings Lights Displays the Lights menu and settings PiP Watch a program and security video(s) simultaneously Back Reverses the program or video Play Plays a live or recorded program Pause Pauses a live or recorded program Skip Forward Skips ahead in a program or video Record Records a program Number Pad Enter a channel number or navigate through menus and program guide Settings Displays the Settings menu Rules Displays the Rules menu Arrow Buttons/ OK Channel up/ down, navigate through menus, and select a desired option Stop Stops a program or video SWAP Changes which video is displayed in which window Skip Back Skips back in a program or video 4 AVOIDING RF INTERFERENCE Because your remote control uses 2.4 GHz ISM band radio frequencies (RF), you might experience interference from other devices transmitting nearby. The instructions in this section describe how to avoid such conflicts. Adjusting the Antenna SAGE communicates with its remote control(s) through an antenna that is located within SAGE. Move the SAGE receiver to a different location. Place it on as high a surface as possible, above all other equipment if in an entertainment center. Move any nearby antenna or radio equipment away from the SAGE receiver. Do not place an over-the-air antenna, WiFi, Bluetooth®, or ZigBee® devices on or near the SAGE receiver. 2 1 5 TROUBLESHOOTING When I press a button on the remote control, the equipment does not do what I expect. What to do: Point the remote control directly at the SAGE receiver, with no objects blocking the signal path. The remote control uses IR signals to control the devices. IR signals travel less than 40 feet and cannot go through walls or other solid objects. If the batteries are missing or dead, replace them with new AA-size batteries. My remote control does not work well when controlling the SAGE receiver. What to do: Move your receiver to different locations. For best results, place the receiver as high as possible, above all other equipment in your entertainment center. My remote control seems to have stopped working. What to do: Press one or more buttons on the remote to wake the remote control. The remote control may have gone to sleep to reduce battery drain. If your remote is still unresponsive, take out the batteries and press any button for three seconds, then reinsert the batteries. Use this information if you have a problem using the remote. To solve a particular problem do the following: • Find the information that relates to the problem you are experiencing. Try the suggested solution for that problem. • Make sure your remote control has fresh batteries. If you see the Remote Battery Low warning on your TV screen, it is time to change the batteries. Follow the instructions on page 1. • Make sure you have a direct line of sight between the remote and the receiver. • Visit www.SAGEbyHughes.com. 6 TROUBLESHOOTING, CONTINUED My SAGE receiver does things even though I have not pressed any remote control buttons. What to do: Check the System Info screen to view a list of remotes paired to your SAGE receiver. Unpair the unwanted remote controls from this screen (see Pairing and Unpairing the Remote on page 2). See Avoiding RF Interference on page 4 for more information. My remote control is not working. What to do: Change the batteries as described on page 1. My SAGE remote control does not work well from far away. What to do: Move the SAGE receiver to different locations…

Text truncated - open the document above for the full version.

Universal Electronics, Inc. , 201 East Sandpointe Ave, 8 th Floor, Santa Ana, CA 92707, Tel: 714 918-9500 February 19, 2015 Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Gentlemen: This is a letter of authorization to accept that any personnel of Compatible Electronics, Inc. as an Agent for Universal Electronics, 201 East Sandpointe Ave, 8 th Floor, Santa Ana CA 92707, for a period of one year, to sign applications before the certification body on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the certification body in connection with certification of the following Universal Electronics products: Name of Product: Product name: EchoStar Sage ZHA Remote 2014 Model name: URC-2001BC0-R EchoStar model number: 36.0 EchoStar PN: 205227 FCC ID: MG3-2001A Under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part 15 of the FCC Rules and Regulations. Please also accept this letter as an attestation that neither Universal Electronics nor any of its officers, directors, or persons holding 5% or more of the outstanding stock or shares, voting or non- voting, have been denied federal benefits under section 5301 of the Anti-Drug Abuse act of 1988, 21 U.S.C. 853(a). In addition, Universal Electronics will notify the Federal Communications Commission if, at any time, the situation changes causing Universal Electronics to be denied federal benefits. If you have any further questions or need additional information, please feel free to give me a call at 714 918-9500 Ext 9701 Sincerely, Jesse Mendez Staff Engineer Electrical

Universal Electronics, Inc. , 201 East Sandpointe Ave, 8 th Floor, Santa Ana, CA 92707, Tel: 714 918-9500 February, 19 2015 Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Subject: TCB application submittal Gentlemen: We, Universal Electronics, would like to declare that the application being submitted for the device with FCC ID: MG3-2001A has not been submitted to another TCB or FCC for certification. If you have any further questions or need additional information, please feel free to give me a call at 714 918-9500 Ext 9701 Sincerely, Jesse Mendez Staff Engineer Electrical

Universal Electronics, Inc. , 201 East Sandpointe Ave, 8 th Floor, Santa Ana, CA 92707, Tel: 714 918-9500 List of Modifications February 19, 2015 Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Gentlemen: FCC ID: MG3-2001A List of modifications: EchoStar Sage ZHA Remote 2014, URC-2001BC0-R No modifications were found to be necessary for compliance. If you have any questions or need additional information, please contact the undersigned at (714) 918-9500 ext 9701 Regards, Jesse Mendez Staff Engineer Electrical

Universal Electronics, Inc. 201 East Sandpointe Ave, 8 th Floor, Santa Ana, CA 92707 Tel: 714 918-9500 February 19, 2015 Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Subject: Request for withholding from public disclosure the schematic diagrams, block diagrams, and operational description pursuant to an application for certification for the following universal remote control: Product name: EchoStar Sage ZHA Remote 2014 Model number: URC-2001BC0-R EchoStar Model number: 36.0 EchoStar PN: 205227 FCC ID: MG3-2001A Gentlemen: We, Universal Electronics, Inc., would like to request that all schematics, block diagrams, and operational descriptions submitted with our application for certification be withheld from public disclosure per Section 0.459 of the FCC rules. This request is made under the provisions of Section 0.457 (d) of the Commissions rules, and Section 552 (b)(4) of the Freedom of Information Act. These sections authorize the withholding from public inspection, those materials which would be privileged as matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. If you have any further questions or need additional information, please contact the undersigned at (714) 918-9500 ext 9701 Regards, Jesse Mendez, Staff Engineer Electrical

SAR Exclusion Justification This device FCC ID:is excluded from SAR testing by the following justification The maximum power that the transmitter is capable of is2.00mW Using the following formula from section 4.3.1 of KDB 447498at test separation distances ≤ 50 mm [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] Duty Cycle 100.00% Value1-g (mW)10-g (mW) 0.63(355)-212 "Value" is3, the SAR test exclusion threshold 1-g power limit10-g power limit 95238 “source-based” time-averaging based on an inherent property or duty-cycle of a device is allowed. An example of this is the determination of exposure from a device that uses digital technology such as a time-division multiple-access (TDMA) scheme for transmission < 50mm power limits for above caclulation using specified frequency MG3-2001A Max Peak Power (dBm)Min Separation distance (mm)Frequency (Ghz) When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 2.4853 SAREXJUST-B-0-43REV A01/21/2014

Report Number: B50213D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report EchoStar Sage ZHA Remote 2014 Model: URC-2001BC0-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 16 FCC PART 15, SUBPART B and C TEST REPORT for ECHOSTAR SAGE ZHA REMOTE 2014 MODEL: URC-2001BC0-R Prepared for UNIVERSAL ELECTRONICS, INC. 201 EAST SANDPOINTE AVE., 8TH FLOOR SANTA ANA, CA 92707 Prepared by:_____________________ KENNETH LEE Approved by:____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: FEBURARY 18, 2015 REPORT APPENDICES TOTAL BODY A B C D E PAGES 16 2 2 2 13 37 72 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B50213D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report EchoStar Sage ZHA Remote 2014 Model: URC-2001BC0-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 16 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. DESCRIPTION OF TEST CONFIGURATION 9 4.1 Description of Test Configuration - Emissions 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 6. TEST SITE DESCRIPTION 11 6.1 Test Facility Description 11 6.2 EUT Mounting, Bonding and Grounding 11 7. TEST PROCEDURES 12 7.1 RF Emissions 12 7.1.1 Radiated Emissions (Spurious and Harmonics) Test – Lab B 12 7.1.2 Radiated Emissions (Spurious and Harmonics) Test – Lab D 14 7.1.3 RF Emissions Test Results 15 8. CONCLUSIONS 16 Report Number: B50213D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report EchoStar Sage ZHA Remote 2014 Model: URC-2001BC0-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 16 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams and Charts  Test Setup Diagrams  Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Radiated Site 2 Layout of the Semi-Anechoic Test Chamber Report Number: B50213D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report EchoStar Sage ZHA Remote 2014 Model: URC-2001BC0-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 16 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product certification, approval or endorsement by NVLAP, NIST or any agency of the federal government. Device Tested: EchoStar Sage ZHA Remote 2014 Model: URC-2001BC0-R EchoStar model number: 36.0 EchoStar PN: 205227 S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Customer: Universal Electronics, Inc. 201 East Sandpointe Ave., 8 TH Floor Santa Ana California, 92707 Test Dates: January 30, 2015 and February 13, 2015 Test Specifications : Emissions requirements CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.249 Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. Report Number: B50213D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report EchoStar Sage ZHA Remote 2014 Model: URC-2001BC0-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 16 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Spurious Radiated RF Emissions, 10 kHz – 25,000 MHz (Transmitter and Digital portion) Complies with the Class B limits of CFR Title 47, Part 15 Subpart B; and the limits of CFR Title 47, Part 15, Subpart C, section 15.205, 15.209 and 15.249 2 Conducted RF Emissions, 150 kHz to 30 MHz This test was not performed because the EUT operates on battery power and does not connect to the AC mains. Report Number: B50213D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report EchoStar Sage ZHA Remote 2014 Model: URC-2001BC0-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949…

Text truncated - open the document above for the full version.

Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 3 MHz RF Att 10 dB A IN1 Unit dB  VSWT 300 ms Center 2.475 GHz30 ms/ P0 TDS 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 11 Delta 1 [T1] -0.00 dB 100.400802 ms D1 74 dB  V D2 54 dB  V Date: 24.SEP.2014 07:45:46 Number of Pulses in Advertising Mode – Worst Case 100 ms is 5 Pulses Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 3 MHz RF Att 10 dB A IN1 Unit dB  VSWT 20 ms Center 2.475 GHz2 ms/ P0 TDS 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] 0.83 dB 1.082164 ms D1 74 dB  V D2 54 dB  V Date: 24.SEP.2014 07:45:01 Time of One Pulse – Advertising Mode – 1.082164 ms Duty Cycle = (1.082164 ms * 5) / 100 ms = 5.41082% Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 3 MHz RF Att 10 dB A IN1 Unit dB  V P0 TDS SWT 1 s Center 2.47 GHz100 ms/ 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] 0.29 dB 68.136273 ms D1 74 dB  V D2 54 dB  V Date: 24.SEP.2014 07:56:45 Pulse Train in Pairing Mode Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 3 MHz RF Att 10 dB A IN1 Unit dB  V P0 TDS SWT 1 s Center 2.47 GHz100 ms/ 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] 1.21 dB 100.200401 ms D1 74 dB  V D2 54 dB  V Date: 24.SEP.2014 07:57:10 Pulse train only shows up once in a 100 ms period – Pairing Mode Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 3 MHz RF Att 10 dB A IN1 Unit dB  VSWT 100 ms Center 2.47 GHz10 ms/ P0 TDS 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] 0.49 dB 68.136273 ms D1 74 dB  V D2 54 dB  V Date: 24.SEP.2014 08:03:19 Pulse Train on a 100 ms Scale – Pairing Mode Pulse Train Shown Using the Oscilloscope – Pairing Mode Maximum Voltage of High Pulses = 422 mV – Pairing Mode Maximum Voltage of Low Pulses = 296 mV – Pairing Mode Pulse #1 and 5 = 740 us – Pairing Mode Pulse #2 and 6 = 510 us – Pairing Mode Pulse #3 and 7 = 1790 us – Pairing Mode Pulse #4 and 8 = 500 us – Pairing Mode Pulse #9 = 1780 us – Pairing Mode Pulse #10 = 490 us – Pairing Mode Pulse #11 = 770 us – Pairing Mode Pulse #12 = 500 us – Pairing Mode Pulse #13 = 1970 us – Pairing Mode Pulse #14 = 480 us – Pairing Mode Pulse #15 = 700 us – Pairing Mode Pulse #16 = 500 us – Pairing Mode Pulse #17 = 1820 us – Pairing Mode Pulse #18 = 580 us – Pairing Mode Pulse #19 = 1820 us – Pairing Mode Pulse #20 = 500 us – Pairing Mode DUTY CYCLE INFORMATION – PAIRING MODE UNIVERSAL ELECTRONICS, INC. ECHOSTAR SAGE ZHA REMOTE 2014 MODEL: URC-2001BC0-R PULSE NUMBER Time (uS) 1 and 5 740 2 and 6 510 3 and 7 1790 4 and 8 500 9 1780 10 490 11 770 12 500 13 1970 14 480 15 700 16 500 17 1820 18 580 19 1820 20 500 Total On Time = 18,990 uS Total Time of Pulse with Blanking Interval = 100,000 uS Total Duty Cycle = 18.99 % Peak to Average Ratio = 14.42 dB
