MG3-3040Intel Copper Trail Remote 2012

Intel Copper Trail Remote 2012 Regulatory Information To be included in the documentation shipped with the system. IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Make sure the TV receiver of monitor is mounted to the wall, furniture or stand as required by the manufacturer to maintain stability and prevent tip over if accessible to children, before installing this unit. Large TV can cause severe injury or death if pulled over and fall upon small children. Carefully route cords away from areas accessible by young children to reduce the chance of the cords being pulled and causing the unit from falling off the TV or resulting in the TV and unit being pulled off the mounting surface. Large TV can cause severe injury or death if pulled over and fall upon small children. LITHIUM COIN CELL SAFETY NOTICE: KEEP COIN CELL BATTERIES OUT OF REACH OF CHILDREN, coin cell batteries can be accidentally ingested. If ingested, these batteries may leak harmful contents causing chemical burns, perforation of soft tissue, and in severe cases may cause death. Lithium coin batteries must be removed immediately if swallowed. Seek medical attention immediately. If you or your doctor suspects that a battery has been ingested‐for assistance in the US call the NATIONAL BATTERY INGESTION HOTLINE any time at (202) 625‐3333: in Canada call 416‐813‐5900. Protect the power cords from being walked on Or crushed or pinched. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the instructions provided. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. If the provided power supply plug pins do not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Do not plug the power supply into an extension cord as it is intended to be connected to the wall outlet. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, for example the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. CAUTION concerning the Power Cord : It is recommend that appliances be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain. Do not connect too many appliances to the same AC power outlet as this could result in fire or electric shock. Do not overload wall outlets, or the power supply receptacle. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have them replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. Keep the product away from direct sunlight. Cleaning When cleaning, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not spray water or other liquids directly on the unit or TV as electric shock may occur. Do not clean with chemicals such as alcohol, thinners or benzene. Ventilation Install the unit where there is proper ventilation. Do not install in a confined space such as a bookcase. Do not cover the product with cloth or other materials (e.g.) plastic while plugged in. Do not install in excessively dusty places. If you smell smoke or other odors coming from the unit or hear strange sounds, unplug the power cord contact an authorized service center. FCC NOTICE Class B digital device This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐ Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. ‐ Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

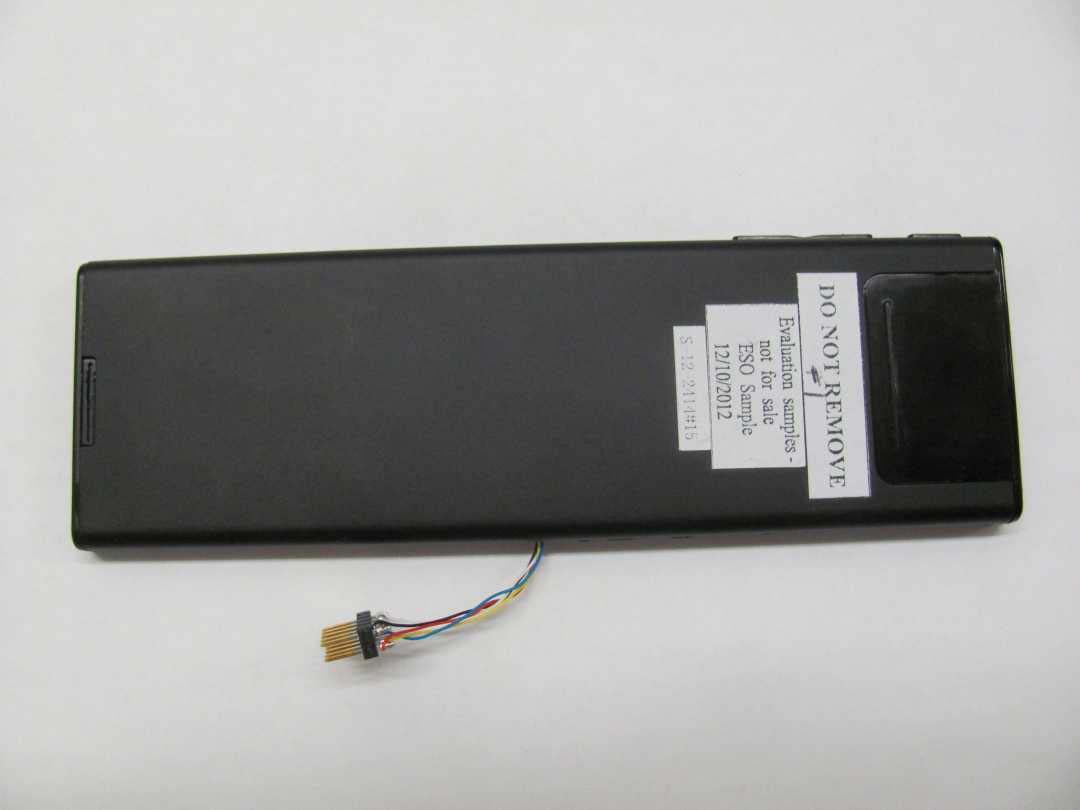

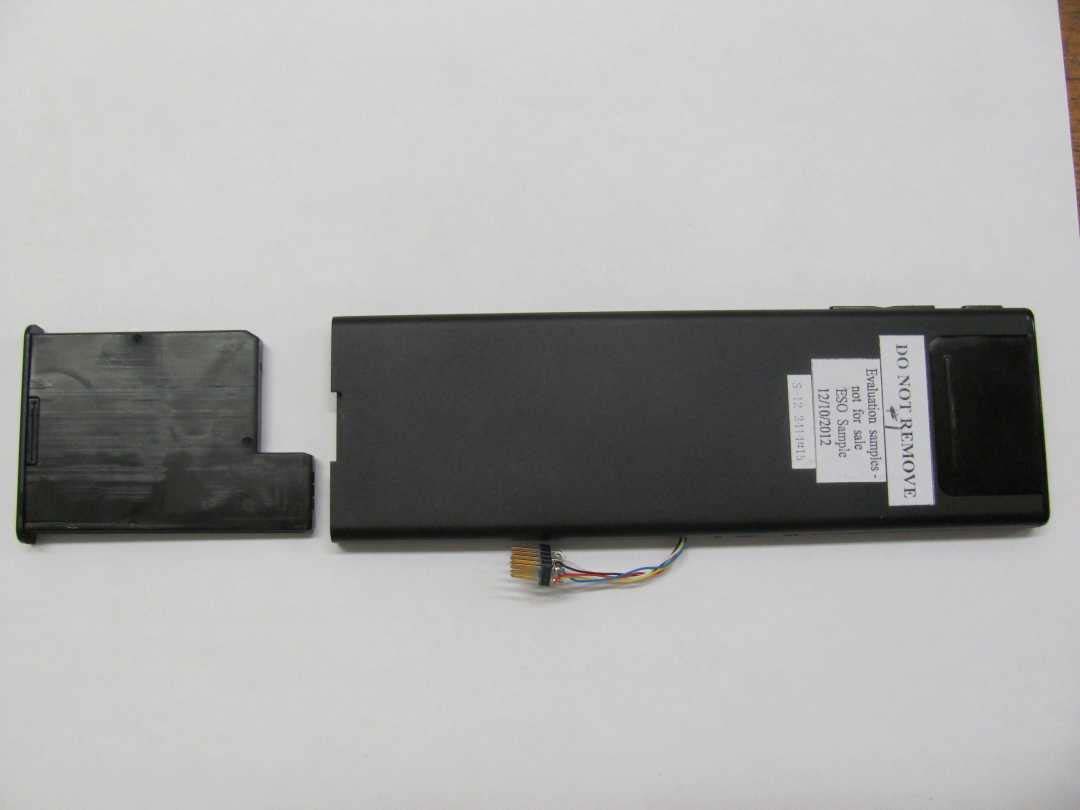

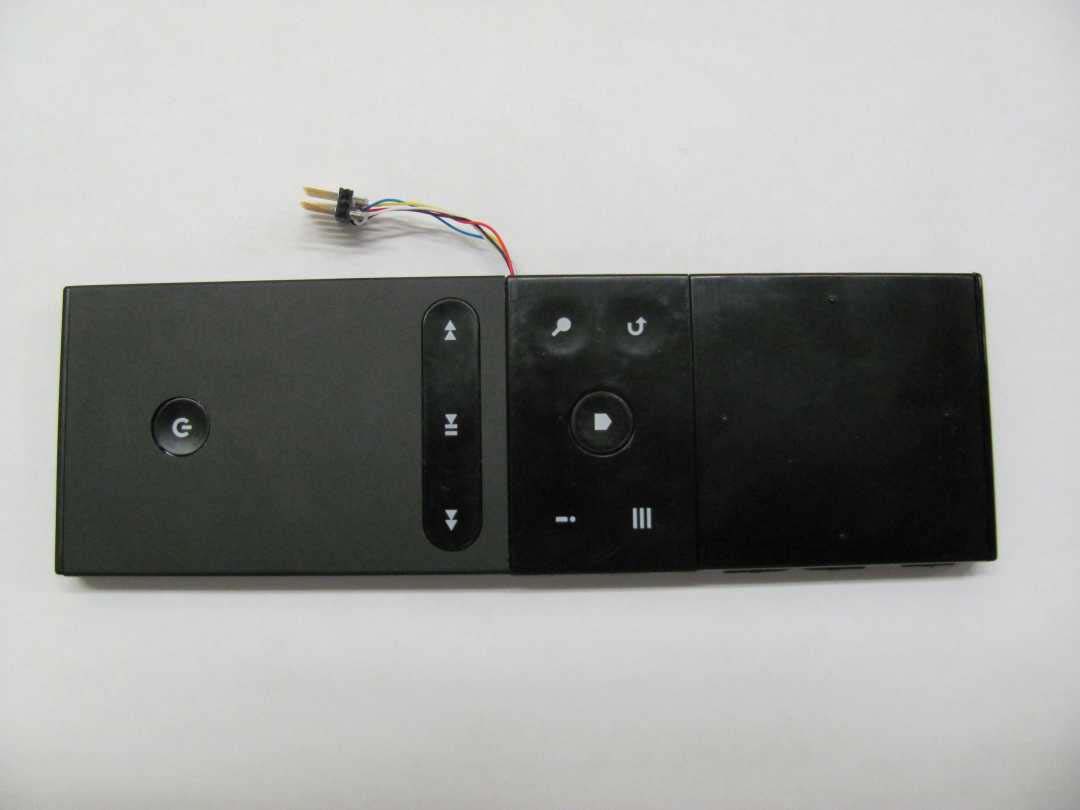

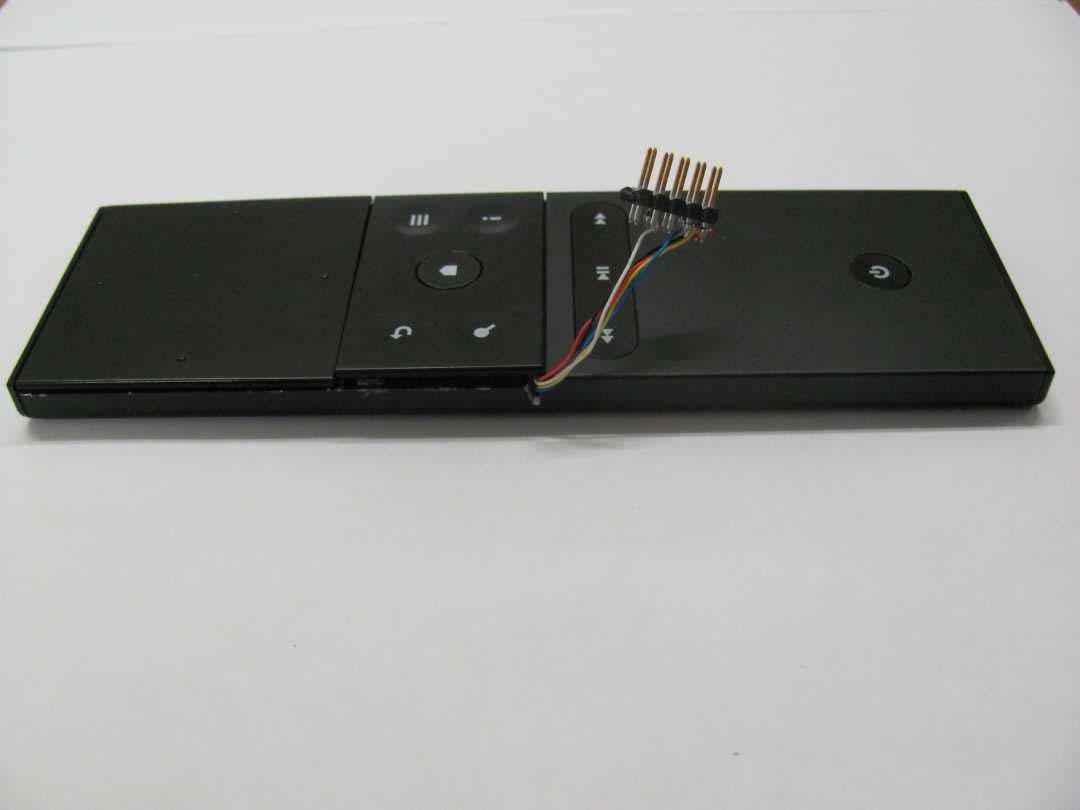

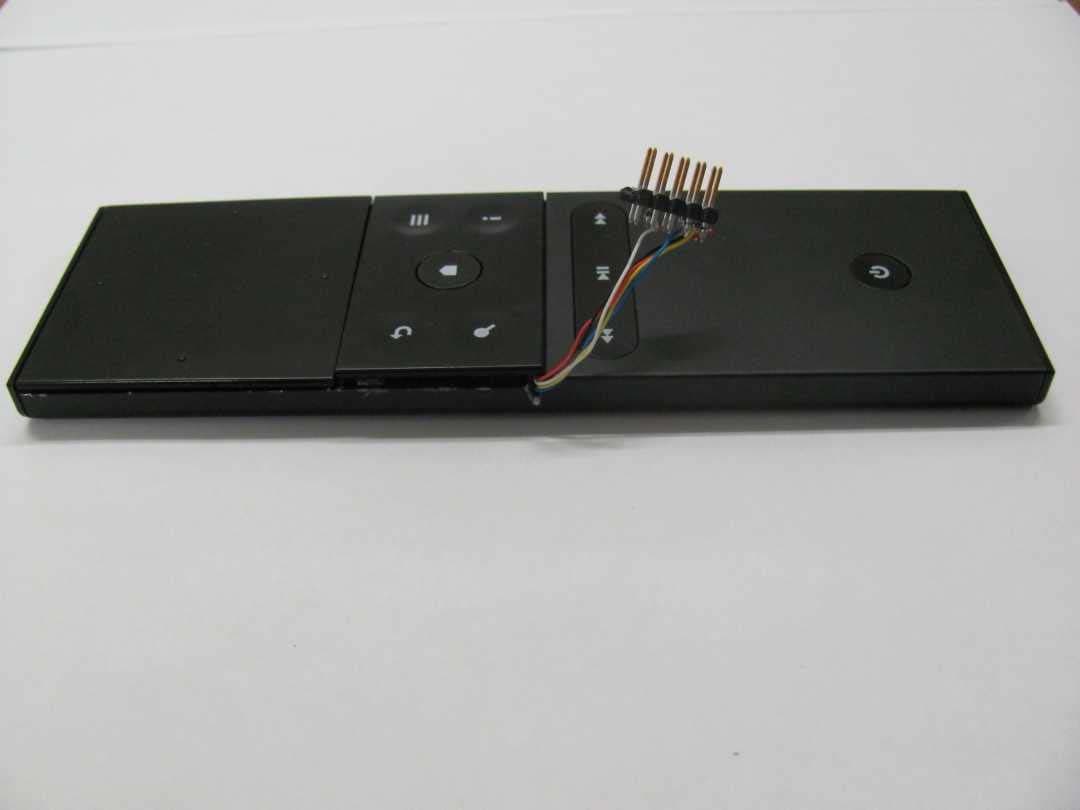

Top View with Battery Compartment Exposed Top View Bottom View Bottom View with Battery Compartment Exposed Right Side Top Left Side Bottom

Report Number: B21231D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report Intel Copper Trail Remote 2012 Model: URC-3040BC0-X-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 16 FCC PART 15 SUBPART B and C TEST REPORT for INTEL COPPER TRAIL REMOTE 2012 MODEL: URC-3040BC0-X-R Prepared for UNIVERSAL ELECTRONICS, INC. 201 EAST SANDPOINTE AVENUE, 8 TH FLOOR SANTA ANA, CALIFORNIA 92707 Prepared by:_____________________ ALEX BENITEZ Approved by:____________________ KYLE FUJIMOTO COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: JANUARY 16, 2013 REPORT APPENDICES TOTAL BODY A B C D E PAGES 16 2 2 2 13 31 66 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B21231D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report Intel Copper Trail Remote 2012 Model: URC-3040BC0-X-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 16 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration – Emissions 8 4.1.1 Cable Construction and Termination 8 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 9 5.1 EUT and Accessory List 9 5.2 Emissions Test Equipment 10 6. TEST SITE DESCRIPTION 11 6.1 Test Facility Description 11 6.2 EUT Mounting, Bonding and Grounding 11 6.3 Facility Environmental Characteristics 11 7. TEST PROCEDURES 12 7.1 RF Emissions 12 7.1.1 Conducted Emissions Test 12 7.1.2 Radiated Emissions (Spurious and Harmonics) Test 13 7.1.3 RF Emissions Test Results 15 8. CONCLUSIONS 16 Report Number: B21231D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report Intel Copper Trail Remote 2012 Model: URC-3040BC0-X-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 16 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagram, Charts, and Photos  Test Setup Diagram  Antenna and Amplifier Factors  Radiated Emissions Photos E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Radiated TestSite Report Number: B21231D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report Intel Copper Trail Remote 2012 Model: URC-3040BC0-X-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 16 GENERAL REPORT SUMMARY Compatible Electronics Inc. generates this electromagnetic emission test report, which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Intel Copper Trail Remote 2012 Model: URC-3040BC0-X-R S/N: N/A Product Description: See Expository Statement Modifications: The EUT was not modified in order to meet the specifications. Customer: Universal Electronics, Inc. 201 East Sandpointe Avenue, 8 th Floor Santa Ana, California 92707 Manufacturer: Gemstar Technology Company, Ltd. Gemstar Industrial Park, Shi Guang Road Number 45 Zhongcun Town, Panyu Guangdong Province, China 511495 Test Date(s): December 28 and 31, 2012 January 3, 2012 Test Specifications: Emissions requirements CFR Title 47, Part 15, Subpart B and Subpart C, Sections 15.205, 15.209, and 15.249 Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions 150 kHz to 30 MHz This test was not performed because the EUT operates on battery power. 2 Radiated RF Emissions 10 kHz to 25000 MHz (Transmitter and Digital Portion) Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.249. Report Number: B21231D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report Intel Copper Trail Remote 2012 Model: URC-3040BC0-X-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 16 1. PURPOSE This document is a qualification test report based on the emissions tests …

Text truncated - open the document above for the full version.

Ref Lvl 92 dB æ V Ref Lvl 92 dB æ VSWT 5 ms RF Att 0 dB A UnitdB æ V P0 TDS RBW 1 MHz VBW 3 MHz Center 2.48 GHz500 æ s/ IN1 2VIEW D2 54 dB æ V 2MA 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T2] 0.49 dB 380.761523 æ s 1 [T2] 26.97 dB æ V 4.609194 ms 1 [T2] 0.49 dB 380.761523 æ s D1 74 dB æ V D2 54 dB æ V Date: 10.JAN.2013 12:48:45 Time of one pulse is 380.761523 uS Ref Lvl 92 dB æ V Ref Lvl 92 dB æ V RF Att 0 dB A UnitdB æ V RBW 1 MHz VBW 3 MHz IN1 1AP P0 TDS SWT 1 s Center 2.48 GHz100 ms/ 1AP1VIEW 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] -0.69 dB 112.224449 ms 1 [T1] 27.31 dB æ V 624.258493 ms 1 [T1] -0.69 dB 112.224449 ms D1 74 dB æ V D2 54 dB æ V Date: 10.JAN.2013 12:50:13 Only one pulse occurs within 100 mS time. Duty cycle = < 10%.
