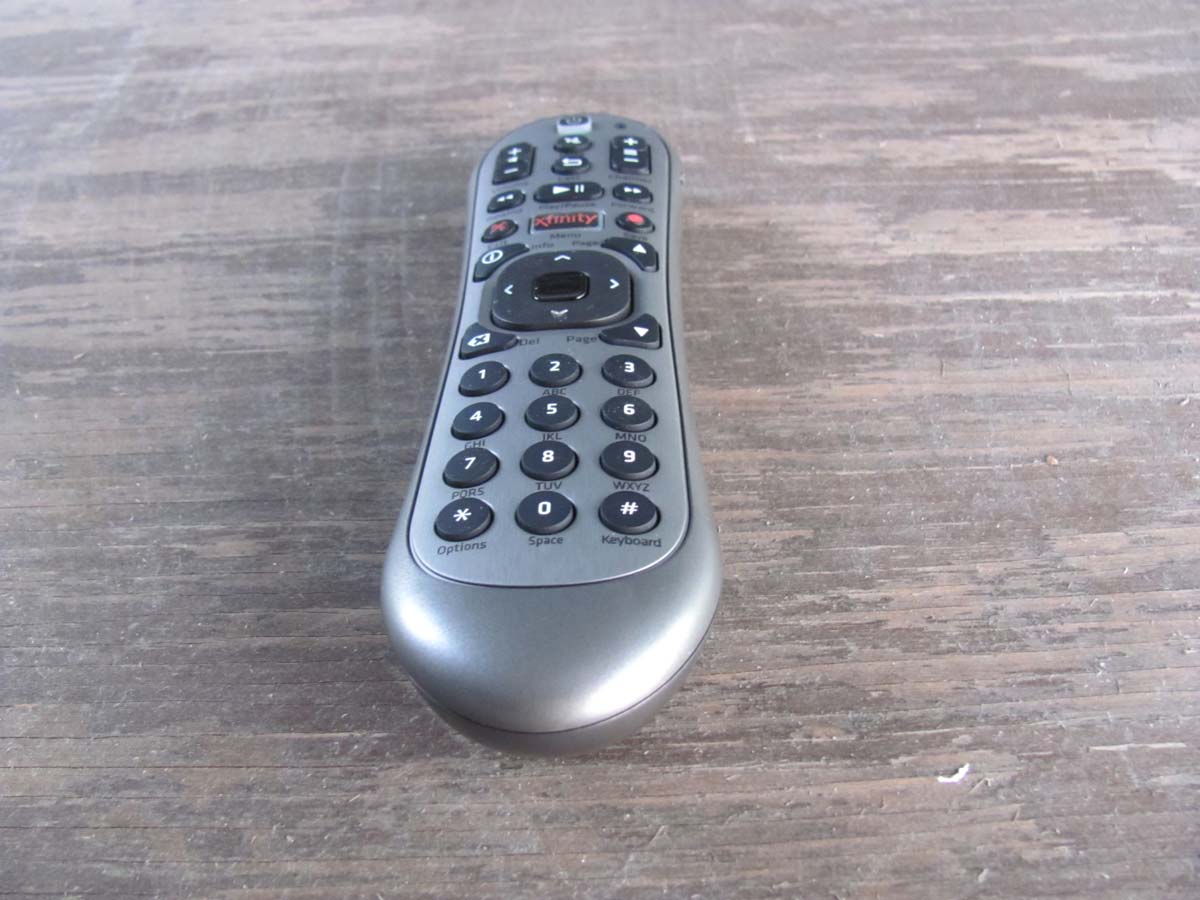

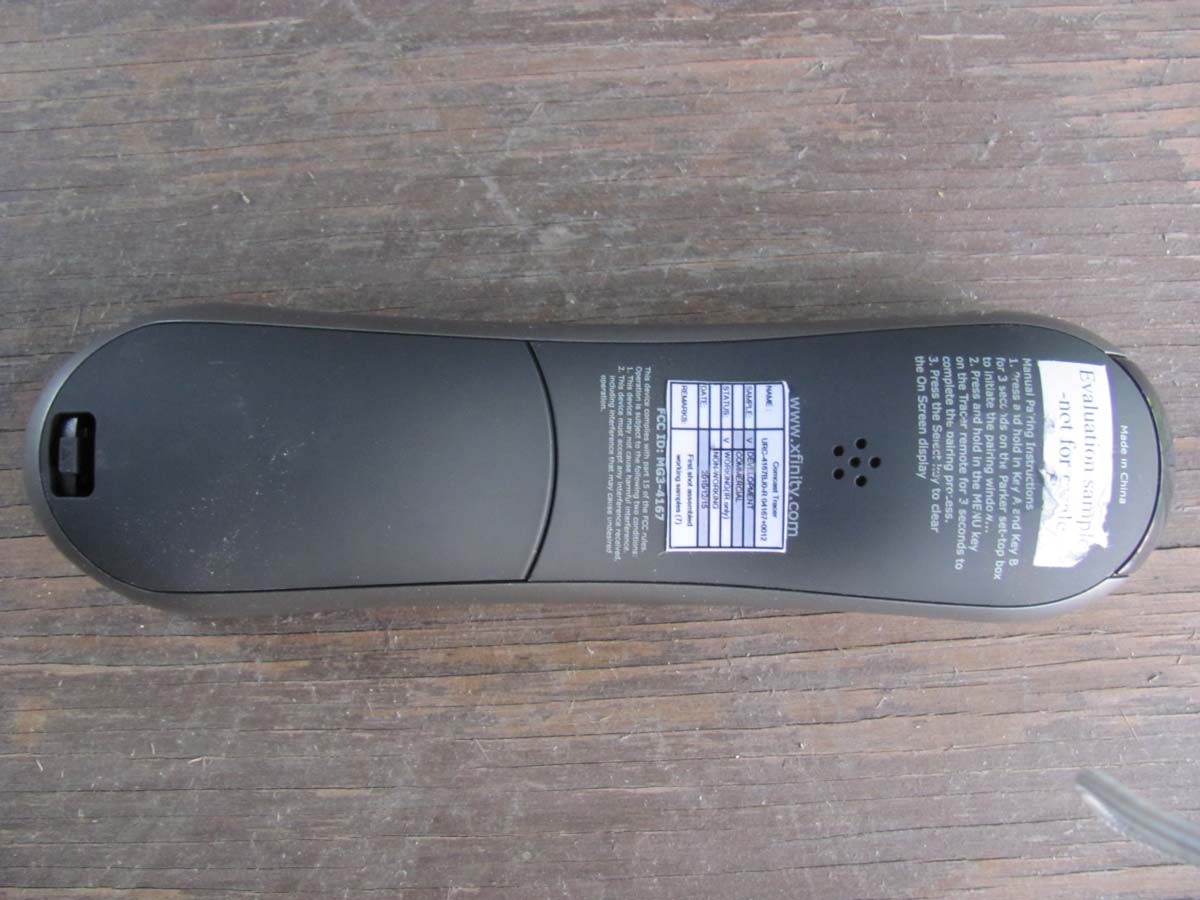

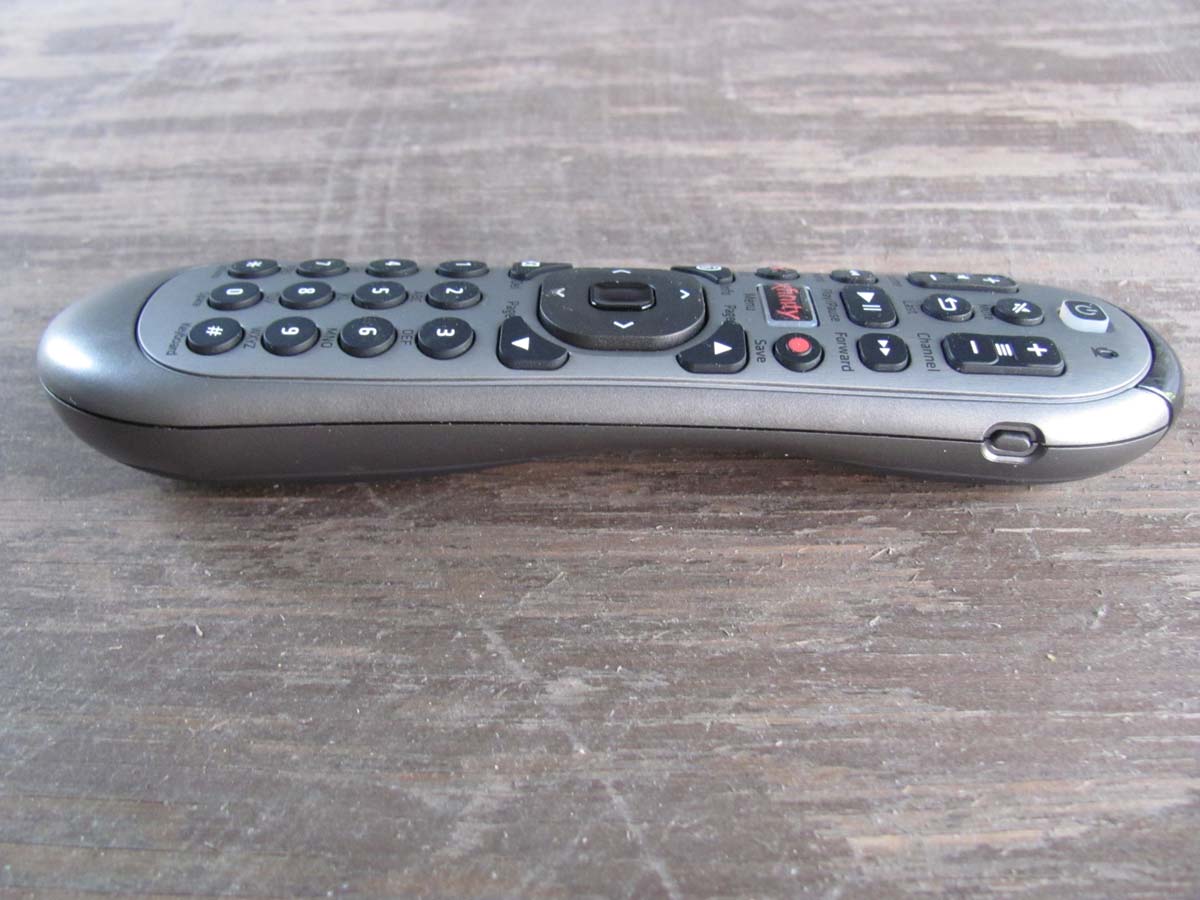

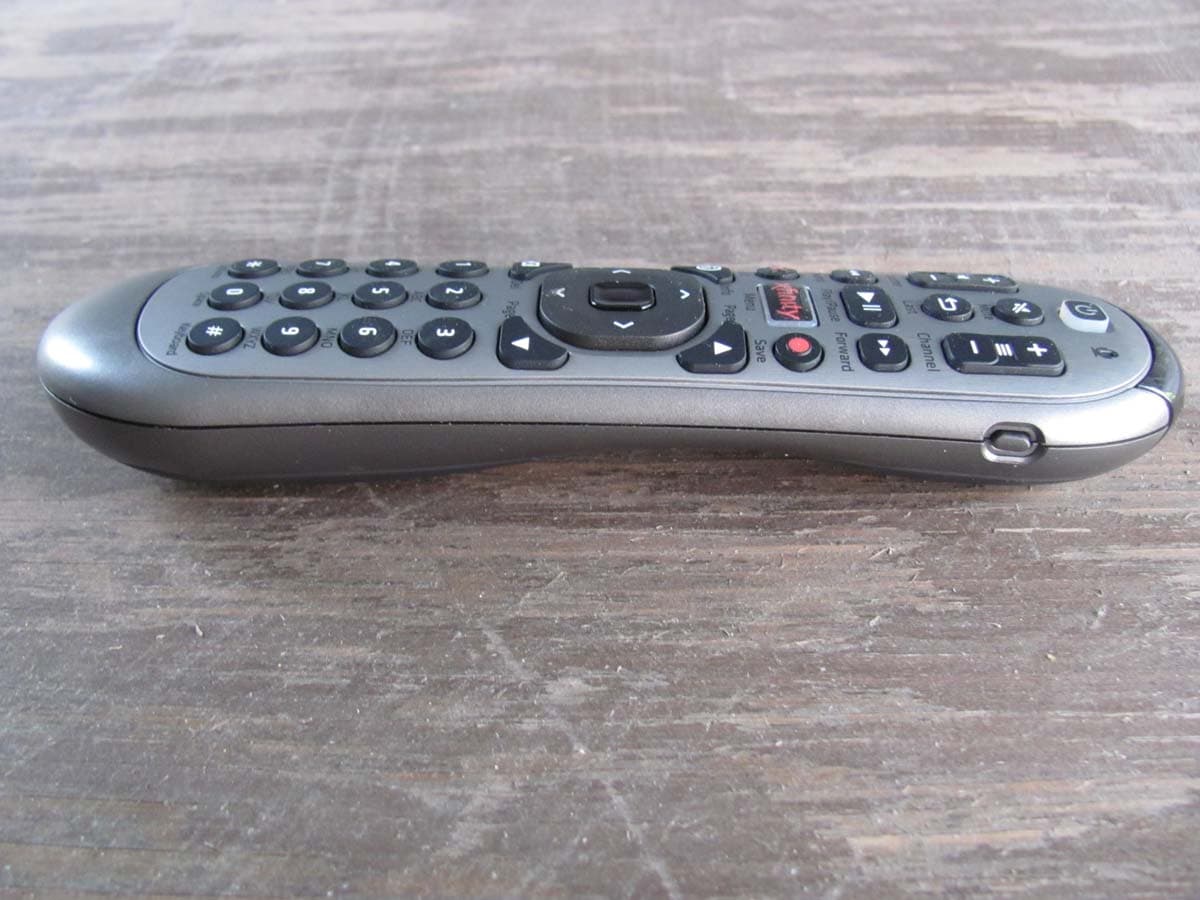

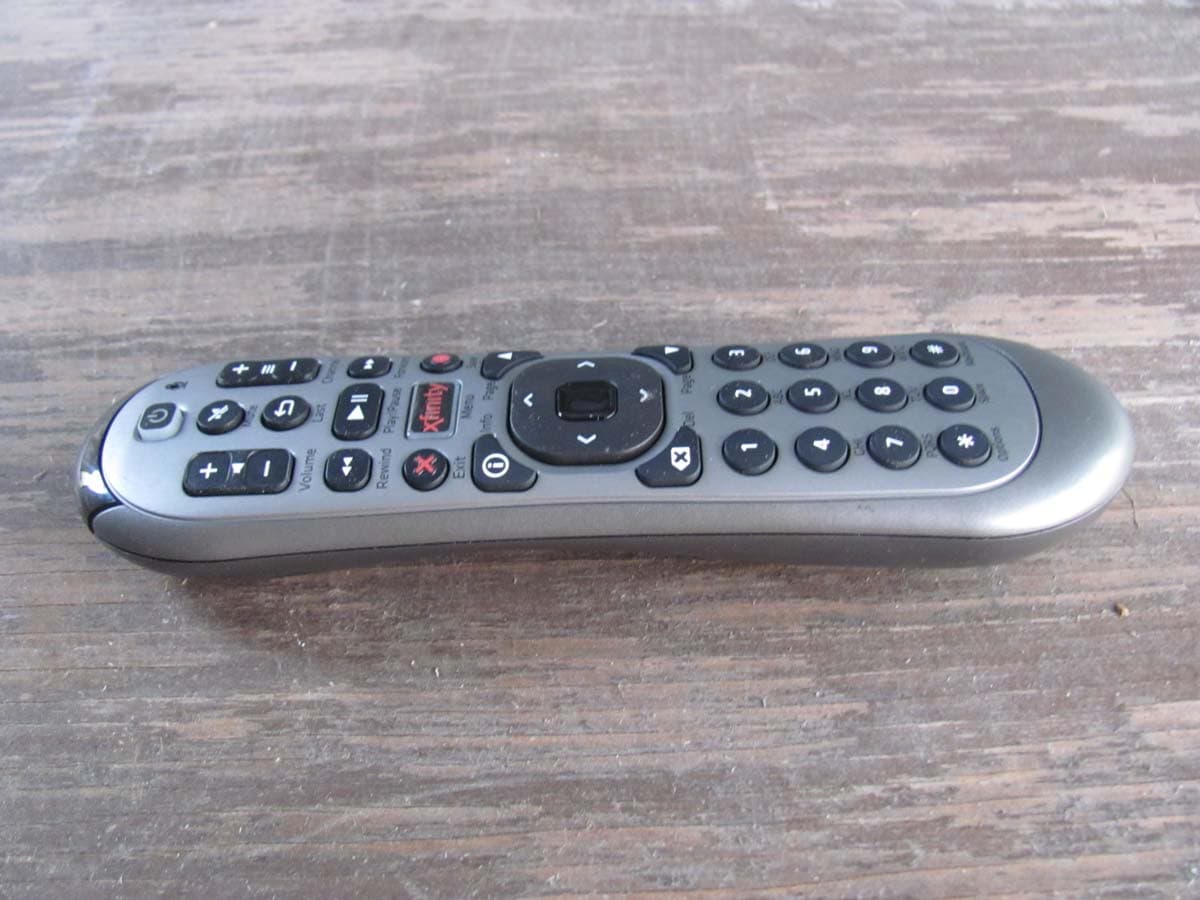

Overview The T01 universal remote control works exclusively with the set-top box supplied by your cable operator. This remote control operates all of the features and functions of the set-top box and is pro- grammable to operate the volume and Power of your Tv or audio device. insTalling BaTTeries 1. Pull back the remote control’s battery cover and remove it. 2. insert the two (2) supplied aa bat- teries according to the + and - marks in the battery case. 3. Push the battery cover back into place. 4. Test the unit by pressing the Power key. 5. if the batteries are inserted correctly, the green light blinks. nOTe: when batteries need replacement, the remote control stops operating. replace the old batteries with new aa batteries. T01 Universal remote Control Pairing T01 reMOTe To fully enjoy all of the features and functions of the T01 remote and set-top box you must put the remote control in the rF mode by using the following pairing process. 1. Press both oval buttons on the front of the set-top box for 3 seconds. 2. Point the T01 remote at the set-top box and press the MenU key on the remote for 3 seconds to complete the pairing process. 3. Once the pairing process is completed, press the OK/seleCT (OFn) key on the remote to clear the on-screen display. PrOgraMMing Tv COnTrOl The T01 remote also contains a universal Tv library and can be programmed to operate the Power and volume control of your Tv. 1. Turn on the Tv you want to control. 2. Press and hold the Del key until the green light under the Power key blinks twice. 3. see setup codes for Tvs to find the brand name of the Tv you want to control. enter the first 5-digit code for your brand of Tv. if performed correctly, the green light under the Power key blinks twice. nOTe: if the green light emits one long blink, repeat steps 2 and 3, entering the same code. 4. aim the remote at the Tv and press the Power key. if the Tv turns off you have found the correct code. if the Tv does not respond, repeat steps 2-4 trying each code listed for your brand of Tv. if none of the codes work, see "searCHing FOr a DeviCe CODe". Tv Code: PrOgraMMing aUDiO COnTrOl The T01 remote also contains a universal audio library and can be programmed to operate the power and volume controls of your audio device such as an amplifier. 1. Turn on the audio device you want to con- trol. 2. Press and hold the Del key until the green light under the Power key blinks twice. 3. see setup Codes for audio Devices, find the brand name of the audio device you want to control. enter the first 5-digit code for your brand of audio device. if performed correctly, the green light under the Power key blinks twice. 4. aim the remote at the audio device and press the Power key. if the audio device turns off you have found the correct code. if the audio device does not respond repeat steps 2-4, trying each code listed for your brand of audio device. if none of the codes work, see "searCHing FOr a DeviCe CODe". audio Code: searCHing FOr a DeviCe CODe if the Brand of your Tv or audio device is not listed in the code list, try searching for your code. 1. Turn on your Tv or audio device. 2. Press and hold the Del key until the green light under the Power key blinks twice. 3. Press 9 - 9 - 1. The green light under the Power key will blink twice. 4. Press 1 to search for a Tv, or press 3 to search for an audio device. 5. while pointing the remote control at the device, press and release the Cursor Up key until the device turns off. (You may need to press Cursor Up numerous times). nOTe: in the search mode, the remote control sends ir codes from its library to the target device. 6. Press OK/seleCT (OFn) to lock in the code. CHeCKing THe CODes if you have set up the remote control using the “searCHing FOr a DeviCe CODe” procedure, you may need to find out which 5-digit code is operating your Tv or audio device. Perform the following steps after setting up your Tv or audio device to find out which 5-digit code operates your Tv or audio device. 1. Press and hold the Del key until the green light under the Power key blinks twice. 2. Press 9 - 9 - 0 - 1 to find the Tv code or 9 - 9 - 0 - 3 to find the audio code. The green light under the Power key blinks twice. 3. To view the code for the first digit, press 1 once. wait 3 seconds and count the number of times the green light blinks (e.g., 3 blinks =3) and write down the number in the left most Tv or audio code boxes (at end of this section). nOTe: if a code digit is “0”, the green light under the Power key will not blink. 4. repeat step 3 four more times for the remaining digits. Use 2 for the second digit, 3 for the third digit, 4 for the fourth digit and 5 for the fifth digit. Finish writ- ing down the code in the Tv or audio code boxes below. Tv Code: audio Code: aDDiTiOnal inFOrMaTiOn The T01 remote control does not have any user serviceable parts. Opening the case, except for the battery cover, may cause permanent dam- age to your remote control. no part of this publication may be reproduced, transmitted, transcribed, stored in any retrieval system, or translated to any language, in any form or by any means, electronic, mechanical, magnetic, optical, manual, or otherwise, with- out the prior written permission of Universal electronics, inc. all trademarks and service marks appearing herein are the properties of their respective owners. Copyright © 2011 Universal electronics inc. M4167_rev 1.2 2-1-11 seTUP CODes FOr T vs A-Mark 10003 Abex 10032 Accurian 11803 Action 10873 Admiral 10093, 10463, 10179 Advent 10761, 10783, 10815, 10817, 10842, 11933, Adventura 10046 Aiko 10092 Aiwa 10032, 10701, 11914 Akai 11675, 10060, 10702, 10030, 10765,10098, 10672, 11207, 11385, 11676, 11688, 11689, 11692, 11935 Albatron 10700, 10843 Ambassador 10177 America Action 10180 Anam 10180, 10004, 10009, 10008 Anam National 10161 AOC 10030, 10003, 00019, 10052, 10137, 10185, 11089, 11365, 11590, 12014, 12087 Anam National 10161 AOC 10030, 10003, 00019, 1005…

Text truncated - open the document above for the full version.

Report Number: B10309D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Comcast Tracer RF4CE Remote 2010 Model: URC-4167BJ0-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 17 FCC PART 15 SUBPART B and C TEST REPORT for COMCAST TRACER RF4CE REMOTE 2010 MODEL: URC-4167BJ0-R Prepared for UNIVERSAL ELECTRONICS, INC. 6101 GATEWAY DRIVE CYPRESS, CALIFORNIA 90630-4841 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: MARCH 17, 2011 REPORT APPENDICES TOTAL BODY A B C D E PAGES 17 2 2 2 13 45 81 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B10309D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Comcast Tracer RF4CE Remote 2010 Model: URC-4167BJ0-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 17 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration – EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 6.3 Facility Environmental Characteristics 12 7. TEST PROCEDURES 13 7.1 RF Emissions 13 7.1.1 Conducted Emissions Test 13 7.1.2 Radiated Emissions (Spurious and Harmonics) Test 14 7.1.3 RF Emissions Test Results 16 8. CONCLUSIONS 17 Report Number: B10309D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Comcast Tracer RF4CE Remote 2010 Model: URC-4167BJ0-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 17 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagram, Charts, and Photos • Test Setup Diagram • Antenna and Amplifier Factors • Radiated Emissions Photos E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Radiated Test Site Report Number: B10309D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Comcast Tracer RF4CE Remote 2010 Model: URC-4167BJ0-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 17 GENERAL REPORT SUMMARY Compatible Electronics Inc. generates this electromagnetic emission test report, which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Comcast Tracer RF4CE Remote 2010 Model: URC-4167BJ0-R S/N: N/A Product Description: See Expository Statement Modifications: The EUT was not modified in order to meet the specifications. Manufacturer: Jetta House 19 On Kui Street On Lok Tsuen, Fanling, Hong Kong Customer: Universal Electronics, Inc. 6101 Gateway Drive Cypress, California 90630-4841 Test Date(s): January 12 and March 9, 2011 Test Specifications: EMI requirements CFR Title 47, Part 15, Subpart B Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions 150 kHz to 30 MHz This test was not performed because the EUT operates on battery power only. 2 Radiated RF Emissions 10 kHz – 25000 MHz (Transmitter, Receive, and Digital Portion) Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.249. Highest reading in relation to spec limit: 53.05 dBuV @ 4950 MHz (*U = 5.24 dB) *U = Expanded Uncertainty with a coverage factor of k=2 Report Number: B10309D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Comcast Tracer RF4CE Remote 2010 Model: URC-4167BJ0-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 17 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Comcast Tracer RF4CE Remote 2010, Model: URC-4167BJ0-R. The EMI measurements were performed according to the…
