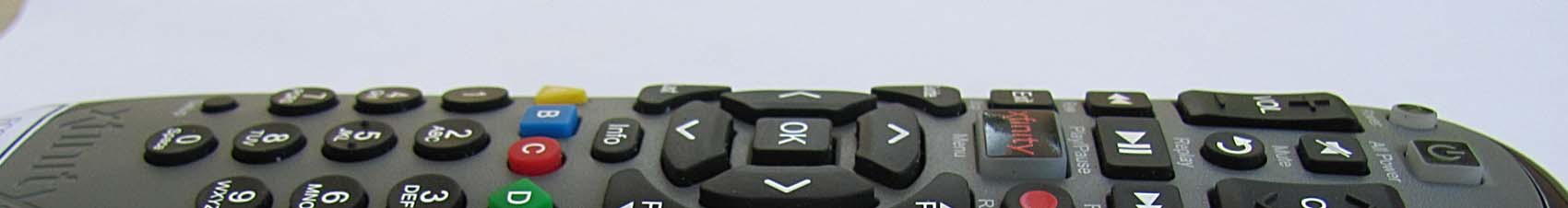

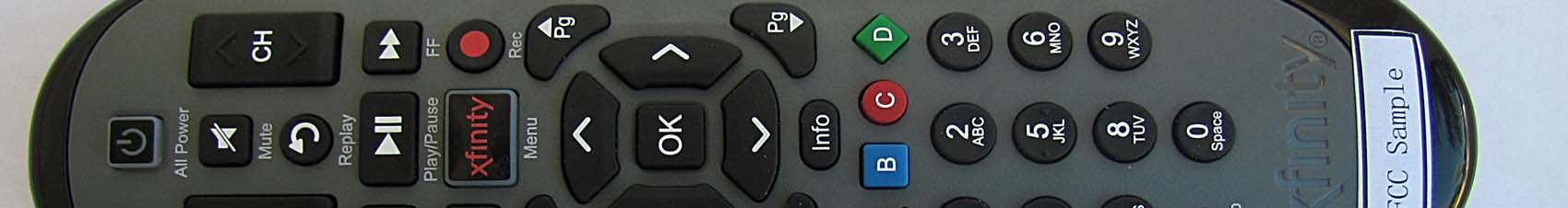

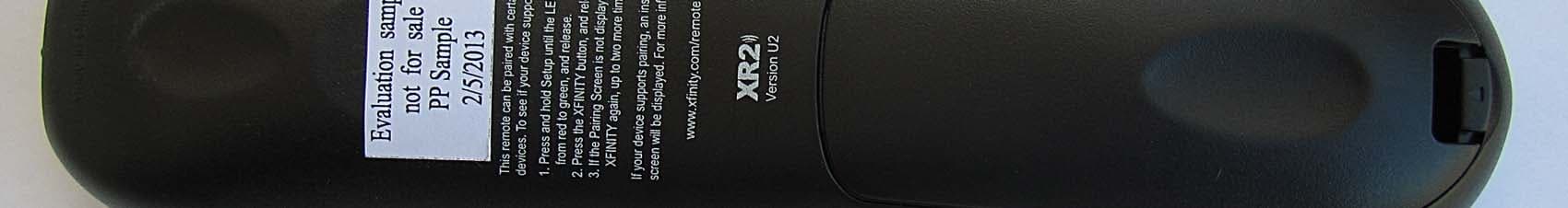

MG3-4268BC1Comcast XR2 RF4CE 2 Device 2013

Enjoy your XFINITY ® TV right away! Program your remote to get started. XFINITY XR2 Remote Control USER’S GUIDE Digital Transport Adapter Remote Control USER’S GUIDE xfinity.com/remotes Your remote control is already programmed to control your digital set-top box or DTA (Digital Transport Adapter). To control your TV functions (Power, VOL+, VOL – and Mute), follow the steps below: HERE’S HOW: 1. Install the batteries. 2. Find the manufacturer’s code for your TV (see other side). 3. Turn on your TV and digital set-top box or DTA (Digital Transport Adapter). 4. On your remote, press and hold the Setup button for three seconds until the All Power button changes from red to green. 5. Enter the first manufacturer’s code you found in Step 2. The All Power button will flash green twice. 6. Press the TV Power button on the remote control. If the TV turns off, you know the code has been accepted. Turn the TV back on and make sure that the VOL+/ – and Mute buttons also work. If so, you’re all set! 7. If not, repeat these steps using the next manufacturer’s code found in Step 2 (You may need to try several codes to find the one that works for your TV). If you still can’t find a code that works, see the “Can’t Find Your Code?” section. CAN’T FIND YOUR CODE? If you can’t program your remote using the codes on the back of this guide, follow the steps below to search for your code. 1. Turn on your TV. 2. On your remote, press and hold the Setup button for 3 seconds until the All Power button changes from red to green. 3. Enter 9-9-1. The All Power button will flash green, twice. 4. Press the CH button multiple times until the TV turns off. 5. After the TV turns off, press Setup. Helpful Tip: Additional remote control programming support, including code lookup tools and frequently asked questions, can be found at www.xfinity.com/remotes. Additional Feature: If you would like to place your digital set-top box or DTA out of line of site (for example, in an entertainment center or behind your TV), follow the instructions above to program the remote control for your TV, then refer to the “Installing your digital set-top box or DTA out of sight” instructions on the other side of this instruction sheet. Troubleshooting GENERAL TROUBLESHOOTING Q: Why does the All Power button flash red, but there is no response when I press a key? A: Make sure the remote is aimed at your TV and is no further than 15 feet away. Also, make sure your digital set-top box or DTA is powered on and in plain sight. Q: Why does the All Power button flash red then green while I am programming my remote? A: You may have entered the wrong code. Check the code and try programming again. PAIRED REMOTE TROUBLESHOOTING Q: When paired, why does the All Power button flash green then red when pressing a button on the remote? A: The device you are paired with may not be powered on or you might be out of communication range. Make sure the device is powered on and move closer to the device. If this does not work, try re-pairing your remote by following the instructions in “Installing your digital set-top box or DTA out of sight.” Q: How can I tell which digital set-top box or DTA my remote control has been paired with? A: Once paired to a device, the remote will only work with that specific set-top box or DTA. Color-coded stickers have been included in the packaging to make it easier to quickly identify which device is paired with your remote. It’s simple to program your remote to control your TV. Here’s what your remote can do. Esto es lo que tu control remoto puede hacer. TV Power: Turns on/off your TV. All Power: One button to turn on/off both the TV and set-top box. VOL+/ – : Turns the volume up and down on the DTA or set-top box. After your remote is programmed, these keys operate the TV’s volume control. CH / : Selects the next higher or lower channel. Mute: Turns the sound on and off. Video Controls: Controls On Demand or DVR viewing, Play/Pause, Fast-Forward, Rewind and Exit/Stop. Replay: Jumps back 15 seconds within an On Demand or DVR program. Rec: Records content currently being viewed. Note: Some features above require a DVR set-top box and/or access to On Demand programming. Keypad (0-9): Select the channel you want to view (e.g., 0-9 or 0-2-6). XFINITY/Menu: Enters the on-screen guide menus. Guide: Shortcut to TV listings. OK: Selects the highlighted item within the guide. Last: Returns to the previous channel or guide screen. Info: Provides a description of a program. Exit/Stop: Exits guide screens and returns you to TV viewing. Setup: Programs your remote control to your TV, set-top box or DTA. A, B, C, D: Context-sensitive control keys used in advanced setups. Note: Some features above require an on-screen programming guide not available with all devices. SAVE YOUR TV CODE For future reference, write the valid manufacturer’s code for your TV here: ¡Disfruta de XFINITY ® TV ahora mismo! Programa tu control remoto para comenzar. XFINITY XR2 GUÍA DEL USUARIO para el control remoto Tu control remoto ya está programado para controlar tu caja decodificadora digital o DTA (adaptador de transporte digital). Para controlar las funciones de tu televisor (Power [encendido], VOL+, VOL – y Mute [silencio]), sigue los pasos a continuación: ASÍ ES COMO SE HACE: 1. Instala las baterías. 2. Localiza el código del fabricante de tu televisor (ver al dorso). 3. Enciende tu televisor y tu caja decodificadora digital o DTA (adaptador de transporte digital). 4. En tu control remoto, oprime y sostén el botón Setup (configurar) por tres segundos hasta que el botón All Power (todo encendido) cambie de rojo a verde. 5. Ingresa el primer código de fabricantes que encontraste en el segundo paso. El botón All Power se encenderá y apagará dos veces. 6. Oprime el botón TV Power en el control remoto. Si el televisor se apaga, quiere decir que el código ha sido aceptado. Vuelve a encender el televisor y asegúrate de que los botones VOL+/ – y Mute también estén func…

Text truncated - open the document above for the full version.

FCC NOTICE This equipment has been tested and found to comply with the limits for a Class B digi- tal device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not used in accordance with the instructions, may cause harmful interference to radio communica- tions. However, there is no guarantee that interfer- ence wil l not occur in a particular installa- tion. If this equipment does cause harmful interference to radio or television reception, the user is encouraged or try to correct the interference by one or more of the following measures: • Increase or decrease the separation between the equipment and receiver. • Consult the dealer or an experienced remote control/ TV technician for help. This equipment has been veried to com- ply with the limits for a Class B computing device, pursuant to FCC Rules. The user is cautioned that changes and modications made to the equipment without the approv- al of manufacturer could void the user's authority to operate this equipment. • Reorient or relocate the receiving antenna. • Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected • It is strongly recommended that the TV be plugged into a seperate wall outlet.

Report Number: B30219D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report Comcast XR2 RF4CE 2 Device 2013 Model: URC-4268BC1-XXXX-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 16 FCC PART 15 SUBPART B and C TEST REPORT for COMCAST XR2 RF4CE 2 DEVICE 2013 Model: URC-4268BC1-XXXX-R Prepared for UNIVERSAL ELECTRONICS, INC. 201 EAST SANDPOINTE AVENUE, 8 TH FLOOR SANTA ANA, CALIFORNIA 92707 Prepared by:_____________________ ALEX BENITEZ Approved by:____________________ KYLE FUJIMOTO COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: FEBRUARY 21, 2013 REPORT APPENDICES TOTAL BODY A B C D E PAGES 16 2 2 2 13 42 77 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B30219D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report Comcast XR2 RF4CE 2 Device 2013 Model: URC-4268BC1-XXXX-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 16 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration – Emissions 8 4.1.1 Cable Construction and Termination 8 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 9 5.1 EUT and Accessory List 9 5.2 Emissions Test Equipment 10 6. TEST SITE DESCRIPTION 11 6.1 Test Facility Description 11 6.2 EUT Mounting, Bonding and Grounding 11 6.3 Facility Environmental Characteristics 11 7. TEST PROCEDURES 12 7.1 RF Emissions 12 7.1.1 Conducted Emissions Test 12 7.1.2 Radiated Emissions (Spurious and Harmonics) Test 13 7.1.3 RF Emissions Test Results 15 8. CONCLUSIONS 16 Report Number: B30219D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report Comcast XR2 RF4CE 2 Device 2013 Model: URC-4268BC1-XXXX-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 16 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagram, Charts, and Photos  Test Setup Diagram  Antenna and Amplifier Factors  Radiated Emissions Photos E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of the Radiated Test Site Report Number: B30219D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report Comcast XR2 RF4CE 2 Device 2013 Model: URC-4268BC1-XXXX-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 16 GENERAL REPORT SUMMARY Compatible Electronics Inc. generates this electromagnetic emission test report, which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Comcast XR2 RF4CE 2 Device 2013 Model: URC-4268BC1- XXXX-R S/N: N/A Product Description: See Expository Statement Modifications: The EUT was not modified in order to meet the specifications. Customer: Universal Electronics, Inc. 201 East Sandpointe Avenue, 8 th Floor Santa Ana, California 92707 Manufacturer: Gemstar Technology Company, LTD. Gemstar Industrial Park, Shi Guang Road Number 45 Zhongcun Town, Panyu Guangdong Province, China 511495 Test Date(s): February 11 and 19, 2013 Test Specifications: Emissions requirements CFR Title 47, Part 15, Subpart B and Subpart C, Sections 15.205, 15.209, and 15.249 Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions 150 kHz to 30 MHz This test was not performed because the EUT operates on battery power. 2 Radiated RF Emissions 10 kHz to 25000 MHz (Transmitter and Digital Portion) Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.249. Report Number: B30219D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report Comcast XR2 RF4CE 2 Device 2013 Model: URC-4268BC1-XXXX-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 16 1. PURPOSE This document is a qualification test report based on t…

Text truncated - open the document above for the full version.

102 dB  V 92 dB  V 102 dB  V 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 0 dB A IN1 Unit dB  V P0 TDS Max/Ref Lvl SWT 50 ms Center 2.45 GHz5 ms/ 1VIEW1MA 10 20 30 40 50 60 70 80 90 2 102 1 1 Delta 1 [T1] 0.60 dB 2.104208 ms D1 74 dB  V D2 54 dB  V Date: 19.FEB.2013 08:38:09 Time of One Pulse for Acquisition Mode = 2.104208 mS 102 dB  V 92 dB  V 102 dB  V 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 0 dB A IN1 Unit dB  V P0 TDS Max/Ref Lvl SWT 200 ms Center 2.45 GHz20 ms/ 1VIEW1MA 10 20 30 40 50 60 70 80 90 2 102 1 1 Delta 1 [T1] -1.03 dB 2.805611 ms D1 74 dB  V D2 54 dB  V Date: 19.FEB.2013 08:35:28 Plot Showing the Pulse only Shows up Once per 100 mS in Acquisition Mode 102 dB  V 92 dB  V 102 dB  V 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 0 dB A IN1 Unit dB  V P0 TDS Max/Ref Lvl SWT 50 ms Center 2.45 GHz5 ms/ 1MA1VIEW 10 20 30 40 50 60 70 80 90 2 102 1 1 Delta 1 [T1] 1.70 dB 1.202405 ms D1 74 dB  V D2 54 dB  V Date: 19.FEB.2013 08:37:19 Time of One Pulse for Data Mode = 1.202405 mS 102 dB  V 92 dB  V 102 dB  V 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 0 dB A IN1 Unit dB  V P0 TDS Max/Ref Lvl SWT 200 ms Center 2.45 GHz20 ms/ 1VIEW1MA 10 20 30 40 50 60 70 80 90 2 102 1 1 Delta 1 [T1] -0.26 dB 1.603206 ms D1 74 dB  V D2 54 dB  V Date: 19.FEB.2013 08:36:12 Plot Showing the Pulse only Shows up Once per 100 mS in Data Mode Both modes are under 10% duty cycle so the maximum 20 dB peak to average ratio can be applied to the peak reading.
