MG3-J1TH024Smart Thermostat with WiFi and BLE

INSTALLATION INSTRUCTIONS Insert image of thermostat Designed in the USA. NOTE: Read the enƟre instrucƟon manual before starƟng the installaƟon. Mark QR AS FPO with Mobile Onboarding listed under the QR) TABLE OF CONTENTS PAGE SAFETY CONSIDERATIONS INTRODUCTION HOW TO CONNECT IN 3 EASY STEPS GET TO KNOW YOUR NEW CARRIER SMART THERMOSTAT INSTALLATION CONSIDERATIONS INSTALLATION SYSTEM START‐UP AND CHECKOUT ENTRY TIER THERMOSTAT SERVICE TECHNICIAN APP – INSTALLATION GUIDE OPERATIONAL INFORMATION TROUBLESHOOTING LIST OF WIRING DIAGRAMS WIRE DIAGRAMS SAFETY CONSIDERATIONS Read and follow manufacturer instrucƟons carefully. Follow all local electrical codes during installaƟon. All wiring must conform to local and naƟonal electrical codes. Improper wiring or installaƟon may damage Thermostat. Recognize safety informaƟon. This is the safety‐‐alert symbol ⚠. When you see this symbol on the equipment and in the instrucƟon manual, be alert to the potenƟal for personal injury. Understand the signal words DANGER, WARNING, and CAUTION. These words are used with the safety‐ ‐alert symbol. DANGER idenƟfies the most serious hazards which will result in severe personal injury or death. WARNING signifies a hazard which could result in personal injury or death. CAUTION is used to idenƟfy unsafe pracƟces which may result in minor personal injury or product and property damage. NOTE is used to highlight suggesƟons which will result in enhanced installaƟon, reliability, or operaƟon. WARNING – Contains Strong Magnets – Can Be Harmful to Pacemaker Wearers. Magnets Are Permanently Installed – Swallowing Risk If Removed. INTRODUCTION The Carrier 24V Smart Thermostat is a Wi‐Fi‐enabled programmable wall‐mounted, low‐voltage control. It includes an LED temperature display and 4 capaciƟve touch buƩons to control temperature setpoints and heaƟng/cooling/fan modes of operaƟon from the thermostat. Homeowners can remotely, via the Carrier Home app, set temperature as well as set daily/weekly programmable schedules with 4 comfort profiles ‐ home/sleep/wake/away. The Smart Thermostat offers a simplisƟc, smartphone‐like feel and easy snap on/snap off removal from the backplate thanks to its patent‐pending design. HOW TO CONNECT IN 3 EASY STEPS CONTRACTORS 1. Download and open the Carrier Service Technician App from the App Store or Google Play. 2. Select Connect to Equipment and then Smart Thermostat. 3. Follow the guided thermostat configuraƟon instrucƟons . HOMEOWNERS 1. Download the Carrier Home App from the App Store or Google Play and create an account 2. Select Add New Device and then Smart Thermostat. Follow the guided setup instrucƟons to connect to your Wi‐Fi network. GET TO KNOW YOUR NEW CARRIER SMART THERMOSTAT INSTALLATION CONSIDERATIONS Power This Thermostat is powered by 24VAC only. It requires 24VAC (Rh and/or Rc and C terminals) of the low‐ voltage transformer to be connected to it for proper operaƟon. It will not operate without these 2 connecƟons. Rh and Rc are connected via the shunt jumper (see Fig. 1). For applicaƟons using two 24VAC transformers, one in the indoor unit and one in the outdoor unit, remove the shunt jumper (Fig. 1). Connect the common from each to the C terminal. Connect R from the indoor unit to the Rh terminal. Connect R from the outdoor unit to the Rc terminal. The W signals are taken from the Rh power and the Y signal is taken from the Rc power. If Thermostat has been installed in a two—transformer applicaƟon that is later changed to a single—transformer installaƟon, installer must install a field supplied jumper between Rc and Rh. Fig. 1 – Shunt Jumper Accessory Output and ConnecƟons This thermostat is equipped with a dry contact output for the management of humidifiers, dehumidifiers and venƟlaƟon equipment. The 2 terminals are both labeled as ACC. The dry contact output must be configured for the management of either one of them. VenƟlaƟon/ERV/HRV FuncƟon will be acƟvated for the % on Ɵme configured, using a cycle rate of 1h. For example, if it is set to 50%, funcƟon will be acƟve for the first 30min and inacƟve for the next 30min. If the difference in temperature is larger than the defined max indoor/outdoor temp delta, the funcƟon will never acƟvate. If the outdoor temperature is not available, the thermostat will sƟll follow the percent on Ɵme, disregarding the max delta parameter. Humidifier Control will be based on a setpoint (which will trigger the acƟvaƟon of the funcƟon) and a pre‐defined hysteresis of 5% above the setpoint. If humidifier with acƟve heat opƟon is selected, the humidifier will only be acƟvated when the heat is running, regardless of the humidifier setpoint. Dehumidifier Control will be based on a setpoint (which will trigger the acƟvaƟon of the funcƟon) and a hardcoded hysteresis of 5% below the setpoint. If dehumidifier with fan opƟon is selected, the dehumidifier will only be acƟvated when the fan is running, regardless of the dehumidifier setpoint. INSTALLATION ⚠ CAUTION UNIT DAMAGE HAZARD Failure to follow the recommended wiring pracƟces could result in damage to the wall control and personal property. Improper wiring or installaƟon may damage the thermostat. Check to make sure wiring is correct before proceeding with installaƟon or turning on power. InstallaƟon Notes:  No part of the Thermostat should be installed directly outdoors or in a cabinet outdoors.  Never remove the thermostat board from the plasƟc housing. Doing so could warp and damage the components on the board.  The mounƟng plate should be mounted to the wall before wires are aƩached.  During thermostat installaƟon, provide sufficient excess wiring behind the mounƟng plate. Coil the wiring, creaƟng a service loop, and place in mounƟng box or behind the wall to remove strain against the terminal strip. GiŌbox contains the following components: 1. Thermostat 2. Anchors and screws 3. Warranty card 4. InstallaƟon instrucƟons 5. OpƟonal wall plate Thermostat LocaƟon Thermostat should be m…

Text truncated - open the document above for the full version.

120623-17 rev 9 Certification Application Attestation Statements Date: April 4, 2024 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) _Universal Electronics Inc.______ certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) _Universal Electronics Inc.______ (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is / X - is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates – see KDB 986446 Question 5) as an entity producing “covered” equipment. Thank you, By: _Jesse Mendez_ (Signature 2 ) (Print name) Title: _____Staff Engineer, Electrical__ Company: ____Universal Electronics Inc,________ Telephone: 714 918-9701_ 1 ‐ The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters must be placed on appropriate letterhead.

092723-17 Rev 9 U.S. Agent Designation for Service of Process (Applicant is Both Grantee and U.S. Agent) TO: American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information This letter is to confirm that the Applicant will also serve as the U.S. Agent for Service of Process as required by 47 CFR 2.911(d)(7). The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The Applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information changes. Applicant Company name: Universal Electronics Inc. FRN #: 0007413982 Grantee Code: MG3 Contact Name: Jesse Mendez Street Address: 15147 North Scottsdale Road, Suite H300 City/Province/Zip: Scottsdale, Arizona 85254 Telephone No: 714 918-9701 Email: [email protected] Applicant Signature 2 : Date: 2024.04.04 Signed by (Printed Name/Title): Staff Engineer, Electrical 2 - Letters must be placed on appropriate letterhead. The signee for the applicant must be one of the following: Applicant (grantee) contact of record in the FCC’s authorization system, or authorized officers or employee of the applicant (grantee).

050222-17 Authority to Act as Agent Date: April 4, 2024 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: ___Compatible Electronics Inc.______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: __2025.04.04_____ By: _ __Jesse Mendez____ (Signature 1 ) (Print name) Title: _Staff Engineer, Electrical__ On behalf of: __Universal Electronics Inc. (Company Name) Telephone: __714 918-9701_ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

050222-17 Request for Confidentiality Date: May 1, 2024 Subject: Confidentiality Request for: _FCC ID: MG3-J1TH024 IC: 2575A-J1TH024______ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and/or IC RSP-100, Section 12.4, the applicant requests that a part of the subject application(s) be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☐ Short Term --------------------------- External Photos ☐ Short Term ☐ Permanent * 1 Internal Photos ☐ Short Term ☒ Permanent Operation Description/Theory of Operation ☐ Short Term ☐ Permanent Parts List & Placement/BOM ☐ Short Term ☐ Permanent Tune-Up Procedure ☐ Short Term ☒ Permanent Schematics ☐ Short Term --------------------------- Test Setup Photos ☐ Short Term ☐ Permanent * 1 User’s Manual ___Universal Electronics Inc.______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality for FCC Applications: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __ (2024.10.04) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Short Term Confidentiality for Industry Canada Applications: Starting May 2022, ISED will recognize short term confidentiality on certain exhibits until the intended date of marketing. The applicant requests the exhibits selected above as short term confidential be withheld from public view until: (2024.10.04) . Sincerely, By: __ _Jesse Mendez_ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to https://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

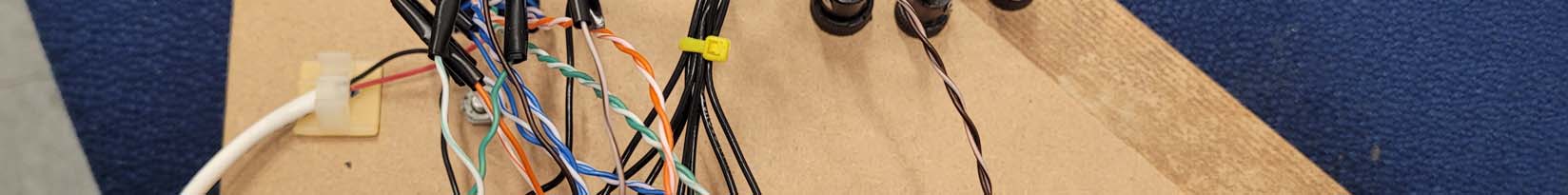

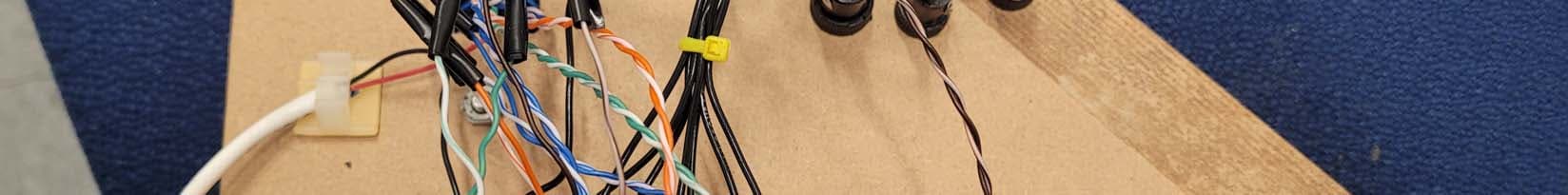

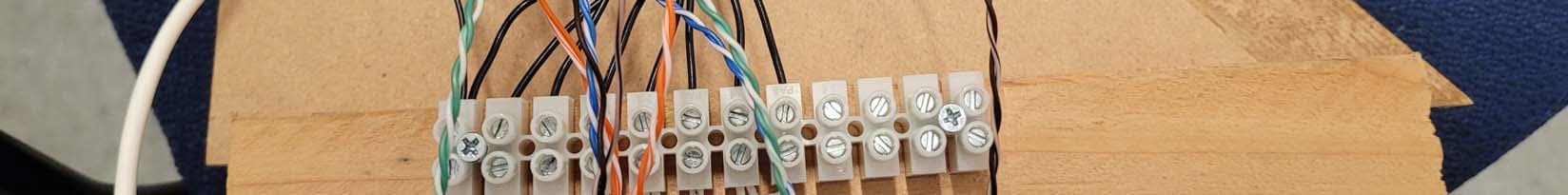

Top View of the EUT Bottom View of the EUT Side View #1 of the EUT Side View #2 of the EUT Side View # 3 of the EUT Side View # 4 of the EUT Mounting Device - Front ViewNote: Only used for testing and is not part of the EUT Mounting Device - 3eBr ViewNote: Only used for testing and is not part of the EUT

GEMSTAR TECHNOLOGY (YANGZHOU) CO.,LTD. (WHOLLY OWNED BY C.G. DEVELOPMENT LTD.) DRAWDATETITLE CHKD.DATE MATERIALSURFACE FINISHING APPD.DATE MODELDWG NOREV A1 P/N SIZE A4 SCALE 1:1 SHEET 1 OF 1 REVDESCRIPTIONDATENAME A1 NEW RELEASE 02/21/2024 GX PAN PRODUCT QR LABEL CARRIER ENTRY LEVEL THERMOSTAT CG-83696 SCALE 1:4 NOTES: 1.MATERIAL: FASSON 2MIL MATT WITH POLYESTER NTC/S33/BG100 #WIHTE (TOTAL THICKNESS 0.18mm) 2.ADHESIVE TYPE: PRESSURE SENSITIVE FASSON-S450 OR APPROVED EQUIVALENT. 3.LINE TOLERANCE ±0.20MM 4.MATERIAL COLOR:PANTONE WHITE ; INK COLOR:PURE BLACK 5.MATTE FINISH. 6.THE PRINTING POSITION DEVIATION SHOUBE BE WITHIN ±0.50MM 47006-0503750 MATERIAL INSPECTION BLACK PRINTING BY PD 61.00 53.00 29.00 29.00 41.00 38.50 R1.00(6X) C5 C3 FACTORY CODE LAST TWO DIGITS OF YEAR IT WAS PRODUCED. WEEK # OF YEAR PRODUCED. REVISION LEVEL OF THE LATEST ENGINEERING BOM. UEI DATE CODE e.g: Z240101 (THE RULE REFER TO SPEC00003) FACTORYUVN (UEI Vietnam) YEAR 2024 WEEK 01 BOM REVISION 01 7 6 . 5 M A X 110 LABEL LOCATION PRINTING FONT: ARIAL , 1.5MM HEIGHT S/N=WI-FI MAC ADRESS, e.g: 40B31E5B90B2 means the device Wi- Fi MAC adress is 40:B3:1E:5B:90:B2 XXXXXXX (UEI DATA CODE) QR CODE SIZE ≥ 10*10mm QR CODE FORMAT : DEVICE WI-FI MAC ADRESS , e.g: 40B31E5B90B2 QR CODE SIZE ≥ 10*10mm QR CODE FORMAT : DEVICE MATTER ID, e.g: E525198 Room Thermostat 24Vac Class 2 Model: TSTATCCEWF-01 S/N: XXXXXXXXXXXX P/N: J1TH024XXX-XXXXX FCC ID: MG3-J1TH024 IC: 2575A-J1TH024 Made in Vietnam Designed in USA Smart Home Mobile Onboarding Pat. https://www.corporate.carrier.com/patents/ E525198 Room Thermostat 24Vac Class 2 FCC ID: MG3-J1TH024 IC: 2575A-J1TH024 Made in Vietnam Designed in USA Smart Home Mobile Onboarding Pat. https://www.corporate.carrier.com/patents/ E525198 Room Thermostat 24Vac Class 2 FCC ID: MG3-J1TH024 IC: 2574A-J1TH024 Made in Vietnam Designed in USA Smart Home Mobile Onboarding Pat. https://www.corporate.carrier.com/patents/ E525198 Room Thermostat 24Vac Class 2 FCC ID: MG3-J1TH024 IC: 2574A-J1TH024 Made in Vietnam Designed in USA Smart Home Mobile Onboarding Pat. https://www.corporate.carrier.com/patents/ E525198 Room Thermostat 24Vac Class 2 FCC ID: MG3-J1TH024 IC: 2574A-J1TH024 Made in Vietnam Designed in USA Smart Home Mobile Onboarding Pat. https://www.corporate.carrier.com/patents/ E525198 Room Thermostat 24Vac Class 2 Model: TSTATXXXXX-01 S/N: XXXXXXXXXXXX P/N: J1TH024XXX-XXXXX XXXXXXX FCC ID: MG3-J1TH024 IC: 2574A-J1TH024 Made in Vietnam Designed in USA Smart Home Mobile Onboarding Pat. https://www.corporate.carrier.com/patents/

Inside View of the EUT Top View of the PCB for the EUT Top View of the PCB - Closeup #1 Top View of the PCB - Closeup #2 Top View of the PCB - Closeup #3 Top View of the PCB - Closeup #4 Top View of the PCB - Closeup #5 Top View of the PCB - Closeup #6 Top View of the PCB - Closeup #7 Top View of the PCB - Closeup #8 Bottom View of the PCB for the EUT Bottom View of the PCB for the EUT - View #2 Bottom View of the PCB - Closeup #1 Bottom View of the PCB - Closeup #2 Bottom View of the PCB - Closeup #3 Bottom View of the PCB - Closeup #4

= where: S = transmitter operating variables: must be blank if dB values are entered P = = 19.87 (dBm) - or - (mW) 7 G = = 1.9 (dBi) - or - (numeric gain) R = = (cm) ( PG)/(4*R 2 *  ) = (mW/cm 2 ) 97.05099672 1.54882 20 (mw) (gain) (cm) () / ( 4* *  3 ) = (mW/cm 2 ) () / ( ) = (mW/cm 2 ) S 5026.548246 POWER DENSITY ESTIMATIONS BASED ON POWER OUTPUT, ANTENNA GAIN, AND DISTANCE FROM ANTENNA maximum power density (mW/cm 2 ) (mW/cm 2 ) ) = 2 *  / 20 ( ( P G ) / ( 4 R 2  ) power input to the antenna --------------------------------- >> gain of the antenna - worst case -------------------------- >> distance to the center of the radiation of the antenna -- >> 3.1 150.3141966 0.029904 SSS 150.3141966 ) 400 (4* Note: The power input to the antenna is the maximum target level plus a 1.0 dB tune up tolerance

NOTE:ThisdocumentisissuedbyShenzhenMorlabCommunicationsTechnologyCo.,Ltd.,thetestreportshallnotbereproducedexceptin fullwithoutpriorwrittenpermissionofthecompany.Thetestresultsapplyonlytotheparticularsample(s)testedandtothespecifictestscarried outwhichisavailableonrequestforvalidationandinformationconfirmedatourwebsite. MORLAB ShenzhenMorlabCommunicationsTechnologyCo.,Ltd.,FL.1-3,BuildingA, FeiYangSciencePark,No.8LongChangRoad,Block67,BaoAnDistrict, ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page1of 27 REPORTNo.：SZ23080146E01 TESTREPORT APPLICANT:GemstarTechnology(Yangzhou)Co.Ltd PRODUCTNAME: Thermostat MODELNAME: CarrierEntryLevelandICPThermostat2024 TRADENAME:N/A BRANDNAME:N/A STANDARD(S):IEEEStd149-2021 RECEIPTDATE:2023-08-16 TESTDATE:2023-08-16 ISSUEDATE:2023-08-18 Editedby: FangJinshan(Rapporteur) Approvedby: ChiShide(Supervisor) MORLAB ShenzhenMorlabCommunicationsTechnologyCo.,Ltd.FL.1-3,BuildingA, FeiYangSciencePark,No.8LongChangRoad,Block67,BaoAnDistrict, ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page2of27 REPORTNo.：SZ23080146E01 DIRECTORY 1.TechnicalInformation ·········································································································3 1.1.ApplicantandManufacturerInformation ······································································3 1.2.EquipmentUnderTest(EUT)Description····································································3 2.TestResults··························································································································4 2.1.AppliedReferenceDocuments·······················································································4 2.2.TestConditions·················································································································4 2.3.MeasurementUncertainty·······························································································4 2.4.TestResultslists··············································································································5 AnnexATestSetupPhotos···································································································6 AnnexBFigures ······················································································································7 1.2DRadiationPattern ·············································································································7 2.3DRadiationPattern ···········································································································12 AnnexCEUTPhotos ············································································································15 AnnexDGeneralInformation ······························································································27 1.1IdentificationoftheResponsibleTestingLaboratory··············································27 1.2IdentificationoftheResponsibleTestingLocation··················································27 1.3TestEquipmentsUtilized·······························································································27 ChangeHistory VersionDateReasonforchange 1.02023-08-18Firstedition MORLAB ShenzhenMorlabCommunicationsTechnologyCo.,Ltd.FL.1-3,BuildingA, FeiYangSciencePark,No.8LongChangRoad,Block67,BaoAnDistrict, ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page3of27 REPORTNo.：SZ23080146E01 1.TechnicalInformation Note:ProvidebyApplicant. 1.1.ApplicantandManufacturerInformation Applicant: GemstarTechnology(Yangzhou)Co.Ltd ApplicantAddress: Room606,Guofabuilding,#3110RenminRoad, Suzhou,JiangsuProvince,China Manufacturer:N/A ManufacturerAddress:N/A 1.2.EquipmentUnderTest(EUT)Description WirelessType N/A Frequency 2400MHz-2500MHz IMEI N/A SampleNo. 1#&2# MORLAB ShenzhenMorlabCommunicationsTechnologyCo.,Ltd.FL.1-3,BuildingA, FeiYangSciencePark,No.8LongChangRoad,Block67,BaoAnDistrict, ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page4of27 REPORTNo.：SZ23080146E01 2.TestResults 2.1.AppliedReferenceDocuments Leadingreferencedocumentsfortesting: No.IdentityDocumentTitle 1IEEEStd149-2021 IEEERecommendedPracticeforAntenna Measurements 2.2.TestConditions TestEnvironmentConditions ： RelativeHumidity(%):25-75 Temperature(°C):10-30 2.3.MeasurementUncertainty Theuncertaintyiscalculatedusingthemethodssuggestedinthe"GuidetotheExpressionof UncertaintyinMeasurement"(GUM)publishedbyISO.Whenthetestresultisacriticalvalue,we willusethemeasurementuncertaintygivethejudgmentresultbasedonthe95%Confidence intervals. MORLAB ShenzhenMorlabCommunicationsTechnologyCo.,Ltd.FL.1-3,BuildingA, FeiYangSciencePark,No.8LongChangRoad,Block67,BaoAnDistrict, ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page5of27 REPORTNo.：SZ23080146E01 2.4.TestResultslists 2.4.1.GainandEfficiency Frequency (MHz) Gain(dBi)Efficiency(%)Efficiency(dB) 1#2#1#2#1#2# 24001.821.5370.6073.24-1.51-1.35 24051.841.5472.3274.80-1.41-1.26 24101.761.4970.4672.81-1.52-1.38 24151.701.4568.9271.14-1.62-1.48 24201.701.4169.9872.04-1.55-1.42 24251.681.4268.5370.37-1.64-1.53 24301.621.4068.2169.82-1.66-1.56 24351.671.4368.1069.74-1.67-1.57 24401.791.5569.1270.51-1.60-1.52 24451.821.5369.2570.51-1.60-1.52 24501.841.6167.9469.27-1.68-1.59 24551.901.6468.6369.88-1.63-1.56 24601.881.6368.1169.24-1.67-1.60 24651.821.5966.1067.28-1.80-1.72 24701.761.5365.9467.18-1.81-1.73 24751.681.4565.5866.63-1.83-1.76 24801.601.3464.1465.20-1.93-1.86 24851.521.2963.8064.82-1.95-1.88 24901.471.2163.6464.56-1.96-1.90 24951.551.2064.0964.91-1.93-1.88 25001.531.2064.1964.97-1.93-1.87 MORLAB ShenzhenMorlabCommunicationsTechnologyCo.,Ltd.FL.1-…

Text truncated - open the document above for the full version.

Report Number: B31222D1 FCC Part 15 Subpart B and C; FCC Section 15.247; and RSS-247 and RSS-GEN Test Report Carrier Entry Level and ICP Thermostat 2024 Model: TSTATCCEWF-01 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Page 1 of 27 FCC PART 15, SUBPART B and C; FCC 15.247; RSS-247 and RSS-GEN TEST REPORT for CARRIER ENTRY LEVEL AND ICP THERMOSTAT 2024 MODEL: TSTATCCEWF-01 Prepared for UNIVERSAL ELECTRONICS, INC. 201 EAST SANDPOINTE AVE SANTA ANA, CALIFORNIA 92707 Prepared by:_____________________ JAMES ROSS Approved by:____________________ KYLE FUJIMOTO COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: FEBRUARY 1, 2023 REPORT APPENDICES TOTAL BODY A B C D E PAGES 27 2 2 2 16 263 312 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B31222D1 FCC Part 15 Subpart B and C; FCC Section 15.247; and RSS-247 and RSS-GEN Test Report Carrier Entry Level and ICP Thermostat 2024 Model: TSTATCCEWF-01 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Page 2 of 27 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE6 1.1 Decision Rule & Risk 7 2. ADMINISTRATIVE DATA8 2.1 Location of Testing 8 2.2 Traceability Statement 8 2.3 Cognizant Personnel 8 2.4 Date Test Sample was Received 8 2.5 Disposition of the Test Sample 8 2.6 Abbreviations and Acronyms 8 3. APPLICABLE DOCUMENTS9 4. DESCRIPTION OF TEST CONFIGURAT ION10 4.1.1 Cable Construction and Termination11 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT12 5.1 EUT and Accessory List 12 5.2 Emissions Test Equipment 13 6. TEST SITE DESCRIPTION14 6.1 Test Facility Description 14 6.2 EUT Mounting, Bonding and Grounding 14 6.3 Measurement Uncertainty 14 7. CHARACTERISTICS OF THE TRANSMITTER15 7.1 Channel Description and Frequencies 15 7.2 Antenna Gain 15 8. TEST PROCEDURES16 8.1 RF Emissions 16 8.1.1 Conducted Emissions Test 16 8.1.2 Radiated Emissions Test 17 8.1.3 RF Emissions Test Results 19 8.1.4 Sample Calculations 20 8.2 DTS Bandwidth 22 8.3 Maximum Peak Conducted Output Power – BLE Mode 22 8.4 Maximum Peak Conducted Output Power – WiFi Mode 23 8.5 Emissions in Non-Restricted Bands 23 8.6 RF Band Edges 24 8.7 Spectral Density Test 25 8.8 99 % Bandwidth 25 8.9 Variation of the Input Power 26 9. CONCLUSIONS27 Report Number: B31222D1 FCC Part 15 Subpart B and C; FCC Section 15.247; and RSS-247 and RSS-GEN Test Report Carrier Entry Level and ICP Thermostat 2024 Model: TSTATCCEWF-01 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0 500 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0 400 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4 044 Page 3 of 27 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams and Charts x Test Setup Diagrams x Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Layout of the Semi-Anechoic Test Chamber LIST OF TABLES TABLE TITLE 1 Conducted Emissions Test Results 2 Radiated Emissions Test Results Report Number: B31222D1 FCC Part 15 Subpart B and C; FCC Section 15.247; and RSS-247 and RSS-GEN Test Report Carrier Entry Level and ICP Thermostat 2024 Model: TSTATCCEWF-01 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Page 4 of 27 GEN ERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product certification, approval or endorsement by NVLAP, NIST or any agency of the federal government. Device Tested: Carrier Entry Level and ICP Thermostat 2024 Model: TSTATCCEWF-01 S/N: Unit 4 Product Description: The EUT is a smart thermostat that is a custom basic thermostat . The clock oscillator is 40 MHz. Dimensions: 2.1 cm (L) x 8.8cm (W) x 12.9 cm (H). Modifications: The EUT was not modified to meet the specifications. Customer: Universal Electronics, Inc. 15147 North Scottsdale Road, Suite H300 Scottsdale, Arizona 85254 Test Dates: December 11, 12, 13, 20, 21, and 22, 2023 Test Specifications covered by accreditation: Test Specifications : Emissions requirements CFR Title 47, Part 15, Subpart B; CFR Title 47, Part 15, Subpart C, sections 15.205, 15.207, 15.209, and 15.247; RSS-247 and RSS-Gen Test Procedures: ANSI C63.4 and ANSI C63.10 Test Deviations: The test procedure was not deviated from during the testing. Report Number: B31222D1 FCC Part 15 Subpart B and C; FCC Section 15.247; and RSS-247 and RSS-GEN Test Report Carrier Entry Level and ICP Thermostat 2024 Model: TSTATCCEWF-01 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 57 9-0 500 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 58 7-0 400 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 48 0-4 044 Page 5 of 27 SUMMARY OF …
